序号 料号 部品名称 数量 规格 备注
035 NB16805033AA PLATE 1
036 NB16805020AA PULLEY 1
037 NB16805021AA PULLEY 1
038 NB16896XLAA BELT 1 96XL-H10
039 NB1684IK25AA MOTOR 1 41K25GN-C
040 NB168GH4GNAA GEAR HEAD 1 4GN-7.5K
041 NB168699ZZAA BEARING 1 699ZZ
X001 NB168SH0308 ROUND HEAD SCREW 4 M3-L8
X002 NB168SH0550 SOKET HEAD CAP SCREW 4 M5-L50
X003 NB168SH0820 SOKET HEAD CAP SCREW 2 M8-L20
X004 NB168SS0405 SUNK SCREW 2 M4-L5
X005 NB168SH0516 SOKET HEAD CAP SCREW 4 M5-L16
X006 NB168FG0307 FLAT WASHER 4 3-7-H0.5
X007 NB168HEX05 HEXAGON NUT 1 M5
5 LOADER SECT.(P.C.B SINGLE RIGHT TO LEFT.-4)
N32
序号 料号 部品名称 数量 规格 备注
041 NB16805022AA SHAFT 2
042 NB16805023AA SHAFT 1
043 NB16805034AA PLATE 1
X001 NB168SH0820 SOKET HEAD CAP SCREW 4 M8-L20
X002 NB168SH0410 SOKET HEAD CAP SCREW 1 M4-L10
X003 NB168FG0412 FLAT WASHER 1 4-12-H1.5

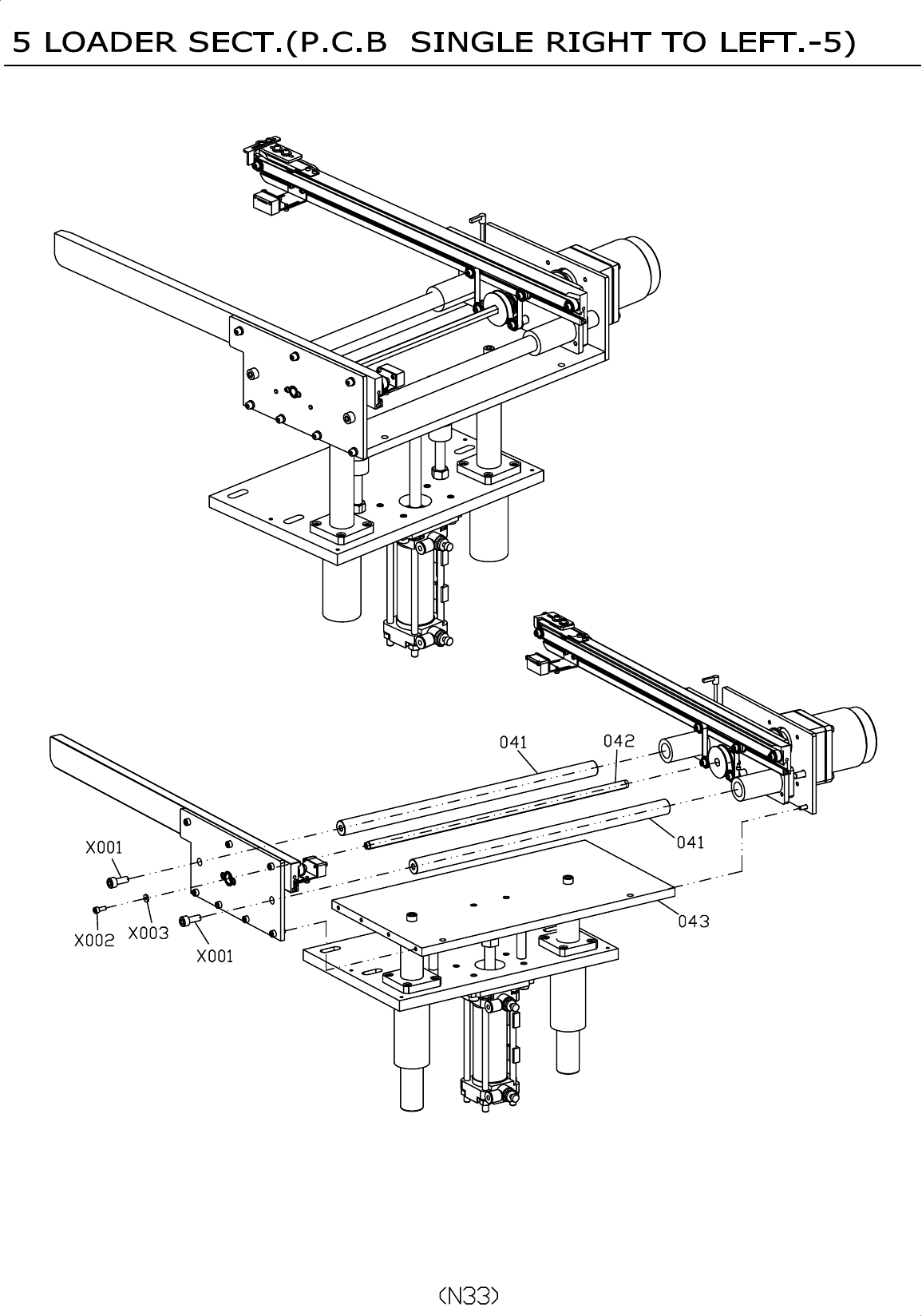

5 LOADER SECT.(P.C.B SINGLE RIGHT TO LEFT.-5)
N34
