序号 料号 部品名称 数量 规格 备注
015 NB16806013AA COVER 1
016 NB16806014AA COVER 1
017 NB16806015AA COVER 1
018 NB16806K25AA GAS SPRING 2
019 NB16806016AA HINGE 3
020 NB16806019AA STOPPER 2
021 NB16806018AA SWITCH 2 YW1B-V4EE01R
022 NB16806069AA WINDOW PLATE 1
023 NB16806070AA WINDOW PLATE 1
X001 NB168PH0610 ROUND HEAD SCREW 16 M6-L10
X002 NB168GS0612 FLAT SCREW 18 M6-L12
X003 NB168SH0525 SOKET HEAD CAP SCREW 2 M5-L25

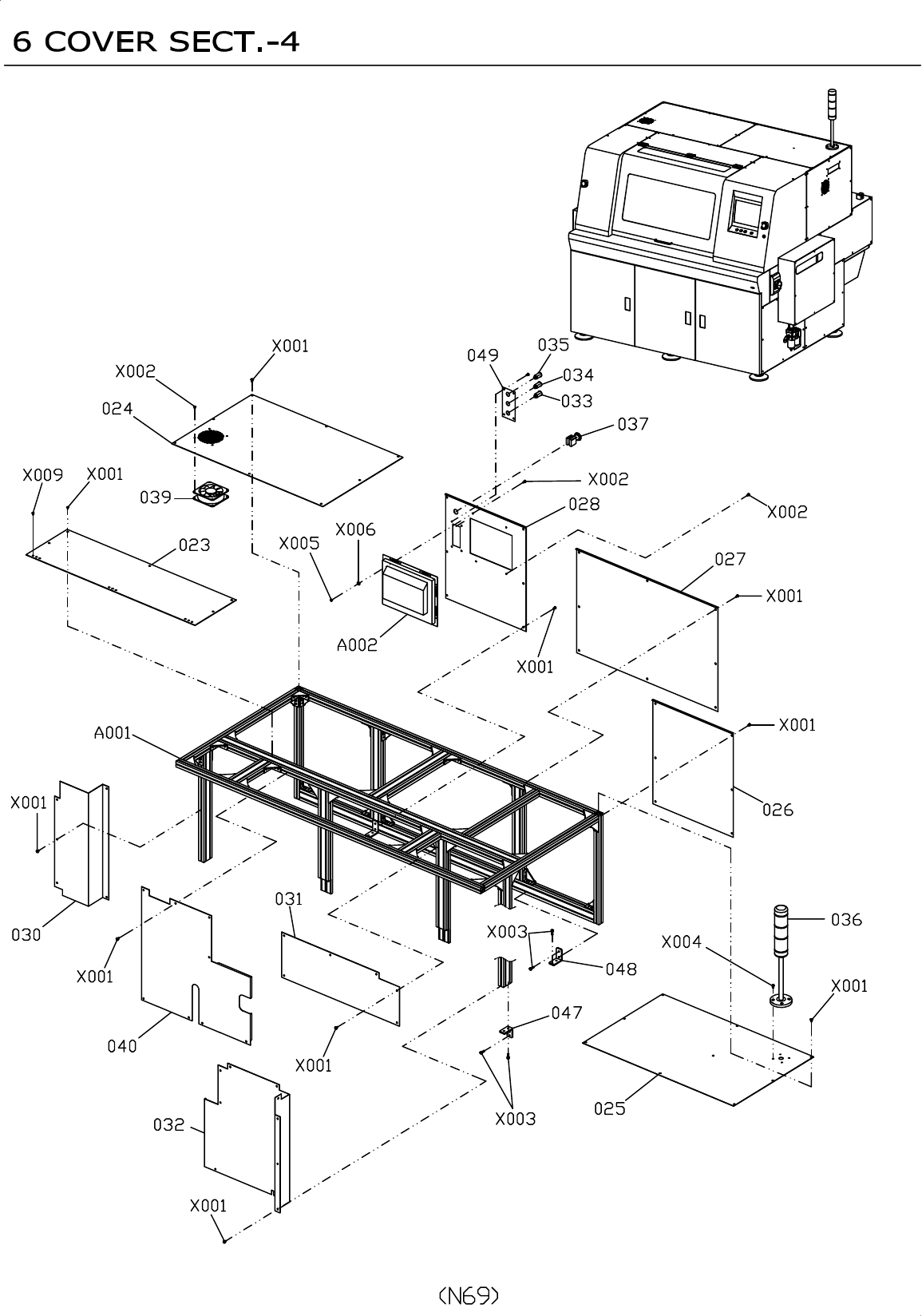

6 COVER SECT.-3
N68
序号 料号 部品名称 数量 规格 备注
A001 NB16806001AA FRAME 1
A002 NB168SC121QAA DISPLAYER（OPTION） 1 SC-121Q(800-600)
023 NB16806020AA COVER 1
024 NB16806021AA COVER 1
025 NB16806022AA COVER 1
026 NB16806023AA COVER 1
027 NB16806024AA COVER 1
028 NB16806025AA COVER 1
030 NB16806027AA COVER 1
040 NB16806056AA COVER 1
031 NB16806060AA COVER 1
032 NB16806029AA COVER 1
033 NB16806030AA START BUTTON 1
034 NB16806031AA STOP BUTTON 1
035 NB16806032AA RESET BUTTON 1
036 NB16806033AA SIGNAL LAMP 1
037 NB16806018AA SWITCH 1
039 NB168SJHA2AA FAN WITH MOTOR 1
047 NB16806058AA BRACKET 2
048 NB16806061AA BRACKET 2
049 NB16806068AA COVER 1
X001 NB168PH0610 ROUND HEAD SCREW 74 M6-L10
6 COVER SECT.-4
X001 NB168PH0610 ROUND HEAD SCREW 74 M6-L10
X002 NB168PH0508 ROUND HEAD SCREW 4 M5-L8
X003 NB168SH0616 SOKET HEAD CAP SCREW 8 M6-L16
X004 NB168SH0508 SOKET HEAD CAP SCREW 4 M5-L8
X005 NB168HEX05 HEXAGON NUT 4 M5
X006 NB168FG0515 FLAT WASHER 4 5-15-H2
X007 NB168GS0612 FLAT SCREW 18 M6-L12
X008 NB168PH0306N
SOCKET HEAD ROUND HEAD NUT
4 M3-L6
X009 NB168GS0612 FLAT SCREW 18 M6-L12
