NB168-Parts List 配件手册 - 第96页
序号 料号 部品名称 数量 规格 备注 058 NB168AB3CAA ROTARY ENCODER 1 E6F-AB3C 059 NB16807048AA CAM 1 060 NB16807049AA CAM 1 061 NB16807050AA CAM 1 062 NB16807051AA CAM 1 063 NB16807052AA CAM 1 064 NB16807053AA CAM 1 065 NB16807054AA CAM…
序号 料号 部品名称 数量 规格 备注
058 NB168AB3CAA ROTARY ENCODER 1 E6F-AB3C
059 NB16807048AA CAM 1
060 NB16807049AA CAM 1
061 NB16807050AA CAM 1
062 NB16807051AA CAM 1
063 NB16807052AA CAM 1
064 NB16807053AA CAM 1
065 NB16807054AA CAM 1
066 NB16820013AA KEY 1
067 NB168T6368AA PULLEY 1
068 NB16807057AA CAM BOX 1
069 NB16807058AA FLANGE 1
070 NB16807059AA KEY 2
071 NB16807060AB SHAFT 1
072 NB168W50E07AA REDUCTION GEAR 1 SW50E07LF-ST2
073 NB168D0425AA WASHER 1
074 NB16807062AA WASHER 1
075 NB168FU4SCAA LOCK-NUT 1 FU04SC
076 NB16807063AA KEY 1
077 NB168FU07SSAA NUT 1 FU07SS (M35X1.5)
078 NB1686007ZZAA BALL BEARING 1 6007ZZ
079 NB168GC1010AA COUPLING 1 GC-28.5X38-10X10

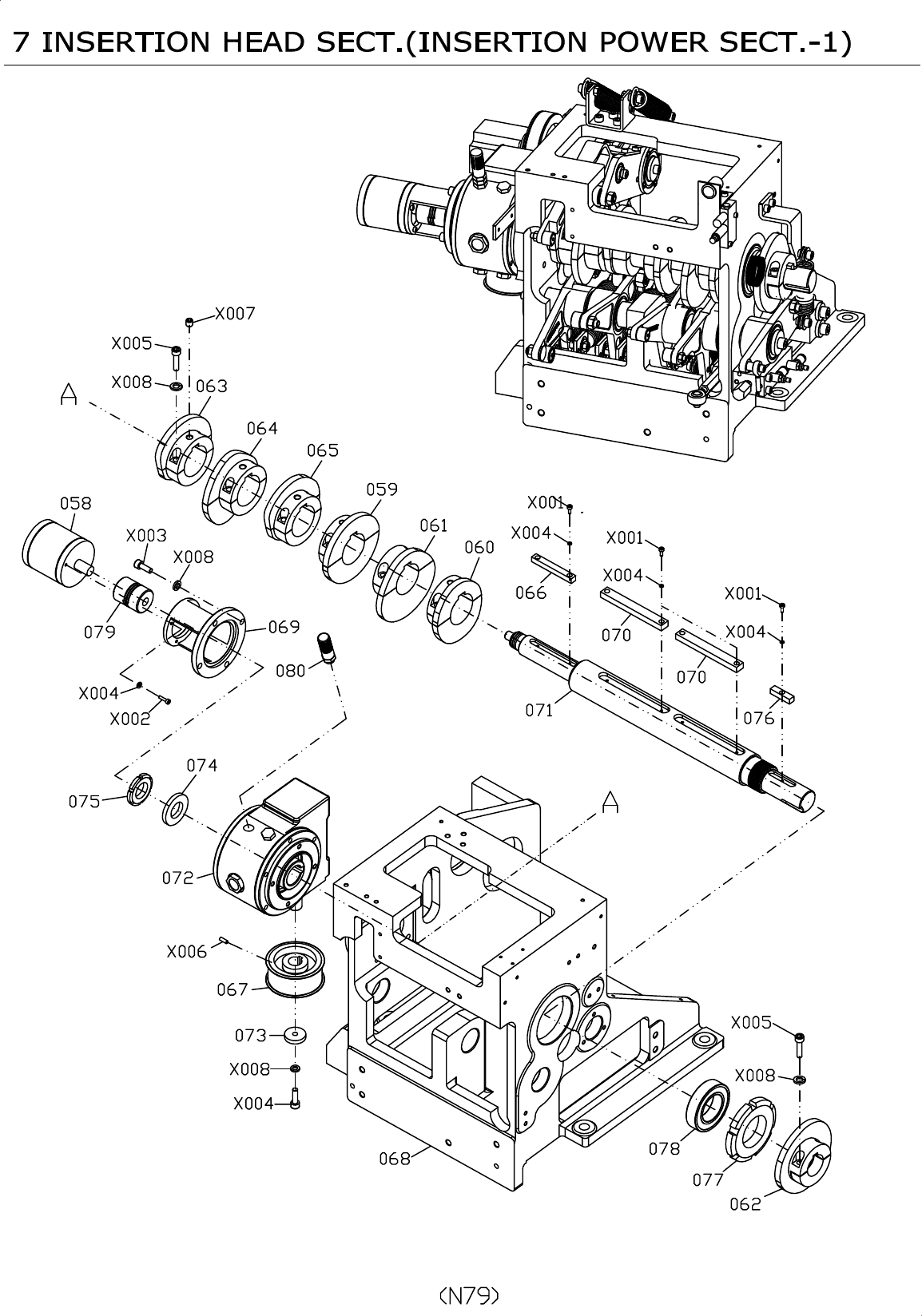

7 INSERTION HEAD SECT.(INSERTION POWER SECT.-1)
079 NB168GC1010AA COUPLING 1 GC-28.5X38-10X10
080 NB16807157AA FITTING 1 KS-1/4
X001 NB168SH0310 SOKET HEAD CAP SCREW 7 M3-L10
X002 NB168SH0312 SOKET HEAD CAP SCREW 4 M3-L12
X003 NB168SH0620 SOKET HEAD CAP SCREW 5 M6-L20
X004 NB168SW03 SPRING WASHER 11 3-4-H1.0
X005 NB168SH0630 SOKET HEAD CAP SCREW 14 M6-L30
X006 NB168SS0506 SUNK SCREW 2 M5-L6
X007 NB168SS0808 SUNK SCREW 6 M8-L8
X008 NB168SW06 SPRING WASHER 19 6-9.5-H1.6
N80
