HS Preventive Maintenance 7 4-monthly maintenance jobs
01/2006 US Edition
51

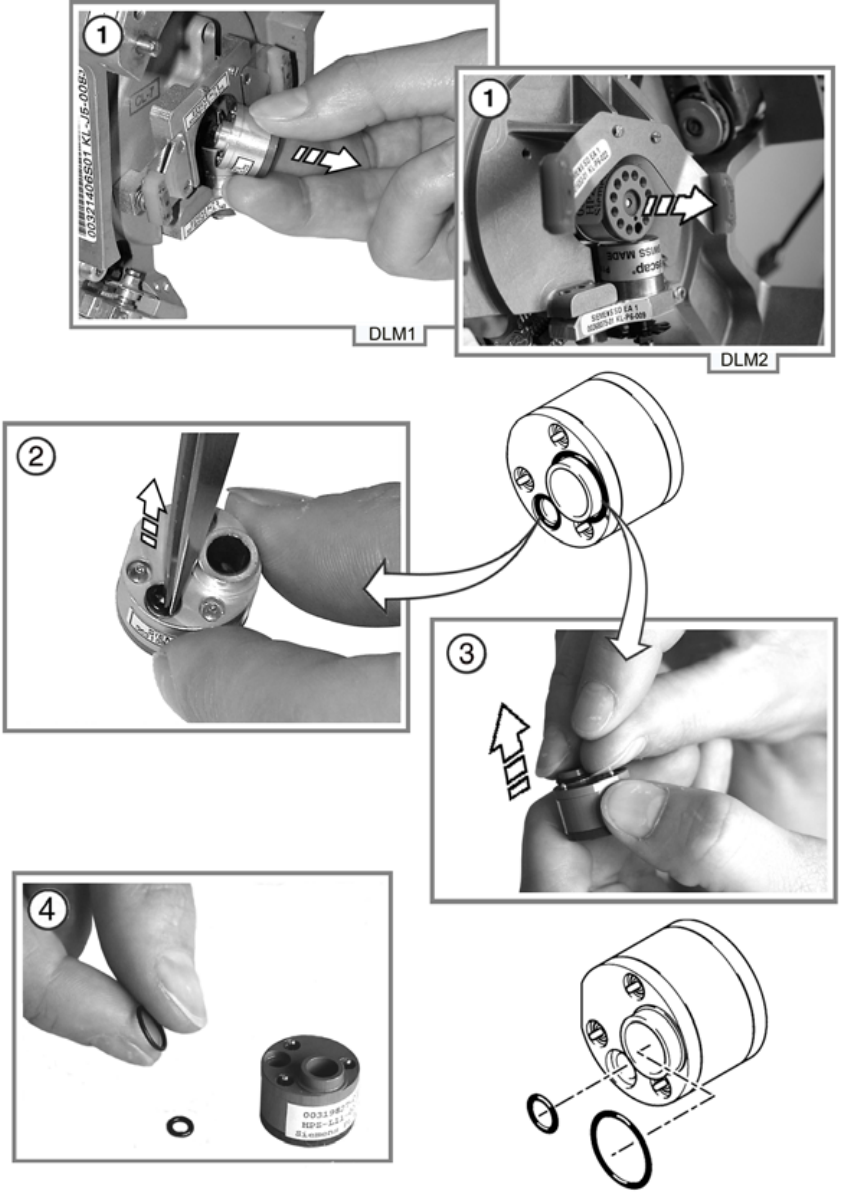

Distributor (back part of head) 7
a Carefully remove the distributor together with the two O-rings.
7
s Carefully remove the two O-rings.
: Clean them and grease them very sparingly with UNISILKON L250L.
: Check the distributor for damage. The running surface should be smooth and not grooved at
all.
Replace the distributor if it is damaged (see servicing instructions).
7
: Wipe the distributor using a lint-free cloth moistened with ethyl alcohol.
: Blow through with compressed air.
7
d Check that the gold spring pins (ball catches) move easily.
Replace the entire distributor if any of the ball catches does not move easily.
f Place the clean distributor and the lightly greased O-rings on a clean surface.
