HS Preventive Maintenance 7 4-monthly maintenance jobs
01/2006 US Edition
57
Vacuum generator 7

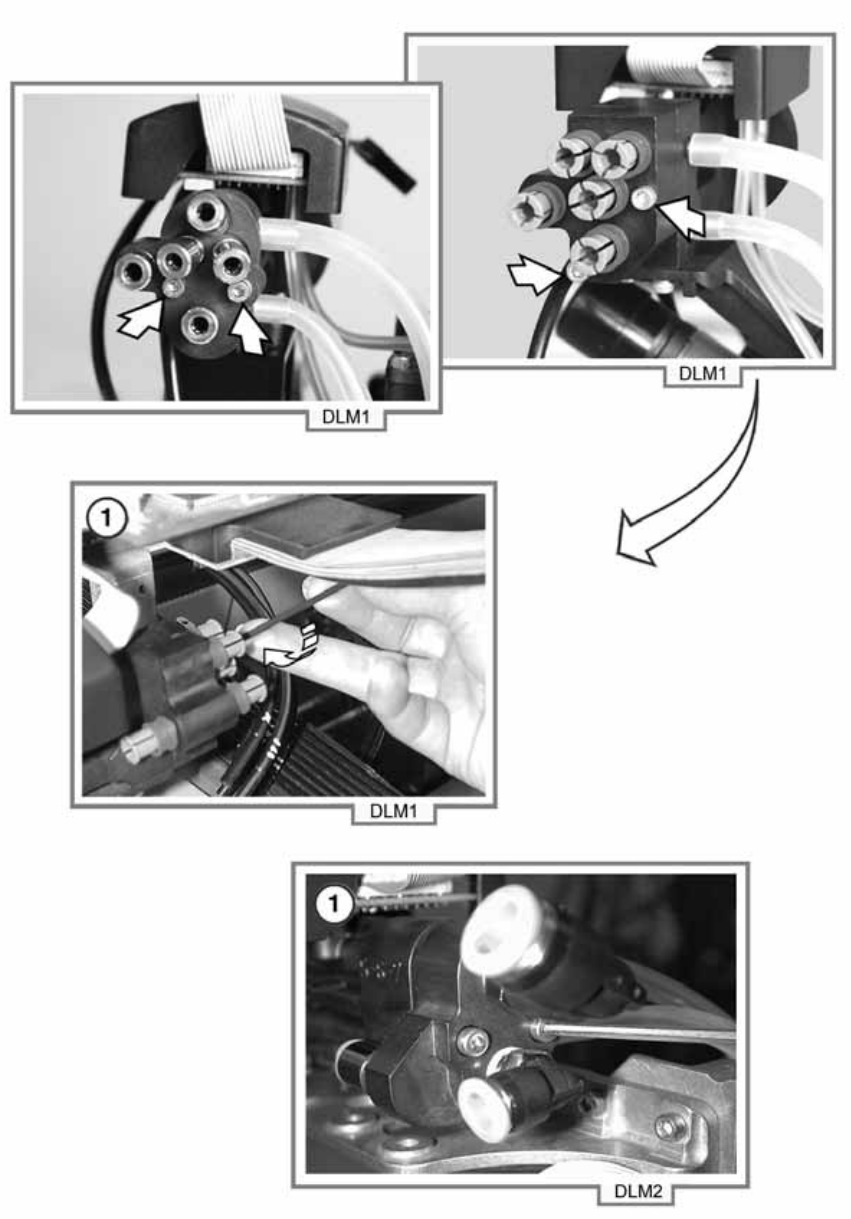

: Detach the vacuum generator hoses (if this has not already been done).
Use suitable pliers to do this. 7
7
7
7
7
We recommend that you label or otherwise mark the compressed air hoses before you remove
them. 7
On the DLM1 heads, the hoses are already labeled and have a fixed assignment. 7
7
a Unscrew the block with the 2 Venturi nozzles using a 2.5 mm hexagon socket spanner.
