Portal
PVA
Revision H (2018)
10 of 93

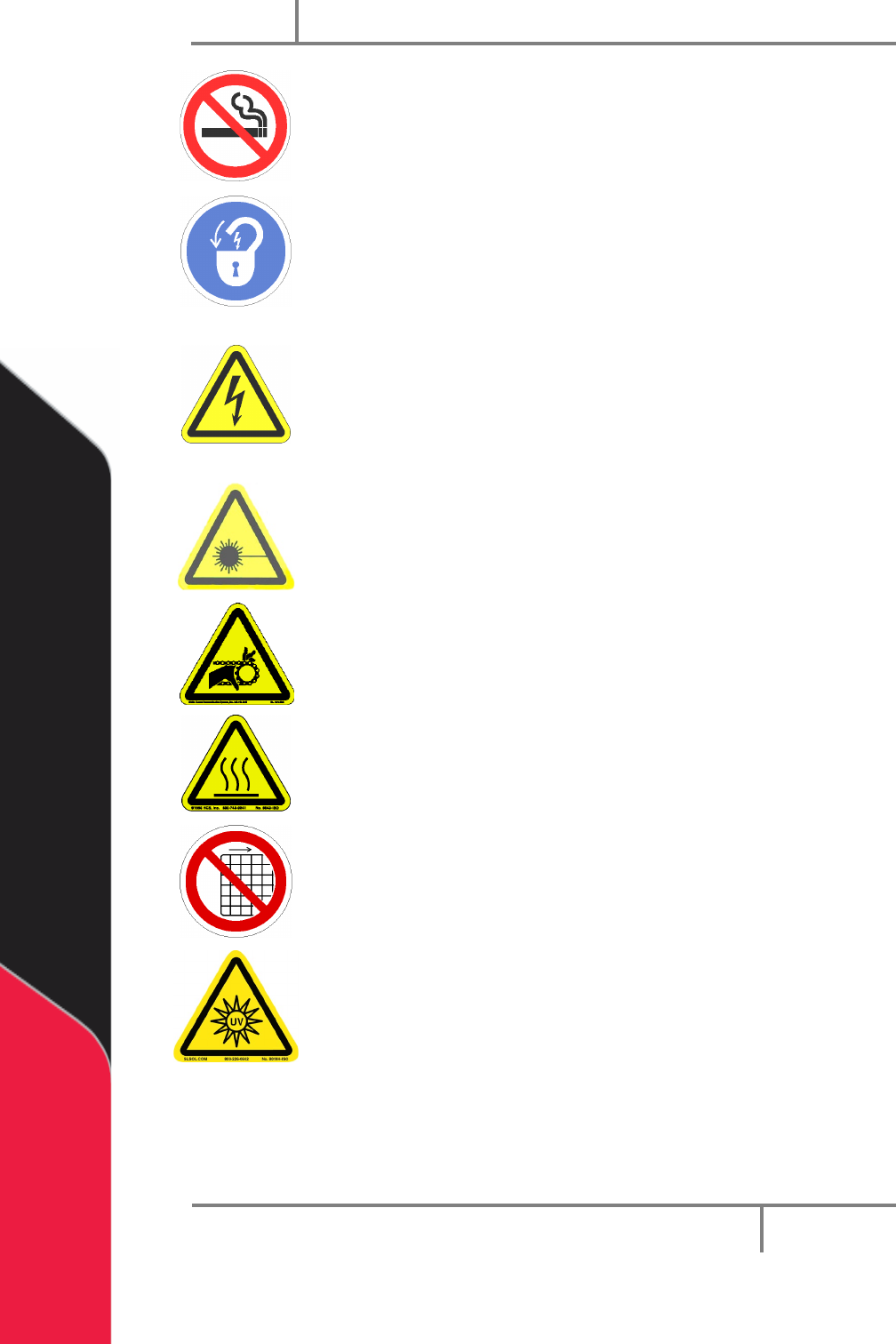

Do not smoke near the workcell. Always have a fire extinguisher
available for emergency use.
Before any repair or maintenance to the system is done, turn off
power and lockout the power disconnect switch.
Warning notices are used to emphasize that hazardous voltages,
currents, temperatures, or other conditions that could cause
personal injury exist in this equipment or may be associated with its
use. Only qualified personnel should enter areas designated with this
symbol.
A laser light source is present. Do not stare directly into the beam.
Do not use in the presence of highly reflective surfaces.
Pinch hazard from moving parts. Avoid contact.
Hot surface. Avoid contact.
Do not remove protective guarding.
Warning, UV light hazard. Do not look directly at UV light source.
Portal
PVA
Revision H (2018)
11 of 93
1.3 System Description
This manual applies to the following Precision Valve & Automation, Inc. workcells:
PVA350™
PVA6000™
PVA650™
Delta 6
PVA2000™
Delta 8
PVA3000™
The dispense path and active heads are controlled by a program stored in the motion
controller. The motion controller can save up to 30 programs at one time.
The operator controls the workcell with PVA Portal software. This includes machine
setup, manual operation, program selection, and automatic operation. Machine status
and error messages are shown in the program window and the light tower. The
operator(s) must have read this manual, or have been trained and understand the
operation of the machine.
Any uses that are not approved could result in dangerous conditions that the safety
features on the system cannot prevent.
1.4 Personal Protective Equipment
Workcell operation includes air pressure, electrical power, mechanical devices, and the
use of hazardous materials. Only qualified personnel can operate and service workcells.
Operators must use eye protection because material contents are under pressure.
Always wear gloves when handling materials and solvents. Refer to MSDS sheets on the
material that is used for other precautions.
Portal
PVA
Revision H (2018)
12 of 93
1.5 PVA Portal Computer Requirements
Portal requires an Intel® Core i5 processor or equivalent processor with 4 Gigabytes of
RAM, 2 Gigabytes free hard drive space and Windows® 7 Operating System or newer.
Your computer must also have:
• (2) Ethernet adapter
• (1) RS232 serial communications port
• 17” monitor with 1280 x 1024 resolution
• Mouse (USB)
• Keyboard (USB) with a touch pad if used with a PVA monitor mount
• Keyboard extension cable, 6’
• Mouse extension cable, 6’
• Monitor cable, 15’ (Display port or DVI)
• Display port or DVI video support ( VGA cannot be used)
• CDROM drive
Portal may not work correctly with systems that do not meet these minimum
requirements.
1.5.1 Galil Controller Requirements
• Galil controller minimum of DMC 2000 or newer. Controllers must be purchased
from PVA.
1.5.2 Security Software
Some security software packages and firewalls can interfere with PVA system
software. PVA software uses Ethernet ports 23, 60007, and 502 by default. Security
software and firewalls must be configured to allow traffic on these ports.
1.6 Operator Skills
The operator must have basic computer skills and be familiar with the Windows® 7
operating system.
