Portal
PVA
Revision H (2018)
46 of 93
9 System Tabs
There are thee normal system tabs: Product Image, Process, and Terminal. The options
shown in Portal depend on the workcell configuration. Refer to your machine specific
manuals and appendices for more information.
9.1 Product Image
The product image tab will show an imported image or the sample image shown below.

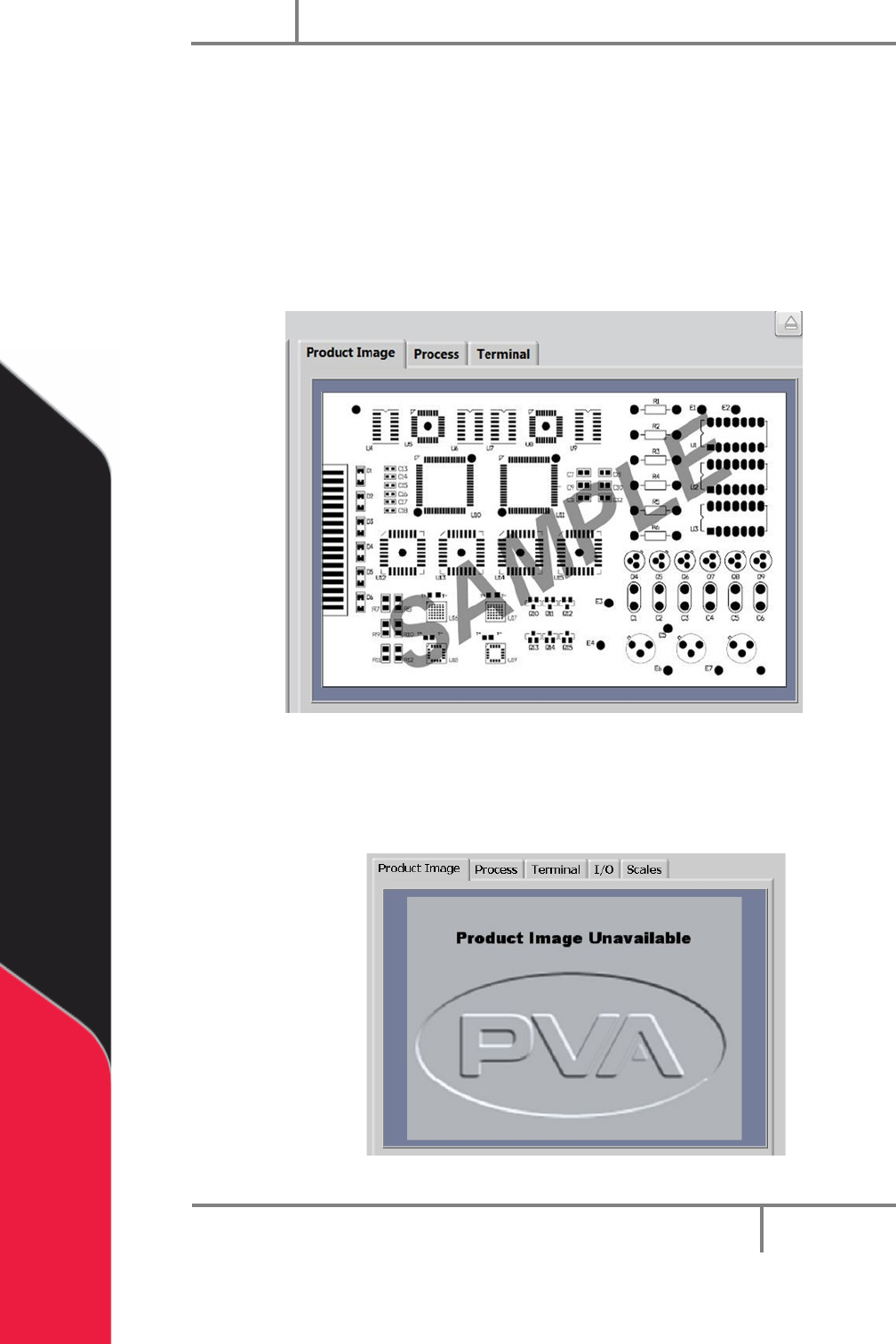

Figure 32: Product Image Tab
If the file name does not match the Program name or there are no images
associated with a program, the following image will be displayed:
Figure 33: Product Image Unavailable
Portal
PVA
Revision H (2018)
47 of 93
9.1.1 Adding Product Images
1. Copy and Paste the Product Image to the following Directory:
C:\Program Files\PVAPortal\Images
Note: The images must be JPEG/JPG file type.
2. Rename the file to match the PathMaster Program Name.

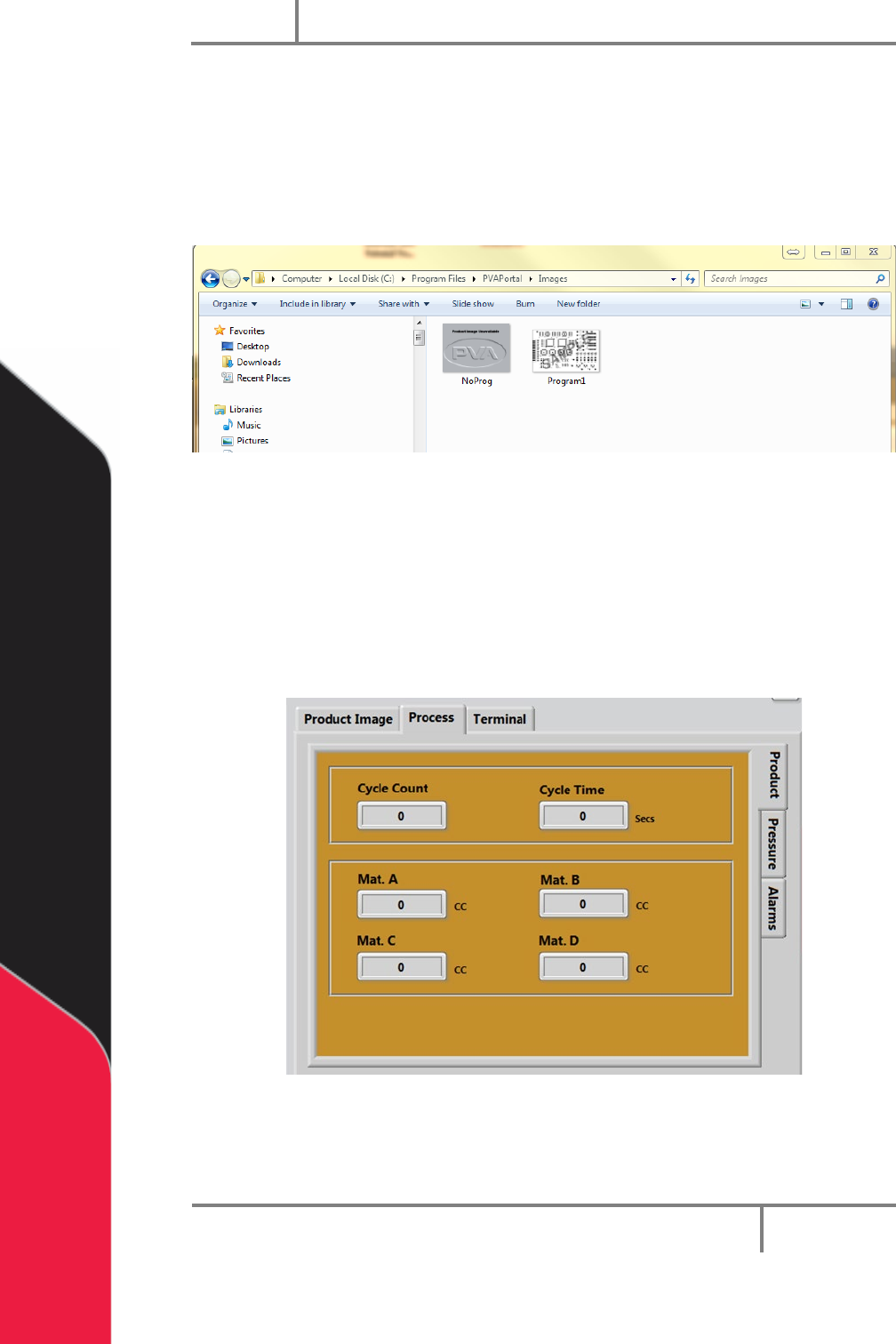

Figure 34: Product Image Directory
9.2 Process
9.2.1 Product
The Product tab is on the right hand side of the system tabs screens under the Process
tab. This screen shows the cycle count and cycle time. It also shows the material volume
from the previous Auto Cycle or One Shot Run. The data is updated after every run.
Figure 35: Process Product Tab
Portal
PVA
Revision H (2018)
48 of 93
9.2.2 Process Pressure
The Pressure tab is on the right side of the system tabs screens under the Process tab.
This screen shows the process pressure.

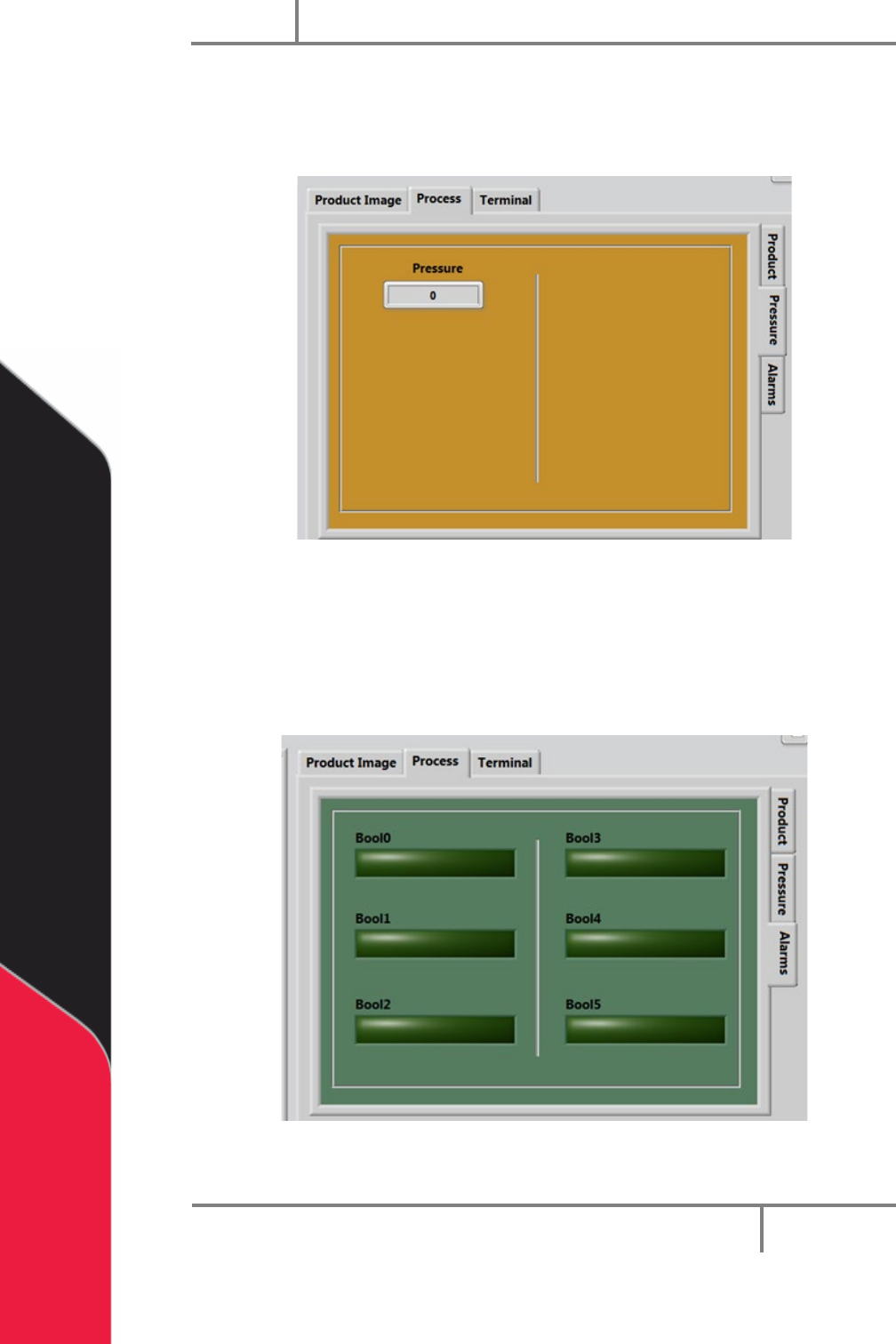

Figure 36: Process Pressure Tab
9.2.3 Process Alarms
The Alarms tab will show the operator any preconfigured system faults/warnings. These
alarms are process dependent. Refer to your workcell specific manual for more
information.
Figure 37: Process Alarms Tab
