Test Research, Inc . 11 TR7600 SIII Ser ies User G uide – Ins tallation Figure 18: Reserved Space for Dail y Operation Figure 19: Put the M achine In The Right Position 17) Remove the remaining packing materials. 18) Adj…
Test Research, Inc.
TR7600 SIII Series User Guide – Installation 10

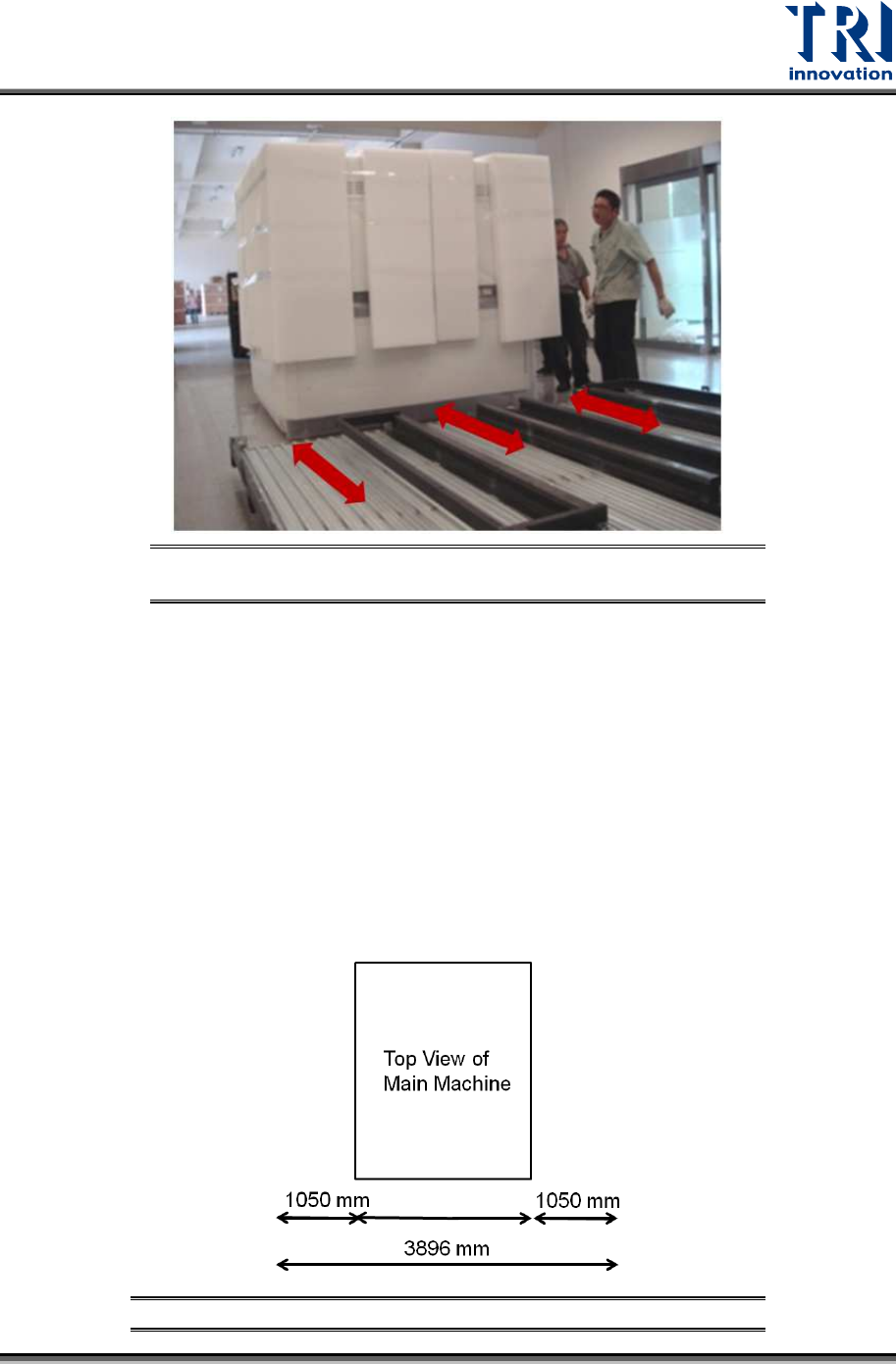

Figure 16: Palette Slots Allow Fork to Be Inserted in One
Direction
16) Then put the machine in the right position.
Size of the main machine is W57.9in. × D83.1in. × H77.8in. (1.470m × 2.110m ×
1.975m) which does not include the height of signal tower of 20.1in. (0.51 m).
You should reserve a space that is at least 154 inches wide × 176.5 inches deep
× 98.4 inches high (3.89m × 4.48m × 2.5m) for daily operation.
If you want to put the repair station next to the main machine, you should
reserve a space that is at least 188.8 inches wide × 176.5 inches deep × 98.4
inches high (4.79 m × 4.48 m × 2.5 m) for daily operation.
Additionally, you can also adjust the reserved space according to your upstream and
downstream machines.
Figure 17: Reserved Space for Daily Operation
1470 mm
Test Research, Inc.
11 TR7600 SIII Series User Guide – Installation

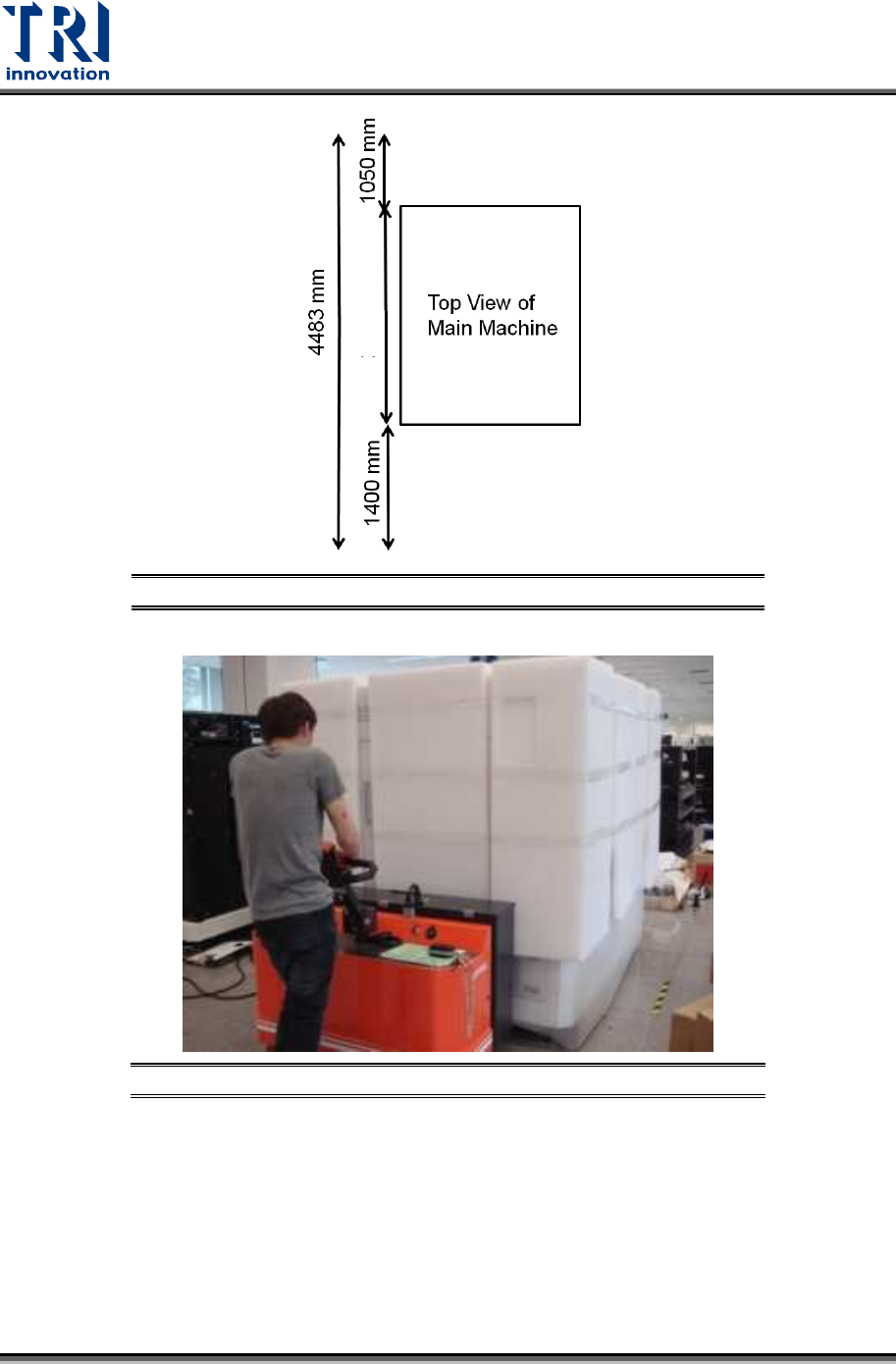

Figure 18: Reserved Space for Daily Operation
Figure 19: Put the Machine In The Right Position
17) Remove the remaining packing materials.
18) Adjust the height of the machine. Please use the fork lift to lift the machine first and then
adjust the height of pads.
2110 mm
Test Research, Inc.
TR7600 SIII Series User Guide – Installation 12

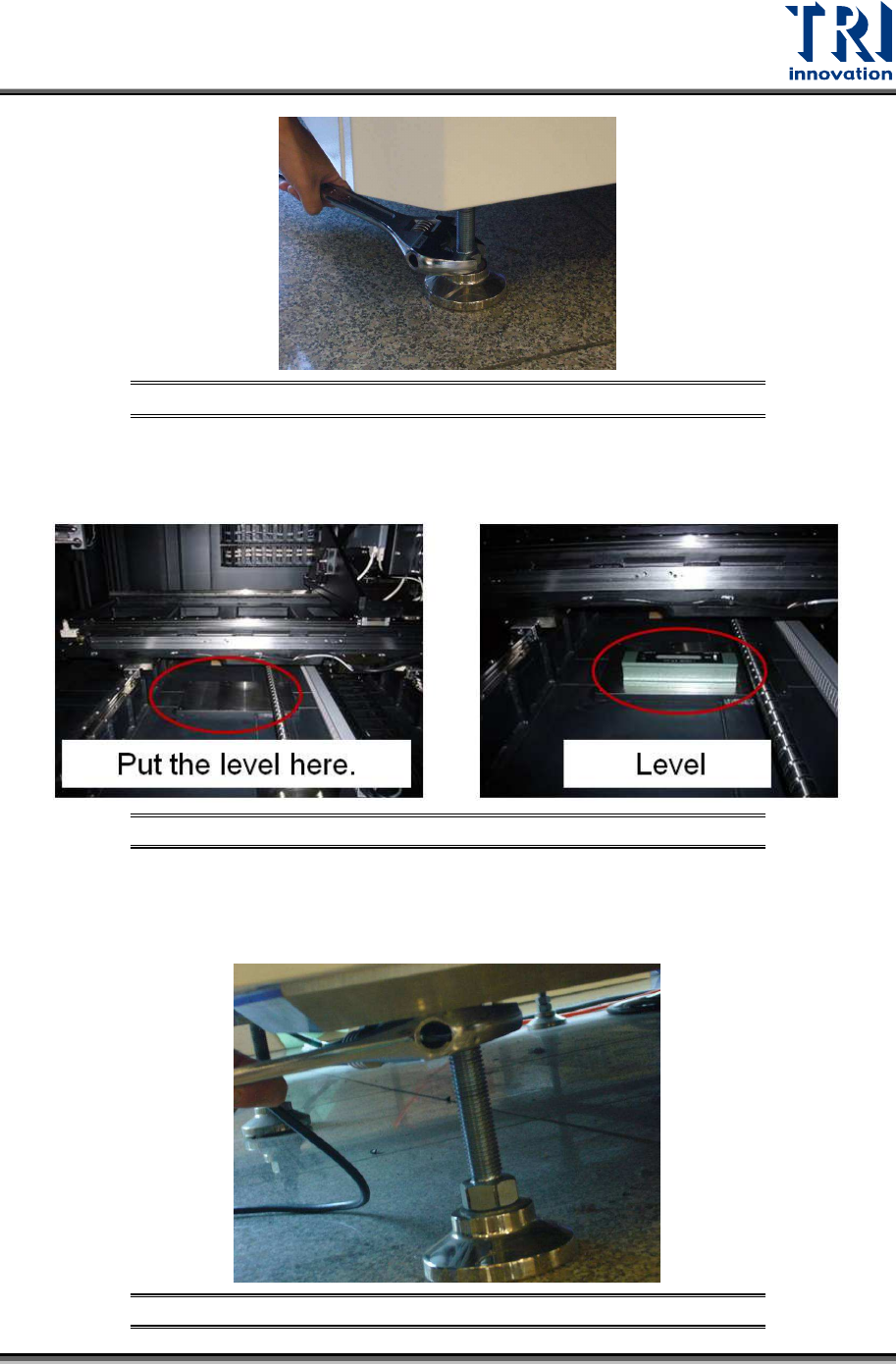

Figure 20: Adjust the Height of Pads
19) Put the level at the bottom side of the machine and adjust the height of pads to make
sure the machine is level.
Figure 21: Levelling the Machine
20) After confirming the machine is level at the correct height, you can fasten the nuts
upward to secure the position.
Figure 22: Fasten the Nuts Upward to Secure the Position
