The numbers in ( ) indicate the feeder Nos. where the feeder No. offset in the operation data is added. (B02_02) Component ID Set component IDs in the text box. (B02_03) C Set control commands in the text box. - (hyphen)…
Fig. C2 Edit Window (Example)
(B02_01) Fdr. No.
Shown are the feeder Nos. in the placement feeder location
data.
The numbers in ( ) indicate the feeder Nos. that will actually
be loaded with components.
Data Input Range
Multi-Layer Tray Feeder: 701 to 799
Multi-Layer Tray Feeder: 801 to 899
Fig. C4
1.2 Pattern Program
Fig. C3
Fdr. No.
701
0311-003 3-5 AHI01EGP
101 to 132
432 to 401
332 to 301
701 to 799
801 to 899
(Front Side of Machine)
(Rear Side of Machine)
Feeder Base #1
Feeder Base #2
(Multi-Layer Tray Feeder)
Feeder Base #4
Feeder Base #3
The numbers in ( ) indicate the feeder Nos. where the feeder
No. offset in the operation data is added.
(B02_02) Component ID
Set component IDs in the text box.
(B02_03) C
Set control commands in the text box.
- (hyphen): This command handles the steps as those for
the placement feeder location data.
E:This command shows the end of the placement
feeder location data.
The step where "E" is set is valid.
S:This command invalidates the steps specified as
placement feeder location data.
X:This command invalidates the steps specified as
placement feeder location data and shows the end
of the data.
(B02_04) Comment
A comment can be entered for each feeder No. (Fdr. No.).
Up to 32 characters (alphanumerics and marks) can be
used.
(a) The performance of the machine is not affected by these
commands. In other words, it has nothing to do with or
without these comments.
(b) It is recommended to set helpful information on comments
related to the feeder Nos. (Fdr. Nos.).
(B02_05) Library Comment
Displayed is the comment entered in the component library
data.
1.2 Pattern Program
Fig. C6
C
-
Fig. C5
Component ID
C1005T05B0---
Fig. C7
Comment
031 1-002 3-6
AHI01EGP
Note
Note
If a control command other than
the following ones is used, the
step becomes invalid.
CAUTION
Fig. C7-1
Library Comment
(B02_06) Dir [deg], Carrier Data Type
Shown are the values specified in the component library data.
(B02_7) Nozzle #1, C, Nozzle #2, C
Displayed are the nozzle IDs and control commands speci-
fied in the component library data.

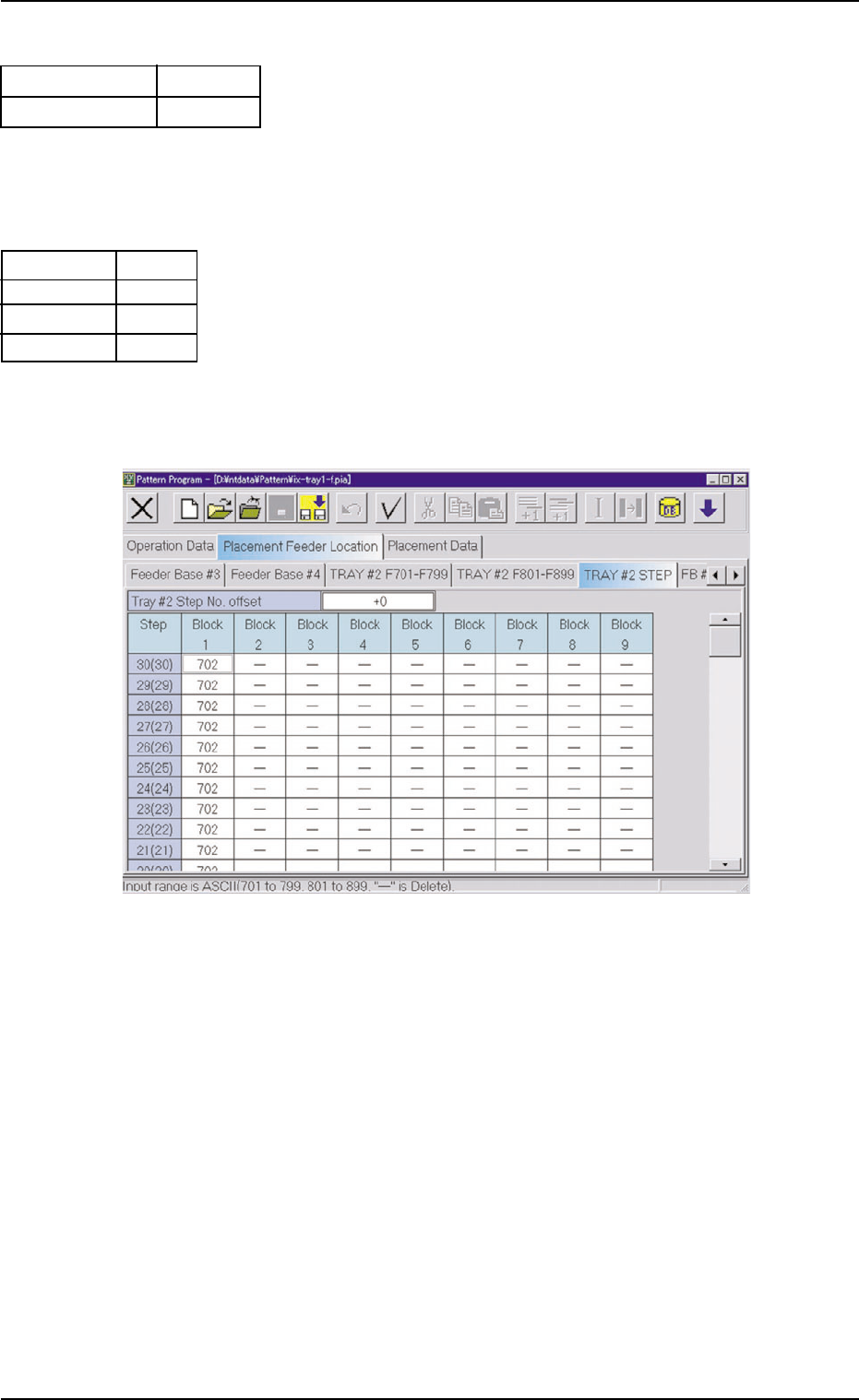

(B03) Tray #2 STEP
Fig. C10
(B03_01) Tray #2 Step No. Offset
Set the offset value for the component allocation to the multi-
layer tray feeder.
The set parameter is added to the step No. designated in
the step data.
(B03_02) Step
Shown are the step Nos. of the rack.
(B03_03) Blocks 1 through 9
Specify what type of components should be set in which
block of which step.
1.2 Pattern Program
0311-002 3-7 AHI01EGP
Embossed
0
Fig. C8
E A06
S
E A04
-
Nozzle #1
C
Nozzle #2
C
Fig. C9
Carrier Data Type
Dir [deg]
