2. Component Library

Refer to "Section 3 Component Library" (the instruction manual

(Vol. 3: Programming and Machine Data) of the main machine)

for details.

2.1 "Carrier Data" Tab

The corresponding tab sheet appears when "Cylindrical", "Square", "De-

form (Simple)", "Deform (Complex)", "Connector (Simple)", "Connector

(Complex)", "Other Leaded (Simple)", "Other Leaded (Complex)", or

"BGA/CSP" is selected in the "Component shape" text box.

••

• Sheet Layout

When the "Carrier Data" tab is pressed, the "Carrier Data" tab sheet

appears.

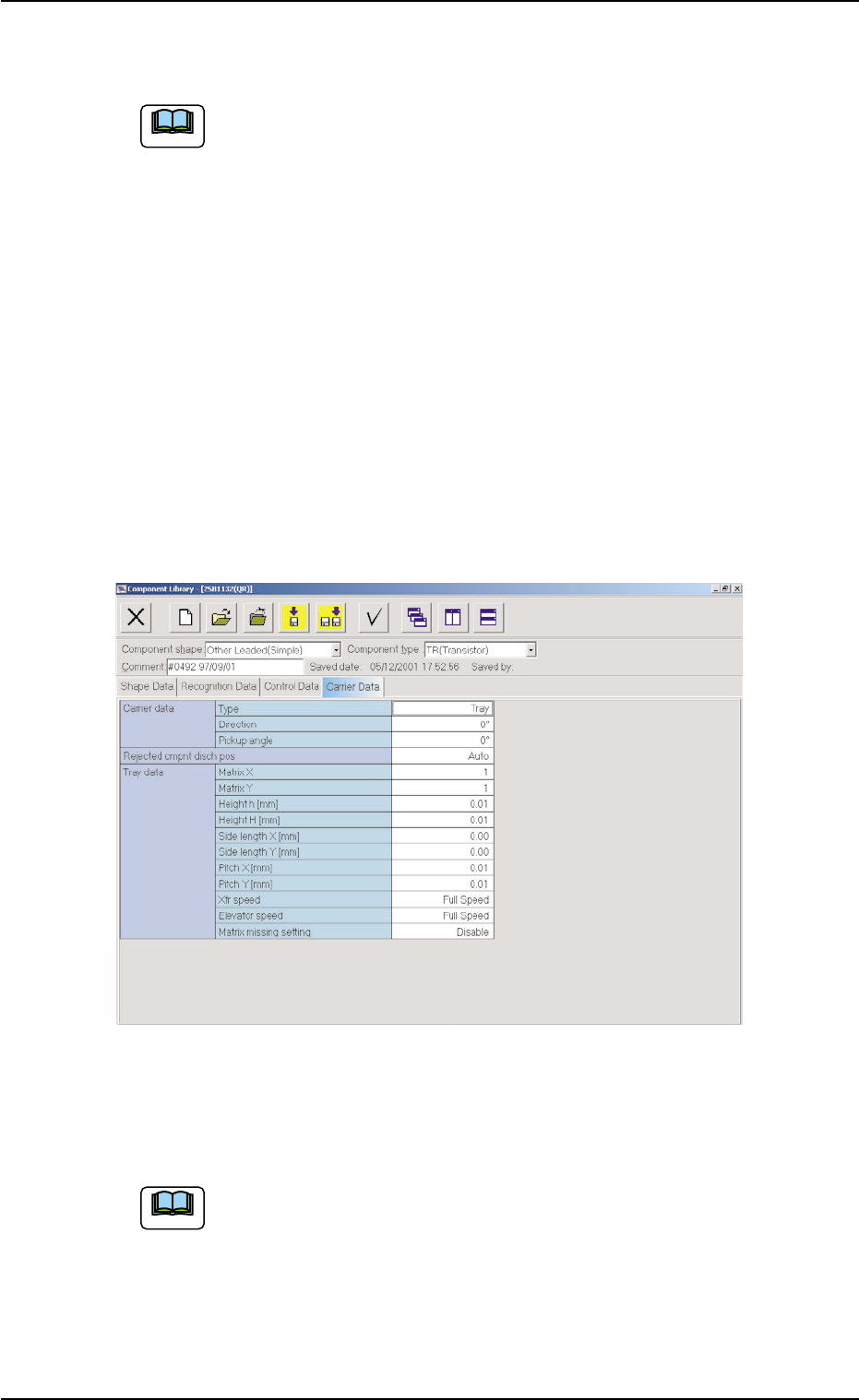

Fig. C14 "Carrier Data" Tab Sheet

••

• Sheet Composition

Refer to "4.1.3 Basic Usage of Text Boxes" in "Section 2" (the

instruction manual (Vol. 3: Programming and Machine Data) of

the main machine) for the details.

Enter parameters in these text boxes.

2. Component Library

0311-002 3-12 AHI01EGP

Note

3. System Setting

3.1 "Offset Data" Tab

3.1.1 "Tray #2" Tab

••

• Sheet Layout

Press the [SYSTEM] button on the main menu bar to open the "Ma-

chine System Data" window.

When the "Feeder B" tab is selected in the "Offset Data" tab sheet

and the "Tray #2" tab is pressed, the following tab sheet appears.

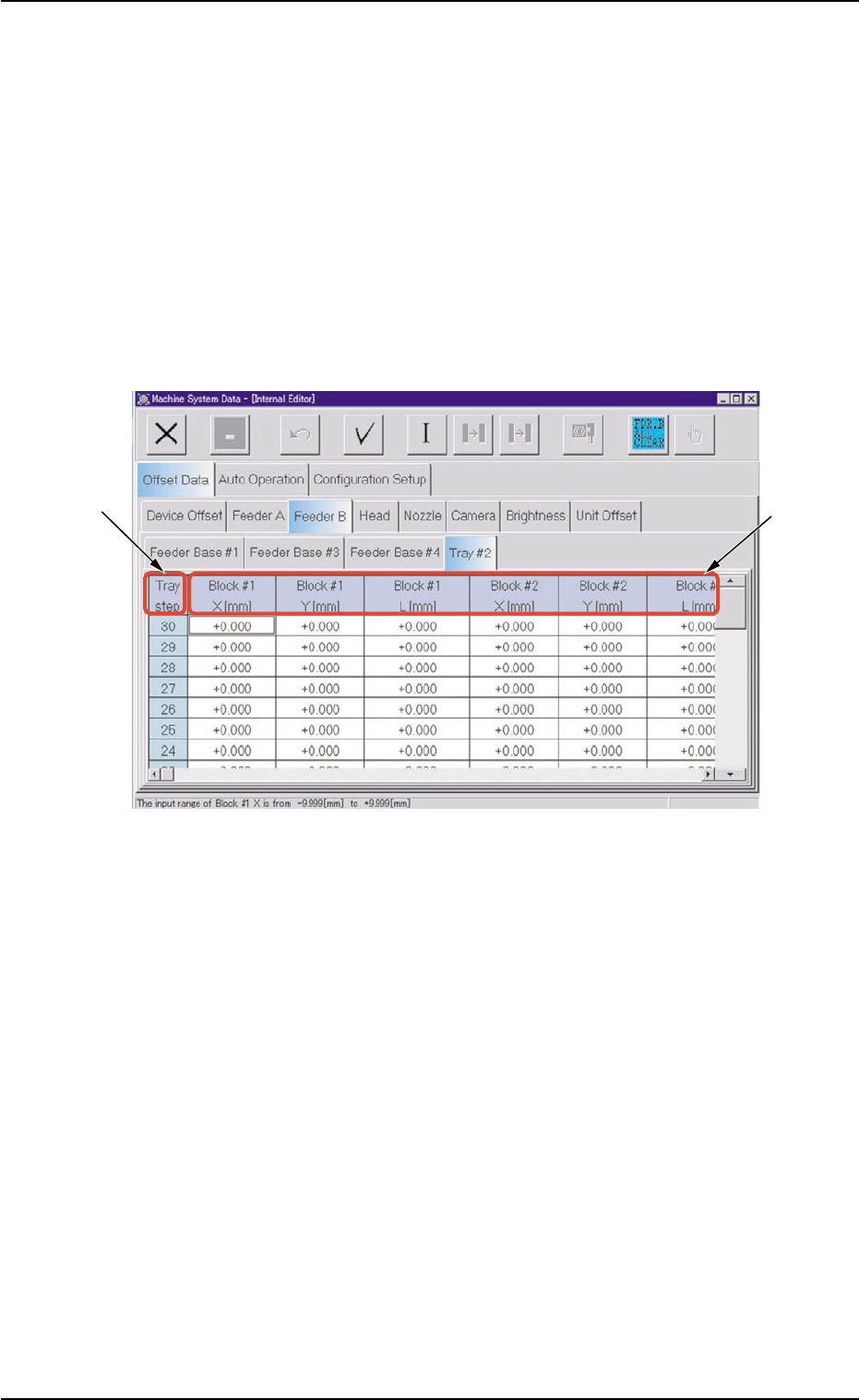

Fig. C15 "Tray #2" Tab Sheet

••

• Sheet Composition

*1 Tray step

Displayed are the step Nos.

*2 Block #1 through Block #9

X [mm] (Horizontal), Y [mm] (Vertical)

The set parameters are used to correct the variations in the indi-

vidual blocks of each step.

The values are based on the PL-XY coordinate system must be

entered in these text boxes.

Enter the positional deviations from the pickup position for each in-

dividual pallets, including the traverse drawout position (multi-layer

tray offset), such that components can be picked up at their cen-

ters.

3. System Setting

0311-002 3-13 AHI01EGP

L [mm] (Height)

The set parameters are used to correct the variations in the pickup

height of the individual blocks of each step.

These parameters are reflected on the descending stroke of the

head required to pick up a component.

3.1 "Offset Data" Tab
