3.2 Auto Operation
3.2.1 "Tray Matrix Update Setup" Tab
••
••
• Sheet Layout
When the "Tray Matrix Update Setup" tab is pressed in the "Auto Op-
eration" tab sheet, the following tab sheet appears.

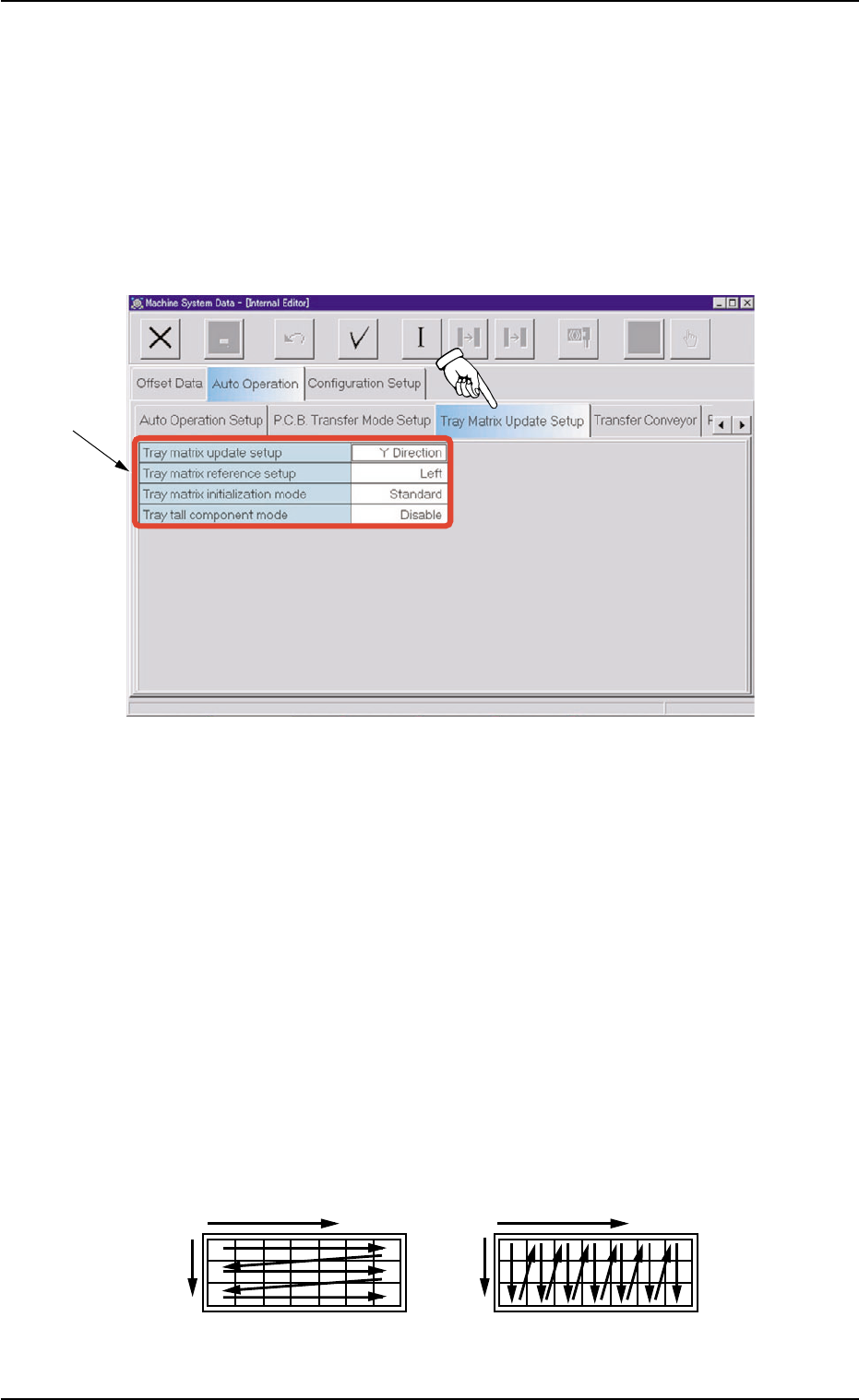

Fig. C17 "Tray Matrix Update Setup" Tab Sheet
••
••
• Sheet Composition
*1 Items
The following items are displayed.
Tray matrix update setup
Select "X Direction" or "Y Direction" (direction in which components
should be taken out) in the text box.
In normal cases, "Y Direction" should be selected.
When it is necessary to keep the interchangeability with TIM-X1000/
1100 series, set "X Direction" in the "Tray matrix update setup" text
box.
Fig. C18 Shows the order (arrow directions) in which components are taken out.
3.2 Auto Operation
0311-002 3-18 AHI01EGP
*1
X
YY
X
Selection of "Y Direction"Selection of "X Direction"
0311-002 3-19 AHI01EGP

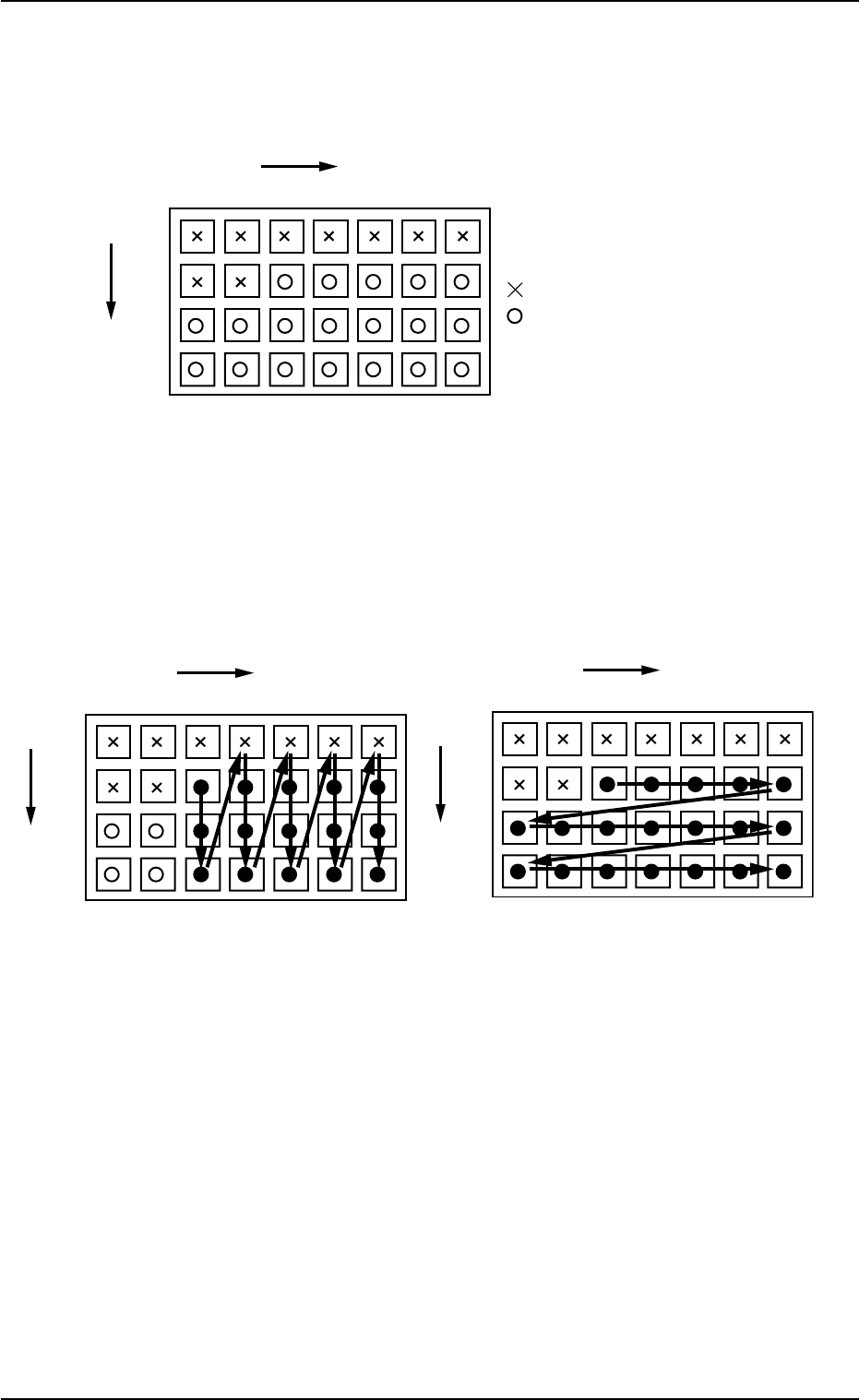

Example: The tray is in the condition (in the middle of process)
shown in Fig. C19.
(Tray in Middle of Process)
Fig. C19
• The first component pick-up position is assumed to be "X: 3, Y: 2".
z : Component Picked Normally
{ : Component Left Behind
Shadowed : Mispick
Fig. C20 Fig. C21
3.2 Auto Operation
1
1
2
99
.
23 99
X
Y
.
.
.....
.
: No Components (Already taken out)
: Components
1
1
2
99
.
23 99
X
Y
.
.
......
Selection of "Y Direction"
Selection of "X Direction"
1
1
2
99
.
23 99
X
Y
.
.
......
0311-002 3-20 AHI01EGP
Tray matrix reference setup
Select "Left" or "Right".
Tray matrix initialization mode
"Standard", "Hold", or "Initialize" can be selected.
Standard : When the same or no component IDs are speci-
fied in the tray matrix data of the current pattern
program after the program change operation, the
tray matrix data will be used continuously.
When different component IDs are specified after
the program change operation, the matrices (posi-
tional coordinates) will be cleared to (0,0).
Hold : When the same or no component IDs are speci-
fied in the tray matrix data of the current pattern
program after the program change operation, the
tray matrix data will be used continuously.
When different component IDs are specified after
the program change operation, the matrices (posi-
tional coordinates) will be cleared to (1, 1).
Initialize : All matrices (positional coordinates) in the current
tray matrix data will be cleared to (1, 1).
Tray tall component mode
"Enable" or "Disable" can be selected.
3.2 Auto Operation
