(3) Hand Grease Gan
Standard : KH-120
Part No : 630 062 2577
Maker : Yamada Yuki
(a) Use this gun to apply only DAPHNE EPONEX GREASE
No. 1.
(b) Please purchase a hand grease gun or an attachment
whenever necessary.
Consult our marketing department or sales agency for
details.
(c) Refer to the attached instruction manual for the de-
tailed information on how to use the hand grease gun
and the attachment.

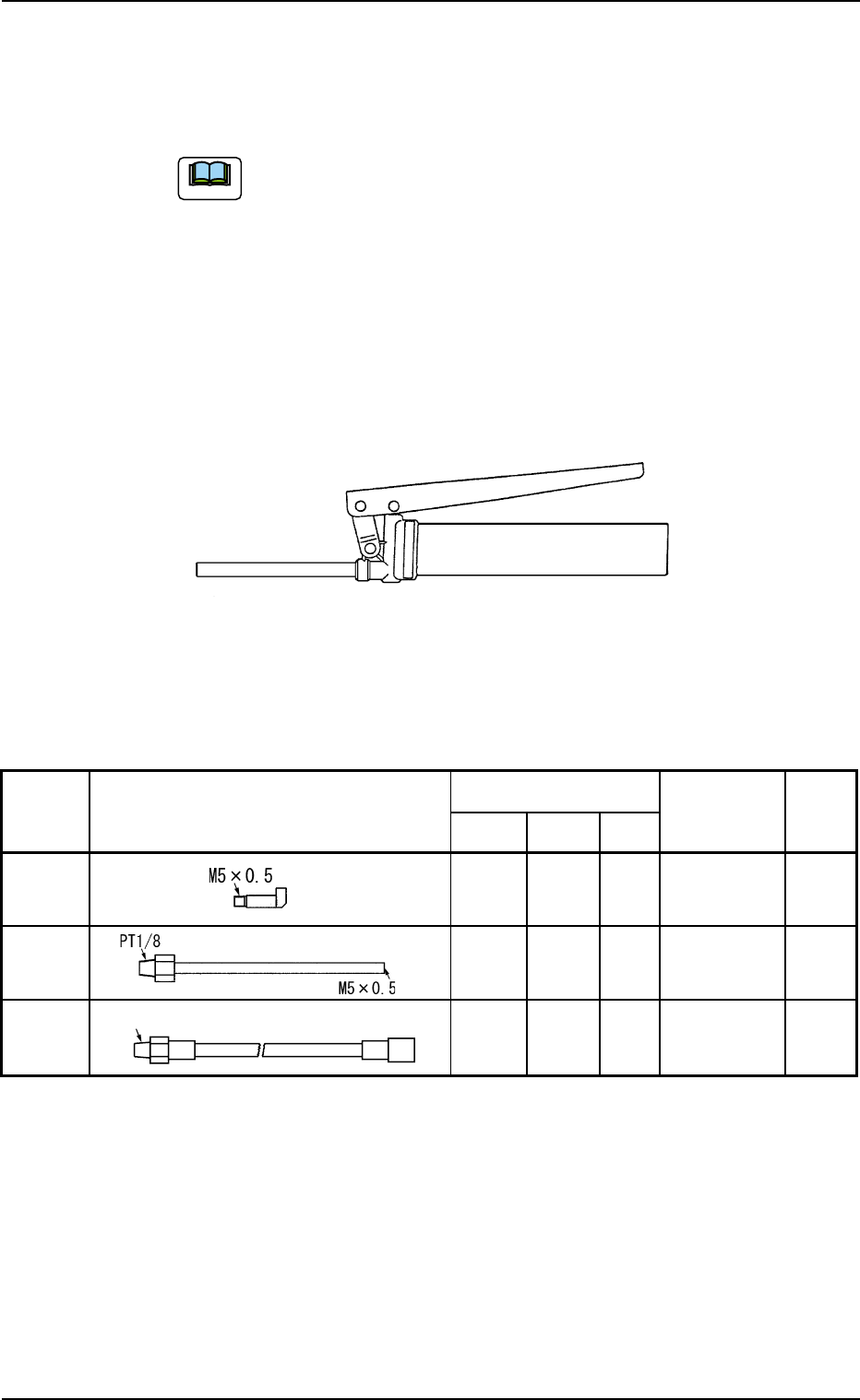

Fig. D1 For Hand Grease Gun KH-120
Attachment for Hand Grease Gun KH-120
Table D2
Standard Shape Part No. Remarks
N Type 1 1 630 061 7467 THK
U Type 1 1 630 061 7443 THK
SPK-3C 1 1 630 061 7504 Yamada
Yuki
1.3 Preparation for Maintenance
Grease and Required Number
of Attachments
For DAPHNE
EPONEX
GREASE No. 1
Total
Frequency
in Use
031 1-003 4-5 AHI01EGP
PT1/8
Note
1.4 Monthly Maintenance
Fig. D2 Pallet
1.4 Monthly Maintenance
Maintenance Spots
Name DWG No.
Pallet D2 Cleaning - Rag
Description
Grease
Cleaning
Tools, Nozzles,
etc.
Check
Table D3
0311-003 4-6 AHI01EGP
Pallet
Cleaning
Clean the upper surface of the pallet
with a rag.
1.5 Maintenance (Every 3 Months)
DE1: DAPHNE EPONEX GREASE No. 1
Maintenance Spots
Name DWG No.
Elevator Shaft Ball Screw D3 Lubrication DE1 Oiled Rag,
Brush, and
SPK-3C
Linear Way D4 Lubrication DE1 Oiled Rag,
Brush, and
SPK-3C
Traverse Linear Way D5 Lubrication DE1 Oiled Rag,
U Type, and
N Type
Pallet Chuck D6 Lubrication DE1 Oiled Rag
and Brush
Linear Guide D6 Lubrication DE1 Oiled Rag
and Brush
Pallet Receiver D6 Inspection
- Visual
Inspection
Pallet Rail D7 Inspection - Scale
Upper Surface D7 Inspection
- Scale
1.5 Maintenance (Every 3 Months)
Description
Grease
Cleaning
Tools, Nozzles,
etc.
Check
Table D4
0311-003 4-7 AHI01EGP
Note
