1 .5 Maintenance (Every 3 Months) DE1: DAPHNE EPONEX GREASE No. 1 Maintenance Spots Name DWG No. Elevator Shaft Ball Screw D3 Lubrication DE 1 Oiled Rag, Brush, and SPK-3C Linear W a y D4 Lubrication D E1 Oiled Rag, Brus…
1.4 Monthly Maintenance

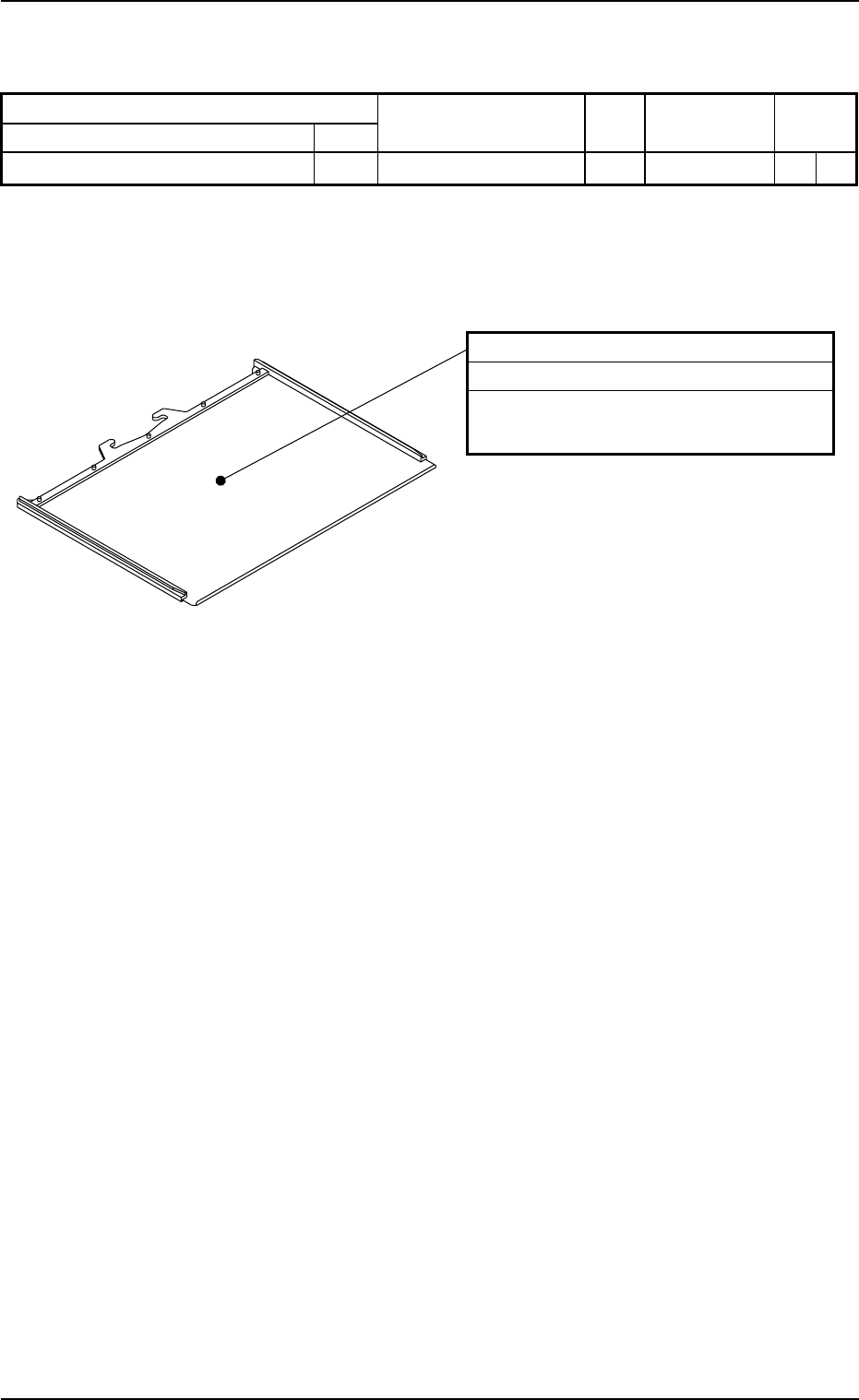

Fig. D2 Pallet
1.4 Monthly Maintenance
Maintenance Spots
Name DWG No.
Pallet D2 Cleaning - Rag
Description
Grease
Cleaning
Tools, Nozzles,
etc.
Check
Table D3
0311-003 4-6 AHI01EGP
Pallet
Cleaning
Clean the upper surface of the pallet
with a rag.
1.5 Maintenance (Every 3 Months)
DE1: DAPHNE EPONEX GREASE No. 1
Maintenance Spots
Name DWG No.
Elevator Shaft Ball Screw D3 Lubrication DE1 Oiled Rag,
Brush, and
SPK-3C
Linear Way D4 Lubrication DE1 Oiled Rag,
Brush, and
SPK-3C
Traverse Linear Way D5 Lubrication DE1 Oiled Rag,
U Type, and
N Type
Pallet Chuck D6 Lubrication DE1 Oiled Rag
and Brush
Linear Guide D6 Lubrication DE1 Oiled Rag
and Brush
Pallet Receiver D6 Inspection
- Visual
Inspection
Pallet Rail D7 Inspection - Scale
Upper Surface D7 Inspection
- Scale
1.5 Maintenance (Every 3 Months)
Description
Grease
Cleaning
Tools, Nozzles,
etc.
Check
Table D4
0311-003 4-7 AHI01EGP
Note
It is required to detach the covers located at the center
and side faces of the feeder for grease application to
the elevator shaft.
Refer to "1.7 Detachment and Attachment of Covers"
for the detailed information on how to detach the cov-
ers.
Fig. D3 Elevator Shaft
1.5 Maintenance (Every 3 Months)
0311-003 4-8 AHI01EGP
PT1/8
SPK-3C
Ball Screw
Lubrication
(DAPHNE EPONEX GREASE No. 1)
Wipe off old grease with an oiled rag
and apply new grease to the ball screw
with a brush or supply from the grease
nipples with a grease gun.
* Take ample care not to leave the
waste threads after cleaning.
* Use the SPK-3C attachments.
Grease Nipple
Note
