Fig. D6 T raverse 1.5 Maintenance (Every 3 Months) 031 1-003 4-1 1 AHI01EGP Linear Guide Lubrication (DAPHNE EPONEX GREASE No. 1) Wipe off old grease with an oiled rag and apply new one with a brush. * T ake ample care n…
Fig. D5 Traverse
1.5 Maintenance (Every 3 Months)
0311-003 4-10 AHI01EGP
U Type
N Type
Linear Guide
Lubrication
(DAPHNE EPONEX GREASE No. 1)
Wipe off old grease with an oiled rag
and apply new grease to the linear way
with a brush or supply from the grease
nipples (2 places) with a grease gun.
* Take ample care not to leave the
waste threads after cleaning.
* Use the U- and N-type attachments.
Grease Nipple

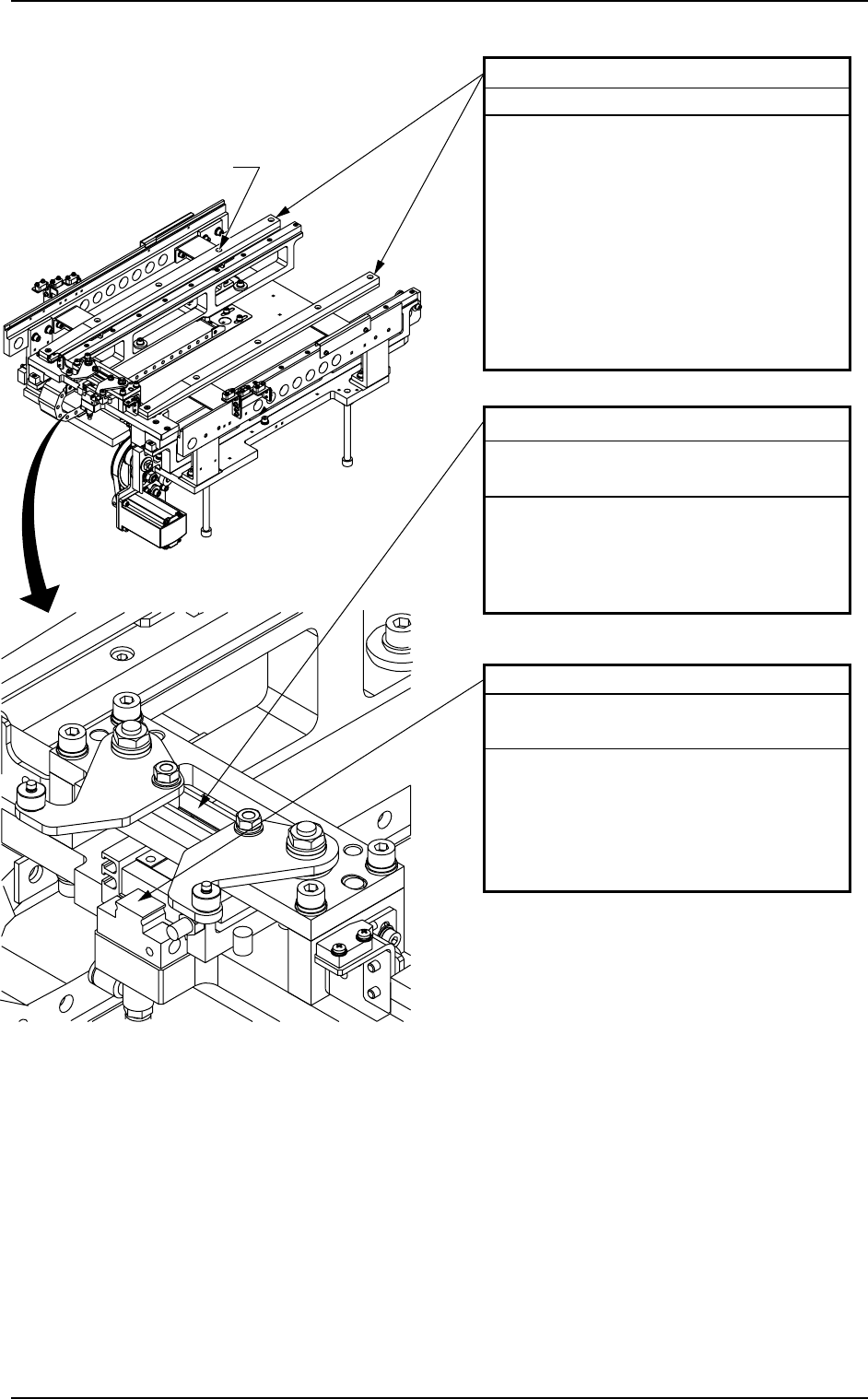

Fig. D6 Traverse
1.5 Maintenance (Every 3 Months)
0311-003 4-11 AHI01EGP
Linear Guide
Lubrication
(DAPHNE EPONEX GREASE No. 1)
Wipe off old grease with an oiled rag
and apply new one with a brush.
* Take ample care not to leave the
waste threads after cleaning.
Pallet Receiver
Inspection
Check to see if the pallet receiver is
worn out or not.
When the receiver is worn out to the
extent that the pallet is warped, follow
the steps below for the replacement.
1. Remove 5 bolts fastening the pallet
receiver and detach the receiver.
2. Attach a new pallet receiver and
tighten the bolts.
Pallet Chuck
Lubrication
(DAPHNE EPONEX GREASE No. 1)
Wipe off old grease with an oiled rag
and apply new one with a brush.
* Take ample care not to leave the
waste threads after cleaning.
Bolt
When a pallet is warped, the component pickup rate
may deteriorate.
Fig. D7 Pallet

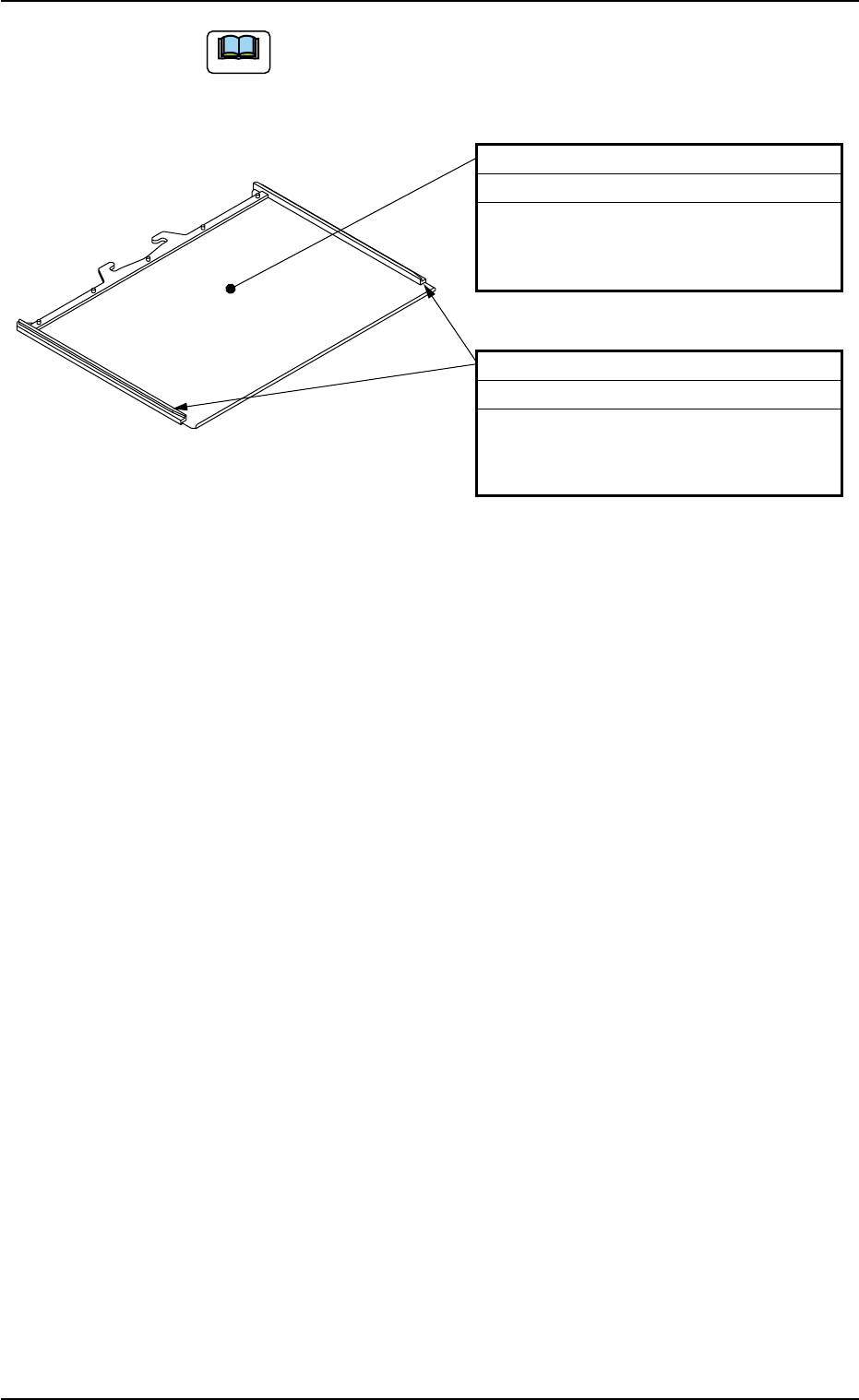

1.5 Maintenance (Every 3 Months)
0311-003 4-12 AHI01EGP
Rail
Inspection
Check if the lower areas of the pallet
rails are worn out or not, using a scale.
(Up to 0.5 mm or less)
Upper Surface
Inspection
Check the warpage of the pallet with a
scale.
(Up to 0.5 mm or less)
Note
