Maintenance Spots
Name DWG No.
Elevator Shaft Belt D8 Inspection - Visual
Inspection
1.6 Yearly Maintenance
Fig. D8 Elevator Shaft
1.6 Yearly Maintenance
Description
Grease
Cleaning
Tools, Nozzles,
etc.
Check
Table D5
Belt
Inspection
Check to see if the belt is worn out or not.
0109-001 4-13 AHI01EGP
1.7 Detechment and Attachment of Covers
1.7 Detachment and Attachment of Covers
• When the maintenance cover of the multi-layer tray
feeder is detached, the power to the loads is shut
off.
• The multi-layer tray feeder cannot be operated with
the maintenance cover being detached.
1.7.1 Detachment of Covers
(1) Zero the multi-layer tray feeder.
(2) Manually lower the rack to the position (16th step) for easier lubrica-
tion work.
(3) Shut off the power.
(4) Remove two side setscrews with a cross-head screwdriver.
The side maintenance cover will come off.
(5) Remove two central setscrews with a cross-head screwdriver.
(6) Remove two central setscrews located inside the safety door with a
cross-head screwdriver. The central maintenance cover will come
off.

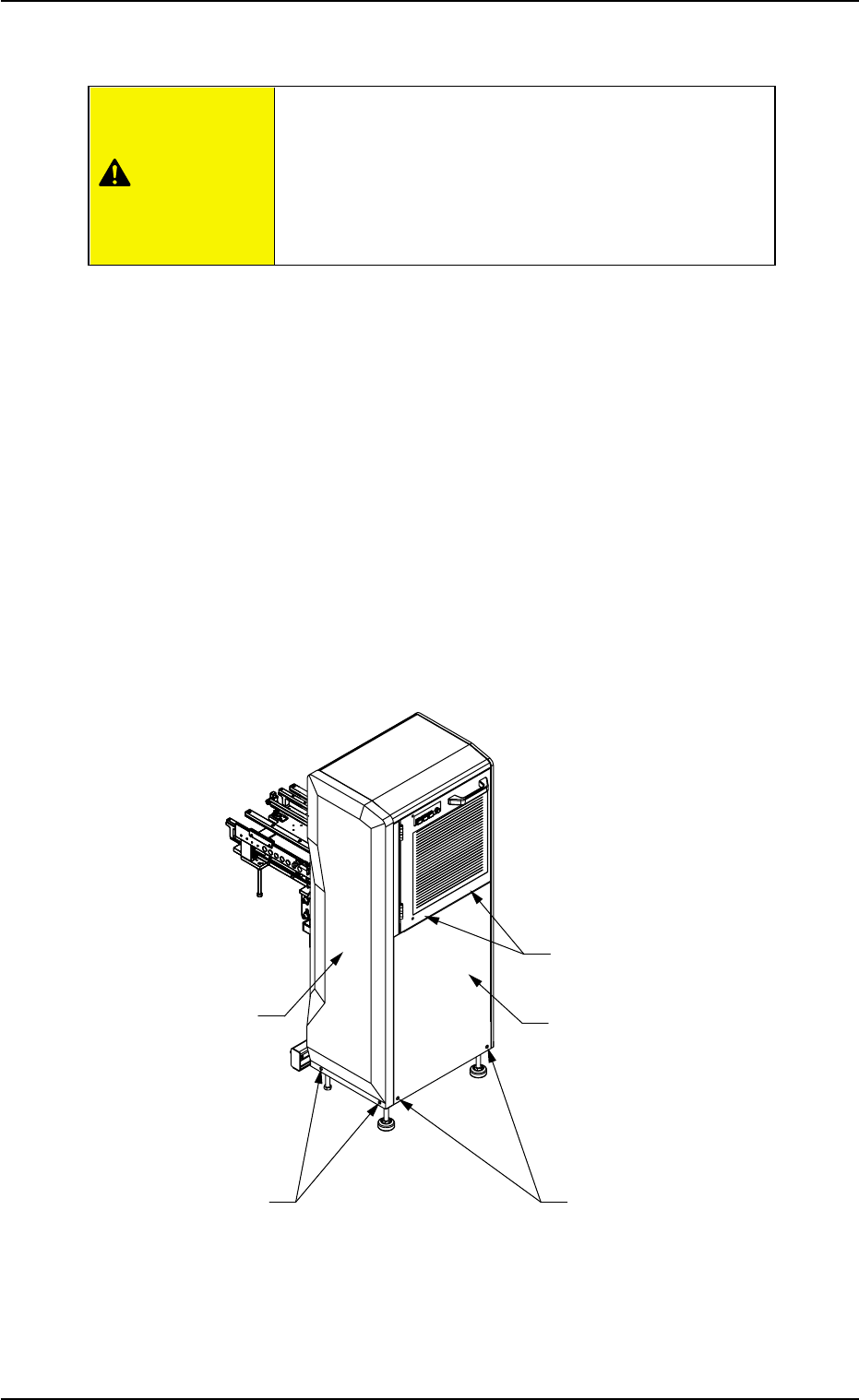

Fig. D9
0311-003 4-14 AHI01EGP
Side Maintenance Cover
Side Setscrews (2 places)
Central Setscrews (2 places)
(located inside the safety door)
Central Maintenance Cover
Central Setscrews (2 places)
CAUTION
1.7 Detechment and Attachment of Covers
0204-002 4-15 AHI01EGP
1.7.2 Procedure for Maintenance Cover Attachment
(1) While keeping the central maintenance cover in position, tighten two
setscrews located inside the safety door with a cross-head screw-
driver.
(2) Hold the central maintenance cover in position such that the screw
holes of the cover are aligned with those of the multi-layer tray feeder.
(3) Tighten two central setscrews with a cross-head screwdriver while
keeping the central maintenance cover in position.
(4) Hold the side maintenance cover in position such that the screw
holes of the cover are aligned with those of the multi-layer tray feeder.
(5) Tighten two side setscrews with a cross-head screwdriver while
keeping the side maintenance cover in position.
