4.1.3 [Opened Maintenance Cover Detection] Switches Switch Name Symbol Countermeasures [Opened Maintenance Cover Detection] Switches [Opened Maintenance Cover Detection] Switches Maintenance Cover Fig. X21 T able X8 SQ50…

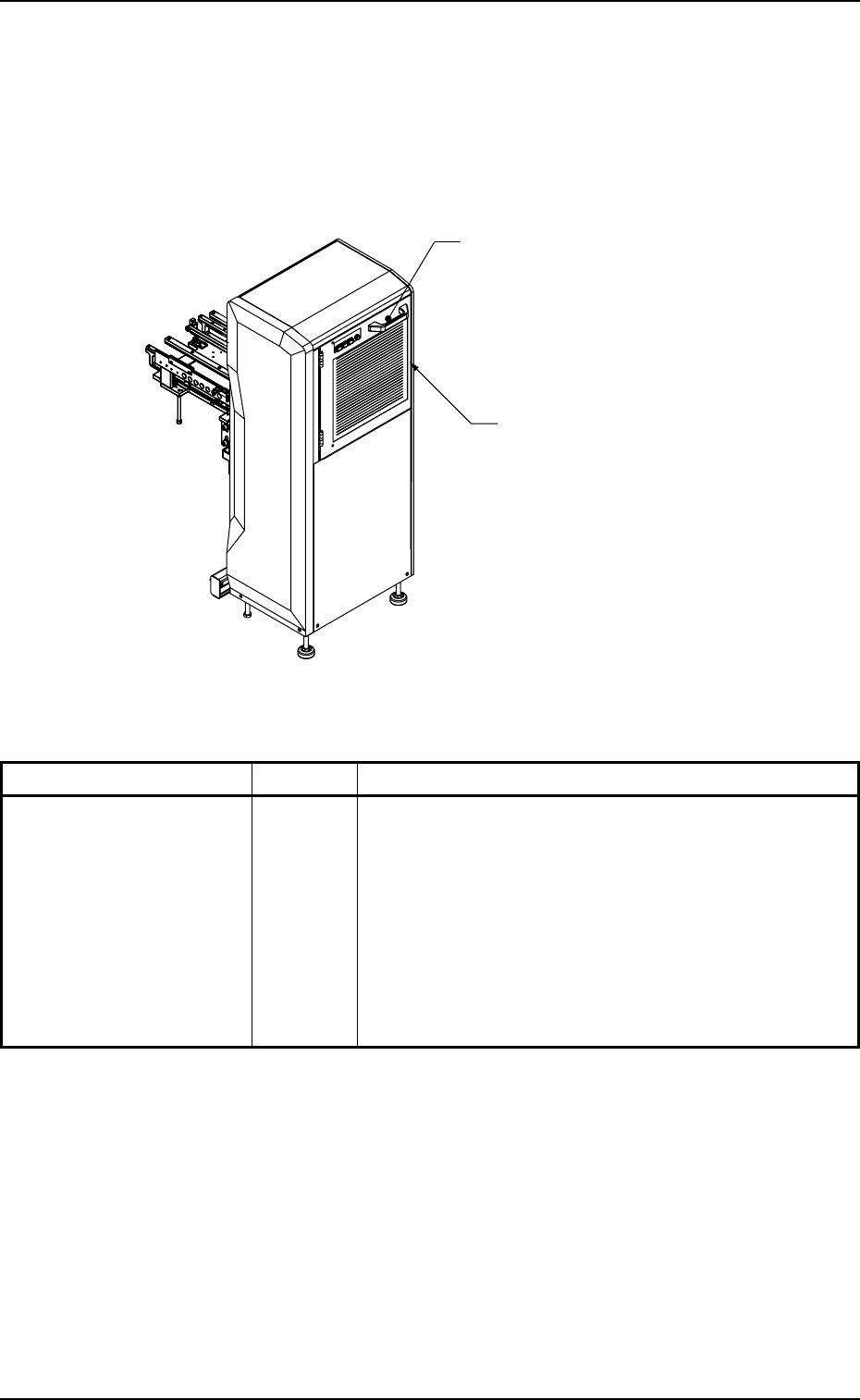

4.1.2 [Safety Door Electromagnetic Lock] Switch
When the LED of the [READY] button is ON, the safety door is locked
electromagnetically, making it impossible to open the door.
When the LED of the [READY] button is OFF, the safety door is un-
locked.
Switch Name Symbol Countermeasures
[Safety Door
Electromagnetic Lock]
Switch
Fig. X20
Table X7
[Safety Door Electromagnetic Lock]
Switch
Safety Door
• When the LED of the [READY] button is ON, the safety
door cannot be opened because it is locked by the
electromagnetic lock switch.
• When the safety door has opened due to the break-
down of the electromagnetic lock switch, etc., with
the machine in operation, the power to the elevator
shaft is shut off.
(Stop in Error Condition)
YSOL501
0311-003 25
AHI01EGP
4.1 Safety Switches and Sensors

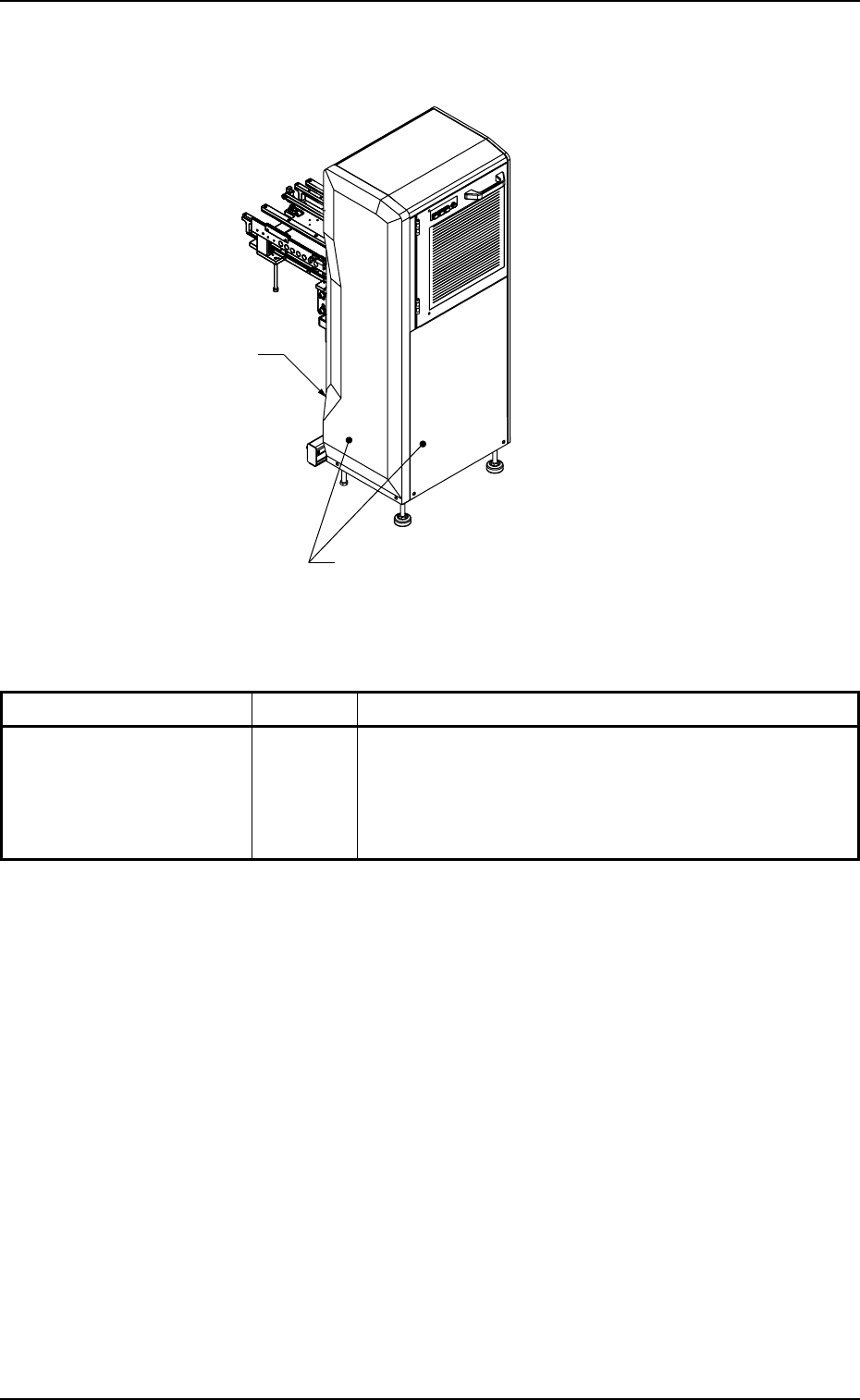

4.1.3 [Opened Maintenance Cover Detection] Switches
Switch Name Symbol Countermeasures
[Opened Maintenance
Cover Detection] Switches
[Opened Maintenance Cover Detection]
Switches
Maintenance Cover
Fig. X21
Table X8
SQ503
SQ504
• When the maintenance cover is detached, the power
to the elevator shaft is shut off.
• No operations can be performed with the maintenance
cover being detached.
0311-003 26
AHI01EGP
4.1 Safety Switches and Sensors
BPH504R (Light Receiving Side)
BPH504T (Light Emitting Side)
4.2 Protective Sensors
This session describes the main sensors that are provided for machine
protection.

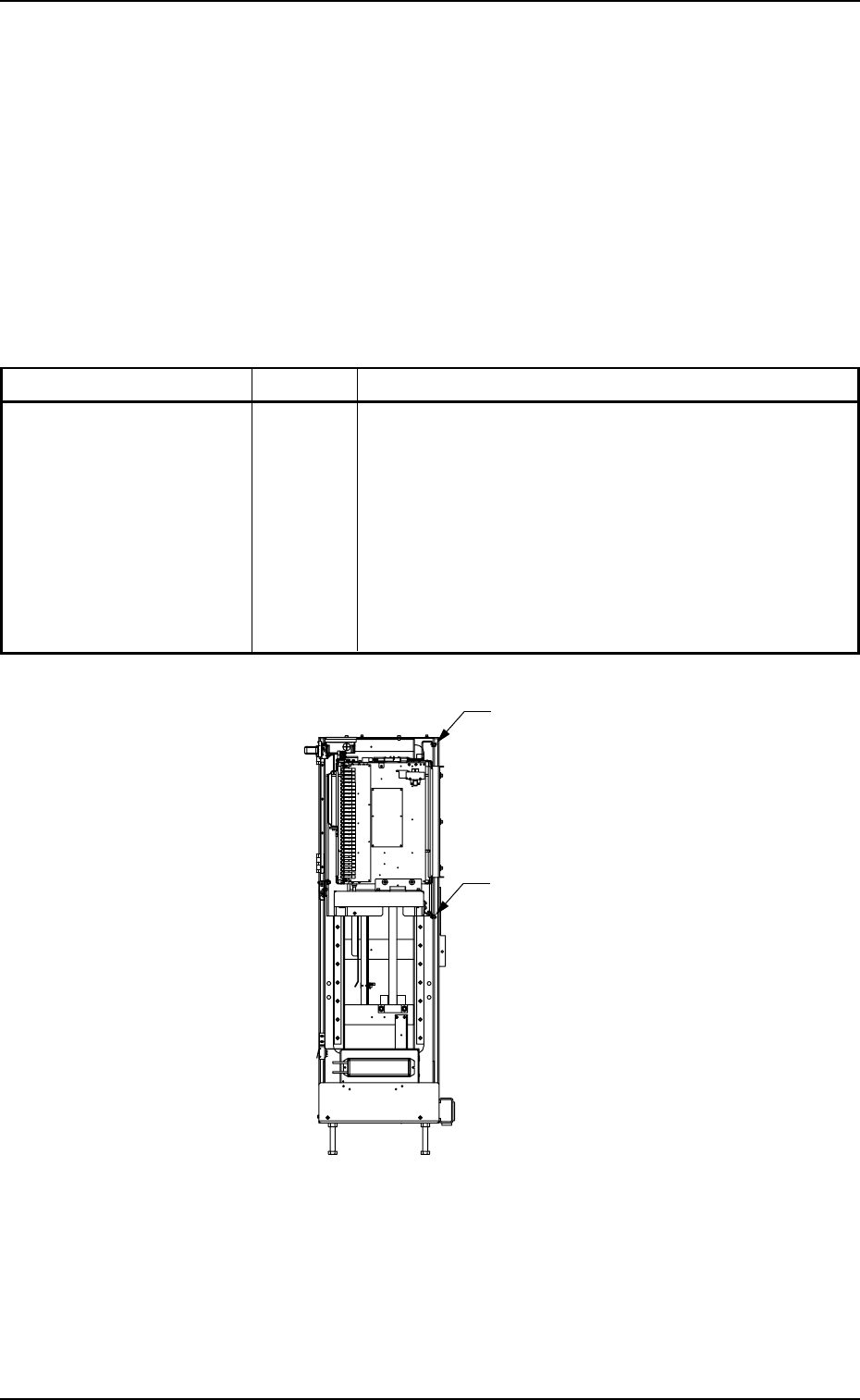

4.2.1 [Ejected Pallet Detection] Sensor
When a pallet is not seated correctly in place, these sensors are acti-
vated to prevent the machine from being operated.
Sensor Name Symbol Countermeasures
[Ejected Pallet Detection]
Sensor
Fig. X22
Table X9
When this sensor has detected an error, the following
measures are taken.
• When an error has been detected during operation,
the elevator shaft decelerates and stops with the ser-
vomotor being tuned off.
BPH504
0204-002 27
AHI01EGP
4.2 Protective Sensors
