(2) Rear Side of Machine
Fig. A3 Rear View
0311-002 1-4
AHI01EGP
1.2 Name and Function of Each Section
Rack
Traverse
1.2.2 Safety Devices
(1) [EMERGENCY STOP] Switches
The multi-layer tray feeder is not provided with any [EMERGENCY
STOP] switches.
The [EMERGENCY STOP] switches of the main machine are com-
monly used for this feeder.
Fig. A4
The [EMERGENCY STOP] switches can be used to stop machine op-
eration in an emergency.
When one of the [EMERGENCY STOP] switches of the main machine
is pressed, the power to the feeder is turned off and the feeder stops
immediately.
When the power is turned off, the LED of the [POWER ON] button on
the operation panel illuminates in red.
• Locking the [EMERGENCY STOP] Switch
When an [EMERGENCY STOP] switch is pressed, all power is shut
off, the machine stops running, and the [EMERGENCY STOP] switch
is locked to avoid any careless power re-supply to the machine.
• Unlocking the [EMERGENCY STOP] Switch
Before re-supplying power to the machine, check and remove the
cause of emergency stop and inspect each section of the machine.
Then, unlock the [EMERGENCY STOP] switch.
To unlock the button, turn the button clockwise.
0311-003 1-5
AHI01EGP
Front Side of Machine Rear Side of Machine
[EMERGENCY STOP] Switch
[EMERGENCY STOP]
Switch
1.2 Name and Function of Each Section
1.2.3 Equipment for Operations
(1) Power Breaker
This multi-layer tray feeder is not provided with any power breaker.
The power breaker of the main machine is commonly used for this
feeder.

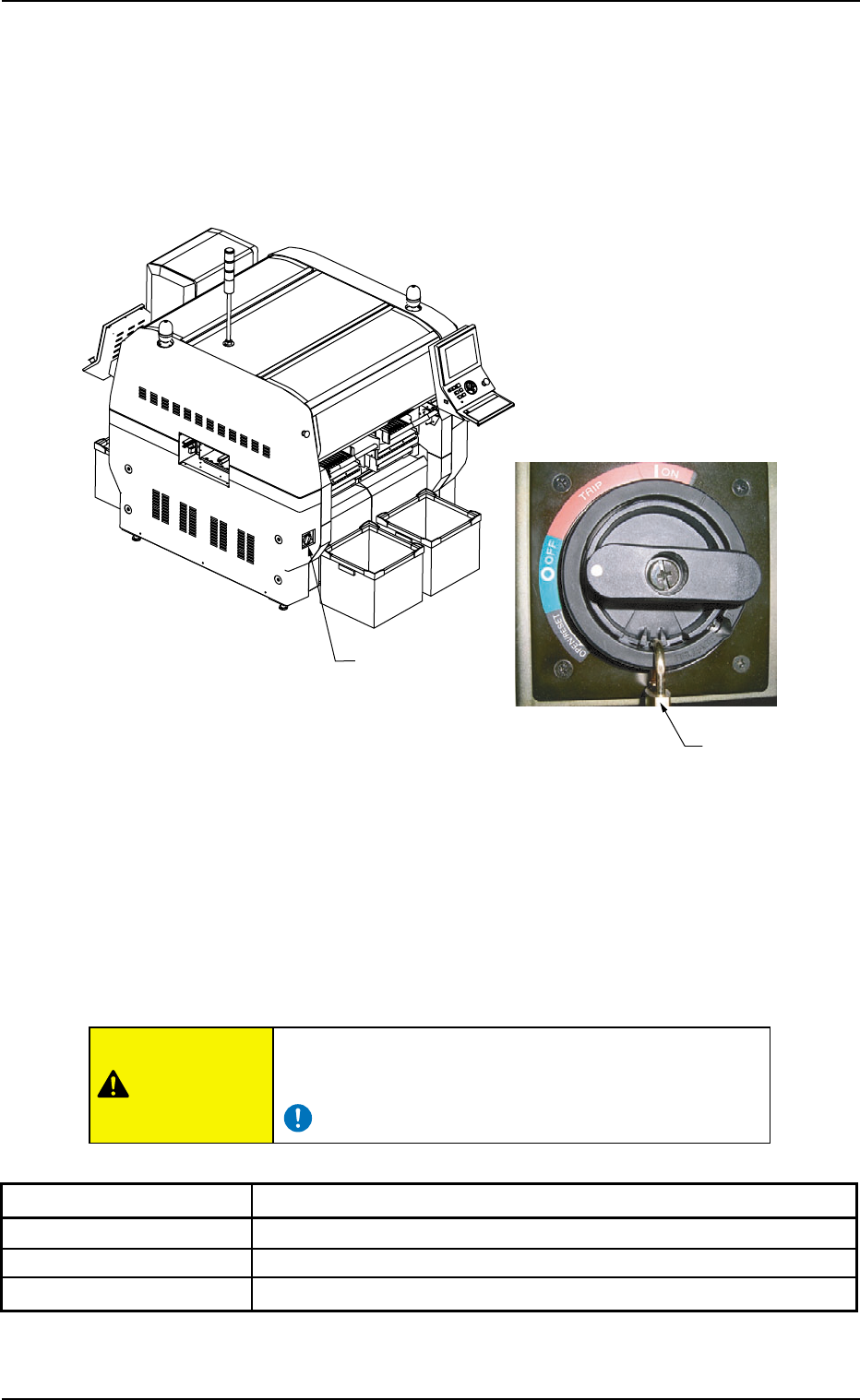

Fig. A5
The power breaker is provided to supply or shut off power to the ma-
chine.
The power breaker can be locked with a padlock.
Refer to "1.7.2 Locking the Power Breaker with the Padlock" in "Section
3 Outline of Automatic Operation" (the instruction manual (Vol. 1) of the
main machine) for the procedure to lock the breaker.
Before maintenance, etc., be sure to turn off the power
breaker and lock it with the padlock for safety purposes.
Table A1
Symbols/Names Functions
{ (OFF) Shut-Down Operation (Fig. A5)
tripped Power Breaker Tripped
| (ON) Power Supply
0311-003 1-6
AHi01EGP
Power Breaker
Padlock
1.2 Name and Function of Each Section
CAUTION
