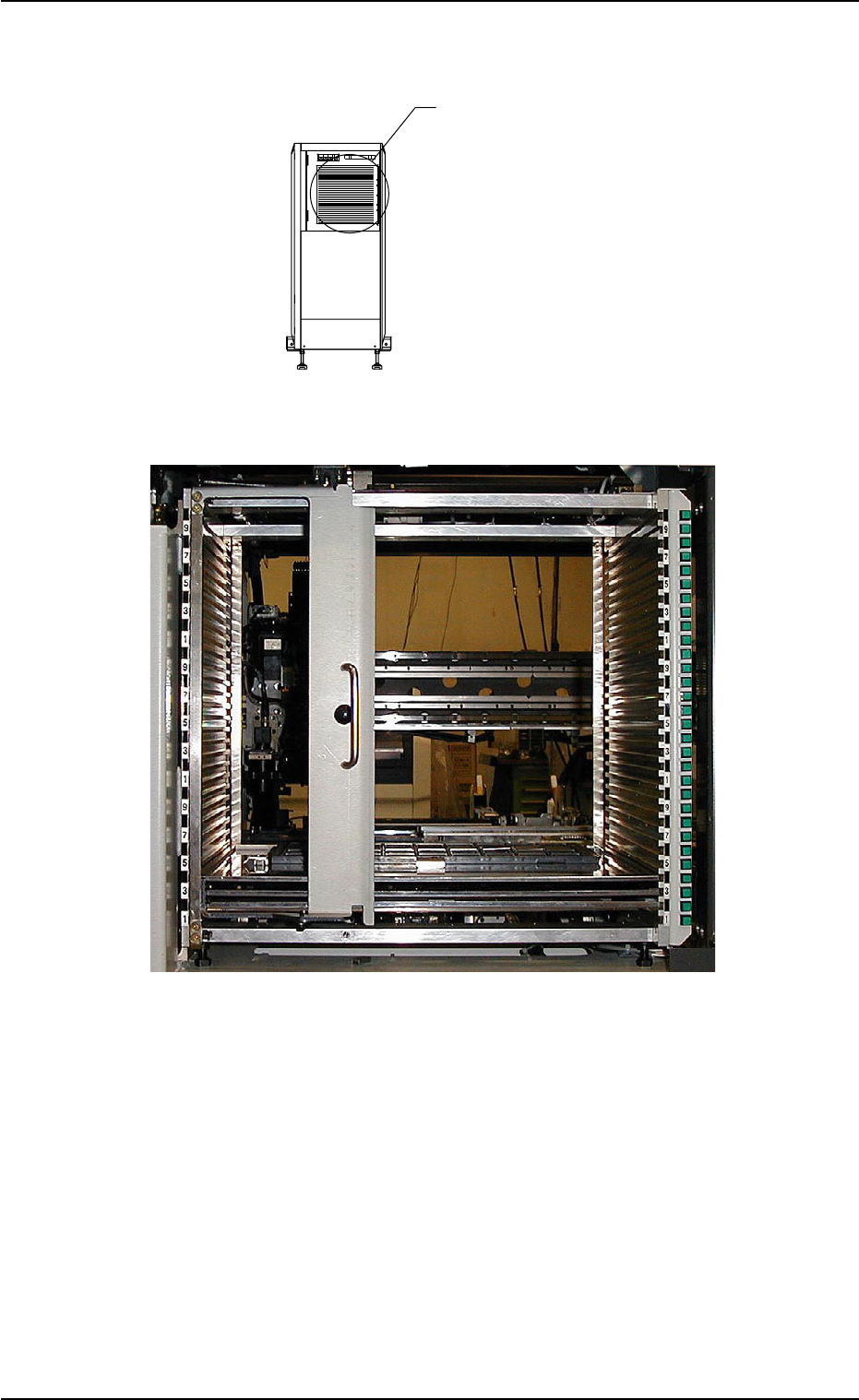

(3) Rack

Fig. A12

Fig. A13

This is provided with a mechanism that sets up the pallets.

0311-003 1-11

AHI01EGP

1.2 Name and Function of Each Section

ALL

READY

CHANGE

HOME

POSITION POWER

ELEV.

Elevator Section

1.3 Mechanism of Component Supply

(1) A tray (pallet) is drawn out to the traverse section from the rack

stored in the elevator section by the traverses according to the pat-

tern program data.

(2) The placement heads of the main machine take out the compo-

nents from the tray drawn out to the traverse section.

(3) The component recognition camera captures the images of the com-

ponents taken out by the placement heads and the images are rec-

ognized to correct the deviations in the pickup positions for accu-

rate component placement.

A component discharge operation is performed when a pickup er-

ror or a recognition error is detected after component recognition.

(4) The tray in the traverse section is stored in the elevator and another

tray is drawn out to the traverse section according to the pattern

program data.

When the components to be placed subsequently are in the same

tray, the tray stays on standby in the traverse section.

(5) Steps (2) through (4) are repeated.

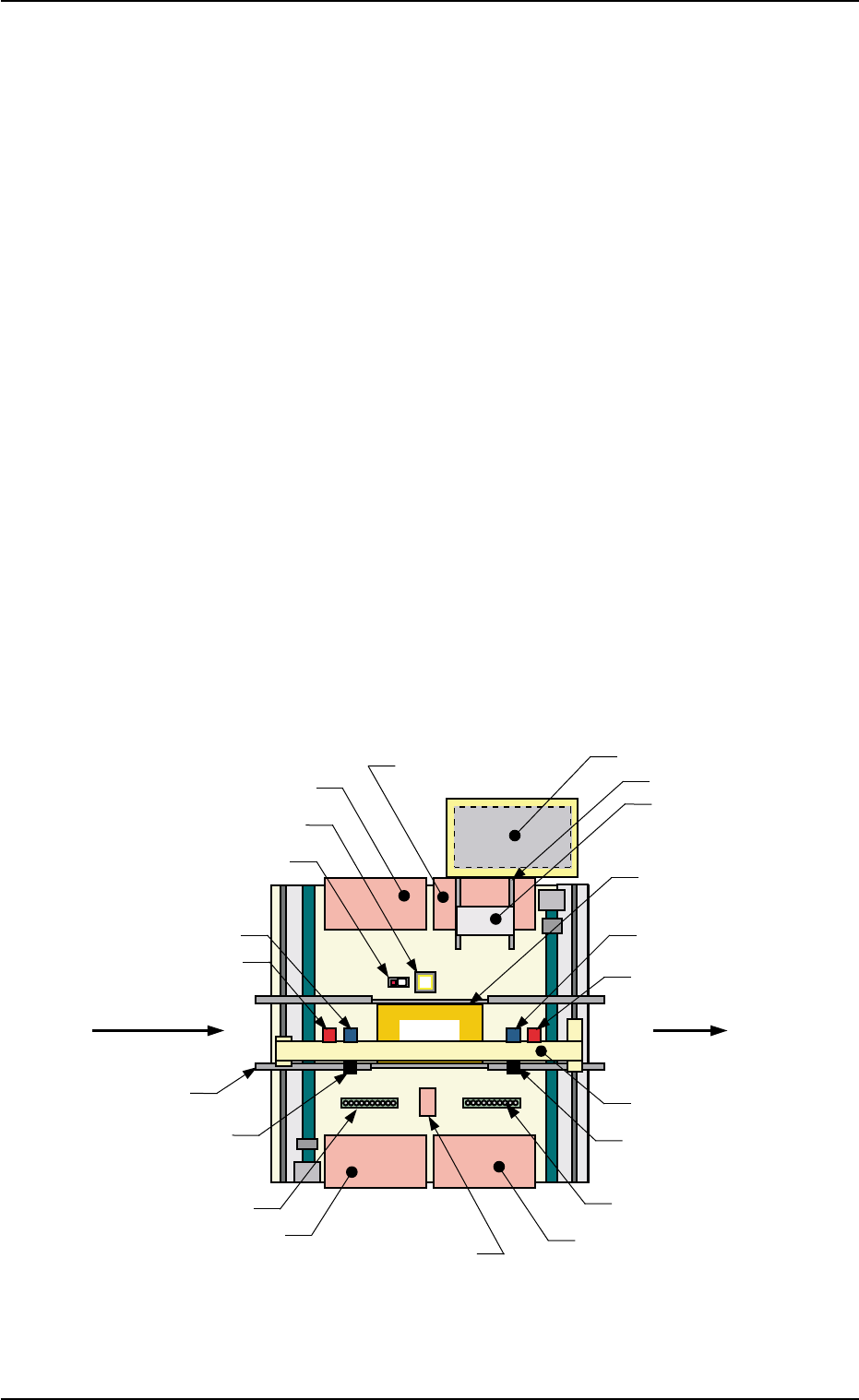

Fig. A14 Rough View (P.C.B. Transfer Direction: Left to Right)

1.3 Mechanism of Component Supply

0204-002 1-12 AHI01EGP

Transfer Conveyor

P.C.B.

Feeder Base #4

Feeder Base #1

Feeder Base #3

Back Light Plate

Nozzle Stocker B2

Nozzle Stocker B1

Head #1

Movable Camera 1

Fixed Camera A1

X/Y Beam

P.E.C. Recognition Camera 2

Head #2

Movable Camera 2

(Input Machine)

P.C.B. Flow Direction

(Output Machine)

Traverse

Tray

Feeder Base #2

P.E.C. Recognition

Camera 1

Elevator

Component Storage Box

(Front Side of Machine)

P.C.B. Positioning Section

(P Conveyor)
