3. Outline of Automatic Operation
0311-003 1-14 AHI01EGP
3. Outline of Automatic Operation
3.1 Normal Automatic Operation

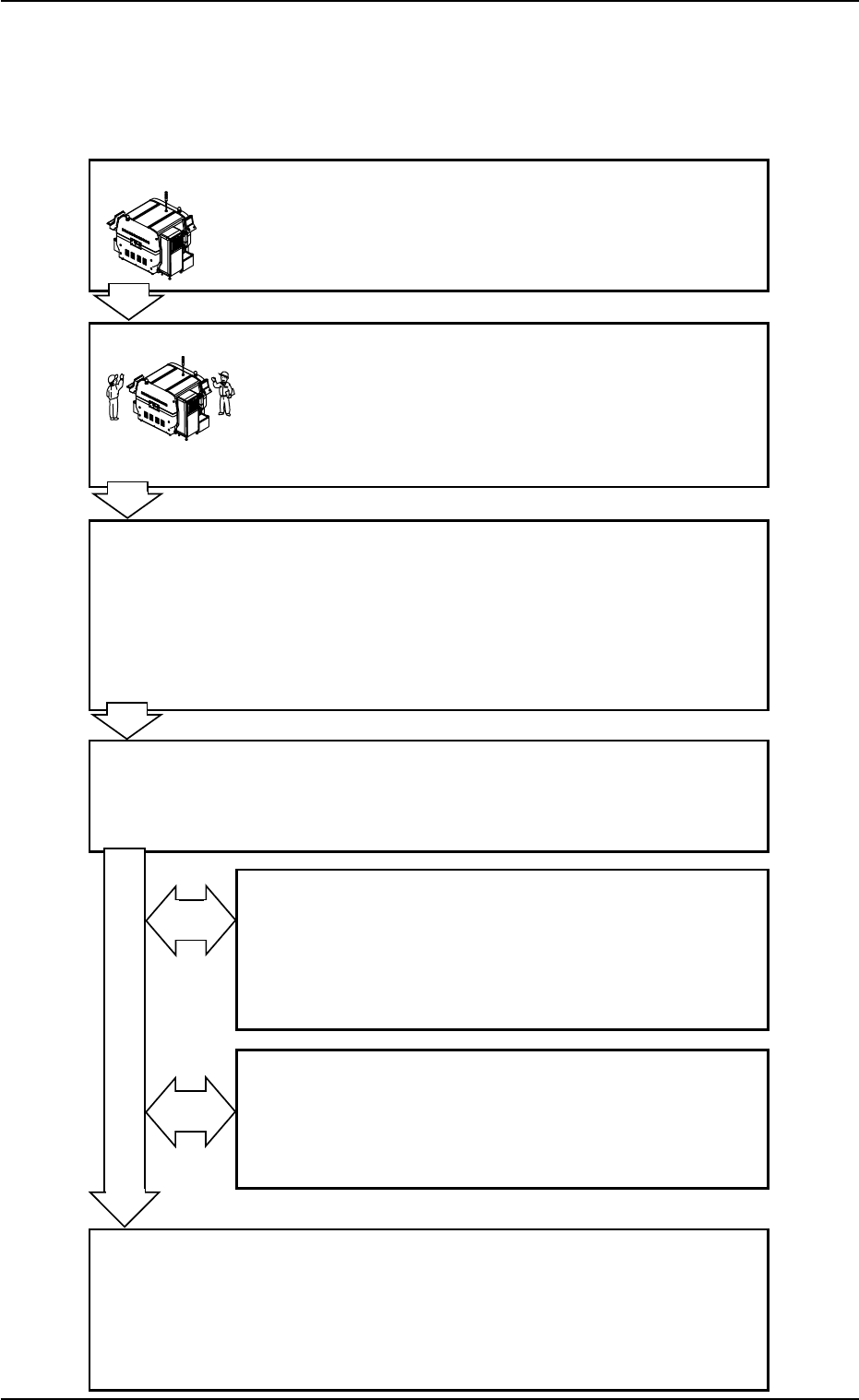

Flow of Automatic Operation
Program Change Operation
Refer to "Section 2 Operation (Supervisor)" for details.
Inspections Work before Operation
Refer to the following items in "Section 3" (the instruc-
tion manual (Vol. 1) of the main machine) for details.
1.1.1 Confirmation of Power Supply and Air Pressure
1.1.2 Confirmation of Safety Doors and Feeder Base
Pullout Prevention Bars
Preparation before Operation
Refer to the following items for details.
3.3.1 Power ON Operation
3.3.2 "AUTO OPERATION" Windows and Zeroing
of Each Device
3.3.3 Preparation for Pallets
3.3.7 Preparation for P.C.B.’s
Start of Automatic Operation
Refer to the following item in "Section 3" (the instruc-
tion manual (Vol. 1) of the main machine) for details.
1.3 Start of Automatic Operation
Stop and Re-Start Operation of Automatic Operation
Refer to the following items for details.
3.5.1 Replenishment of Components
3.5.2 Replenishment of P.C.B.’s
3.5.3 Temporary Stop (Pause) with [STOP] Button
3.5.4 Stop Operation by Selection of "Auto Stop Mode"
Interruption of Automatic Operation
Refer to the following item in "Section 3" (the instruc-
tion manual (Vol. 1) of the main machine) for details.
1.5.1 Interruption with [CANCEL] Button
1.5.2 Interruption with [EMERGENCY STOP] Switch
End of Automatic Operation
Refer to the following items in "Section 3" (the instruc-
tion manual (Vol. 1) of the main machine) for details.
1.6.1 Stop of Automatic Operation
1.7.1 Procedure for Shut-Down Operation
1.7.2 Locking the Power Breaker with the Padlock
Fig. A15
Fig. A16
3.2 Inspections before Automatic Operation
3.2.1 Confirmation of Power Supply and Air Pressure
Refer to "1.1.1 Confirmation of Power Supply and Air Pressure" in "Sec-
tion 3" (the instruction manual (Vol. 1) of the main machine) for details.
The power and air pressure are supplied to this feeder from the
main machine.
3.3 Preparation before Operation
3.3.1 Power ON Operation
Refer to "1.1.1 Confirmation of Power Supply and Air Pressure" in "Sec-
tion 3" (the instruction manual (Vol. 1) of the main machine) for details.
This feeder is not provided with any power breaker and [POWER
ON] button.The power breaker and the [POWER ON] button of
the main machine is commonly used.
3.3.2 "AUTO OPERATION" Windows and Zeroing of Each Device
Refer to "1.2.2 "AUTO OPERATION" Windows and Zeroing of Each
Device" in "Section 3" (the instruction manual (Vol. 1) of the main ma-
chine) for details.
3.2 Inspections before Automatic Operation
0311-002 1-15 AHI01EGP
Note
Note
3.3.3 Preparation for Pallets

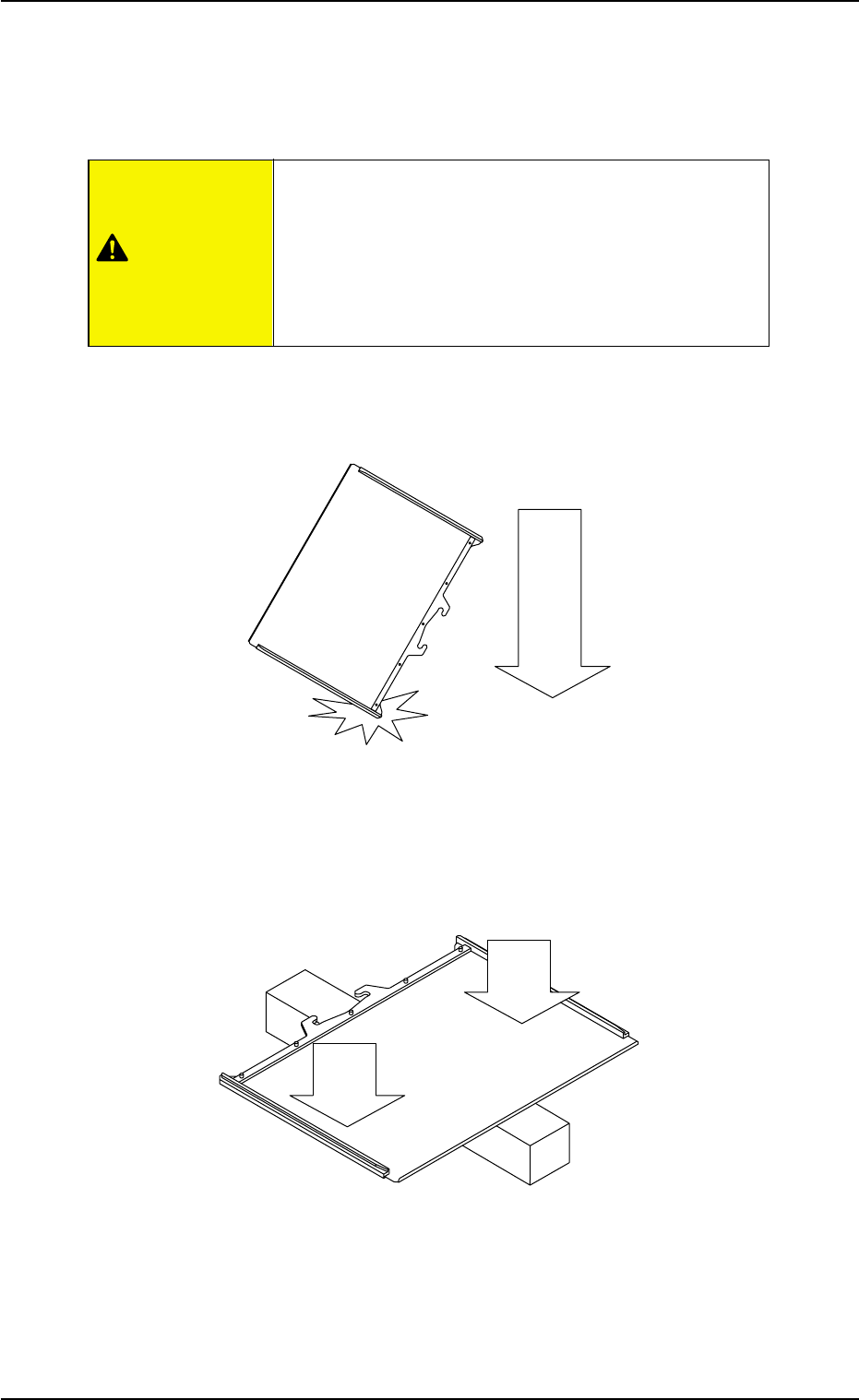

Notes on Handling the Pallets
• Do not drop any pallets. They must be handled care-
fully.
• When a deformed pallet is used, a component pickup
error may occur.
Use a new pallet when a component pickup error
occurs frequently.
• Do not drop any pallet to the floor, etc. Otherwise, the pallet may be
deformed.
Fig. A17
• Do not apply any force to a pallet as shown in the figure below. Other-
wise, the palette may be deformed.
Fig. A18
0311-003 1-16
AHI01EGP
Falling
Force
Force
3.3 Preparation before Operation
CAUTION
