3.2 Inspections before Automatic Operation
3.2.1 Confirmation of Power Supply and Air Pressure
Refer to "1.1.1 Confirmation of Power Supply and Air Pressure" in "Sec-
tion 3" (the instruction manual (Vol. 1) of the main machine) for details.
The power and air pressure are supplied to this feeder from the
main machine.
3.3 Preparation before Operation
3.3.1 Power ON Operation
Refer to "1.1.1 Confirmation of Power Supply and Air Pressure" in "Sec-
tion 3" (the instruction manual (Vol. 1) of the main machine) for details.
This feeder is not provided with any power breaker and [POWER
ON] button.The power breaker and the [POWER ON] button of
the main machine is commonly used.
3.3.2 "AUTO OPERATION" Windows and Zeroing of Each Device
Refer to "1.2.2 "AUTO OPERATION" Windows and Zeroing of Each
Device" in "Section 3" (the instruction manual (Vol. 1) of the main ma-
chine) for details.
3.2 Inspections before Automatic Operation
0311-002 1-15 AHI01EGP
Note
Note
3.3.3 Preparation for Pallets
Notes on Handling the Pallets
• Do not drop any pallets. They must be handled care-
fully.
• When a deformed pallet is used, a component pickup
error may occur.
Use a new pallet when a component pickup error
occurs frequently.
• Do not drop any pallet to the floor, etc. Otherwise, the pallet may be
deformed.
Fig. A17
• Do not apply any force to a pallet as shown in the figure below. Other-
wise, the palette may be deformed.
Fig. A18
0311-003 1-16
AHI01EGP
Falling
Force
Force
3.3 Preparation before Operation
CAUTION
0311-003 1-17 AHI01EGP

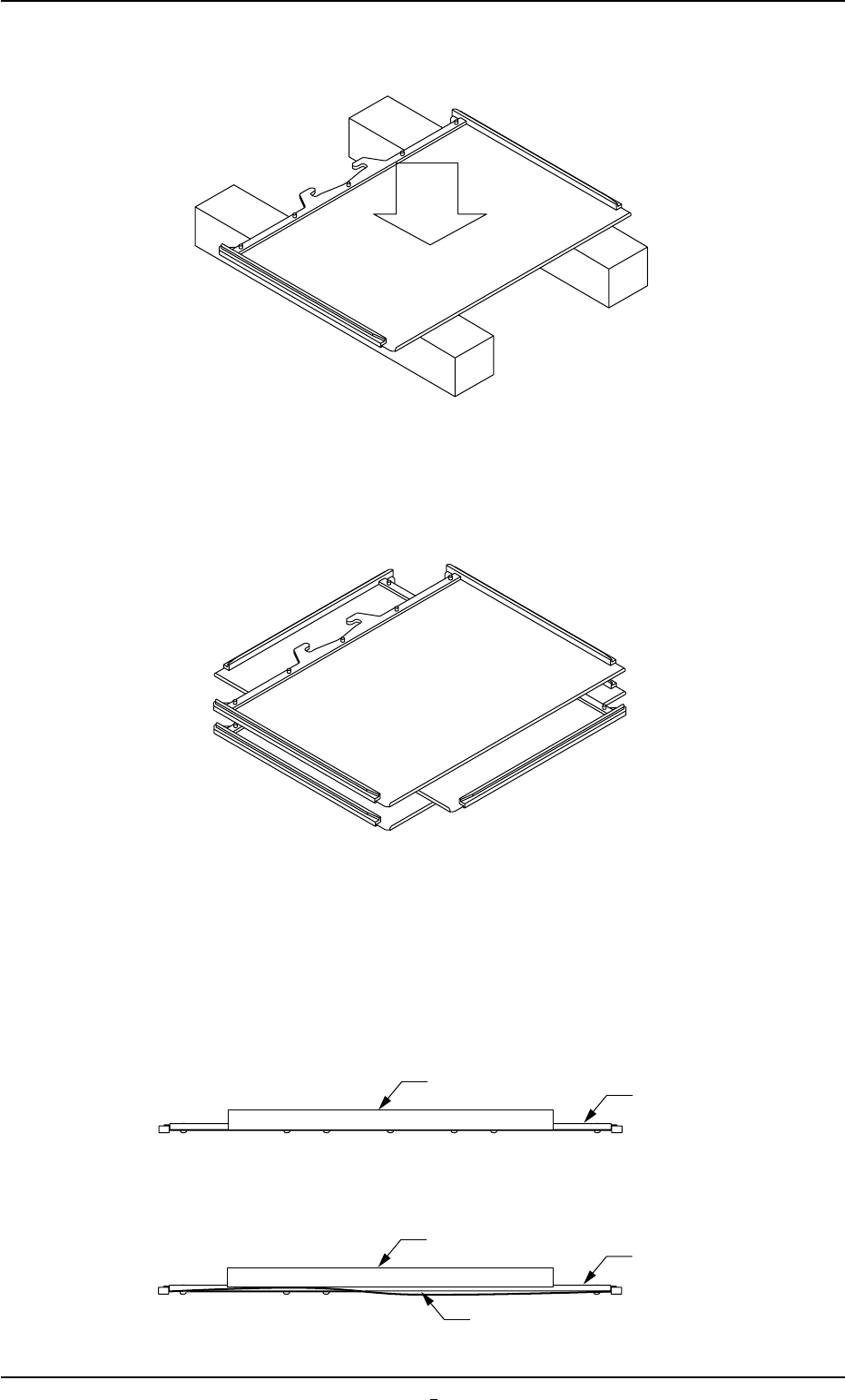

• Do not apply any force to a pallet as shown in the figure below. Other-
wise, the pallet may be deformed.
Fig. A19
• Do not stack the pallets on top of one another as shown in the figure
below when they are stored. Otherwise, the pallet may be deformed.
Fig. A20
How to check if a pallet is deformed or not
(1) Put a pallet on a flat surface.
(2) Put a scale on the pallet and check if the whole upper surface of the
pallet is flat (no warpage) or not.
Fig. A21 Normal Pallet
Fig. A21-1 Deformed Pallet
Force
Scale
Pallet
3.3 Preparation before Operation
Suspended
Scale
Pallet
