3.4 Start of Automatic Operation
Refer to "1.3 Start of Automatic Operation" in "Section 3" (the instruction
manual (Vol. 1) of the main machine) for details.
3.4 Start of Automatic Operation
0109-001 1-24 AHI01EGP
3.5 Temporary Stop and Restart of Automatic
Operation
3.5.1 Replenishment of Components
There will be two cases of component supply replenishment during au-
tomatic operation - Component Replenishment with Machine in Short of
Components and Intentional Component Replenishment.
• Component Shortage Mode
When a component shortage error occurs during automatic opera-
tion, an error alarm is issued and the machine stops.
In this case, follow the steps below to replenish components and re-
start the automatic operation.

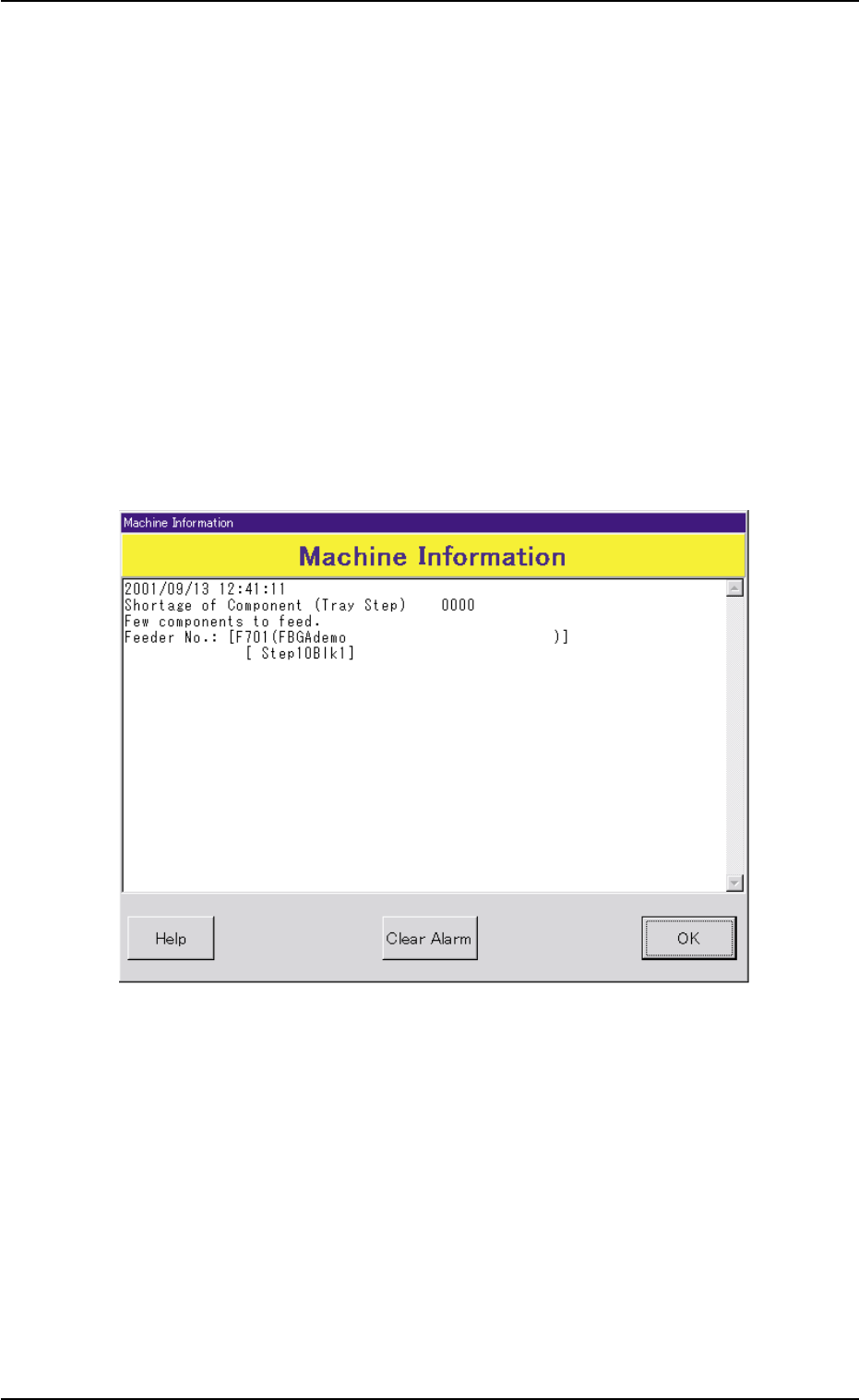

Fig. A32 "Machine Information" Window
3.5 Temporary Stop and Restart of Automatic Operation
0109-001 1-25 AHI01EGP
Operation Procedure
(1) Press the [Clear Alarm] button.
(2) Press the [OK] button. (The "Information" window closes.)
(3) Press the [HOME POSITION] button on the operation panel.
(5) Open the safety door.
(6) Open the rack shutter on the operator’s side.
(7) Check for the step (pallet) that has caused a component shortage
error (flickering LED of the component replenishment switch).
(8) Draw out the palette on the step where a component shortage er-
ror has occurred and replenish components.
(9) Press the [TRAY LOAD] switch for the step for which components
have been replenished.
The LED of the [TRAY LOAD] switch illuminates.
(10) Close the rack shutter on the operator’s side.
(11) Close the safety door.
(12) Press the [READY] button on the operation panel.
(13) After the component replenishment has been completed, confirm
that the "AUTO OPN." window is active on the touch screen and
press the [START] button of the main machine. The operation will
restart.
(a) The "Pickup Tray Matrix" tab sheet can also be used
to check the steps and blocks that have caused com-
ponent shortage errors.
Refer to "4.3.1 "Pickup Tray Matrix" Tab" in "Section
2" for details.
(b) It is also possible to replenish the tray in the middle of
processing with components or replace it with an-
other one. In this case, it is required to update the
tray matrix.
Refer to "4.3.1 "Pickup Tray Matrix" Tab" in "Section
2" for details.
3.5.2 Replenishment of P.C.B.’s
Refer to "1.4.2 Replenishment of P.C.B.’s" in "Section 3" (the instruction
manual (Vol. 1) of the main machine) for details.
3.5.3 Temporary Stop (Pause) with [STOP] Button
Refer to "1.4.3 [STOP] and [ON] (entitled "STOP") Buttons" in "Section
3" (the instruction manual (Vol. 1) of the main machine) for details.
3.5.4 Stop Operation by Selection of "Auto Stop Mode"
Refer to "1.4.4 Stop Operation by Selection of "Auto Stop Mode"" in "Sec-
tion 3" (the instruction manual (Vol. 1) of the main machine) for details.
