4. Menus for Automatic Operation

• Window Layout

When the [AUTO RUN] button on the main menu bar is pressed, the

following window opens.

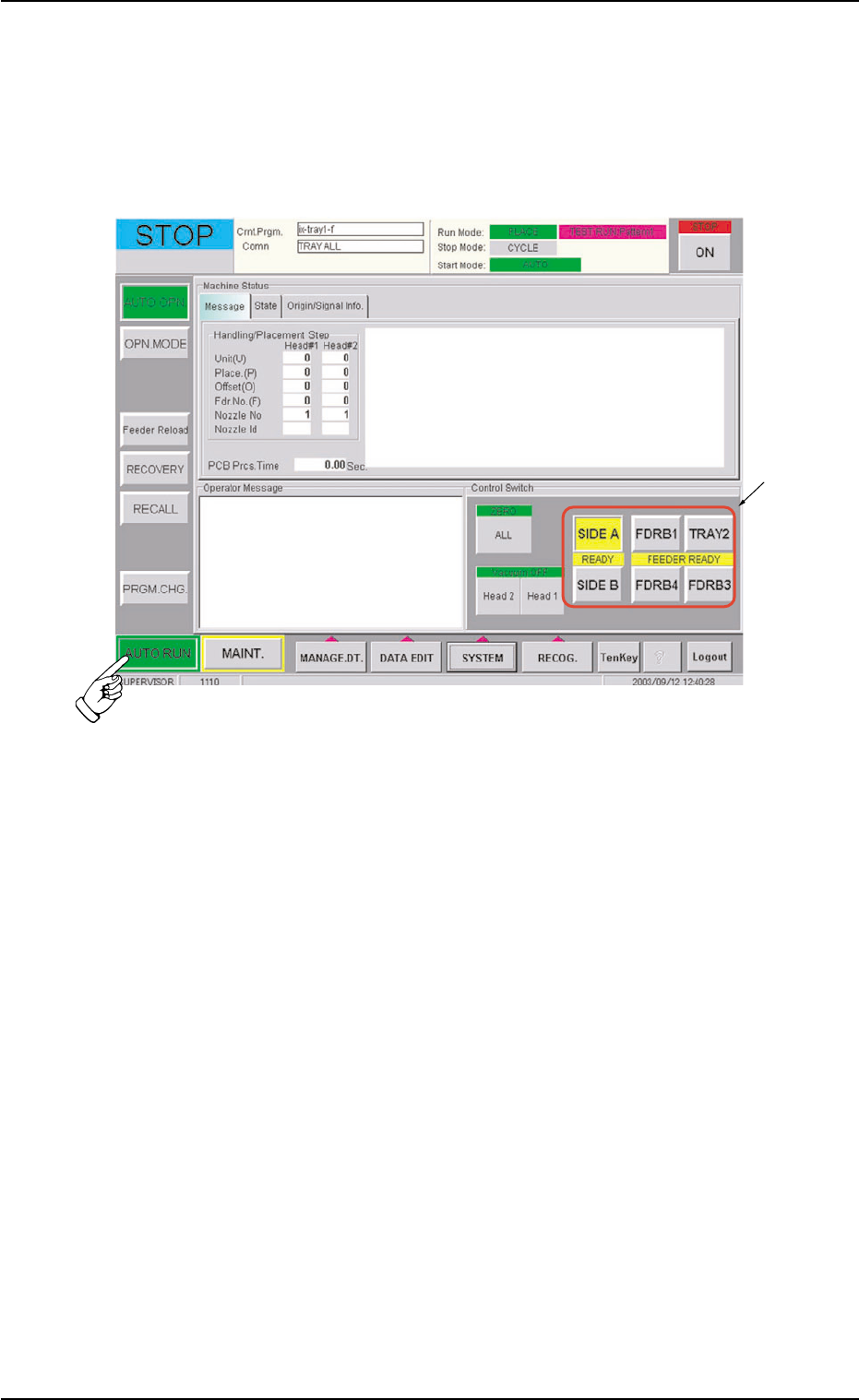

Fig. B1 "AUTO RUN" Menu Window

• Window Composition

*1 Control Buttons

After the pallet is replaced and the machine is set ready for opera-

tion, press the pertinent tray feeder button.

4. Menus for Automatic Operation

0311-002 2-8-2 AHI01EGP

4.1 "AUTO OPN." Window (Submenu)

4.1.1 "Origin/Signal Info." Tab

The origin information on each device and the status (ON/OFF status)

of the input and output machines are shown at real time.

• Sheet Layout

When the "Origin/Signal Info." tab is pressed in the "AUTO OPN."

window (submenu), the following tab sheet appears inside the win-

dow.

Fig. B1-1 "Origin/Signal Info." Tab Sheet

• Sheet Composition

*1 Origin Information

It is indicated whether or not each device of the multi-layer tray feeder

is zeroed.

The devices located at their origins are marked with "•".

The origin information is not displayed while the machine is running.

When zeroing operation is started, this tab sheet appears

automatically.

4.1 "AUTO OPN." Window (Submenu)

Note

4.2 "OPN. MODE" Window (Submenu)

4.2.1 "Opn. Mode" Tab

Parameters can be specified as operation speeds of the tray elevator

and traverses.

••

• Sheet Layout

When the "Opn. Mode" tab is pressed in the "OPN. MODE" window

(submenu), the following tab sheet appears inside the window.

Fig. B1-2 "Opn. Mode" Tab Sheet

0311-003 2-9

AHI01EGP

4.2 "OPN. MODE" Window (Submenu)
