4.1 "AUTO OPN." Window (Submenu)
4.1.1 "Origin/Signal Info." Tab
The origin information on each device and the status (ON/OFF status)
of the input and output machines are shown at real time.
• Sheet Layout
When the "Origin/Signal Info." tab is pressed in the "AUTO OPN."
window (submenu), the following tab sheet appears inside the win-
dow.

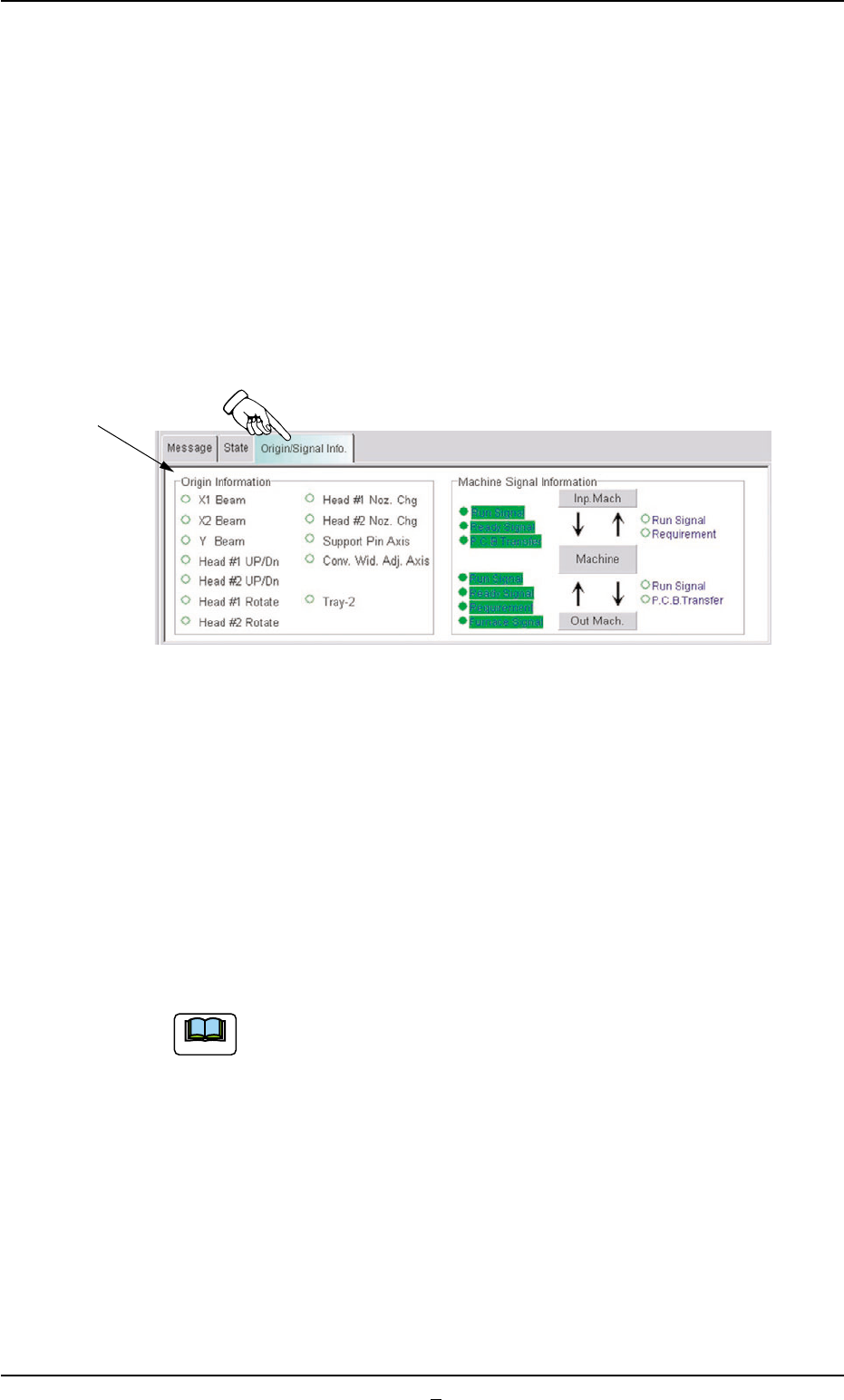

Fig. B1-1 "Origin/Signal Info." Tab Sheet
• Sheet Composition
*1 Origin Information
It is indicated whether or not each device of the multi-layer tray feeder
is zeroed.
The devices located at their origins are marked with "•".
The origin information is not displayed while the machine is running.
When zeroing operation is started, this tab sheet appears
automatically.
4.1 "AUTO OPN." Window (Submenu)
Note
*1
4.2 "OPN. MODE" Window (Submenu)
4.2.1 "Opn. Mode" Tab
Parameters can be specified as operation speeds of the tray elevator
and traverses.
••
••
• Sheet Layout
When the "Opn. Mode" tab is pressed in the "OPN. MODE" window
(submenu), the following tab sheet appears inside the window.

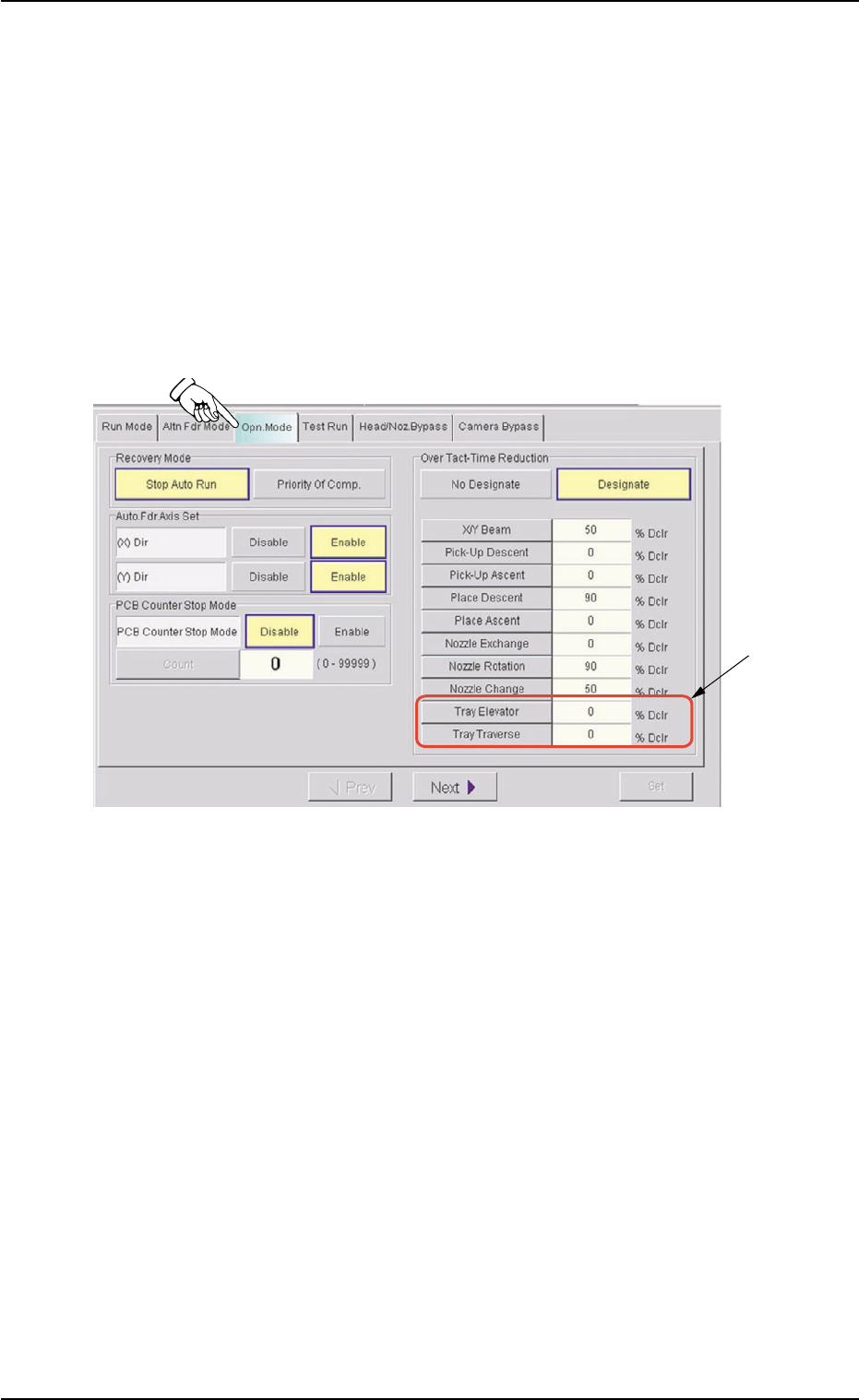

Fig. B1-2 "Opn. Mode" Tab Sheet
0311-003 2-9
AHI01EGP
*1
4.2 "OPN. MODE" Window (Submenu)
••
••
• Sheet Composition
*1 "Over Tact-Time Reduction" Group Box
[Tray Elevator] Button
When pressed, this button opens the "Tray Elevator" edit window,
enabling the operator to specify the speed reduction rate of the tray
elevator.
[Tray Traverse] Button
When pressed, this button opens the "Tray Traverse" edit window,
enabling the operator to specify the speed reduction rate of the tray
traverse.
Fig. B2 "Tray Elevator" Edit Window
0204-002 2-10
AHI01EGP
