(a) When each section is not set up and a teaching opera- tion is performed, note that the offset values may not be taught correctly . (b) Before performing a teaching operation, be sure to zero all beams. *2 Fdr . No. T…
5.3.3 "Tray Teach Pick-Up Pos. [Comp. Center Pos.]" Sheet
This sheet makes it possible to perform a teaching operation to align the
center of the vacuum nozzle with the center of the component to be
supplied from the multi-layer tray feeder.
• Sheet Layout
When the [Tray Teach Pick-Up Pos. [Comp. Center Pos.]] button is
pressed in the "Pick-Up Location" tab sheet , the following sheet ap-
pears.

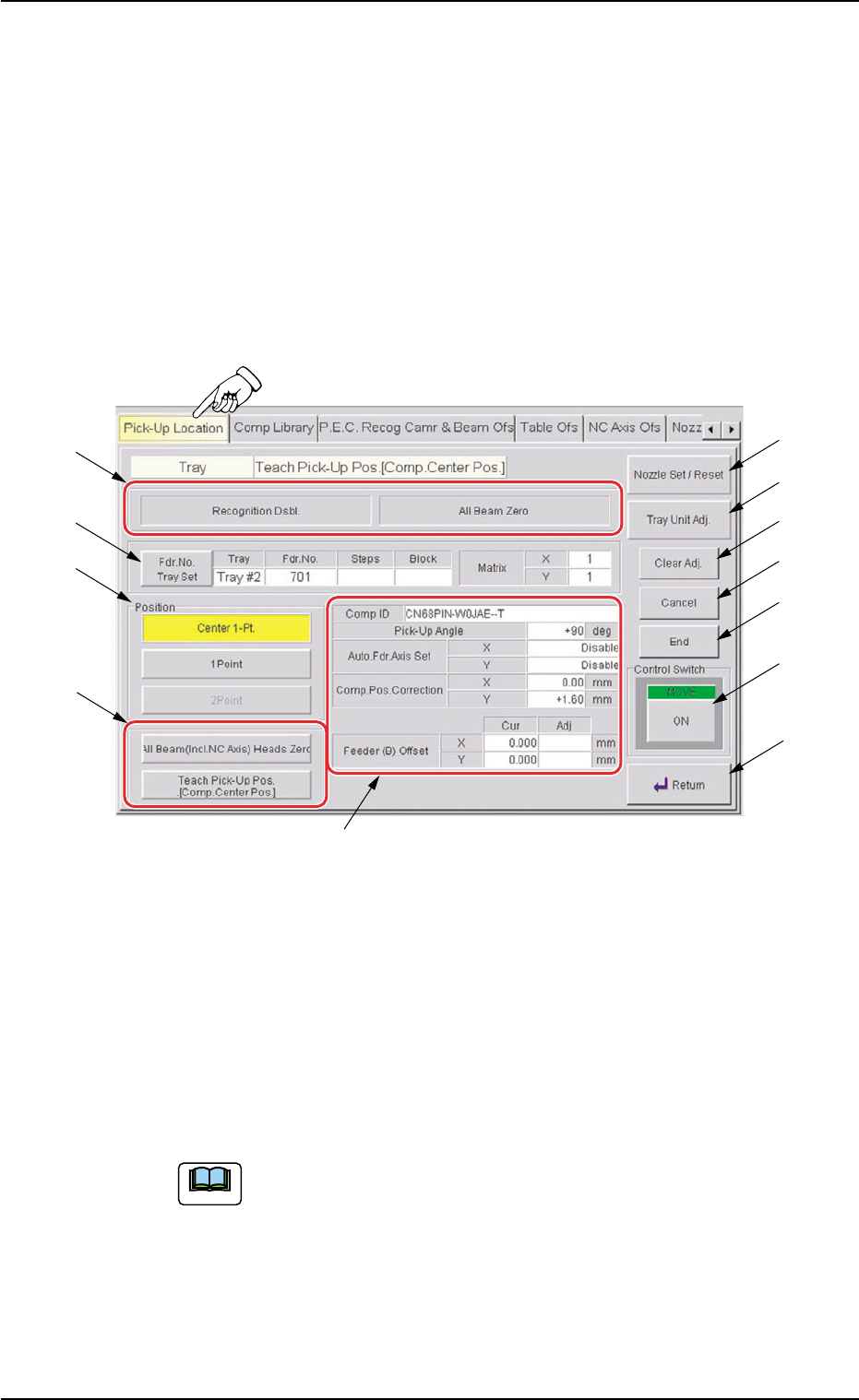

Fig. B11 "Tray Teach Pick-Up Pos. [Comp. Center Pos.]" Sheet
• Sheet Composition
*1 Set Status
When the "P.E.C. Dsbl." or the "Comp. Recognition Dsbl." check
box in the "Test Run" tab sheet is turned on (checked), the back-
ground color of "Recognition Dsbl." turns light red (No background
color in normal cases).
No recognition processing is made even if a teaching op-
eration is performed when each check box is turned on
(checked) in the "Test Run" tab sheet. Therefore, various
teaching operations will get incorrect results.
When all beams are zeroed completely, the background color of "All
Beam Zero" turns green. Otherwise, the background has no color.
0311-002 2-23
AHI01EGP
5.3 "TEACHING" Window (Submenu)
*1
*6
*7
*8
*9
*10
*11
*12
*4
*5
*3
*2
Note
(a) When each section is not set up and a teaching opera-
tion is performed, note that the offset values may not
be taught correctly.
(b) Before performing a teaching operation, be sure to zero
all beams.
*2 Fdr. No. Tray Set
Set the feeder No. to be taught.
When the [Fdr. No.] button is pressed, the "Feeder No. Set" sheet
appears.
Refer to "5.3.6 "Feeder No. Set" Sheet" for details.
*3 "Position" Group Box
The following buttons are provided in this group box.
[Center 1-Pt.] Button
When the [ENABLE] button on the operation panel is pressed in 2
seconds after this button and the [ON] button (entitled "MOVE"), the
P.E.C. recognition camera moves to the component center position
(Design Position + Feeder (B) Offset) of the pertinent feeder, mak-
ing it possible to capture an image.
Proceed to the operation of the pointing device and execute the
manual alignment operation.
[1Point] and [2Point] Buttons
These buttons are used to align the component with 2 diagonally-
located points.
Use this function when the maximum outside dimensions of the
component exceed "10 × 10 mm" (when the "Recognition" window
cannot cover the whole image of the component).
*4 Mode Selection Buttons
Various actions can be selected.
The following buttons are provided.
[All Beam (Incl. NC Axis) Heads Zero] Button
When this button is pressed, all X/Y beams are zeroed.
When the [ENABLE] button on the operation panel is pressed in 2
seconds after this button and the [ON] button (entitled "MOVE"), the
zeroing operation starts.
[Teach Pick-Up Pos. [Comp. Center Pos.]] Button
The corresponding sheet makes it possible to perform a teaching
operation to align the component center with the nozzle center.
*5 Offset Values
Displayed are the current values and the adjusted ones after teach-
ing.
0311-002 2-24
AHI01EGP
5.3 "TEACHING" Window (Submenu)
Note
*6 [Nozzle Set/Reset] Button
When pressed, this button opens the "Nozzle Set/Reset" window.
The "Nozzle Set/Reset" window enables the cycle movement for
opening or closing the nozzle stocker and attaching or storing a
vacuum nozzle through manual operation.
Refer to "4.3 "Nozzle Change" Tab" in "Section 6" (the instruction
manual (Vol. 2) of the main machine) for details.
*7 [Tray Unit Adj.] Button
When this button is pressed, the "Tray Unit Adj." sheet appears.
The "Tray Unit Adj." tab sheet enables the manual ascending or de-
scending operations for the elevator and a cycle of traverse drawout
and storage operation.
Refer to "5.3.7 "Tray Unit Adj." Sheet" for details.

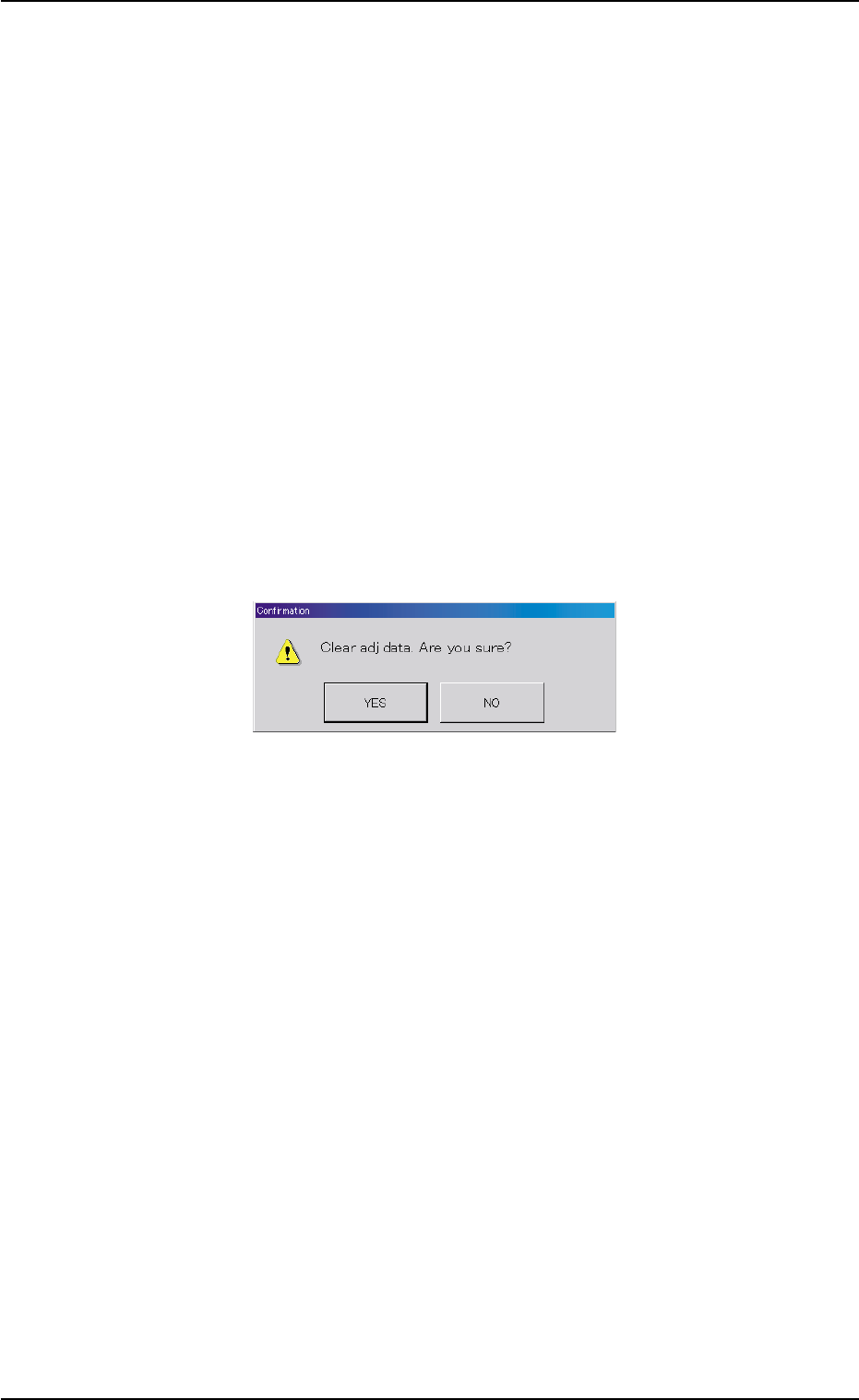

*8 [Clear Adj.] Button
When this button is pressed, the following "Confirmation" dialog box
opens.
Fig. B12
When the [YES] button is pressed, the adjusted values are cleared.
When the [NO] button is pressed, the adjusted values are not cleared.
*9 [Cancel] Button
When pressed, this button cancels the results of the teaching op-
eration without reflecting them on the offset data.
0311-002 2-25
