6 User Manual SIPLACE Head Care Station 10/2017
Table of Contents
1 Introduction
1.1 Overview
User Manual SIPLACE Head Care Station 10/2017 7
1 Introduction
This user manual provides information on the installation and operation of the SI-
PLACE
®
HeadCareStation(HCS).
1.1 Overview

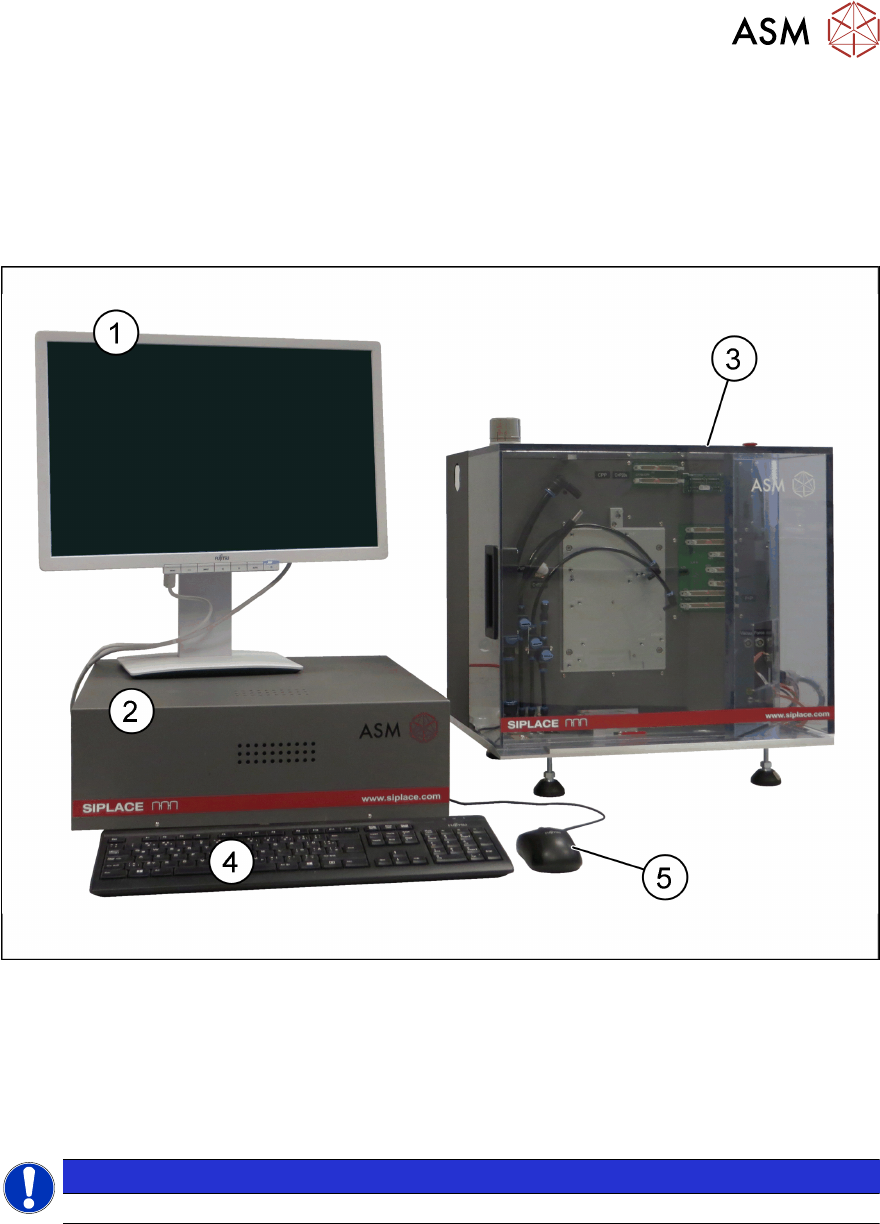

Fig.1: HCS complete
1 Monitor 2 Control box HCS 2.3 [03149138-xx]
3 HCS 2.3 head unit CPx+TH
[03149140-xx]
4 Keyboard
5 Mouse
NOTICE
Monitor, keyboard and mouse are not included in the scope of delivery.
1.1.1 Description
The HeadCareStation(HCS) is a service tool to verify the functional setup of SIPLACE placement
heads outside the machine.
The following placement heads can be verified:
C&P20, C&P20A, C&P20M, C&P20P, C&P20M2, CPP, CPPM, TH (Pick&Place module)
For more information, see 1.4.6 "Abbreviations" [}12].
1 Introduction
1.1 Overview
8 User Manual SIPLACE Head Care Station 10/2017
Types of measurements
Head verification includes a number of measurement steps which can be executed individually or
as a whole sequence. These measurement steps vary depending on the head to be verified. The
following checks are performed on the sub-units of the placement heads:
●
State of the vacuum system and corresponding
●
Ease of movement of DP and Z-axis bearings
●
Wear on bearings / tolerances
●
Component sensor check
●
Z-axis light barrier check
●
Positioning accuracy of DP drives
●
Nozzle seat check
●
Vacuum system verification
●
Placement force verification
At the end of the verification process, all results are summarized in a test report which can also be
saved to a PDF file. These results provide feedback about the technical state of the head, enabling
a technician to decide which measures are to be taken, for example:
●
Performing additional maintenance
●
Replacement of wear/spare parts
Replacement of the head
1.1.2 Serial number
The serial number of the HCS can be found on the type plate of the control unit (bottom side) or on
the head unit (right side). 3.1.1 "HCS 2.3 Head Unit CPx + TH [03149140-xx]" [}31]
1.1.3 EU Declaration of Conformity
The product/device described below conforms to the regulations and standards specified in the
EUDeclaration of Conformity.
Type: Testing and verification device
Product: Head Care Station
Unit: HCS head unit CPx + TH
Item no.: 03149140-01
Manufactured by: ASM Assembly Systems GmbH&Co.KG
Rupert-Mayer-Str. 44
81379 Munich
Germany
Product: Head Care Station
Unit: Control box HCS
Item no.: 03149138-01
Manufactured by: ASM Assembly Systems GmbH&Co.KG
Rupert-Mayer-Str. 44
81379 Munich
Germany
