3-18
AIVEDT-ID
1.2.2 (A02) PEC Recognition Data
(A02_01)
PEC recognition function
Select one of the following options to determine whether or not this
function should be used.
Disable :
The PEC recognition function is not used.
Enable :
The PEC recognition function is used.
Notice
When the PEC recognition function is not used in a pattern program,
the program cannot be used.
(A02_02)
Correction algorithm
Select one of the following options as a correction algorithm.
Standard :
The method of least squares is specified.
Mode #1 :
The midpoint correction is specified.
(A02_03)
PEC recognition Mode
Global (Zones 1 through 5)
When "Enable" is set in the "PEC recognition Mode" text box, it is
required to select one of the following options as a global recognition
setting for each individual zones.
Disable :
The global recognition function is not activated.
1 Point :
T
he global recognition function is implemented, using
one fiducial mark.
2 Point :
The global recognition function is implemented, using
two fiducial marks.
3 Point :
The global recognition function is implemented, using
three fiducial marks.
Note
(a) It is recommended that "2 Point" or more should be selected for the
global recognition.
(b) By dividing the area for the PEC recognition into several zones, it
became possible to correct a local expansion of a large PCB, etc.
0606-009
1.2 Operation Data
3-19
AIVEDT-ID

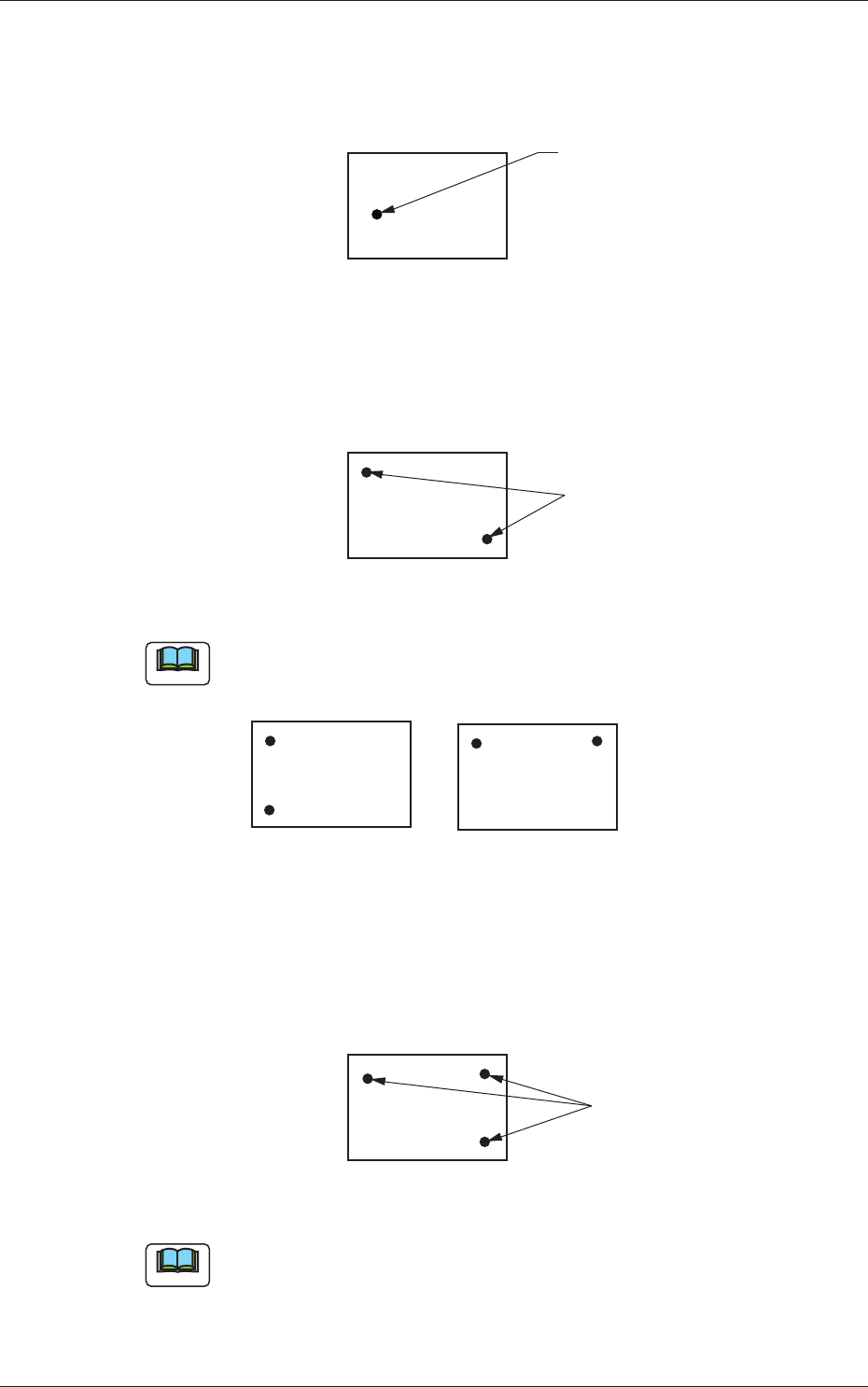

1-Point Recognition
Only the X and Y elements are corrected. The
θ
element (expansion,
etc.) is not corrected.
Fiducial Mark
Fig. 3C16
2-Point Recognition
Specify fiducial mark positions so that one fiducial mark is kept as
diagonally away from the other as possible.
Fiducial Marks
PCB
Fig. 3C17
Note
Avoid making positional relation such as fiducial marks aligned vertically
or horizontally with each other as shown below.
Fig. 3C18
3-Point Recognition
Specify fiducial mark positions so that the triangle are formed by
connecting the three points (three fiducial marks) becomes as large as
possible.
Fiducial Marks
Fig. 3C19
Note
When any two of the three fiducial marks are designated to be positioned
as close as possible to each other, the results of the correction will be
almost the same as "2-Point Recognition".
0606-009
1.2 Operation Data
3-20
AIVEDT-ID
When "Enable" is selected, set one of the following options as an image
recognition mode.
Disable :
The image recognition function is not used.
Enable :
The image recognition function is used.

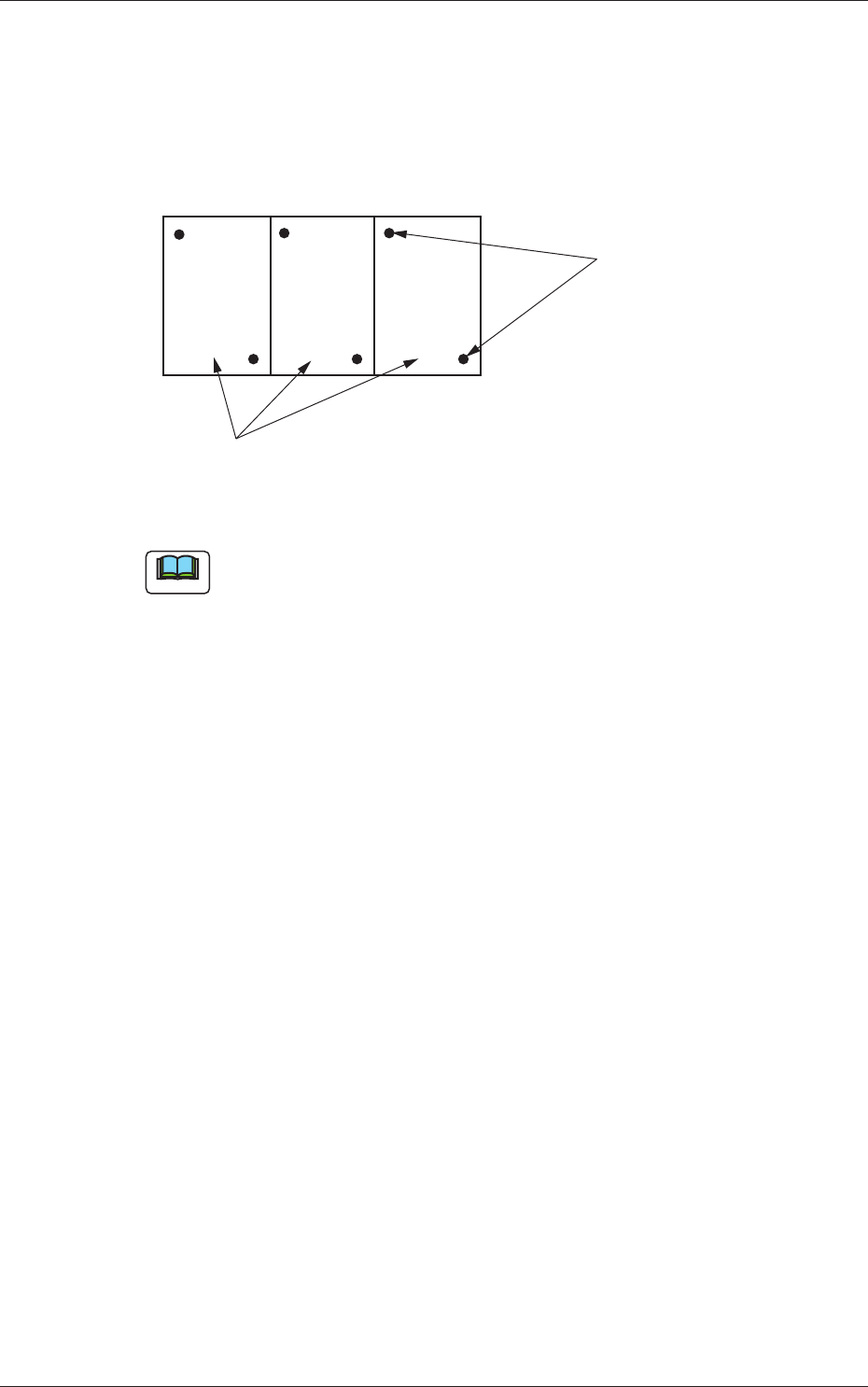

Fiducial Marks
Unit PCB (Multi-Unit PCB)
Fig. 3C20
Note
When the global recognition function is used together with the image
recognition function, both recognizing actions take place but the placement
coordinates are corrected according to the result of the image recognition.
