3-55 AIVEDT -ID 2.3 Icons Described below is the meaning of each icon that will be used only in the "Pattern Program" edit window . Reference Refer to "1.2 Basic Icons" in "Chapter 2" for th…
3-54
AIVEDT-ID
Fig. 3C43 "Handling/Placement Data" Tab Sheet
0606-009
2.2 "Pattern Program" Edit Window
3-55
AIVEDT-ID
2.3 Icons
Described below is the meaning of each icon that will be used only in
the "Pattern Program" edit window.
Reference
Refer to "1.2 Basic Icons" in "Chapter 2" for the meaning of the basic icons.

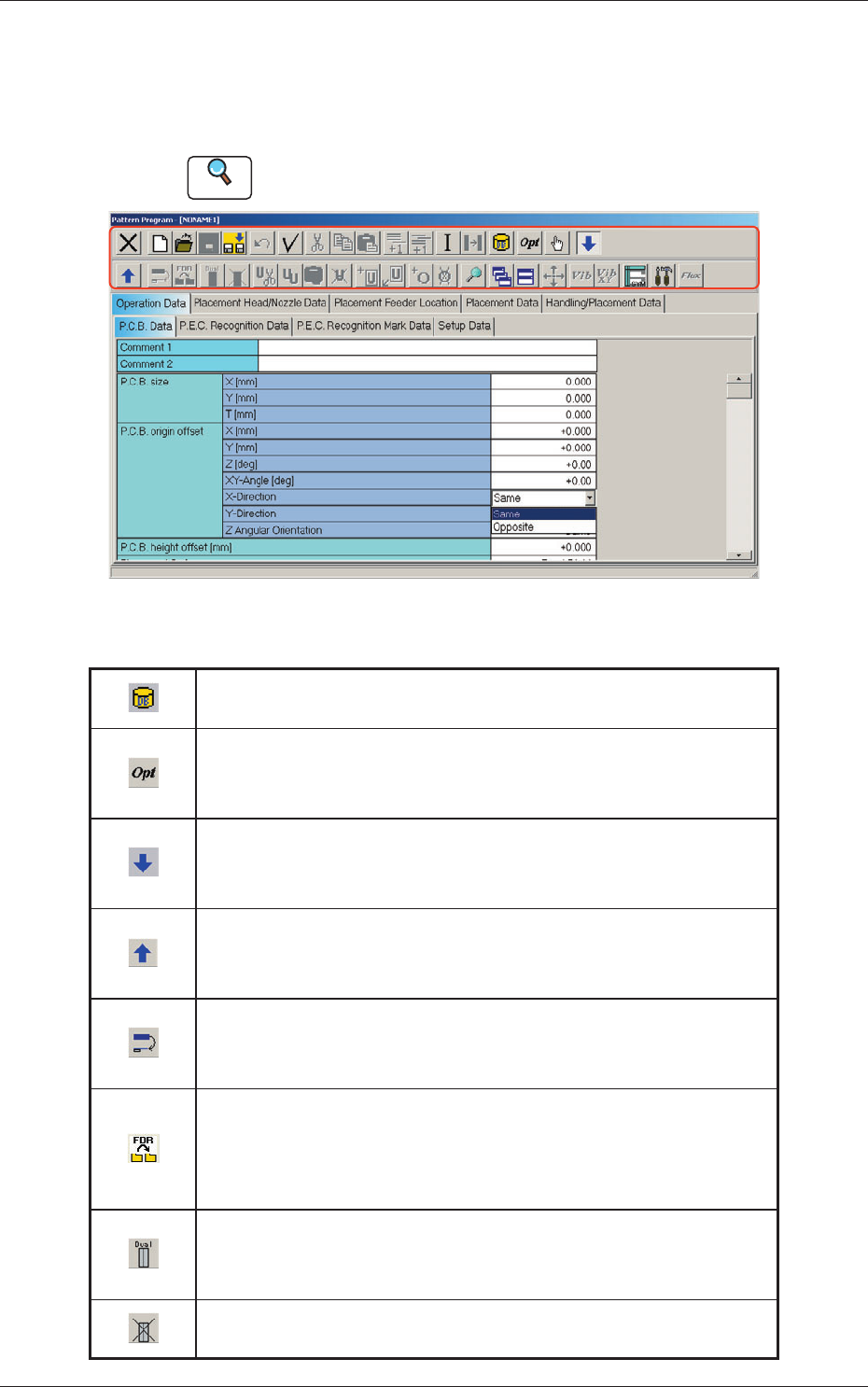

Fig. 3C44 "Pattern Program" Edit Window
Table 3C3-1
Component ID List Display
When selected, this opens the "Component ID List" window.
Optimization
When selected, this executes the optimization of the currently
opened pattern program.
Open 2nd. Toolbar
When selected, this opens the second toolbar.
The second toolbar is also provided with some icons.
Close 2nd. Toolbar
When selected, this closes the second toolbar.
The displayed icons become unavailable.
Transfer the selected step data
When selected, this transfers the placement feeder location data and
the placement data.
Transfer the selected placement feeder location data to
another file together with the placement data.
When selected, this transfers the placement feeder location data to
another file together with the placement data.
Setting up dual feeder
When selected, this sets up the successive placement feeder location
data for the dual feeder.
Releasing dual feeder
When selected, this releases the setting of the dual feeder.
0606-009
2.3 Icons
3-56
AIVEDT-ID
Table 3C3-2
Cutting and storing the selected unit in memory
When selected, this removes the selection (U data) and stores it in
the Clipboard.
Copying the selected unit
When selected, this transfers the selection (U data) to the Clipboard
without removing the selection.
Pasting the stored unit from clipboard
When selected, this pastes the cut or the copied U data.
Deleting the selected unit
When selected, this deletes the currently displayed U data.
Adding a new unit to the last one
When selected, this adds a tab (new U data) to the last one,
indicating that a new tab sheet is created.
Inserting a new unit before the selected one
When selected, this inserts a tab (new U data) before the currently
selected one, indicating that a tab sheet is inserted.
Adding the O-data to the selected unit
When selected, this adds the O data to the currently selected U data.
Delete O-data
When selected, this deletes the O data from the currently selected U
data.
Searching the data
When selected, this opens the "Search" dialog box.
Note
"*" (asterisk) and "?" (question mark) can be used as wild cards.
abc* : The search function retrieves the data which starts with
"abc".
a?c : The search function retrieves the data which starts with
"a" and contain "c" as the third character.
Enter the offset value in the selected line.
When selected, this makes it possible to collectively change the X, Y,
and Z values of the step No. selected in the placement data (P-data)
as much as the numerical values entered in the "Offset Entry"
window.
Open the "Symbol Data" window.
When selected, this opens the "Symbol Data" window.
Pattern Program Configuration
When selected, this opens the “Pattern program configuration”
window. The window enables you to select the [Disable] or the
[Enable] button to determine whether or not the data should be
checked before being saved.
Note
The [Enable] button opens a
"
Confirmation
"
window
when an error is found in the data to be saved.
0606-009
2.3 Icons
