[10] [Current], [Property...], [Delete...], [Copy...], [Rename...],
[Create Link ID], and [Merge...] Buttons
[Current] Button
When pressed, this button displays the component IDs used in the last
pattern program (the last selected program) in "[1] "List of Component
IDs" Pane".
[Property...] Button
When pressed, this button opens the "Property" window that
corresponds to the selected component ID.
Reference
Refer to "1.2.7 Property of Component ID" for the details of the "Property"
window.
[Delete...] Button
When pressed, this button deletes the selected component ID.
[Copy...] Button
When pressed, this button opens the "Copy Component ID" window,
enabling you to make a copy of the selected component ID.
[Rename...] Button
When pressed, this button opens the "Rename" window
, enabling you
to change the ID (name) of the selected component.
[Create Link ID] Button
W
h
e
n
pressed, this button opens the "Create Link ID" window, enabling
you to create a link ID for the selected component ID.
[Merge...] Button
When pressed, this button opens the "Mer
ge" window, enabling you to
merge the selected component ID.
0606-009
1.1 "Selection of component ID" Window
4-5
AKFEDT-ID
1.2 Basic Operations in "Selection of component ID"
Window
1.2.1 Type Addition
When the [Type Addition] button is pressed, the following "Type Addition"
dialog box opens.
By adding a type, the list of component IDs is displayed after being filtered.
[6][3] [4]
[2][1]
[5]
[7]

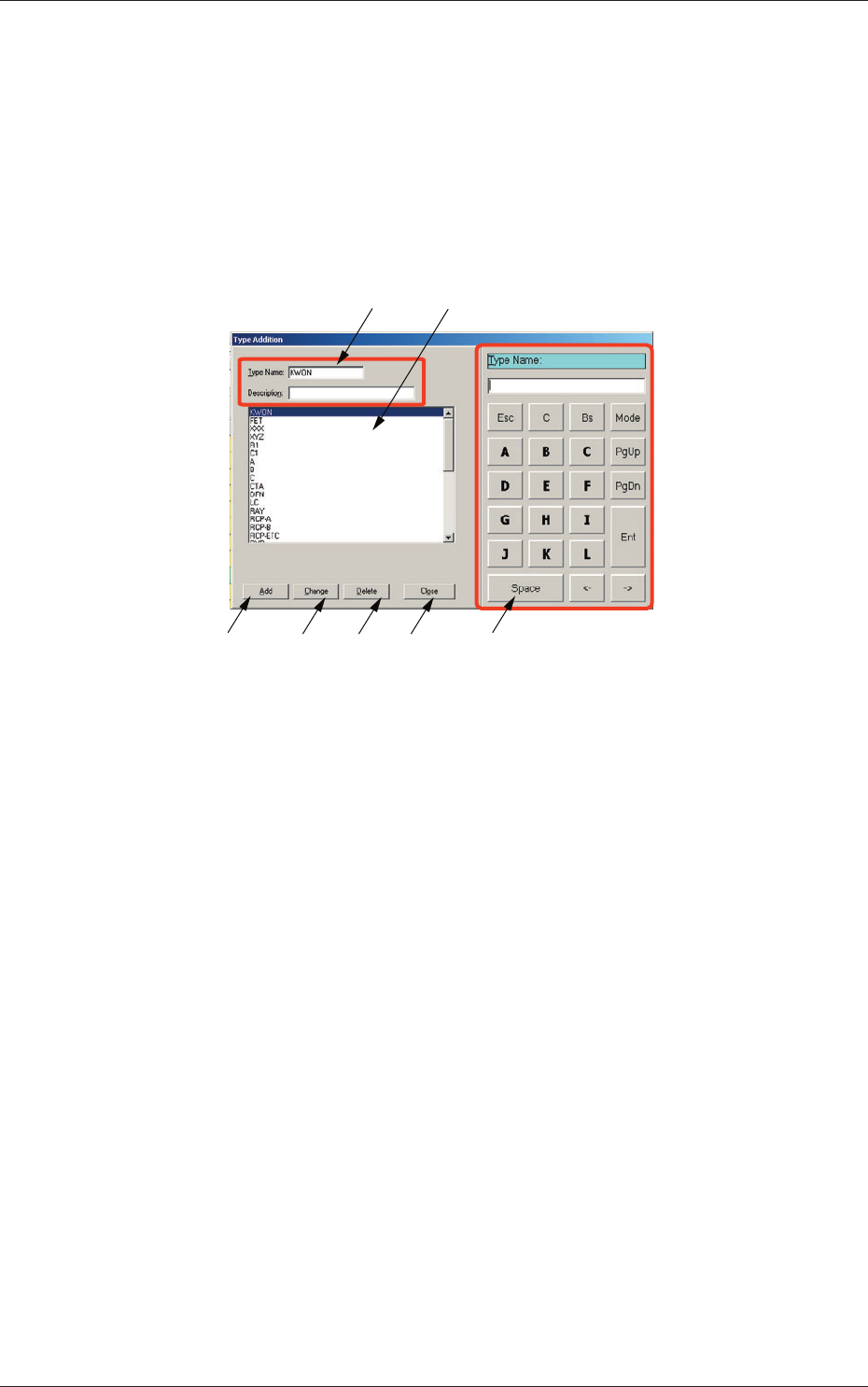

Fig. 3D2 "Type Addition" Dialog Box
[1] "Type Name" and "Description"
Enter parameters in these text boxes.
[2]
"List of Component Types" Pane
Newly created component types are displayed in this pane.
[3] [Add] Button
When this button is pressed, a type entered in the "T
ype Name" text box
is added as a new type.
[4] [Change] Button
When this button is pressed, a component type is changed to the
contents entered in the "Type Name" and "Description" text boxes.
[5] [Delete] Button
When this button is pressed, the component type selected in "[2]" is
deleted.
0606-009
1.2 Basic Operations in "Selection of component ID" Window
4-6
AKFEDT-ID
[6] [Close] Button
When this button is pressed, the "Type Addition" dialog box closes.
[7] Touch Keypad for Data Editing
Data can be entered from the touch keypad or the track ball.
Reference
Refer to "2.3 Data Entry with Touch Keypad for Data Editing (Chapter 2)"
for the details of the operation method.
0606-009
1.2 Basic Operations in "Selection of component ID" Window
