5-24 AIVEDT -ID 0606-009 [2] T abs and T ab Sheets The "Pattern Program Management Data" window is provided with the following three tabs. When each tab is pressed, the corresponding tab sheet appears inside th…

5-23

AIVEDT-ID

3. Pattern Program Management Data

The corresponding "Pattern Program Management Data" window enables the

operator to view the pattern program management data of the selected model

for each individual pattern programs.

When the [Open] button is pressed after the desired model is selected in

the "Patt Prgm Mng Dt" window, the "Pattern Program Management Data"

window appears.

[1]

[2]

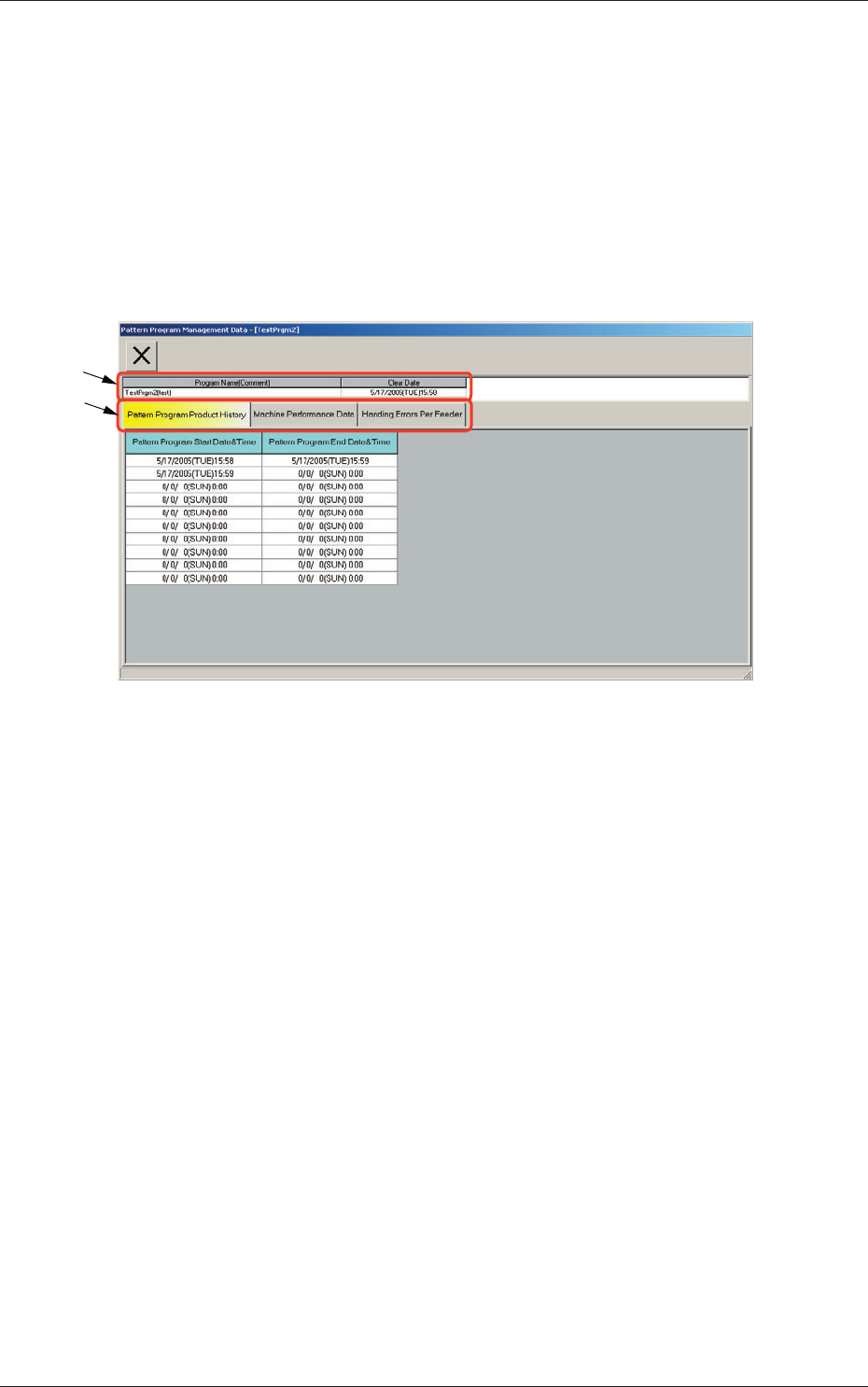

Fig. 3E12 "Pattern Program Management Data" Window

[1] Program Name

Displayed are the pattern program name (comment) and the clear date.

0606-009

3. Pattern Program Management Data

5-24

AIVEDT-ID

0606-009

[2] Tabs and Tab Sheets

The "Pattern Program Management Data" window is provided with the

following three tabs. When each tab is pressed, the corresponding tab

sheet appears inside the window.

Table 3E4

Tabs Description

Pattern Program Product

History

The corresponding tab sheet enables the operator to check the date

and time logs that show when the use of the selected pattern

program was started or ended.

Machine Performance Data

The corresponding tab sheet enables the operator to view the listed

data such as "PCB counter", "Product PCB", "Passed PCB", "Product

PCB (BBR) (option)", "T

otal components", "Total handling errors",

"Rate of handling errors (%)", "Shortage of component", "PCB

process time", "Power on time", "Maintenance time", "Test mode

time", "Total handling errors/T

otal components", etc.

Handling Errors Per Feede

r Displayed is a list of "Total Components", "Number of Errors

(classiﬁed by error types)", "Total Errors", "Rate of Error (%)",

"Shrtg. of Comp.", "Component ID.", "Type", and "Width (mm)" for

each feeder No. (actual feeder No.).

3. Pattern Program Management Data

5-25

AIVEDT-ID

3.1 Pattern Program Product History

When the "Pattern Program Product History" tab is pressed in the "Pattern

Program management Data" window, the following tab sheet appears inside

the window.

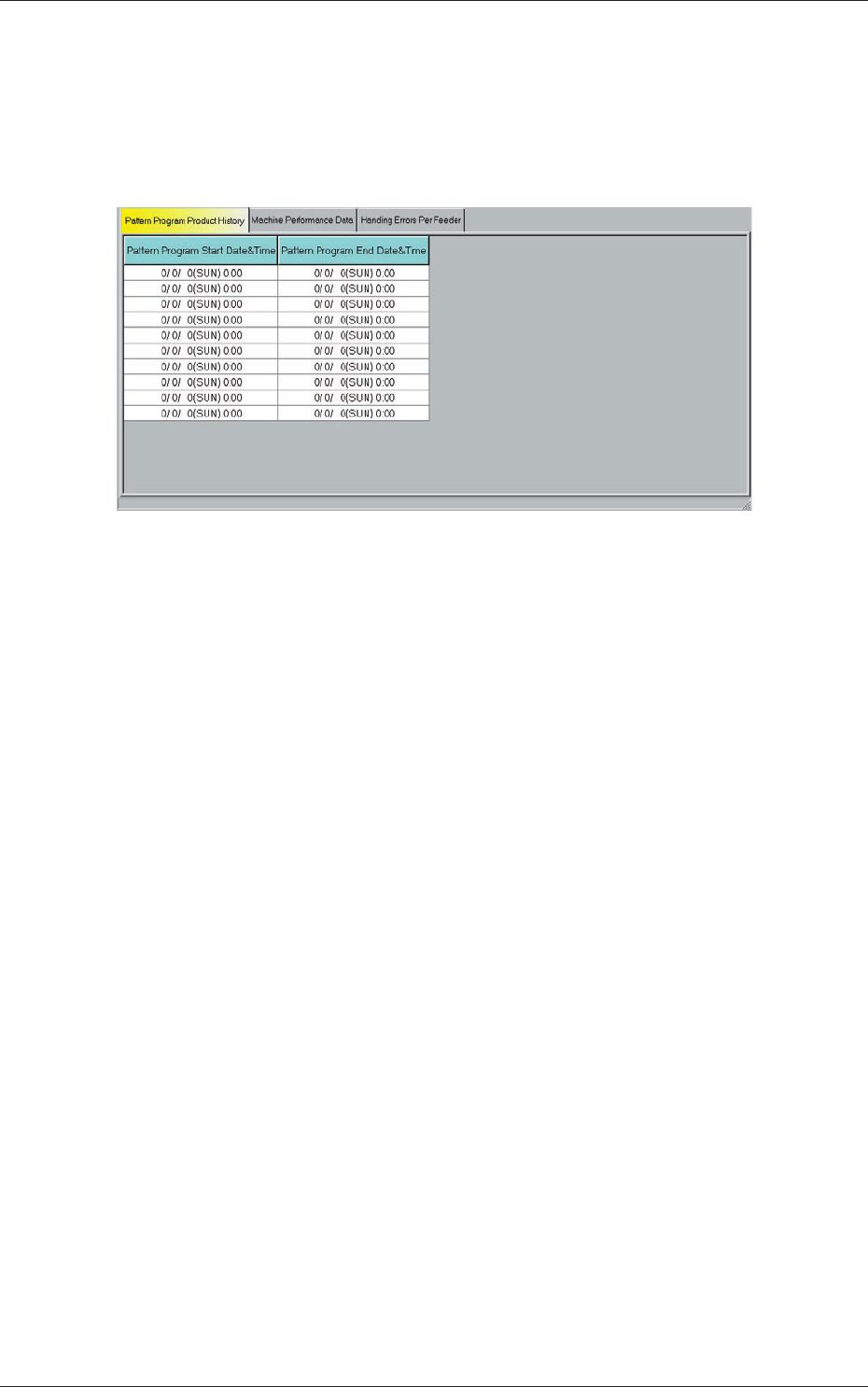

Fig. 3E13 "Pattern Program Product History" Tab Sheet

Up to 10 records (logs that show the number of times speciﬁed as current

pattern program) are displayed for each individual pattern programs.

The start and end date & time records (logs) are also displayed for the

selected pattern program.

When there are more than 10 logs, the older ones are deleted one by one.

3.1 Pattern Program Product History
