4.2 Nozzle Bypass Factor
When the "Nozzle Bypass Factor" subtab is pressed in the "Head Nozzle
Bypass Data" tab sheet, the following subtab sheet appears.
Fig. 3E18 "Nozzle Bypass Factor" Subtab Sheet
(1) Handling error-cont.
The nozzle has reached the number of specified continuous error counts.
(2) Lower rate
The nozzle has reached the specified number of errors before it reaches
the specified pickup rate.
(3) Recog teach error
A recognition error has occurred during the teaching operation on the
nozzle position.
(4)
Teach error data
A value exceeding the specifi
ed tolerance was calculated during the
teaching operation on the nozzle position.
(5) Lighting check
A recognition error has occurred during the teaching operations on the
nozzle position (lighting check) and the lighting.
(6) Level error
A level offset value exceeding the specifi
ed tolerance was calculated
during the teaching operation on the nozzle level.
(7) Manual bypass
Bypass mode was set manually.
4.2 Nozzle Bypass Factor
0606-009
5-39
AIVEDT-ID
(8) [Nozzle 1] through [Nozzle 12] Buttons
When a button is pressed, the corresponding "Nozzle Handling Errors"
window opens for the selected nozzle.
•
"Nozzle Mgt. Data (Type 1)" and "Nozzle Mgt. Data (Type 2)"
T
abs
When the tabs are pressed, the corresponding tab sheet appears,
enabling the operator to check the nozzle management data for each
individual nozzles.

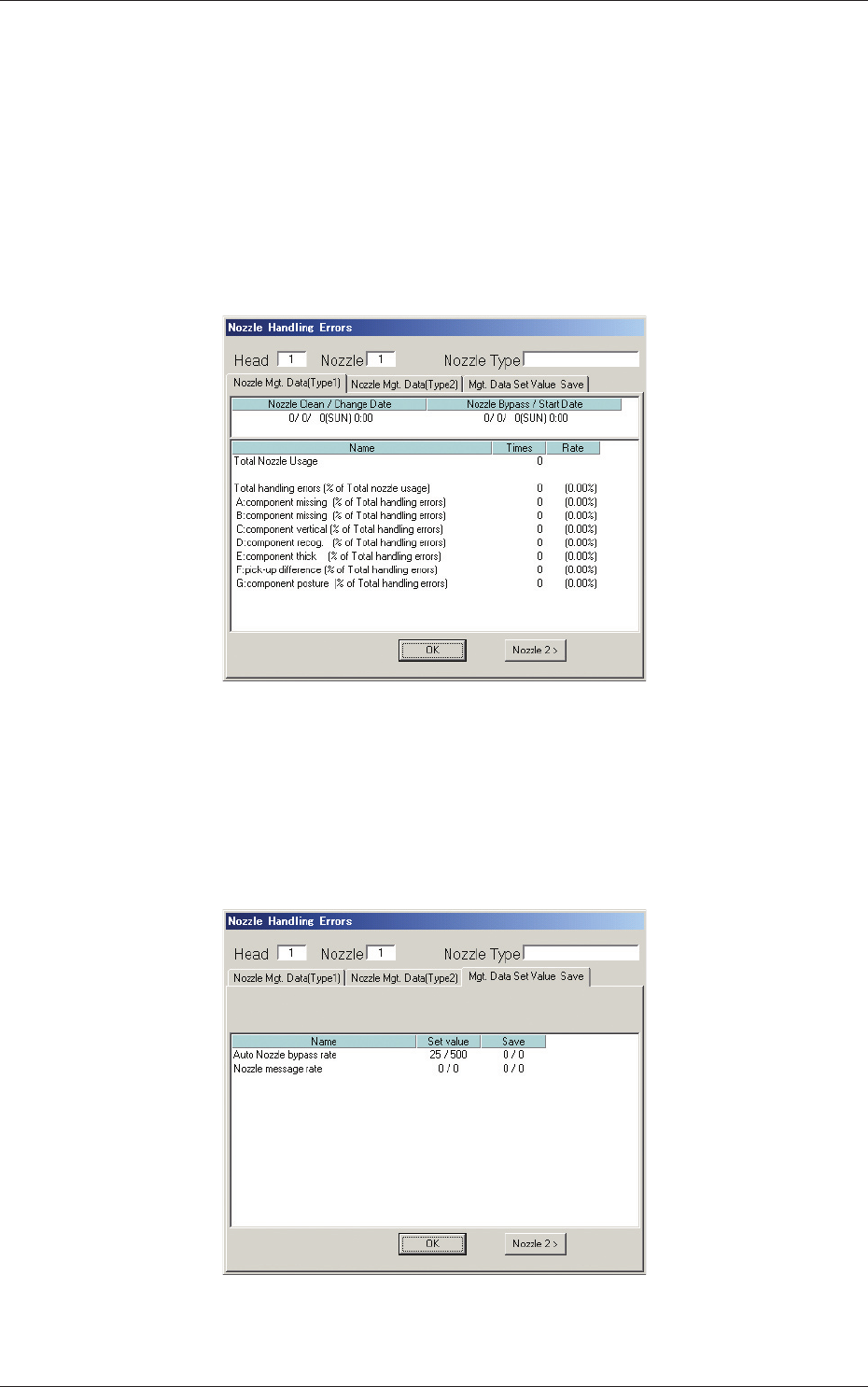

Fig. 3E19 "Nozzle Handling Errors" Window
•
"Mgt. Data Set Value Save" Tab
When this tab is pressed, the corresponding tab sheet appears,
enabling the operator to check the set and saved values (the values
s
peci
fied in the auto operation setup data) for each individual nozzles.
Fig. 3E20 "Nozzle Handling Errors" Window
4.2 Nozzle Bypass Factor
0606-009
5-40
AIVEDT-ID
4.3 Head Bypass Factor
0606-009
4.3 Head Bypass Factor
When the "Head Bypass Factor" subtab is pressed in the "Head Nozzle
Bypass Data" tab sheet, the following subtab sheet appears.
Fig. 3E21 "Head Bypass Factor" Subtab Sheet
(1) Communication error
The command communication was not launched successfully to the
head motor driver.
(2) Manual bypass
Bypass mode was set manually.
