AIVEDT-ID

4.3 Head Bypass Factor

0606-009

4.3 Head Bypass Factor

When the "Head Bypass Factor" subtab is pressed in the "Head Nozzle

Bypass Data" tab sheet, the following subtab sheet appears.

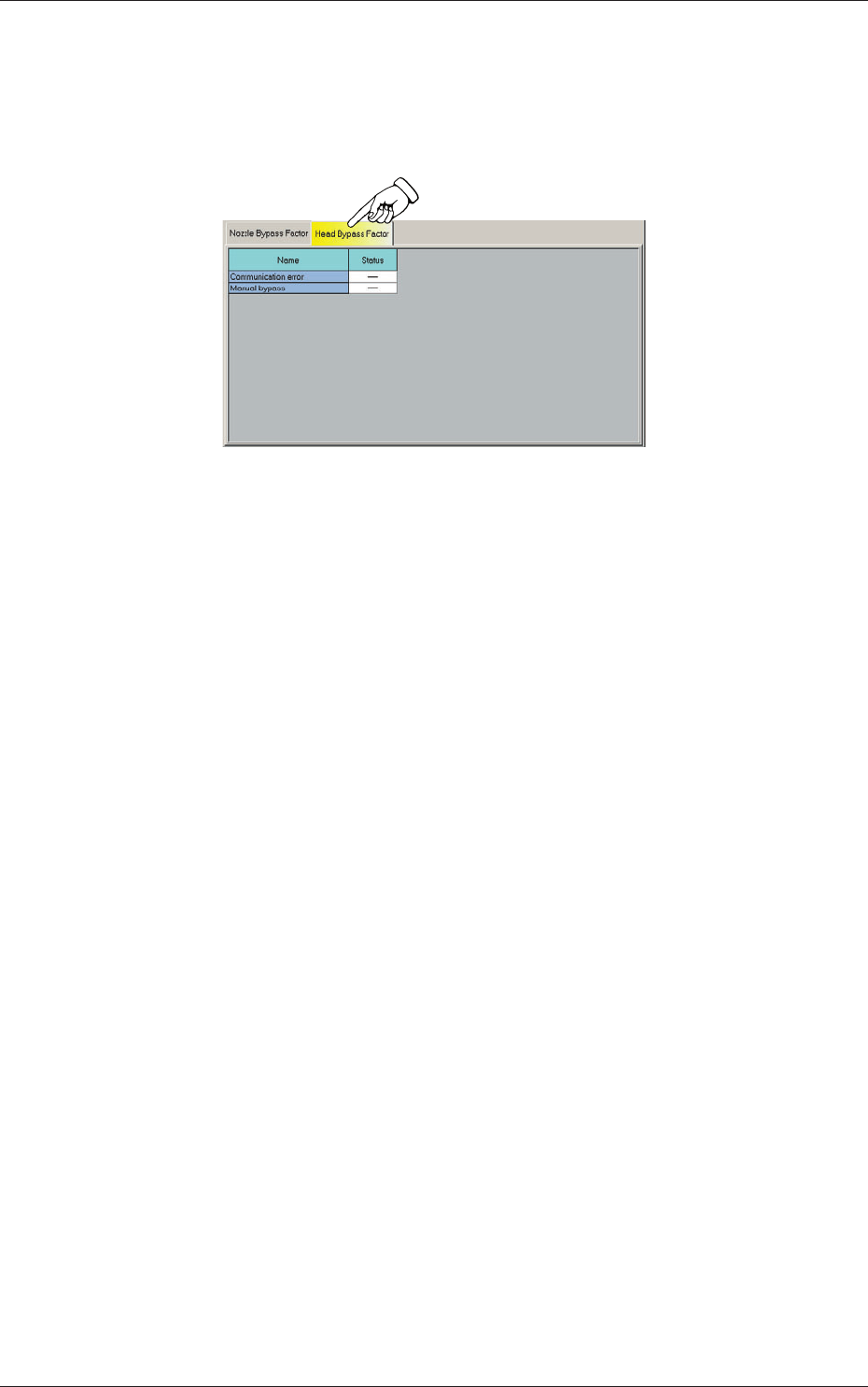

Fig. 3E21 "Head Bypass Factor" Subtab Sheet

(1) Communication error

The command communication was not launched successfully to the

head motor driver.

(2) Manual bypass

Bypass mode was set manually.

5-41

AIVEDT-ID

4.4 Feeder Message Rate

The corresponding tab sheet displays the pickup rates (managed for each

individual feeders) based on the feeder message rates speciﬁed in the auto

operation setup data.

When the "Feeder Message Rate" tab is pressed in the "Bypass & Rate Data

- [Bypass]" window, the following tab sheet appears inside the window.

Fig. 3E22 "Feeder Message Rate" Tab Sheet

Note

The displayed tab sheet will look different, depending on which option is

selected.

The "Feeder Message Rate" tab sheet is divided into several tab sheets and

each tab sheet shows the feeder message rates on each individual feeder

bases.

When each tab is pressed, the corresponding tab sheet appears.

(1) Feeder No. (Actual Fdr No.)

Shown are the feeder Nos.

(2) A: Comp. Missing

Each text box shows the total number of component missing errors

detected by the linear measure detection sensor for each individual

feeders.

(3) B: Comp. Missing

Each text box shows the total number of component missing errors

detected through recognition process for each individual feeders.

0606-009

4.4 Feeder Message Rate

5-42

AIVEDT-ID

(4) C: Comp. Vertical

Each text box shows the number of vertical component errors detected

by the linear measure detection sensor for each individual feeders.

(5) D: Comp. Recog.

Each text box shows the total number of errors detected in the

recognition process for each individual feeders.

(6) E: Comp. Thick

Each text box shows the total number of errors in component thickness

detected by the linear measure detection sensor for each individual

feeders.

(7) F: Pick-up Dif

Each text box shows the total number of pickup difference errors

detected in the recognition process for each individual feeders.

(8)

G: Comp. Posture

Each text box shows the total number of reversed component and

polarity judgment errors detected in the recognition process for each

individual feeders.

(9) Feeder Message Rate (Total Errors/Total Components)

Each text box shows the rate of pickup errors (the number of pickup

errors per number of picked component) for each individual feeders.

(10)

Component ID.

Each text box shows the component IDs for each individual feeders.

Note

When one of the above buttons is pressed, the feeder No. with the biggest

parameter under the selected button is displayed in the ﬁrst line and feeder

Nos. having the subsequent (second, third, fourth, ...) biggest parameters

follow. That is, parameters are re-arranged in order of error counts, making

it easy to analyze and improve production rate.

When the [Fdr No. (Actual Fdr No.)] button is pressed, the feeder Nos. are

re-arranged in their initial order (order of slot Nos.).
