[3] Pu retention time [sec]
Set a parameter to specify the time when the nozzle must be stopped at
the lower limit for all component picks.
Note
Use this function when components cannot be picked up in stable condition
due to the influence of the component pickup surface and the compatibility
with the selected nozzle.
[4] Pl retention time [sec]
Set a parameter to specify the time when the nozzle must be stopped at
the lower limit for placement of all components.
0606-009
2.1 Device Offset Data
6-32
AIVEDT-ID
2.1.13 Head Inclination Offset
When the "Head [1/2]" tab is pressed in the "Device Offset" tab sheet and the
"Hd. Incln" tab is selected, the following tab sheet appears.
[1] [2]
[3]

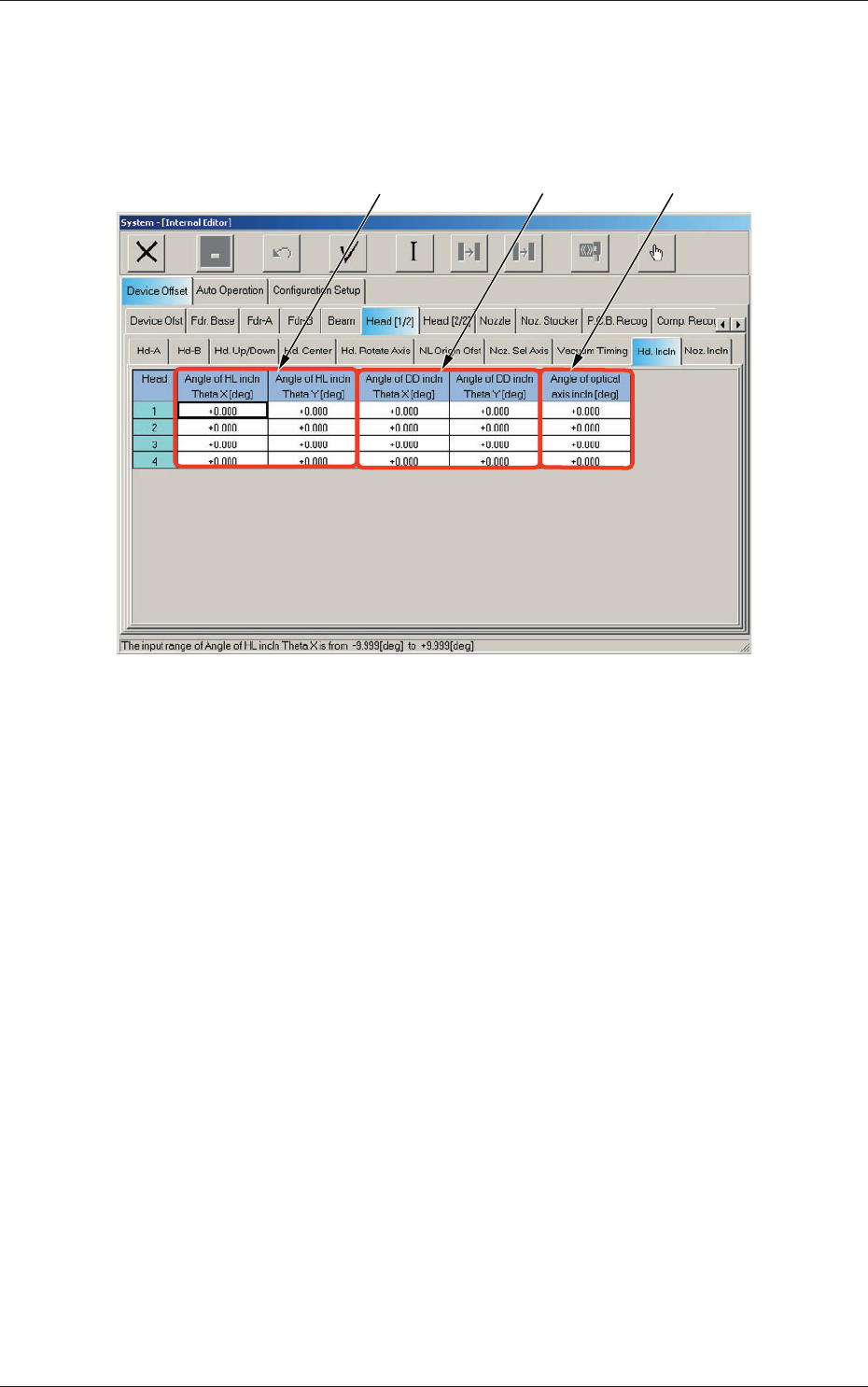

Fig. 3F30 "Head Incln" Tab Sheet
Head 1, Head 2, Head 3, and Head 4
[1] Angle of HL incln Theta X [deg], Theta
Y [deg]
The set parameter is used to correct the deviations in the X and Y
direction that will be caused while the HL-axis is moving down if the
axis is tilted.
[2]
Angle of DD incln Theta X [deg], Theta Y
[deg]
The set parameter is used to correct the deviations in the X and Y
direction that will be caused while the HL-axis is moving down if the
DD-axis is tilted.
[3] Angle of optical axis incln [deg]
The set parameter is used to correct the angle of the component
recognition camera shot.
2.1 Device Offset Data
0606-009
6-33
AIVEDT-ID
2.1.14 Nozzle Inclination Offset
When the "Head [1/2]" tab is pressed in the "Device Offset" tab sheet and the
"Noz. Incln" tab is selected, the following tab sheet appears.
Fig. 3F31 "Noz. Incln" Tab Sheet
Nozzles 1 through 12
Head #1, Head #2, Head #3, and Head #4
Theta X [deg], Theta Y [deg]
Th
ese offsets are used to correct the deviations in the X and Y directions
that will be caused due to the inclination of the nozzle shaft while the
NL-axis is moving down.
