6-40 AIVEDT -ID 2.1.20 Stocker Master Offset When the "Noz. Stocker" tab is pressed in the "Device Offset" tab sheet and the "Stocker Master" tab is selected, the following tab sheet appears…
6-39
AIVEDT-ID
2.1.19 Master Nozzle Level Offset
When the "Nozzle" tab is pressed in the "Device Offset" tab sheet and the
"Master Nozzle Level" tab is selected, the following tab sheet appears.
Fig. 3F37 "Master Nozzle Level" Tab Sheet
Head 1, Head 2, Head 3, and Head 4
L (Height) [mm]
Each parameter indicates the reference position (the values read by the
linear measure) of the master nozzle bottom level.
Save the values of the master nozzle bottom level that was read by the
linear measure and used when the head up/down offsets were obtained
with the nozzle U/D axes being zeroed.
2.1 Device Offset Data
0606-009
6-40
AIVEDT-ID
2.1.20 Stocker Master Offset
When the "Noz. Stocker" tab is pressed in the "Device Offset" tab sheet and
the "Stocker Master" tab is selected, the following tab sheet appears.
[1]
[2]
Fig. 3F38 "Stocker Master" Tab Sheet
Stockers
1-1 through1-4, 2-1 through 2-4, 3-1 through 3-4,
and 4-1 through 4-4
Placement Reference
X/Y Coordinate System
Y(+)
X(+)
2
1-4
1-3
1-2
1-1
2-1
2-2
2-3
2-4
3-4
3-3
3-2
3-1
4-1
4-2
4-3
4-4
4
3
2
1
1
2
3
4
5
6
7
8
9
10
11
12
(Front Side of Machine)
(Rear Side of Machine)
Nozzle Stocker A
4
3
1
Fig. 3F39
2.1 Device Offset Data
0606-009
6-41
AIVEDT-ID
[1] X (Horizontal) and Y (Vertical) [mm]
This offset data is used to adjust the positional deviations compared
with the design dimensions of the nozzle stocker unit positions (viewed
from the PCB positioning X/Y coordinates (Machine Reference X/Y
Coordinates: Origin P0)). The value base on the machine reference XL
coordinate system must be entered in each text box.
[2]
L (Height) [mm]
When a value is entered with a plus (+) sign, the nozzle change
position (height) is changed in the L (+) direction, concluding that the
descending stroke has increased.

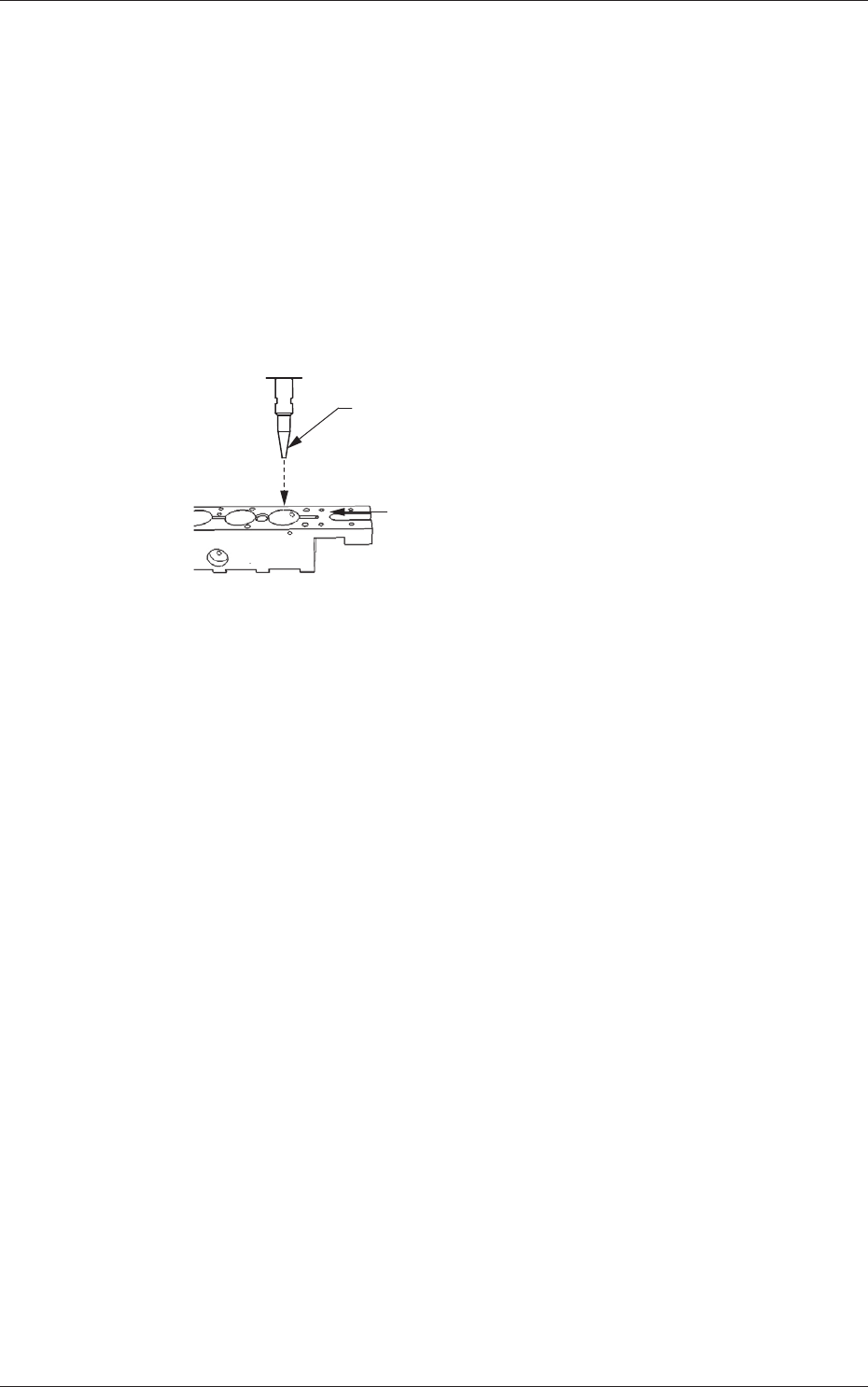

L(+)
Nozzle
Nozzle Mounting Level
(Upper Surface of Nozzle Stocker Block)
Fig. 3F40
