6-67
AIVEDT-ID
0606-009
2.3 Configuration Setup Data
2.3.1 Light Tower Setup
The corresponding tab sheet enables the operator to allocate the lamp colors
for the light tower and the buzzer sounds.
When the "Light Tower Setup" tab is pressed in the "Configuration Setup"
tab sheet, the following tab sheet appears.
[4]
[2] [3]
[1]

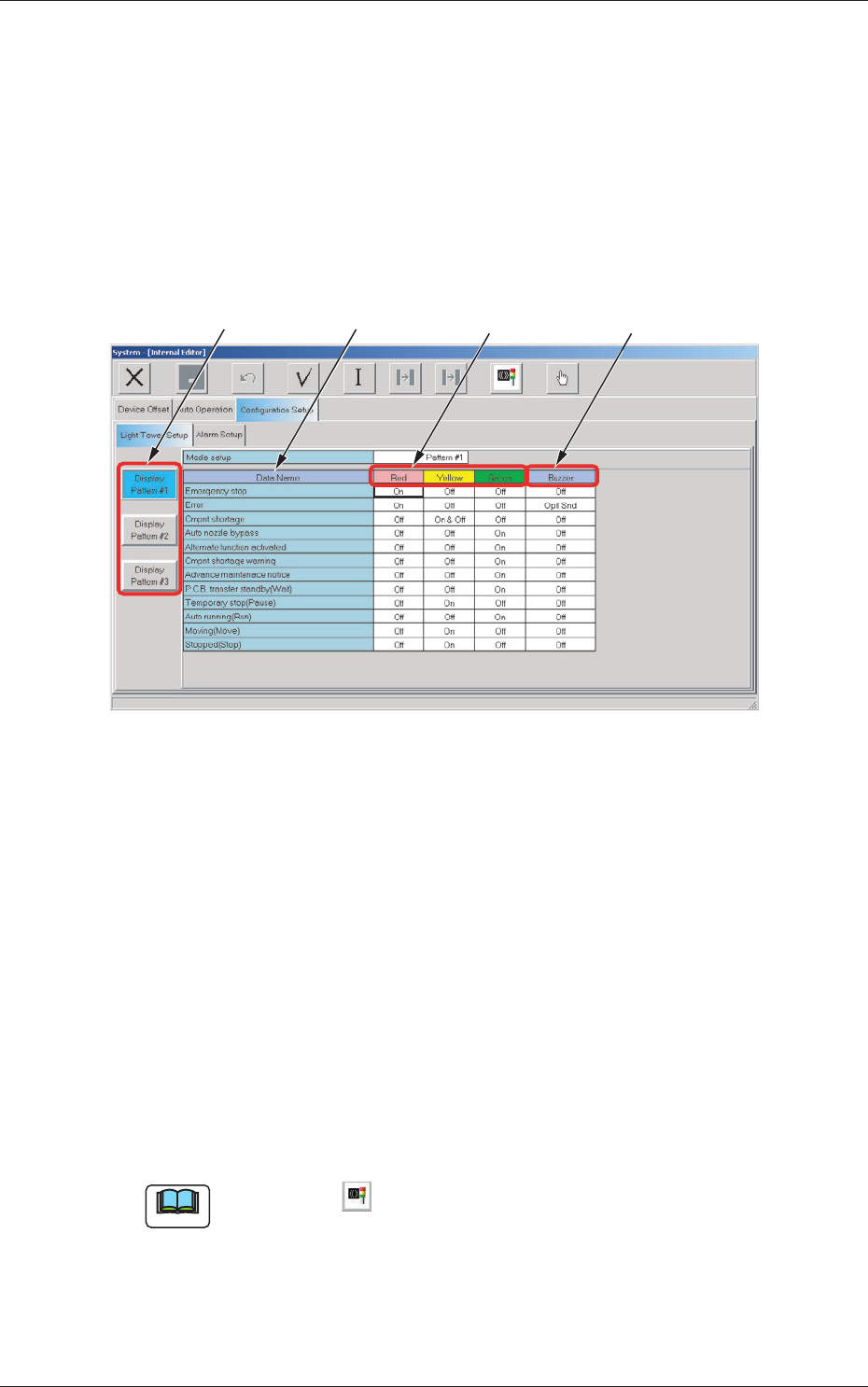

Fig. 3F57 "Light Tower Setup" Tab Sheet
[1] Data Name
Displayed are the items for which the colors (red, yellow, and green) of
the tower lights and the types of alarm sounds should be specified.
[2] Red, Yellow, Green
Set "ON", "ON AND OFF", or "OFF" for the tower lights (red, yellow,
and green).
[3]
Buzzer
Set "Off", "Intmt Snd", "Cont Snd", or "Optl Snd" in each text box to
specify the types of alarm sounds.
The desired sound patterns can be made, using the "Alarm Setup" tab
sheet.
Note
When the icon ( ) is pressed, the standard settings (defaults) resume.
2.3 Configuration Setup Data
6-68
AIVEDT-ID
[4] Tower Light ON/OFF Selection Buttons
[Display Pattern #1], [Display Pattern #2], and [Display Pattern
#3] Buttons
These buttons can be used to change the setting of each tower light.
When one of these buttons is selected, the corresponding lighting
pattern appears, enabling you to change the settings.
0606-009
2.3 Configuration Setup Data
6-69
AIVEDT-ID
2.3.2 Alarm Setup
The corresponding tab sheet enables the operator to specify a pattern of the
buzzer sounds when "Optl Snd" is selected in a buzzer text box of the "Light
Tower Setup" tab sheet.
When the "Alarm Setup" tab is pressed in the "Configuration Setup" tab
sheet, the following tab sheet appears.
[1]

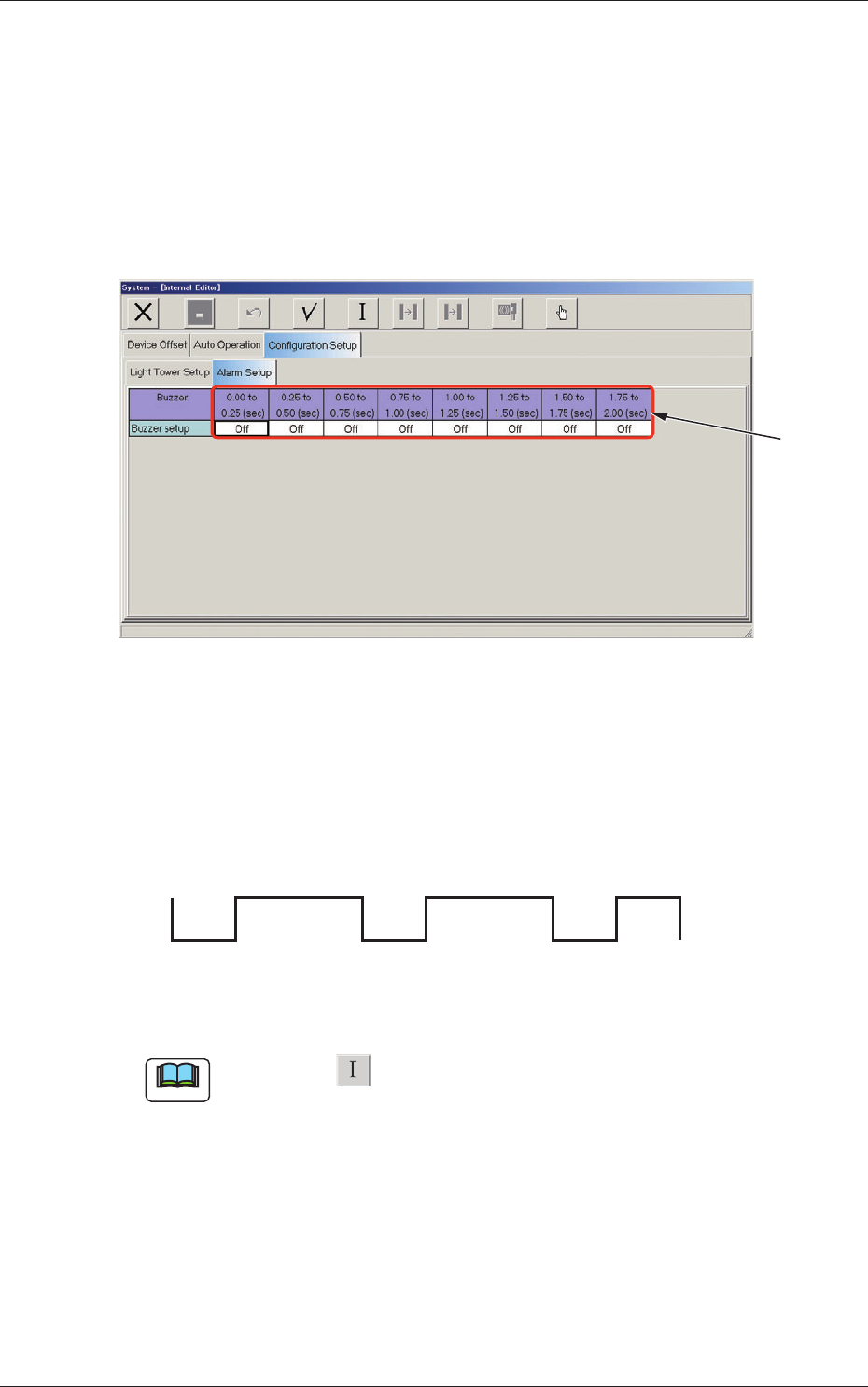

Fig. 3F58 "Alarm Setup" Tab Sheet
[1] Time Parameters
An optional alarm sounds in a cycle of two seconds. The two seconds is
divided into 8 intervals and each interval is assigned as "ON" or "OFF"
to make a sound of your own.
OFF OFF
ON ON ON ON ON
OFF
Fig. 3F59 Example of Buzzer Sound Setting
Note
When the icon ( ) is pressed, the parameter specified in the selected
text box is initialized to the default.
0606-009
2.3 Configuration Setup Data
