6-74

AIVEDT-ID

3.1.2 Stockers 1 through 4

When the "Stocker 1" subtab is pressed in the "Placement Head/Nozzle

Data" tab sheet, the following subtab sheet appears.

Note

As for the "Stocker 2", "Stocker 3", and "Stocker 4" subtab sheets, the

same contents as the "Stocker 1" subtab sheet are displayed.

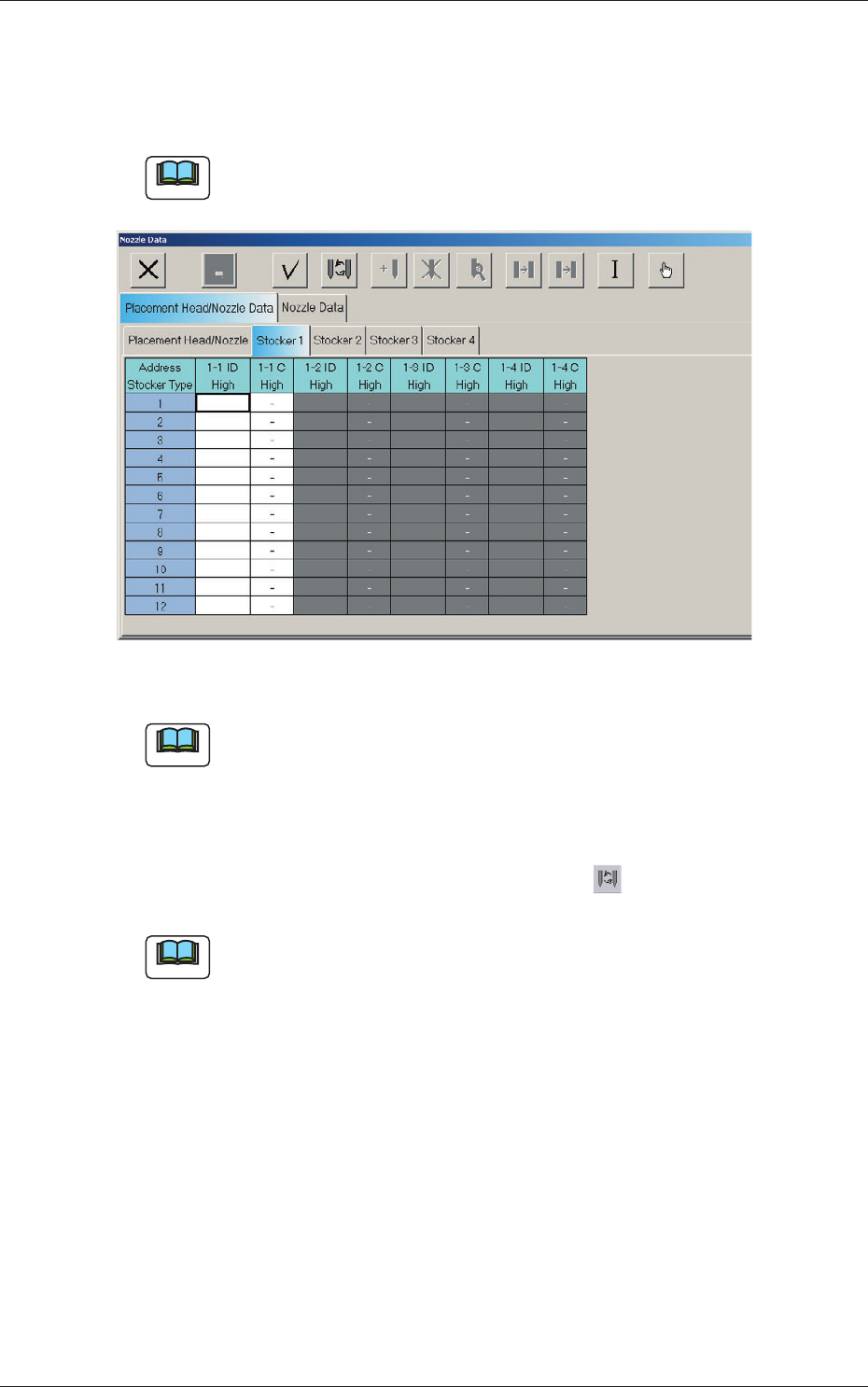

Fig. 3F63 "Stocker 1" Subtab Sheet

Note

When "Odd-shape" (option) is arranged, "Odd-shape" is displayed and up

to 8 nozzle can be stocked.

1-1 to 1-4 ID, 2-1 to 2-4 ID, 3-1 to 3-4 ID, 4-1 to 4-4 ID

Set the IDs of the nozzles stored in the nozzle stocker.

When an arbitrary nozzle ID is selected and the " " icon is pressed,

the "Nozzle Type" window opens.

Note

Double-clicking a setting column also opens the "Nozzle Type" list.

1-1 to 1-4 C, 2-1 to 2-4 C, 3-1 to 3-4 C, 4-1 to 4-4 C

These control command text boxes are used to disable (bypass) the

speciﬁed nozzle stocker (housing) addresses.

Enter "-" as a control command for normal use. To bypass a spot, enter

"S" in the corresponding text box.

0606-009

3.1 Placement Head/Nozzle Data

6-75

AIVEDT-ID

Nozzle Type Change Operation

(1) Select the nozzle ID in the address where the nozzle type must be

changed and press the icon ( ).

The "Nozzle Type" window opens.

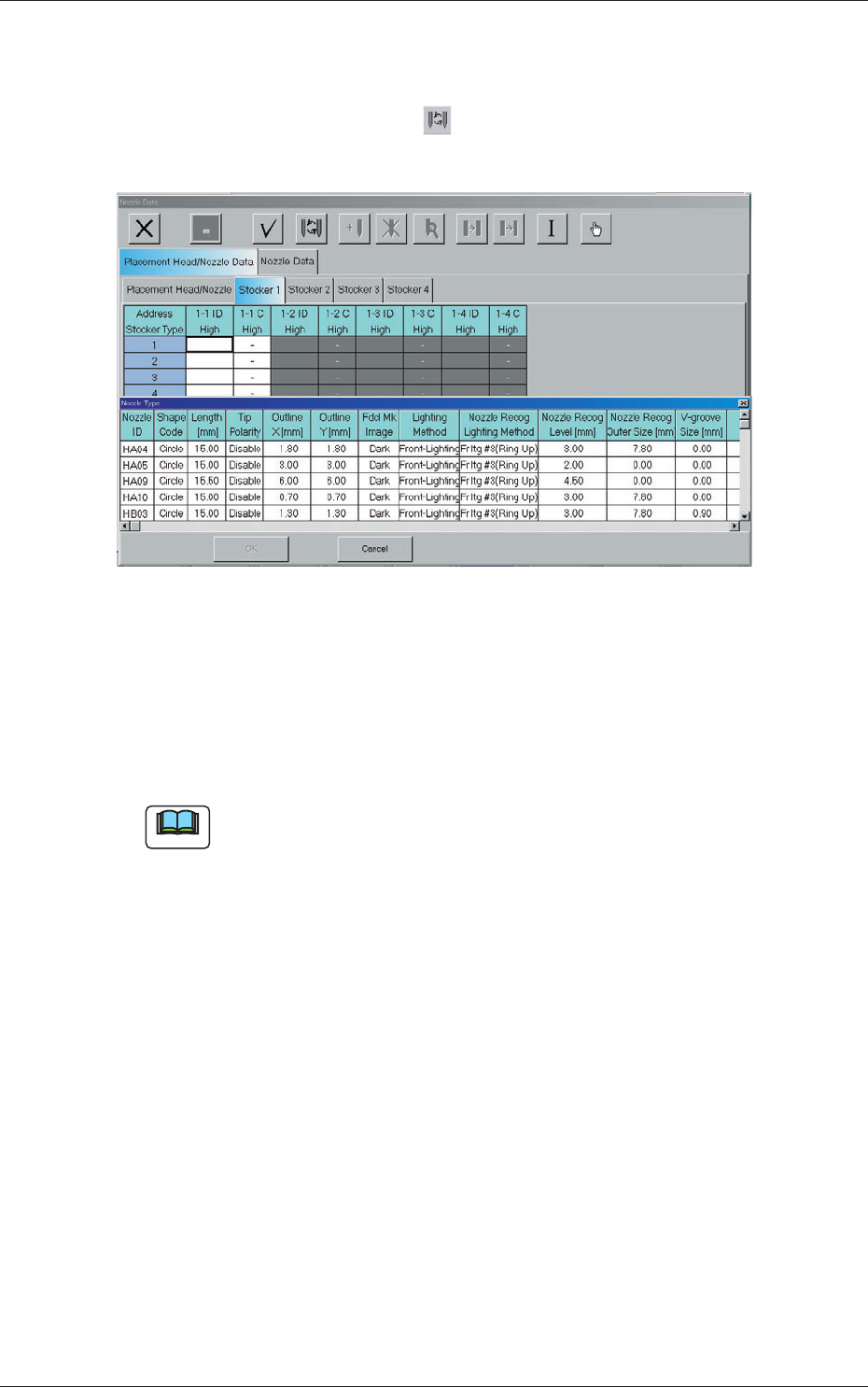

Fig. 3F64 "Nozzle Type" Window

The line of the nozzle ID selected in (1) is highlighted in the "Nozzle

Type" window.

(2) Select the nozzle type to be allocated and press the [OK] button. The

source nozzle type is changed to the selected one.

Note

When a nozzle should be selected and "Unvisible" is set for "Visible ﬂag"

in the "Nozzle Type Property" window, the nozzle will not be displayed in

the "Nozzle Type" list.

0606-009

3.1 Placement Head/Nozzle Data

6-76

AIVEDT-ID

0606-009

3.2 Nozzle Data

When the "Nozzle Data" tab is pressed in the "Nozzle Data" window, the

following tab sheet appears inside the window.

Fig. 3F65 "Nozzle Data" Tab Sheet

Fig. 3F66 "Nozzle Data" Tab Sheet

3.2 Nozzle Data
