Retrofit instructions Splice Detection Basic Package + Table Controller SIPLACE HF-series
08/2005 Edition
32
There is a hole in the front part of the bracket (see photograph above).
In the wall behind it, there may or may not be a hole with welding nut behind it, depending on which
component trolley is used. 2
: If there is a hole, then screw in a screw (M 6) to match the two others.
: If there is no hole, then drill a 6.2 mm diameter hole from the fitted bracket.

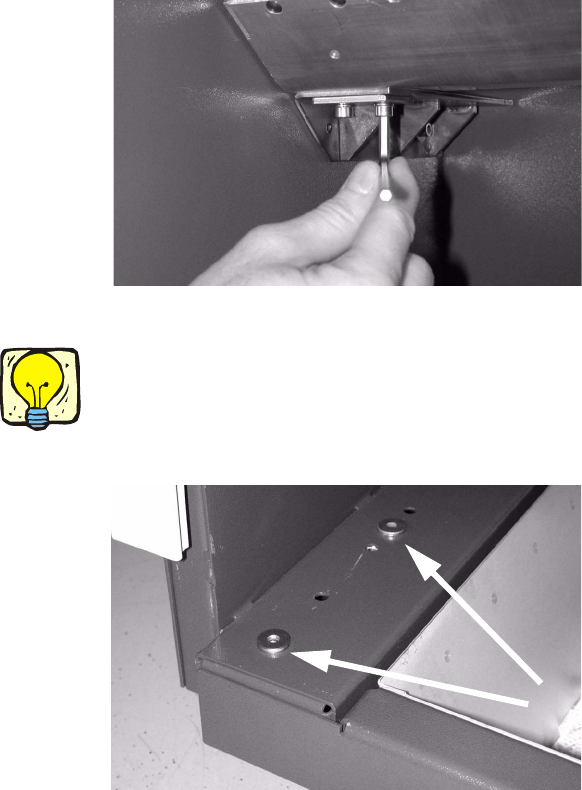

: Push a grooved dowel pin, external diameter 6.5 mm, into the drilled hole.
The grooved pin will thus be seated firmly.
: Fix the adapter with two screws on each side.
2
: Position the plain washers on the screw holes for the tape reel container.
2
If you fix the plain washers in place with adhesive tape, they will not slip when you position the
tape reel container. 2
2
2
: Refit the tape reel container, offset 110 mm forward.
: Insert the tape separators once more.
: Push the waste tape container beneath the component trolley.
Retrofit instructions Splice Detection Basic Package + Table Controller SIPLACE HF-series
08/2005 Edition
33
2.9 Installing the basic package and connecting the
communication interface
2

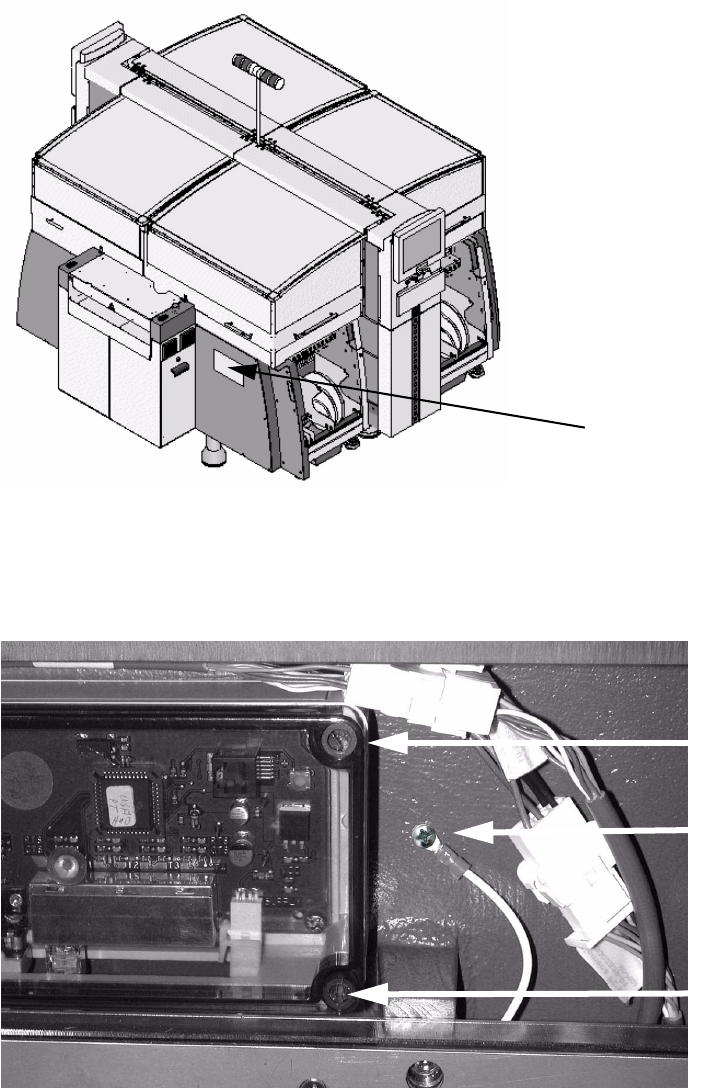

: Use four screws to screw the communication interface to the machine base.
The screw holes are predrilled (see photo below).
: Screw the ground connection with a Phillips screw.
2
Assembly position for
the communication
interface
Ground
Screw
Screw
Retrofit instructions Splice Detection Basic Package + Table Controller SIPLACE HF-series
08/2005 Edition
34

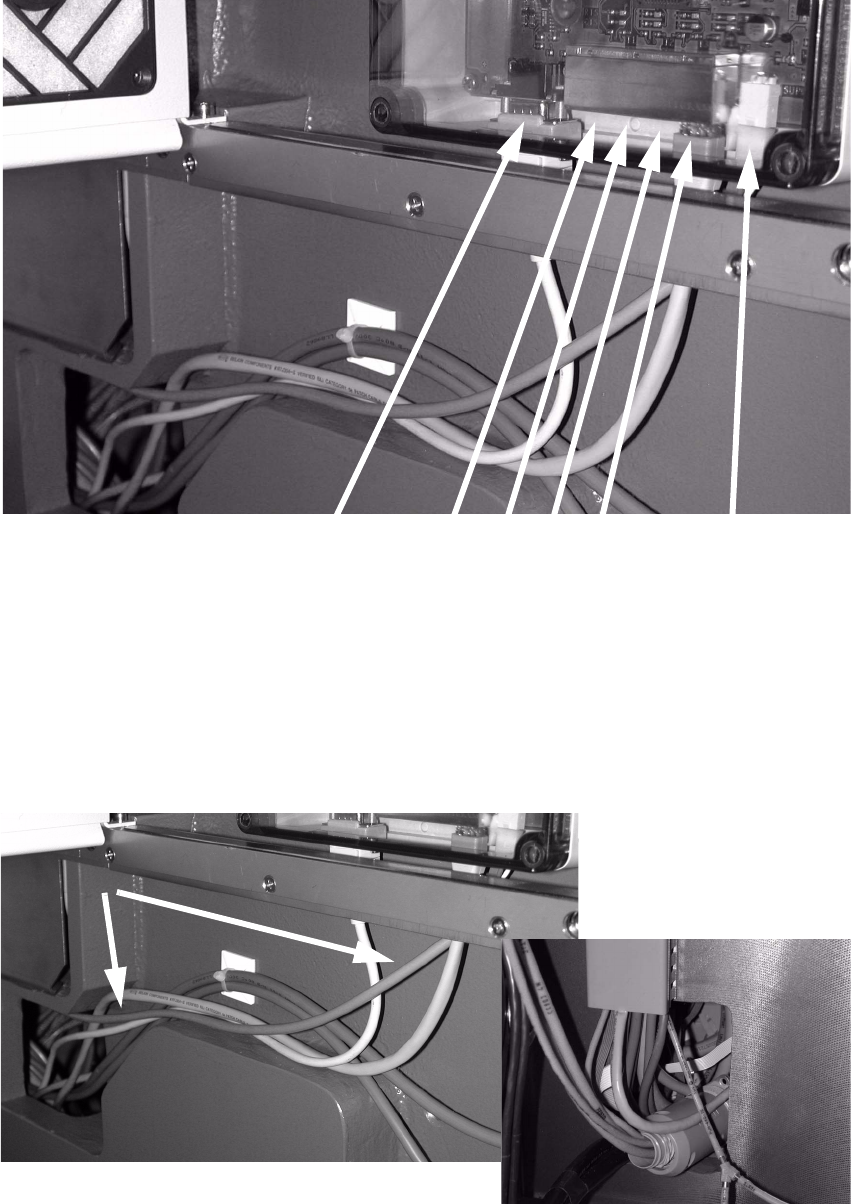

: Plug the connectors into the communication interface (see picture below).
2
: Run the six cables (as shown in the picture above) into the opening in the machine base.
: Run the power supply cable.
2
Power supply
connection
Table
1 2 3 4
Connecting cables
CAT5 cables)
to component trolley 1-4
Connecting cable
to 03007804
