This page provides instructions for configuring the programmers of a PSV System (Machine Manager instance) from the ConneX Server. To
establish connectivity between ConneX Server and each Machine Manager/PSV System, complete the steps under Adding a New System.
Configure Programmer Interface
1. On the Manage page, select a PSV System to configure.
2. In the system tile, click the Configuration tab.

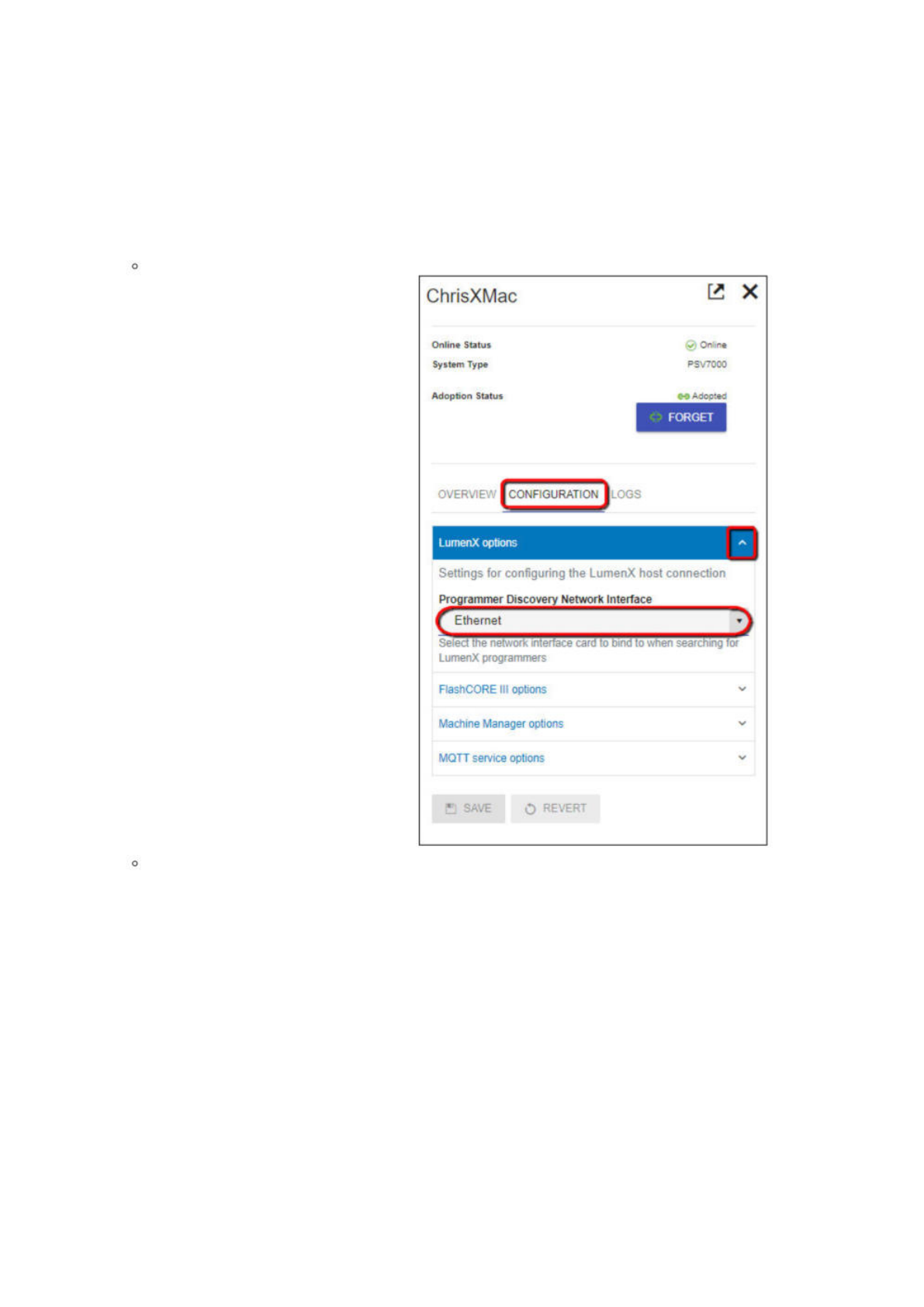

3. Now select the appropriate network interface for programmer communication:
For LumenX, click the LumenX options drop-down arrow, then select the appropriate option from the Programmer
Discovery Network Interface drop-down list.
For FlashCORE, click the FlashCORE III options drop-down arrow, then select the appropriate option from the Programmer
ChrisXMac
已
X
Online
Status
System
Type
Adoption
Status
>
On
me
PSV70O0
Adcoted
FORGET
OvERVIE
?/
CONFIGURATION
—
LumenX
options
人
Settings
for
configuring
the
LumenX
host
connection
Programmer
Discovery
Network
Interface
LumenX
programmers
FlashCORE
III
options
Machine
Manager
options
MQTT
service
options
H
SAVE
O
REVERT
Discovery Network Interface drop-down list.

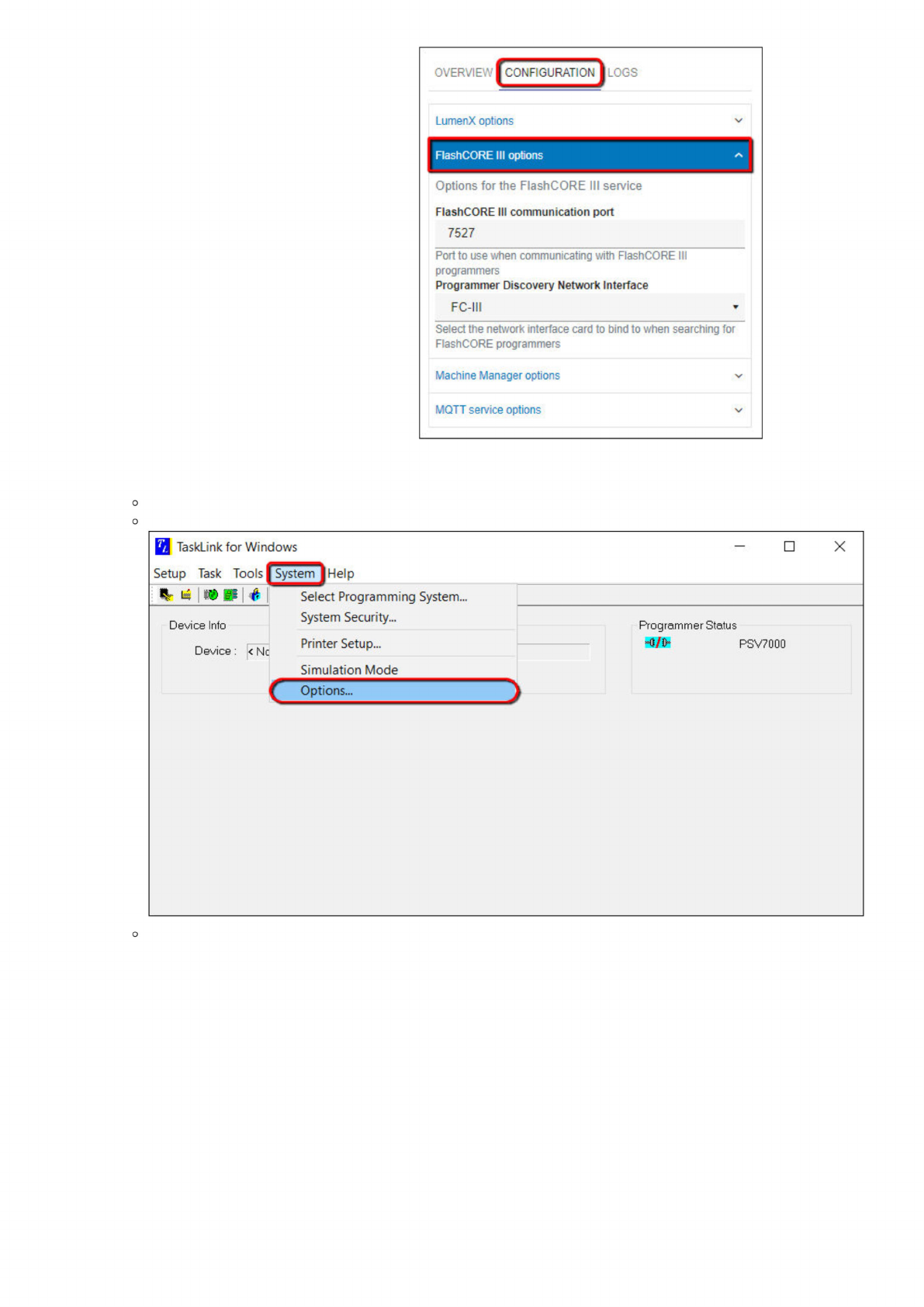

4. For FlashCORE only (skip this step for LumenX): Ensure the FlashCORE III communication port value (default is 7027) matches the
programmer port number configured in TaskLink:
Start TaskLink for Windows
Click the System menu (at top), then click Options.
In the Programming System Options dialog box, click the Communication tab, and then confirm the Programmer Port
