S A MS U N G T E C H W I N NO. PART󰚟NO. PART󰚟NAME Q'TY TYPE REMARK 1 Tape󰚟Guide󰚟44󰚟(S,󰚟L)󰚟Ass'y󰚟-󰚟S(J9065256A),󰚟L(J9065257A) 1 J7066263A TAPE󰚟GUIDE󰚟44 1 SM1-MF44-019 2 J7066190A SHUTTER󰚟GUIDE󰚟PIN …

100%1 / 160

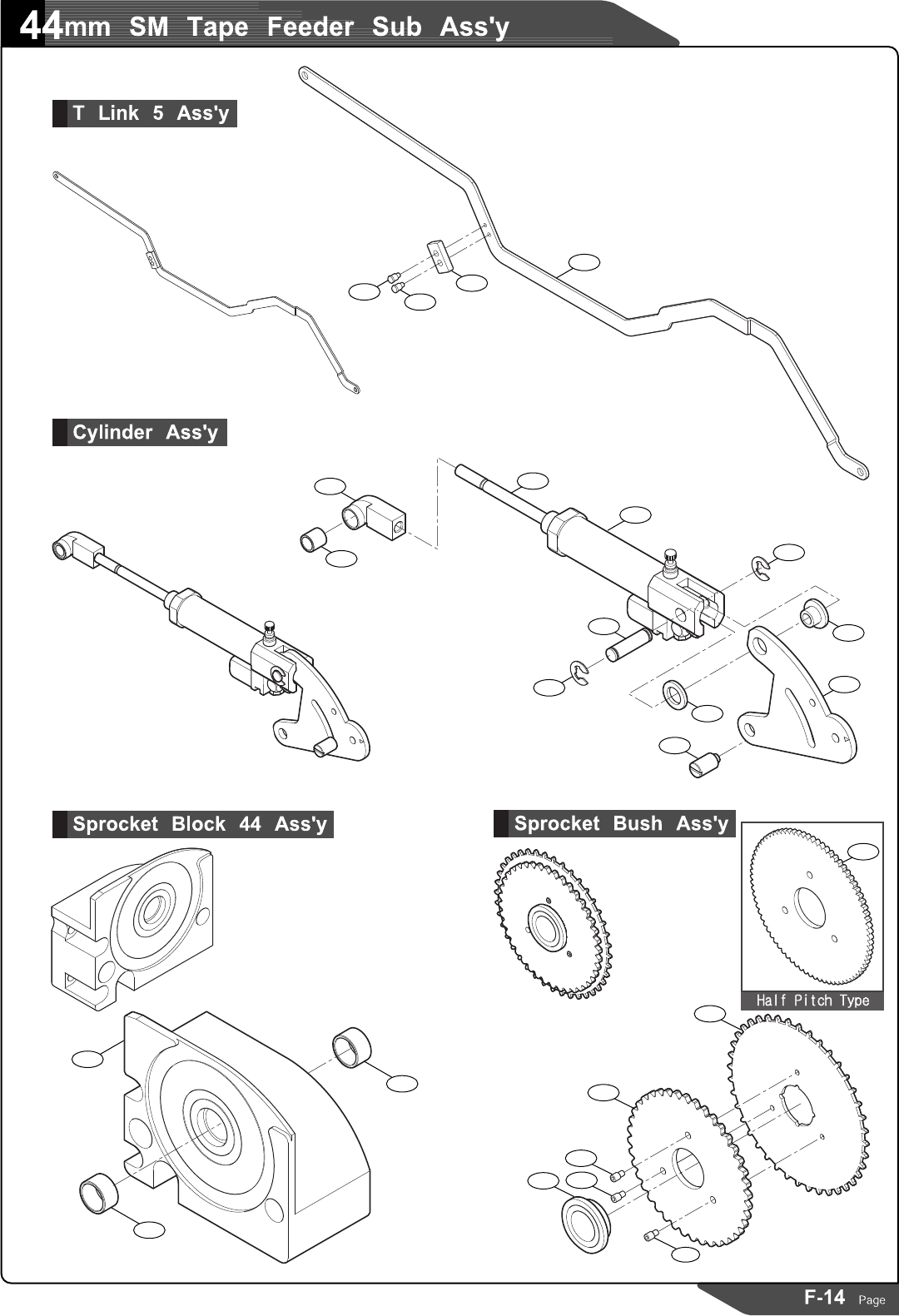

S AMS UNG TE CHWIN
7
3
1
8
2
6
8
5
10
9
4
1
3
2
3
2
3
1
4
4
4
1
2
2
3
S AMS UNG TE CHWIN
NO. PART󰚟NO. PART󰚟NAME Q'TY TYPE REMARK
1
Tape󰚟Guide󰚟44󰚟(S,󰚟L)󰚟Ass'y󰚟-󰚟S(J9065256A),󰚟L(J9065257A)
1
J7066263A
TAPE󰚟GUIDE󰚟44
1
SM1-MF44-019
2
J7066190A
SHUTTER󰚟GUIDE󰚟PIN
2 SM1-MF32-019-01
3
J7066191A
SHUTTER󰚟SPRING󰚟PLATE
1 SM1-MF32-019-02
4
J7066264A
SHUTTER󰚟S󰚟44
1
SM1-MF44-022-01
J7066265A
SHUTTER󰚟L󰚟44
1
SM1-MF44-022-02
2
Sprocket󰚟Shaft󰚟44󰚟Ass'y󰚟-󰚟(J9065253A)
1
J7066257A SPROCKET󰚟SHAFT-44 1 SM1-MF44-002-02
2
J7066141A SPROCKET-40 1 SM1-MF32-002-07
3
J7066142A
RATCHET-40
1 SM1-MF32-002-01
J7066367A
RATCHET-80
1 SM1-HF032-002-01
(Half󰚟Pitch󰚟Type󰚟EXCLUSIVE)
4
J7066143A
SPROCKET󰚟RIVET󰚟PIN
3 SM1-MF32-002-06
3
Pusher󰚟Lever󰚟Rivet󰚟Ass'y󰚟-󰚟(J9065222A)
1
J7066145A
PUSHER󰚟LEVER
1 SM1-MF32-007-01
2
J7066149A PUSHER󰚟PAWL 1
SM1-MF32-007-03
J7066366A PUSHER󰚟PAWL-H 1
SM1-MF32H-007-03 (Half󰚟Pitch󰚟Type󰚟EXCLUSIVE)
3
J7066146A
PUSHER󰚟PAWL󰚟SHAFT
1
SM1-MF32-007-04
4
J7066147A
MAIN󰚟LEVER󰚟PIN
1 SM1-MF32-033-03
5
J7066150A
PUSHER󰚟PAWL󰚟SPRING
1
SM1-MF32-007-06
6
J1301023
E󰚟RING-3
1
7
J7066148A
SHUTTER󰚟LEVER󰚟PIN
1
SM1-MF32-007-08
4
Pusher󰚟Lever󰚟Link󰚟Ass'y󰚟-󰚟(J9065226A)
1
J7066160A
PUSHER󰚟LINK
1
SM1-MF32-007-02
2
J7165306A
CLAMP󰚟BUSH
1
SM1-MF32-007-11
3
J7066161A
PUSHER󰚟LEVER󰚟PIN
1
SM1-MF32-031-01
S AMS UNG TE CHWIN
NO. PART󰚟NO. PART󰚟NAME Q'TY TYPE REMARK
5
Main󰚟Lever󰚟Ass'y󰚟-󰚟(J9065244A)
1
J7066212A
MAIN󰚟LEVER
1 SM1-MF32-033-01
2
J7066147A
MAIN󰚟LEVER󰚟PIN
1
SM1-MF32-033-03
3
J7066213A
CYLINDER󰚟BLOCK󰚟SHAFT
1 SM1-MF32-033-04
4
J7066163
SWING󰚟LEVER󰚟BUSH
1
SM1-MF32-008-02
5
J7165306A
CLAMP󰚟BUSH
1
SM1-MF32-007-11
6
Link󰚟Middle󰚟Rivet󰚟Ass'y󰚟-󰚟(J9065228A)
1
J7066165A
LINK󰚟MIDDLE
1 SM1-MF32-010
2
J7165306A
CLAMP󰚟BUSH
1
SM1-MF32-007-11
3
J7066147A
MAIN󰚟LEVER󰚟PIN
1 SM1-MF32-033-03
7
T󰚟Link󰚟2󰚟Ass'y󰚟-󰚟(J9065242A)
1
J7066206A
T󰚟LINK󰚟1
1
SM1-MF32-031-05
2
J7066202A
T󰚟LINK󰚟BALL
1 SM1-MF32-030-02
3
J7066204A
T󰚟LINK󰚟PIN󰚟1
3
SM1-MF32-030-05
4
J7066204A
T󰚟LINK󰚟PIN󰚟1
3
SM1-MF32-030-05
5
J7066207A T󰚟LINK󰚟4 1
SM1-MF32-031-03
6
J7066205A
T󰚟LINK󰚟3
1
SM1-MF32-031-04
7
J7066197A PLANET󰚟LEVER󰚟PIN 1 SM1-MF32-031-02
8
J7066203A
T󰚟LINK󰚟BALL󰚟SHAFT
1 SM1-MF32-030-07
8
Swing󰚟Lever󰚟Ass'y󰚟-󰚟(J9065227A)
1
J7066162A
SWING󰚟LEVER
1
SM1-MF32-008
2
J7165306A
CLAMP󰚟BUSH
2
SM1-MF32-007-11
3
J7066163
SWING󰚟LEVER󰚟BUSH
1
SM1-MF32-008-02
9
Vinyl󰚟Link󰚟Rivet󰚟Ass'y󰚟-󰚟(J9065241A)
1
J7066200A
VINYL󰚟LINK
1 SM1-MF32-029
2
J7066147A
MAIN󰚟LEVER󰚟PIN
2 SM1-MF32-033-03
