- - 48.S Y STEM D I A GRAM (ZT P OWER) X Y B E A R C A B L E S C N 0 9 8 C N 0 3 3 C N 0 3 2 5 - 3 A 5 - 2 A C N 0 9 8 C N 0 3 3 C N 2 1 4 C N 2 1 3 C N 2 1 2 Z T A C N P 1 C N 2 0 2 C N 2 1 1 2 - 4 B C N P 1 Z T A S E…
- -

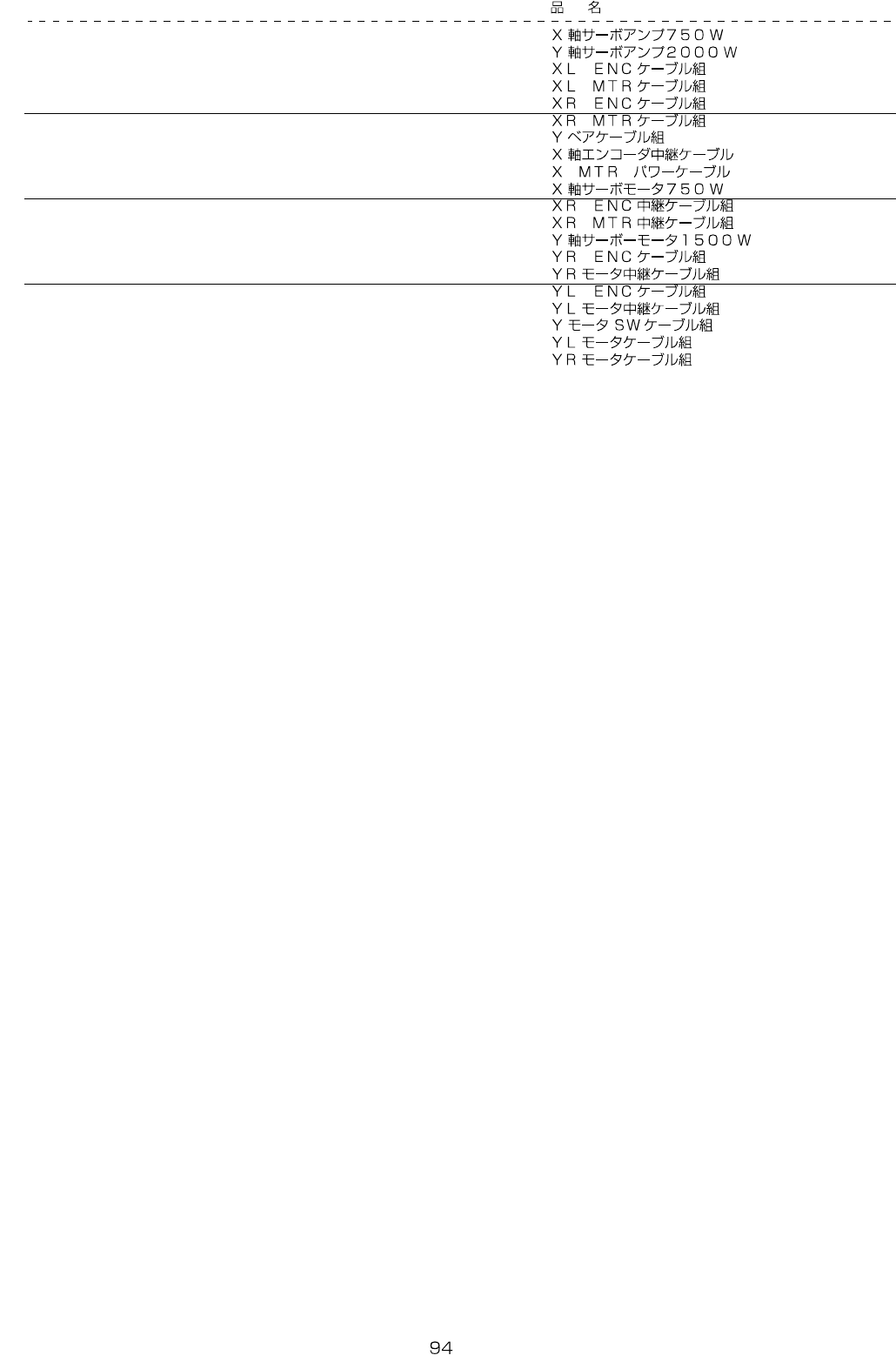

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-44538 SERVO AMP 750W 1
2 400-44539 SERVO AMP 2000W 1
3 400-45395 XL ENC CABLE ASM 1
4 400-45396 XL MTR CABLE ASM 1
5 400-45397 XR ENC CABLE ASM 1
6 400-45398 XR MTR CABLE ASM 1
7 400-58384 Y BEAR CABLES ASM 1
8 400-44545 X MOTOR ENCODER CABLE 1
9 400-44546 X MTR PWR CABLE 1
10 400-44536 SERVO MOTOR 750W 1
11 400-45399 XR ENC RELAY CABLE ASM 1
12 400-45400 XR MTR RELAY CABLE ASM 1
13 400-44537 SERVO MOTOR 1500W 1
14 400-45403 YR ENC CABLE ASM 1
15 400-46669 YR MOTOR RELAY CABLE ASM 1
16 400-45401 YL ENC CABLE ASM 1
17 400-46668 YL MOTOR RELAY CABLE ASM 1
18 400-46670 Y MOTOR SW CABLE ASM 1
19 400-46666 YL MOTOR CABLE ASM 1
20 400-46667 YR MOTOR CABLE ASM 1
- -
48.SYSTEM DIAGRAM (ZT POWER)
X Y B E A R C A B L E S
C N 0 9 8
C N 0 3 3
C N 0 3 2
5 - 3 A
5 - 2 A
C N 0 9 8
C N 0 3 3
C N 2 1 4
C N 2 1 3
C N 2 1 2
Z T A C N P 1
C N 2 0 2
C N 2 1 1
2 - 4 B
C N P 1
Z T A S E R V O A M P ( 2 / 4 )
M R - M D 1 0 0
C N 2 0 1C N 0 3 2
E N C C N 4
Z T B C N P 1
6 - 3 B
2 - 4 B
E N C R L Y P C B ( 1 / 2 )
C N 4
C N P 1
Z T B S E R V O A M P ( 2 / 4 )
M R - M D 1 0 0
1 - 4 D
P O W E R U N I T ( 3 / 6 )
7 - 1 D
1
2
3
4 4
5
7
6
8
- -

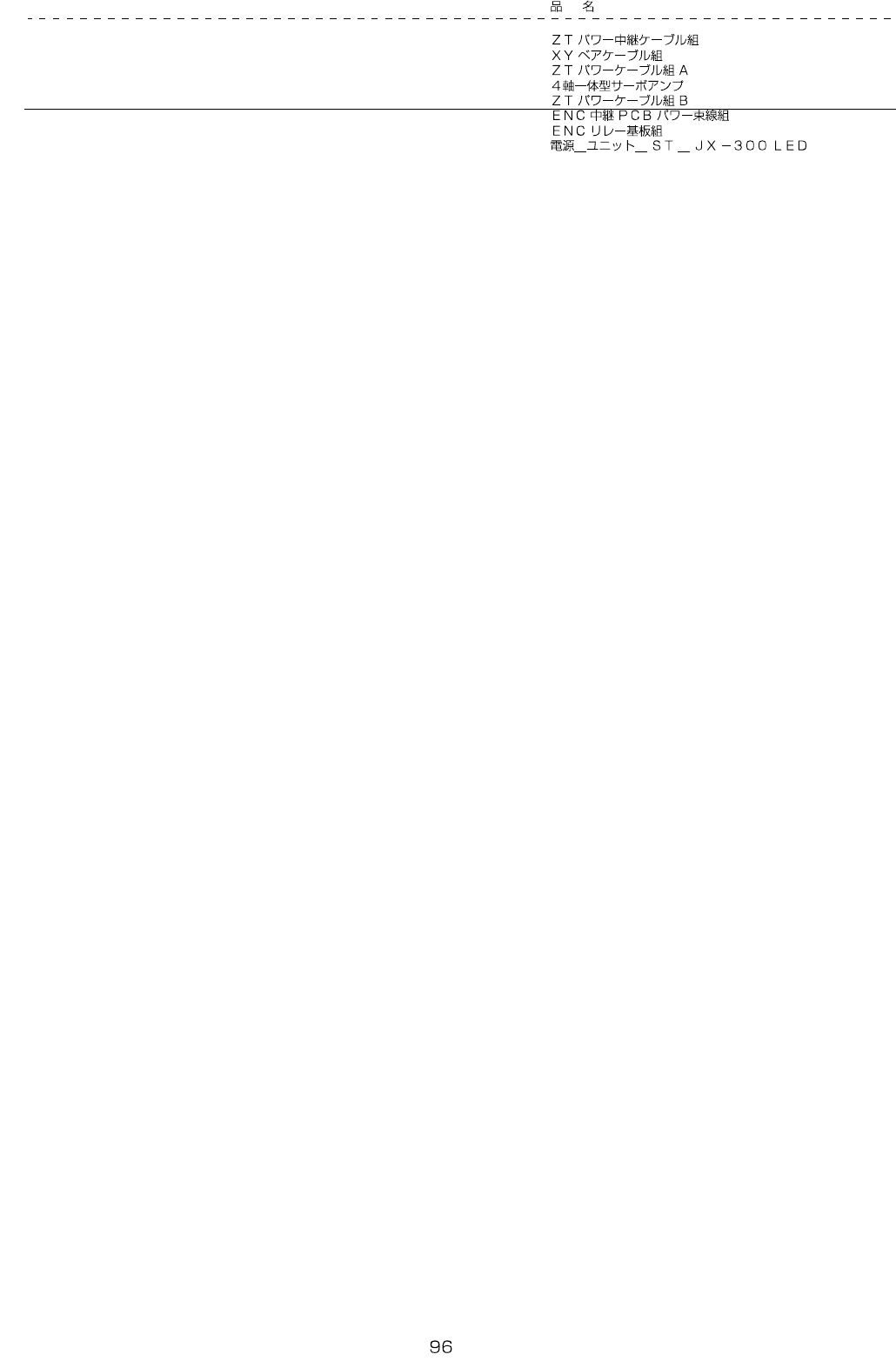

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-45429 ZT PWR RELAY CABLE ASM 1
2 400-58385 XY BEAR CABLES ASM 1
3 400-45430 ZT PWR CABLE ASM A 1
4 400-44535 4AXIS SERVO AMP 1
5 400-45431 ZT PWR CABLE ASM B 1
6 401-35379 ENC RLY PCB PWR CABLE ASM 1
7 401-34998 ENC RLY PCB ASM 1
8 401-35748 POWER UNIT ST JX-300LED 1
