JX-300LED-Rev02.PDFA - 第16页
- - 6. BAS E FR A ME ELEC T R I C A PP ARAT US C O M PON E NT S ( 5 ) 8 9 1 0 1 1 1 2 7 2 8 2 7 2 2 2 2 3 3 3 3 4 4 4 4 5 5 1 1 7 2 3 2 4 2 6 2 2 1 4 2 5 5 5 5 5 1 9 1 5 2 9 3 2 4 3 4 1 3 4 3 3 3 1 3 0 3 5 3 6 3 7 4 2 …
- -

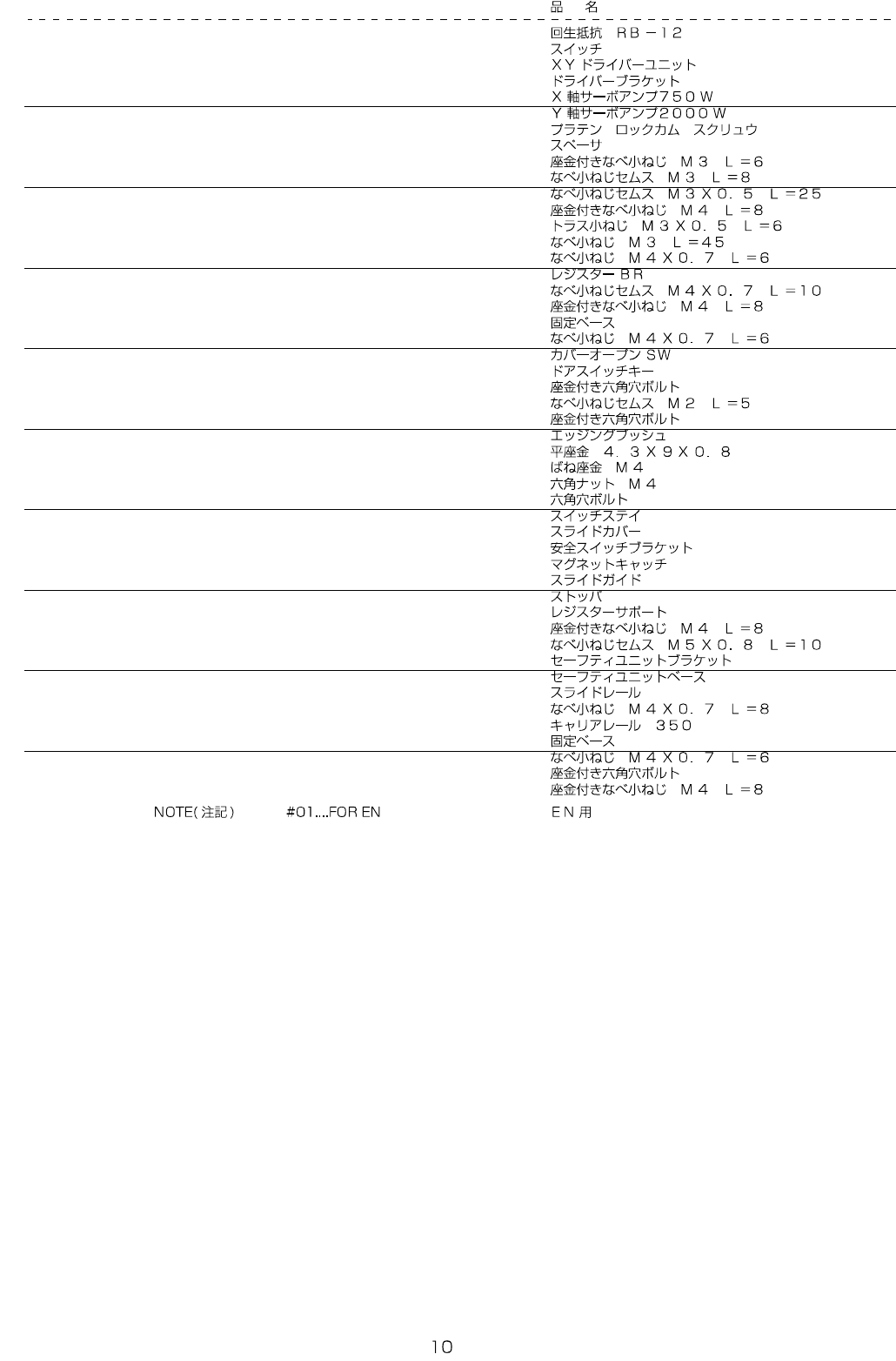

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-54885 REGENERATIVE RESISTOR 2
2 HA-0058600-00 SWITCH 1
3 400-49757 XY DRIVER UNIT 1
4 400-46552 DRIVER BRACKET (1)
5 400-44538 SERVO AMP 750W (2)
6 400-44539 SERVO AMP 2000W (2)
7 E1038-871-000 PLATEN LOCK CAM SCREW (4)
8 HX-0024200-0F SPECER (4)
9 SL-4030691-SC SCREW M3 L=6 (3)
10 SL-4030891-SC SCREW M3X8 (8)
11 SL-4032591-SC SCREW M3X25 (1)
12 SL-4040891-SC SCREW M4 L=8 (8)
13 SM-0030601-SC SCREW M3X0.5 L=6 (1)
14 SM-4034551-SC SCREW (2)
15 SM-4040601-SC SCREW M4X0.7 L=6 (1)
16 400-55292 RESISTOR BR (1)
17 SL-4041091-SC SCREW M4 L=10 (2)
18 SL-4040891-SC SCREW M4 L=8 (1)
19 HX-0029400-00 FIXED BASE (2)
20 SM-4040601-SC SCREW M4X0.7 L=6 (2)
21 400-02254 COVER OPEN SWITCH CABLE ASM (1)
22 HA-0052800-10 SWITCH (1)
23 SL-6041492-TN SCREW (4)
24 SL-4020591-SC SCREW M2X5 (2)
25 SL-6041642-TN SCREW (2)
26 HX-0009600-0A BUSH (0.18)
27 WP-0430801-SC WASHER 4.3X9X0.8 (2)
28 WS-0410002-KN SPRING WASHER (2)
29 NM-6040001-SC NUT M4 (6)
30 SM-6040602-TN BOLT (1)
31 400-66454 SWITCH STAY (1)
32 400-66455 SLIDE COVER (1)
33 400-66456 SAFETY SWITCHI BRACKET (1)
34 400-66457 MAGNET CATCH (1)
35 400-67189 SLIDE GUIDE (1)
36 400-67190 STOPPER (1)
37 400-59018 RESISTOR SUPPORT (1)
38 SL-4040891-SC SCREW M4 L=8 (4)
39 SL-4051091-SC SCREW M5X0.8 L=10 (4)
40
#01
400-00486 SAFETY UNIT BRACKET 1
41
#01
400-00485 SAFETY UNIT BASE 1
42
#01
400-00488 SLIDE RAIL 1
43
#01
SM-4040801-SC SCREW M4X0.7 L=8 12
44
#01
400-00529 CARRIER RAIL 350 2
45
#01
HX-0029400-00 FIXED BASE 6
46
#01
SM-4040601-SC SCREW M4X0.7 L=6 6
47
#01
SL-6061292-TN SCREW 4
48
#01
SL-4040891-SC SCREW M4 L=8 4
- -

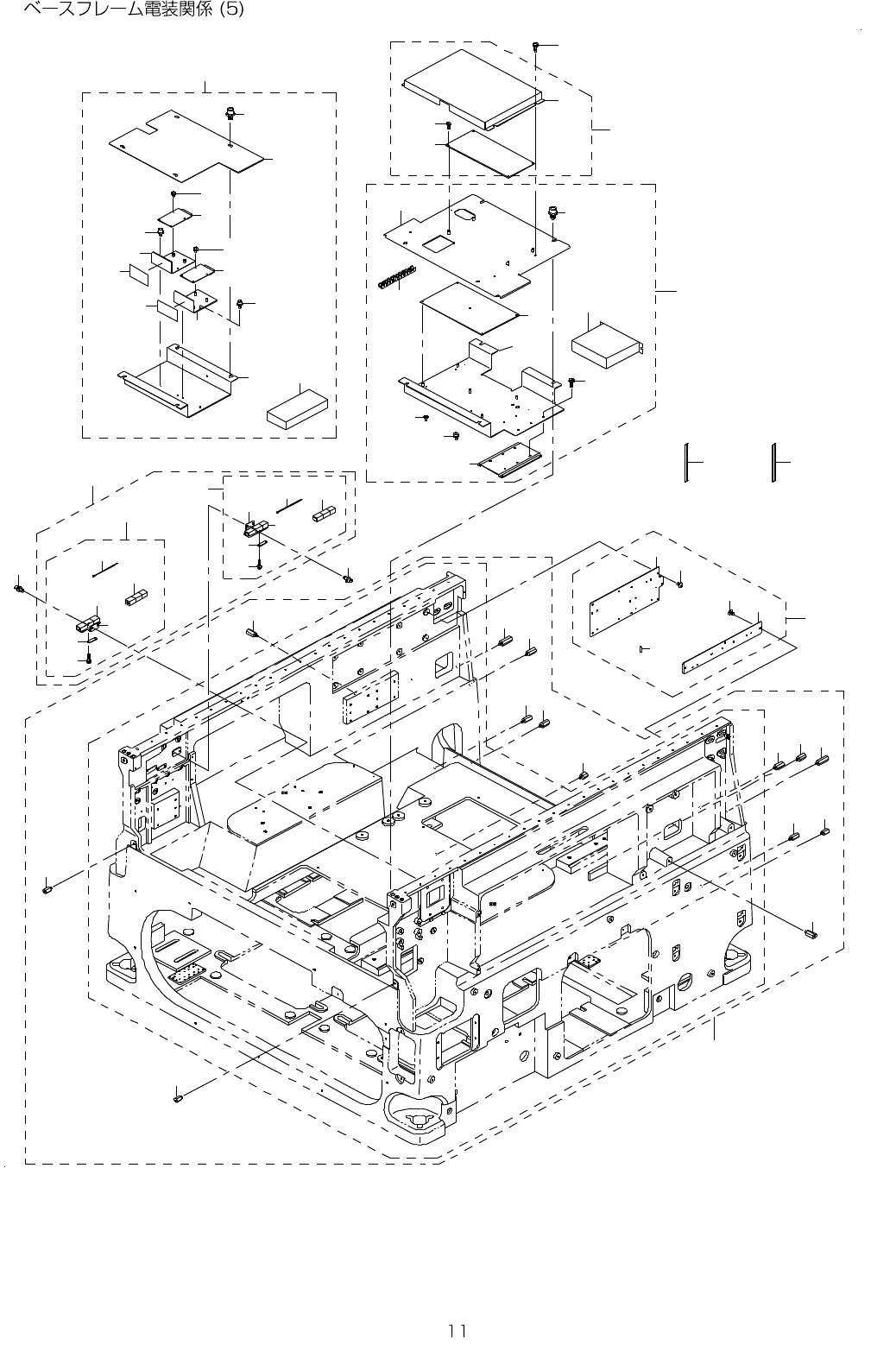

6. BASE FRAME ELECTRIC APPARATUS COMPONENTS (5)
8
9
1 0
1 1
1 2
7
2 8
2 7
2
2
2
2
3
3
3
3
4
4
4
4
5
5
1
1 7
2 3
2 4
2 6
2 2
1 4
2 5
5 5
5 5
1 9
1 5
2 9
3 2
4 3
4 1
3 4
3 3
3 1
3 0
3 5
3 6
3 7
4 2
4 4
3 8
2 1
1 8
1 6
2 0
4 0
3 9
1 36
4 5
4 7
4 8
4 6
5 3
5 2
5 0
4 9
5 0
4 9
5 1
5 1
5 3
5 2
5 4
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00410 COVER STUD ASSY 1
2 400-01510 COVER STUD RL (4)
3 400-01512 COVER STUD YF (4)
4 400-01515 COVER STUD YS (6)
5 400-01516 COVER STUD YR (2)
6 HX-0050300-00 EMI GASKET 0.8
7 400-00411 Y AXIS SENSOR BR ASSY 1
8 PS-0500202-KP SPRING PIN 5X20 (2)
9 400-00509 SENSOR BRACKET L (1)
10 SM-3040652-TN SCREW M4 L=6 (6)
11 400-00510 SENSOR BRACKET R (1)
12 SM-3040652-TN SCREW M4 L=6 (4)
13 HX-0054600-00 EMI GASKET 5
14 401-35783 FEEDER FLOAT_SENS ASSY_JX-300LED 1
15 400-01575 FD FLOAT FL ASSY (1)
16 E2157-729-000 FSD SPACER (1)
17 400-02133 FD-FLOAT(FR)RECEIVE SENS ASM (1)
18 SL-4031481-SC SCREW M3 X 14 (4)
19 EA-9500B01-00 CABLE BAND (2)
20 400-02130 FD-FLOAT(FF)SENS ASM (1)
21 400-01651 FSD BRACKET (1)
22 400-01576 FD FLOAT FR ASSY (1)
23 400-02131 FD-FLOAT(FF)RECEIVE SENS ASM (1)
24 400-02132 FD-FLOAT(FR)SENS ASM (1)
25 SL-4031481-SC SCREW M3 X 14 (4)
26 EA-9500B01-00 CABLE BAND (2)
27 400-01651 FSD BRACKET (1)
28 E2157-729-000 FSD SPACER (1)
29 401-37567 CARRY BASE ASM 300LED 1
30 400-00500 BASE COVER SEALING F (1)
31 400-46595 CARRY PCB BRACKET (1)
32 SL-6061292-TN SCREW (8)
33 401-37539 CARRY PCB ASM 300LED (1)
34 EA-9002B11-00 BUSHING L (1)
35 HM-0013200-00 MOTOR DRIVER (3)
36 SL-4030691-SC SCREW M3 L=6 (5)
37 SL-4040891-SC SCREW M4 L=8 (2)
38 400-58554 PCB BRACKET (1)
39 SL-4040891-SC SCREW M4 L=8 (3)
40 400-01583 BANK PCB F ASSY 1
41 SL-4030891-SC SCREW M3X8 (4)
42 400-00504 BANK PCB COVER F (1)
43 400-01951 BANK/FPI-F PCB ASM. (1)
44 SL-4040891-SC SCREW M4 L=8 4
45 401-35798 CARRY_SENSOR_RELAY_ASM_JX-300LED 1
46 401-35487 BANK_PCB_BRACKET_LED (1)
47 SL-6061292-TN SCREW (4)
48 401-37296 BASE_COVER_CEILING_R (1)
49 E1143-721-000 WOOLEN CLOTH PAPER (1)
50 400-45981 TRANSFER STATION BRACKET (2)
51 SL-6040892-TN BOLT (4)
52 400-01964 CARRY SENSOR RELAY PCB ASM. (2)
53 SL-4030691-SC SCREW M3 L=6 (8)
54 400-80833 SPONGE (1)
55 SL-6041092-TN SCREW 4
