- - 7. ATC & CAL BL O C K COMPONE N T S 1 2 1 2 1 3 1 0 1 1 1 5 1 6 1 6 1 4 5 6 B 1 3 4 6 4 5 3 3 3 2 3 1 3 0 5 3 5 6 5 5 5 2 2 3 2 4 4 8 4 2 4 1 4 0 2 6 2 5 2 2 2 2 2 1 4 4 1 8 1 9 6 2 6 1 5 9 5 7 5 4 5 0 4 9 4 7 …
- -

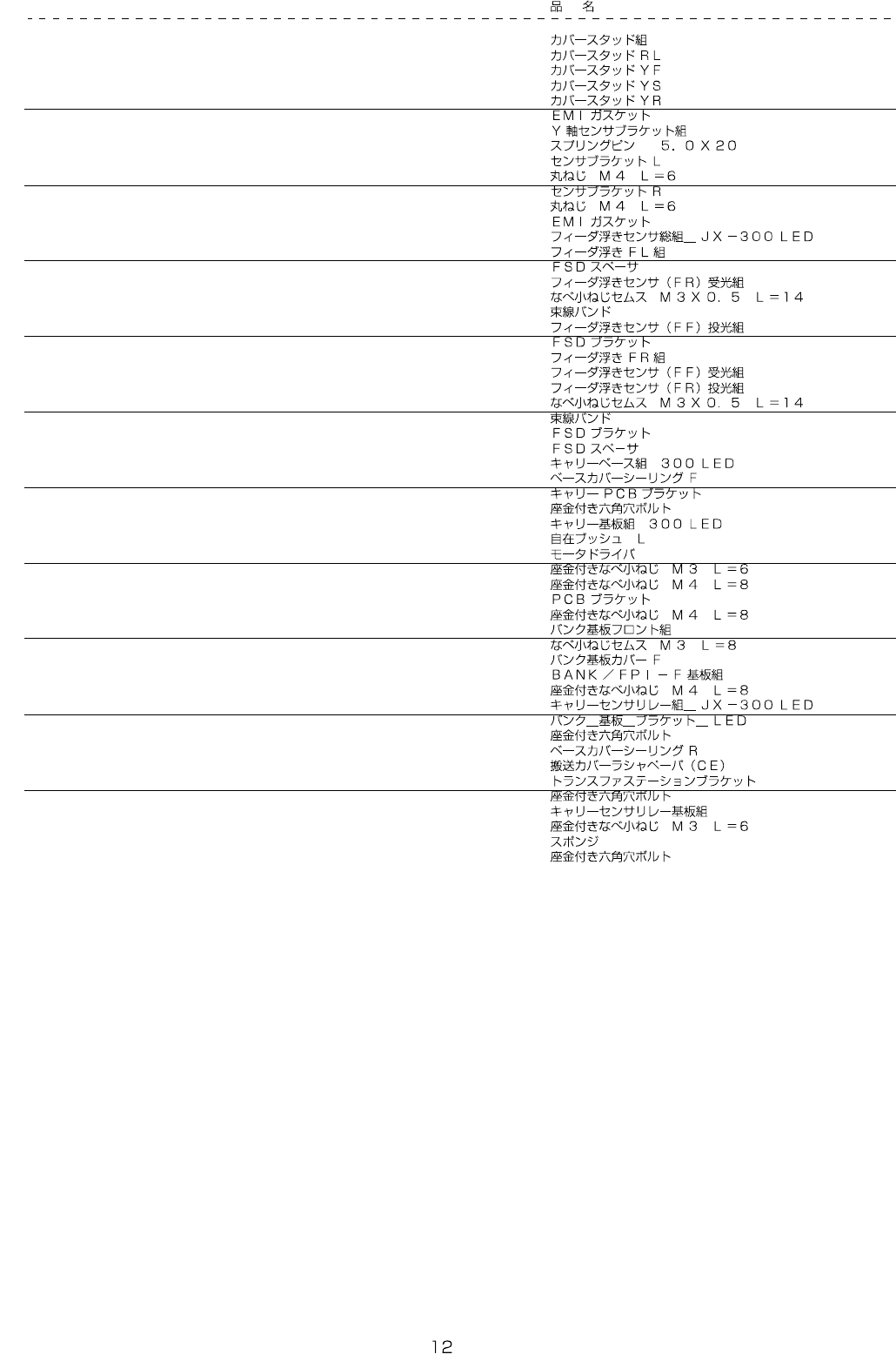

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00410 COVER STUD ASSY 1
2 400-01510 COVER STUD RL (4)
3 400-01512 COVER STUD YF (4)
4 400-01515 COVER STUD YS (6)
5 400-01516 COVER STUD YR (2)
6 HX-0050300-00 EMI GASKET 0.8
7 400-00411 Y AXIS SENSOR BR ASSY 1
8 PS-0500202-KP SPRING PIN 5X20 (2)
9 400-00509 SENSOR BRACKET L (1)
10 SM-3040652-TN SCREW M4 L=6 (6)
11 400-00510 SENSOR BRACKET R (1)
12 SM-3040652-TN SCREW M4 L=6 (4)
13 HX-0054600-00 EMI GASKET 5
14 401-35783 FEEDER FLOAT_SENS ASSY_JX-300LED 1
15 400-01575 FD FLOAT FL ASSY (1)
16 E2157-729-000 FSD SPACER (1)
17 400-02133 FD-FLOAT(FR)RECEIVE SENS ASM (1)
18 SL-4031481-SC SCREW M3 X 14 (4)
19 EA-9500B01-00 CABLE BAND (2)
20 400-02130 FD-FLOAT(FF)SENS ASM (1)
21 400-01651 FSD BRACKET (1)
22 400-01576 FD FLOAT FR ASSY (1)
23 400-02131 FD-FLOAT(FF)RECEIVE SENS ASM (1)
24 400-02132 FD-FLOAT(FR)SENS ASM (1)
25 SL-4031481-SC SCREW M3 X 14 (4)
26 EA-9500B01-00 CABLE BAND (2)
27 400-01651 FSD BRACKET (1)
28 E2157-729-000 FSD SPACER (1)
29 401-37567 CARRY BASE ASM 300LED 1
30 400-00500 BASE COVER SEALING F (1)
31 400-46595 CARRY PCB BRACKET (1)
32 SL-6061292-TN SCREW (8)
33 401-37539 CARRY PCB ASM 300LED (1)
34 EA-9002B11-00 BUSHING L (1)
35 HM-0013200-00 MOTOR DRIVER (3)
36 SL-4030691-SC SCREW M3 L=6 (5)
37 SL-4040891-SC SCREW M4 L=8 (2)
38 400-58554 PCB BRACKET (1)
39 SL-4040891-SC SCREW M4 L=8 (3)
40 400-01583 BANK PCB F ASSY 1
41 SL-4030891-SC SCREW M3X8 (4)
42 400-00504 BANK PCB COVER F (1)
43 400-01951 BANK/FPI-F PCB ASM. (1)
44 SL-4040891-SC SCREW M4 L=8 4
45 401-35798 CARRY_SENSOR_RELAY_ASM_JX-300LED 1
46 401-35487 BANK_PCB_BRACKET_LED (1)
47 SL-6061292-TN SCREW (4)
48 401-37296 BASE_COVER_CEILING_R (1)
49 E1143-721-000 WOOLEN CLOTH PAPER (1)
50 400-45981 TRANSFER STATION BRACKET (2)
51 SL-6040892-TN BOLT (4)
52 400-01964 CARRY SENSOR RELAY PCB ASM. (2)
53 SL-4030691-SC SCREW M3 L=6 (8)
54 400-80833 SPONGE (1)
55 SL-6041092-TN SCREW 4
- -

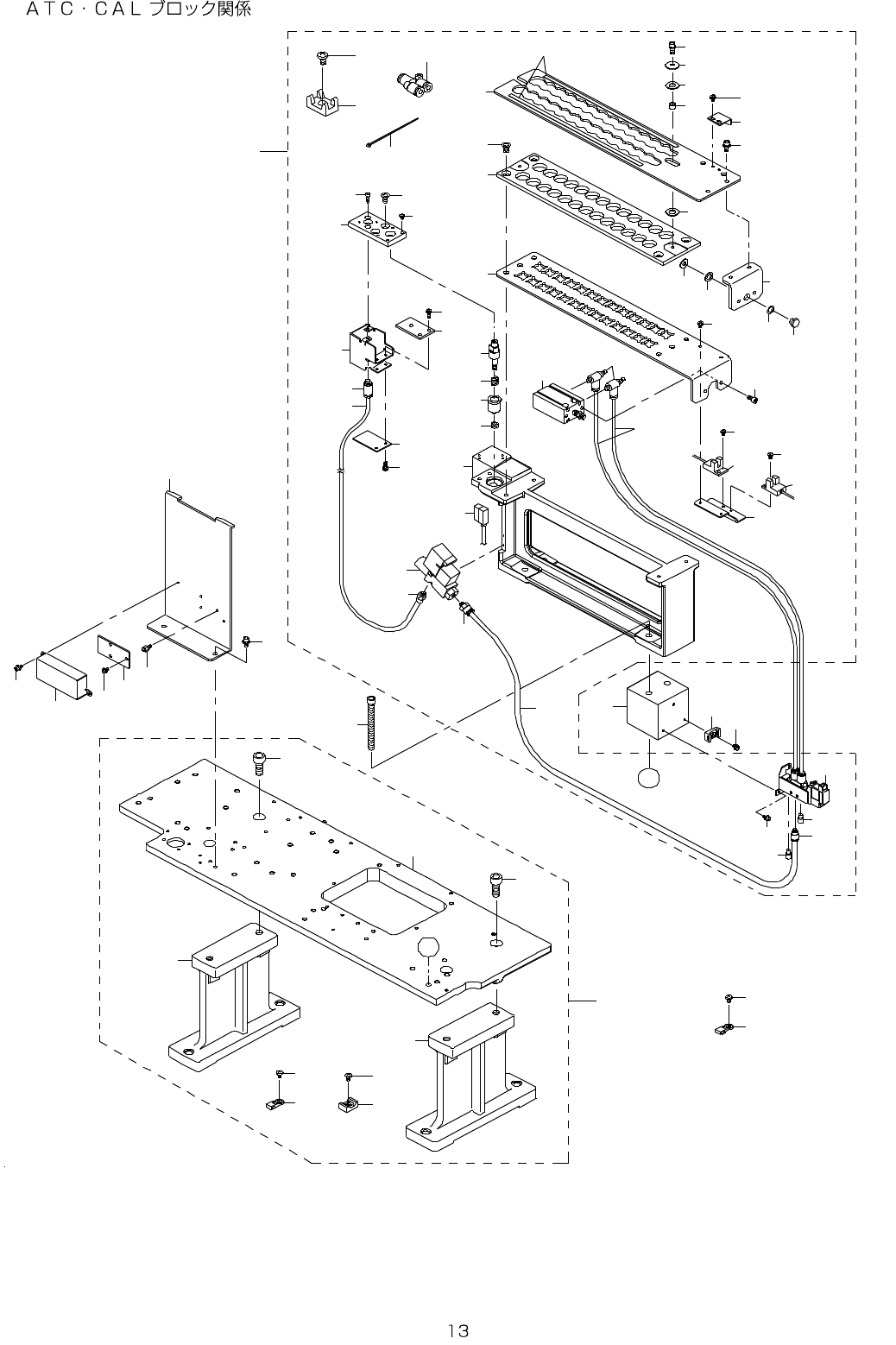

7. ATC & CAL BLOCK COMPONENTS
1 2
1 2
1 3
1 0
1 1
1 5
1 6
1 6
1 4
5
6
B
1 3
4 6
4 5
3 3
3 2
3 1
3 0
5 3
5 6
5 5
5 2
2 3
2 4
4 8
4 2
4 1
4 0
2 6
2 5
2 2
2 2
2 1
4 4
1 8
1 9
6 2
6 1
5 9
5 7
5 4
5 0
4 9
4 7
3 4
3 6
7 6
5 8
6 0
5 4
5 1
2 7
2 8
3 9
3 8
3 7
4 3
3 5
6 6
7 3
6 3
7 4
7 5
6 5
6 4
2 0
1 7
B
9
4
2
8
1
3
7
2 9
6 5
6 7
6 8
6 9
7 0
7 2
7 1
- -

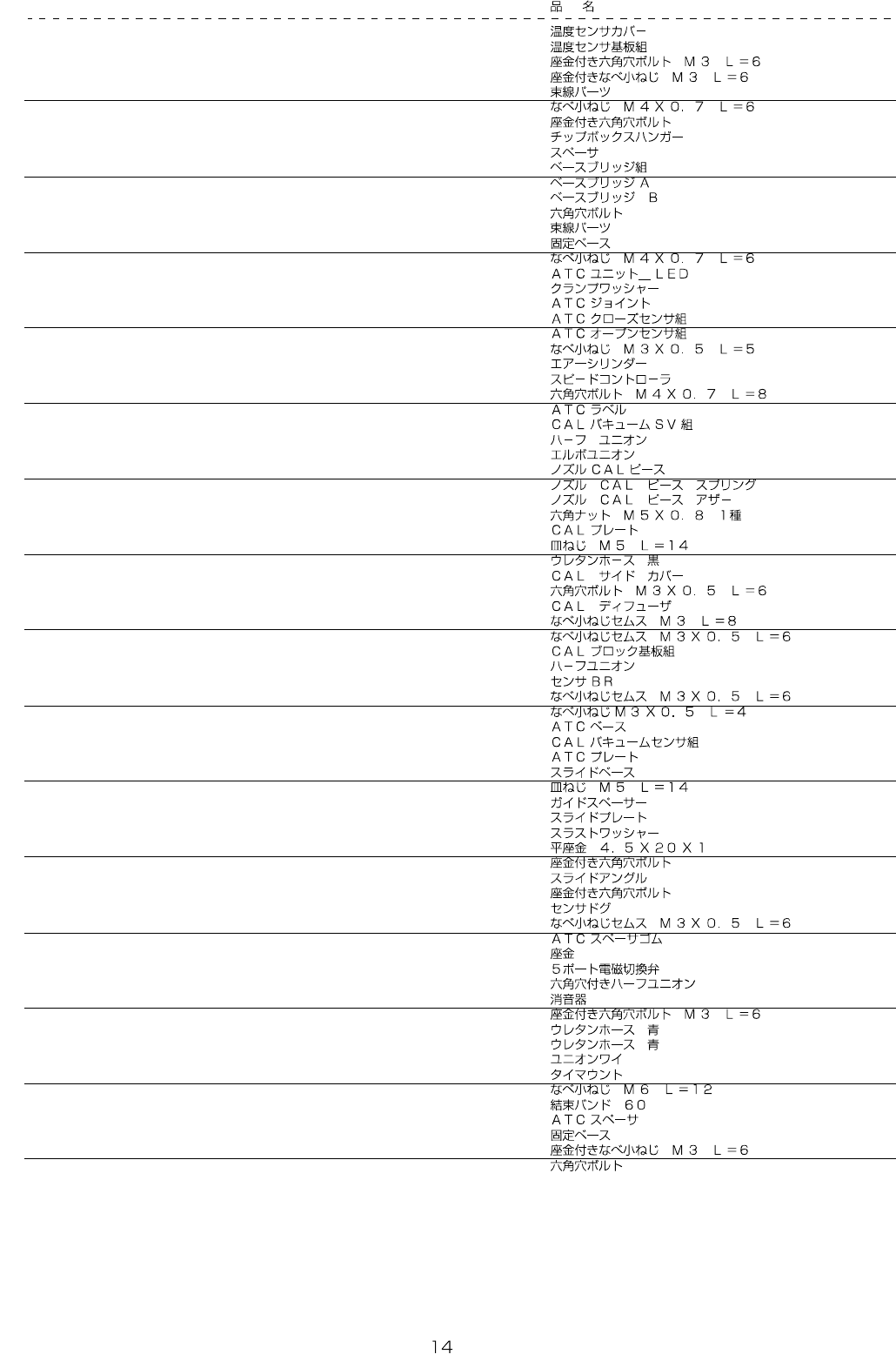

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2142-729-000 TEMPERATURE SENSOR COVER 1
2 400-29824 TEMPERATURE SENSOR PCB ASM 1
3 SL-6030692-TN SCREW M3 L=6 2
4 SL-4030691-SC SCREW M3 L=6 3
5 HX-0034400-00 HARNESS PARTS 3
6 SM-4040601-SC SCREW M4X0.7 L=6 3
7 SL-6040892-TN BOLT 2
8 401-35486 CHIP_BOX_HANGER 1
9 HX-0035400-0S SPACER 3
10 400-45988 BASE BRIDGE ASM 1
11 400-45987 BASE BRIDGE A (1)
12 400-00633 BASE BRIDGE B (2)
13 SM-6082502-TP SCREW M8 L=25 (4)
14 HX-0034400-00 HARNESS PARTS (2)
15 HX-0029400-00 FIXED BASE (5)
16 SM-4040601-SC SCREW M4X0.7 L=6 (7)
17 401-35642 ATC_UNIT_LED 1
18 GLA-02335000 CLAMP WASHER (1)
19 E3528-729-000 ATC JOINT (1)
20 401-36122 ATC CLOSE SENS ASM (1)
21 401-36120 ATC OPEN SENS ASM (1)
22 SM-4030501-SC SCREW M3X0.5 L=5 (4)
23 400-42709 AIR CYLINDER (1)
24 PC-0105080-00 SPEED CONTROLLER (2)
25 SM-6040802-TN SCREW (2)
26 400-77293 ATC LABEL (1)
27 400-02125 CAL VCUM SV ASM (1)
28 PJ-3010605-03 HALF UNION (1)
29 PJ-3040405-04 ELBOW UNION (1)
30 400-45979 NOZZLE CAL PIECE (1)
31 L203E-121-000 NOZZLE CAL PIECE OUTER SP (1)
32 L203E-021-000 NOZZLE CAL PIECE OUTER (1)
33 NM-6050001-SC NUT M5 (1)
34 400-45994 CAL PLATE (1)
35 SM-1051452-TN PLATE SCREW (2)
36 BT-0400251-EB URETHANE HOSE, BLACK (0.2)
37 L202E-521-000 CAL SIDE COVER (1)
38 SM-6030602-TN HEX SCREW M3 X 6 (2)
39 L202E-621-000 CAL DIFFUSER (1)
40 SL-4030891-SC SCREW M3X8 (2)
41 SL-4030691-SC SCREW M3X6 (2)
42 400-07376 CALBLOCK PCB ASM (1)
43 PJ-3010405-05 HALF UNION (1)
44 400-77294 SENSOR BR (1)
45 SL-4030691-SC SCREW M3X6 (2)
46 SM-4030401-SC SCREW M3X0.5 L=4 (4)
47 400-77288 ATC BASE (1)
48 400-02126 CAL VACUUM SENSOR ASSY (1)
49 400-77290 ATC PLATE (1)
50 400-77291 SLIDE BASE (1)
51 SM-1051452-TN PLATE SCREW (4)
52 400-45975 GUIDE SPACER (2)
53 400-77292 SLIDE PLATE (1)
54 E3404-700-000 THRUST WASHER (4)
55 WP-0451016-SP WASHER 4.5X20X1 (2)
56 SL-6041292-TN SCREW (2)
57 400-45977 SLIDER ANGLE (1)
58 SL-6041092-TN SCREW (2)
59 400-77295 SENSOR DOG (1)
60 SL-4030691-SC SCREW M3X6 (2)
61 400-01286 ATC SPACER RUBBER (1)
62 B2107-816-000 WASHER (1)
63 PV-1502060-A0 5 PORT MAGNETIC TRANSFER VALVE (1)
64 PJ-3030605-01 HALF UNION (1)
65 PX-0505010-00 SILENCER (2)
66 SL-6030692-TN SCREW M3 L=6 (2)
67 BT-0400251-EA TUBE HOSE, BLUE (0.21)
68 BT-0600400-EC TUBE HOSE, BLUE (0.36)
69 PJ-3080600-03 Y UNION (1)
70 HX-0055700-00 TIE MOUNT (1)
71 SM-4061201-SC SCREW M6 L=12 (1)
72 EA-9500B00-00 CABLE BAND (2)
73 401-35483 ATC_SPACER 2
74 HX-0029400-00 FIXED BASE 1
75 SL-4030681-SC SCREW M3 L=6 1
76 SM-6067052-TP HEXAGON BOLT 4
