- - 8. COV ER COMPONENTS (1) 7 1 3 2 4 4 5 4 5 4 3 1 3 2 3 3 3 4 3 6 3 5 3 2 4 2 3 2 5 2 5 0 5 1 5 3 4 6 5 5 6 3 5 6 5 7 5 8 5 7 3 8 7 0 7 1 7 4 3 2 5 4 3 9 3 7 1 6 1 6 1 3 1 3 7 6 4 5 4 6 7 2 7 3 6 2 5 9 6 0 A A 1 7 1…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2142-729-000 TEMPERATURE SENSOR COVER 1
2 400-29824 TEMPERATURE SENSOR PCB ASM 1
3 SL-6030692-TN SCREW M3 L=6 2
4 SL-4030691-SC SCREW M3 L=6 3
5 HX-0034400-00 HARNESS PARTS 3
6 SM-4040601-SC SCREW M4X0.7 L=6 3
7 SL-6040892-TN BOLT 2
8 401-35486 CHIP_BOX_HANGER 1
9 HX-0035400-0S SPACER 3
10 400-45988 BASE BRIDGE ASM 1
11 400-45987 BASE BRIDGE A (1)
12 400-00633 BASE BRIDGE B (2)
13 SM-6082502-TP SCREW M8 L=25 (4)
14 HX-0034400-00 HARNESS PARTS (2)
15 HX-0029400-00 FIXED BASE (5)
16 SM-4040601-SC SCREW M4X0.7 L=6 (7)
17 401-35642 ATC_UNIT_LED 1
18 GLA-02335000 CLAMP WASHER (1)
19 E3528-729-000 ATC JOINT (1)
20 401-36122 ATC CLOSE SENS ASM (1)
21 401-36120 ATC OPEN SENS ASM (1)
22 SM-4030501-SC SCREW M3X0.5 L=5 (4)
23 400-42709 AIR CYLINDER (1)
24 PC-0105080-00 SPEED CONTROLLER (2)
25 SM-6040802-TN SCREW (2)
26 400-77293 ATC LABEL (1)
27 400-02125 CAL VCUM SV ASM (1)
28 PJ-3010605-03 HALF UNION (1)
29 PJ-3040405-04 ELBOW UNION (1)
30 400-45979 NOZZLE CAL PIECE (1)
31 L203E-121-000 NOZZLE CAL PIECE OUTER SP (1)
32 L203E-021-000 NOZZLE CAL PIECE OUTER (1)
33 NM-6050001-SC NUT M5 (1)
34 400-45994 CAL PLATE (1)
35 SM-1051452-TN PLATE SCREW (2)
36 BT-0400251-EB URETHANE HOSE, BLACK (0.2)
37 L202E-521-000 CAL SIDE COVER (1)
38 SM-6030602-TN HEX SCREW M3 X 6 (2)
39 L202E-621-000 CAL DIFFUSER (1)
40 SL-4030891-SC SCREW M3X8 (2)
41 SL-4030691-SC SCREW M3X6 (2)
42 400-07376 CALBLOCK PCB ASM (1)
43 PJ-3010405-05 HALF UNION (1)
44 400-77294 SENSOR BR (1)
45 SL-4030691-SC SCREW M3X6 (2)
46 SM-4030401-SC SCREW M3X0.5 L=4 (4)
47 400-77288 ATC BASE (1)
48 400-02126 CAL VACUUM SENSOR ASSY (1)
49 400-77290 ATC PLATE (1)
50 400-77291 SLIDE BASE (1)
51 SM-1051452-TN PLATE SCREW (4)
52 400-45975 GUIDE SPACER (2)
53 400-77292 SLIDE PLATE (1)
54 E3404-700-000 THRUST WASHER (4)
55 WP-0451016-SP WASHER 4.5X20X1 (2)
56 SL-6041292-TN SCREW (2)
57 400-45977 SLIDER ANGLE (1)
58 SL-6041092-TN SCREW (2)
59 400-77295 SENSOR DOG (1)
60 SL-4030691-SC SCREW M3X6 (2)
61 400-01286 ATC SPACER RUBBER (1)
62 B2107-816-000 WASHER (1)
63 PV-1502060-A0 5 PORT MAGNETIC TRANSFER VALVE (1)
64 PJ-3030605-01 HALF UNION (1)
65 PX-0505010-00 SILENCER (2)
66 SL-6030692-TN SCREW M3 L=6 (2)
67 BT-0400251-EA TUBE HOSE, BLUE (0.21)
68 BT-0600400-EC TUBE HOSE, BLUE (0.36)
69 PJ-3080600-03 Y UNION (1)
70 HX-0055700-00 TIE MOUNT (1)
71 SM-4061201-SC SCREW M6 L=12 (1)
72 EA-9500B00-00 CABLE BAND (2)
73 401-35483 ATC_SPACER 2
74 HX-0029400-00 FIXED BASE 1
75 SL-4030681-SC SCREW M3 L=6 1
76 SM-6067052-TP HEXAGON BOLT 4
- -

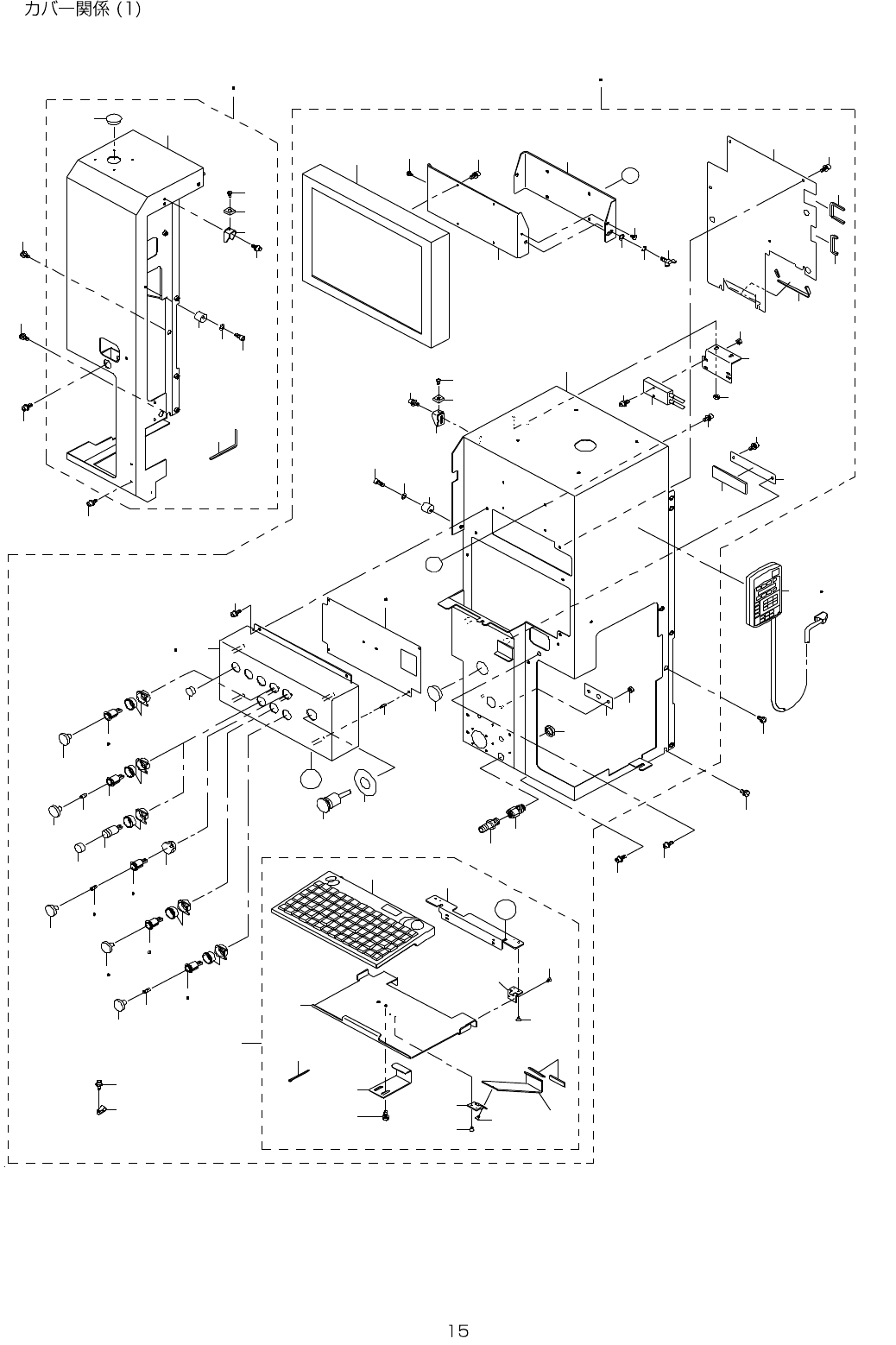

8. COVER COMPONENTS (1)
7 1
3 2
4 4
5 4
5 4
3 1
3 2
3 3
3 4
3 6
3 5
3 2
4 2
3 2
5 2
5 0
5 1
5 3
4 6
5 5
6 3
5 6
5 7
5 8
5 7
3 8
7 0
7 1
7 4
3 2
5 4
3 9
3 7
1 6
1 6
1 3
1 3
7 6
4 5
4 6
7 2 7 3
6 2
5 9 6 0
A
A
1 7 1 8
4 1
B
B
6 1
6 8
8 1
6 4 6 5
6 6 6 7
7 5
4 7
6 9
6 4 6 5
3 0
7 9
7 5
6 6
6 4
4 7
6 4 6 5
3 0
4 0
4 3
7 7
1 4 1 5
3 3
2 1
2 2
2 1
1 9
2 5
2 8
2 9
2 6
2 4
2 3
2 0
2 2
2 2
2 2
2 7
8
1 2
3
1 3
1 6
1 6
1 2
4
1 1
1 0
9
7
6
5
1 3
4 8 4 9
6 4 6 5
3 0
7 8
8 0
3 0
- -

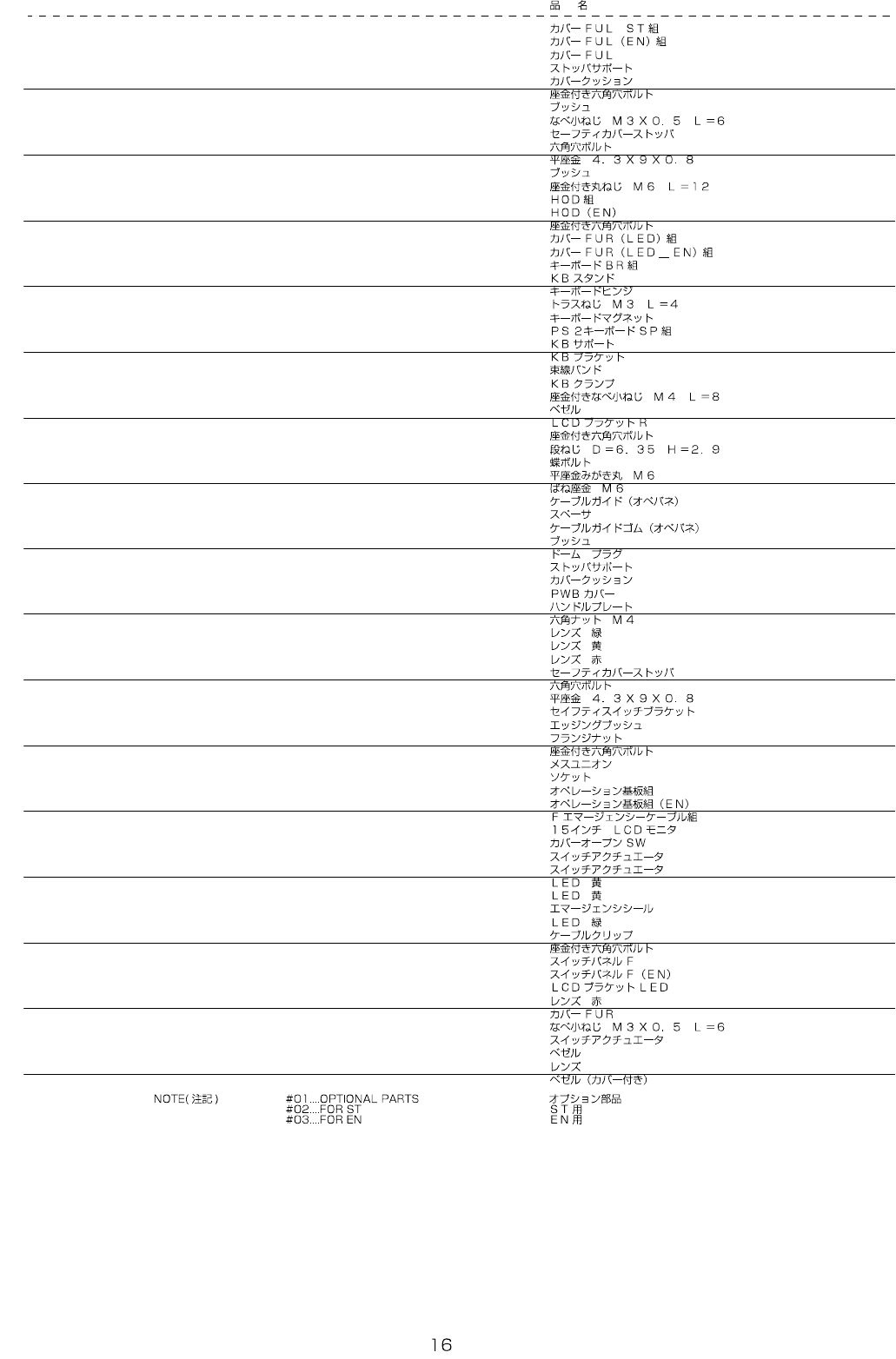

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-50350 COVER FUL ST ASM. 1
