JX-300LED-Rev02.PDFA - 第26页
- - 11.COV E R C O MPONENTS (4) 3 5 2 6 7 7 1 8 1 0 1 1 2 2 1 3 1 2 5 0 2 9 1 4 2 8 1 5 1 6 2 2 2 5 5 1 4 6 8 4 2 5 1 4 4 1 5 2 9 1 7 2 0 2 3 2 4 1 9 1 9 A B A B 1 3 0 2 1 2 3 1 3 2 3 3 3 4 4 8 4 9 4 6 4 5 4 4 4 3 4 2 …
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-50355 SAFETY COVER F(ST)ASM 1
2 #02 400-52351 SAFETY COVER F(EN)ASM 1
3 400-46575 SAFETY COVER FRAME F (1)
4 400-80490 KEY_SCREW (2)
5 NM-6060003-SC NUT M6 (4)
6 400-43529 PIPE HANDLE (1)
7 E1318-715-000 SAFTY COVER HINGE (2)
8 400-43528 GUIDE PIN (4)
9 400-46578 SCW PLATE F (1)
10 NM-6060001-SC NUT M6 (12)
11 WP-0641601-SC WASHER (12)
12 401-10174 GAS_SPRING_A (2)
13 400-43530 COVER HINGE L (1)
14 400-46606 SAFETY COVER STAY L (1)
15 400-43523 GS BRACKET C (2)
16 SL-6061242-TN BOLT (4)
17 400-46608 KNOB (1)
18 SL-6051092-TN BOLT (2)
19 HA-0052800-10 SWITCH (1)
20 400-46607 SAFETY COVER STAY R (1)
21 400-38381 STEP SCREW (4)
22 400-46577 SAFETY COVER PLATE (1)
23 400-50445 CAUTION SEAL (1)
24 400-50446 SEAL (1)
25 400-51621 CHIP BOX CAUTION SEAL (1)
26 400-43531 COVER HINGE R (1)
27 SL-6040892-TN BOLT (4)
28 E3065-729-000 SHAFT LABEL (2)
29 400-43524 COVER HINGE GUIDE (2)
30 SL-4041091-SC SCR EW M4 L=10 (4)
31 400-43527 COVER HINGE BRACKET (2)
32 SL-6061242-TN BOLT (4)
33
#02
400-01451 SAFETY COVER GUARD (EN) (1)
34
#02
SL-6030892-TN SCREW M3 L =8 (5)
35 SL-6061242-TN BOLT (4)
36 SL-6061242-TN BOLT 4
37
#01
401-37740 SAFETY COVER R OP ASM 1
38
#02
401-52545 SAFETY COVER R OP ASM(EN) 1
39 E1318-715-000 SAFTY COVER HINGE (2)
40 NM-6040001-SC NUT M4X0.7 TYPE1 (8)
41 400-80490 KEY_SCREW (2)
42 SL-6051092-TN SCR EW M5 L=10 (2)
43 SL-6061242-TN SCR EW M6 L=12 (8)
44 WP-0641601-SC WASHER M6 (8)
45 WP-0850002-SC WASHER 8.5X18X1.6 (8)
46 400-46576 SAFETY COVER FRAM E R (1)
47 400-46579 SCW PLATE R (1)
48 NM-3060810-SF NUT M6 (4)
49 400-46608 KNOB (1)
50 401-10173 GAS_SPRING_B (2)
51 400-43523 GS BRACKET C (2)
52 400-43524 COVER HINGE GUIDE (2)
53 400-43527 COVER HINGE BRACKET (2)
54 E3065-729-000 SHAFT LABEL (2)
55 400-43528 GUIDE PIN (4)
56 400-43529 PIPE HANDLE (1)
57 400-43530 COVER HINGE L (1)
58 400-43531 COVER HINGE R (1)
59 E1422-729-000 GS BRACKET A (2)
60 400-50445 CAUTION SEAL (1)
61 400-50446 SEAL (1)
62 400-51621 CHIP BOX NOTICE LABEL G1 (1)
63 400-38381 STEP SCREW (2)
64 SL-3061232-TN SCR EW (4)
65 400-56924 SAFETY COVER STOPPER (1)
66 WP-0430801-SC WASHER M4 (1)
67 SM-6042002-TN BOLT (1)
68 400-01464 STOPPER SUPPORT (1)
69 400-49671 COVER CUSHION (1)
70 SM-4030601-SC SCREW M3 X 6 (1)
71 SL-6041092-TN SCR EW (2)
72 SM-0040601-SC SCREW M4X0.7 L=6 (4)
73 CM-3009001-05 LABEL (2)
74 CM-3002000-E6 LABEL (1)
75 WP-0550836-SC WASHER 5.5X12X0.8 (1)
76
#02
400-46634 FEEDER COVER R(EN) (1)
77
#02
E1196-725-000 FC HINGE (3)
78
#02
400-55159 COVER GU ARD R (1)
79
#02
400-55160 COVER NUT PLATE (1)
80
#02
SL-6040892-TN BOLT (3)
81
#02
SL-6051092-TN BOLT (12)
82 SL-6061242-TN BOLT 4
83 SM-0061201-SC SCREW 4
84
#01
SM-0061201-SC SCREW 4
85 #02 401-51531 CONVEYOR_COVER_FRAME_FL 1
86 #02 401-51532 CONVEYOR_COVER_FRAME_RL 1
87 #02 401-51533 CONVEYOR_SIDE_COVER_L 1
88 #02 401-51534 CONVEYOR_TOP_COVER_L 1
89
#02
401-51535 CONVEYOR_BOTTOM_COVER_L 1
90
#02
401-51536 CONVEYOR_COVER_FRAME_FR 1
91
#02
401-51537 CONVEYOR_COVER_FRAME_RR 1
92
#02
401-51538 CONVEYOR_SIDE_COVER_R 1
93
#02
401-51539 CONVEYOR_TOP_COVER_R 1
94
#02
401-51540 CONVEYOR_BOTTOM_COVER_R 1
95
#02
400-01484 CONVEYOR SHUTTER U(LEN) 2
96
#02
400-01485 CONVEYOR SHUTTER B(LEN) 2
97
#02
SM-0040601-SC SCREW M4X0.7 L=6 40
98
#02
400-01490 TAPE 1
99 #02 E5721-729-000 LABEL 2
100 #02 E1143-721-000 WOOLEN CLOTH PAPER 8
- -

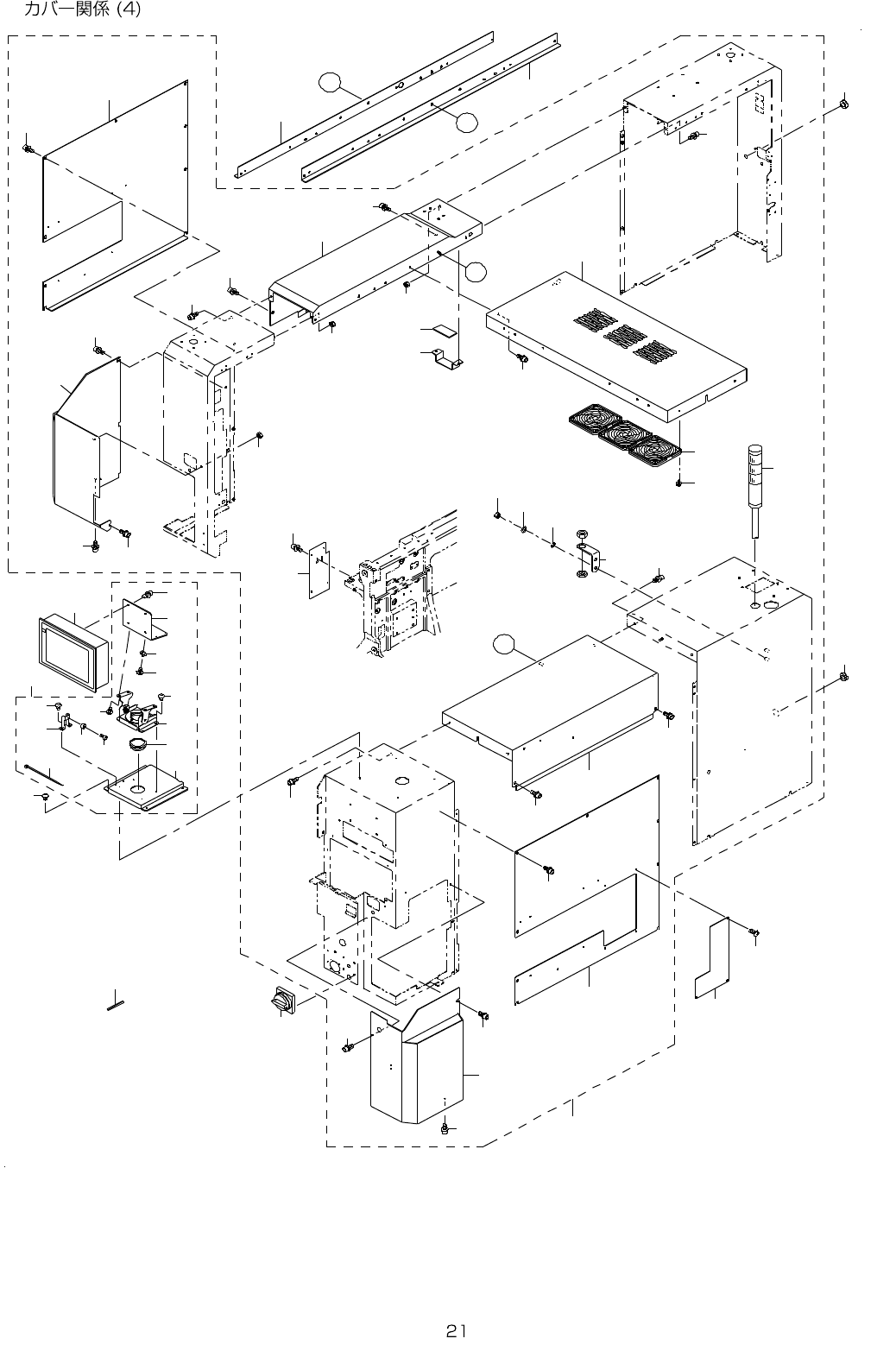

11.COVER COMPONENTS (4)
3
5
2
6
7
7
1 8
1 0
1 1
2
2
1 3
1 2
5 0
2
9
1 4
2 8
1 5
1 6
2 2
2 5
5 1
4
6
8
4
2
5 1
4
4
1 5
2 9
1 7
2 0
2 3
2 4
1 9
1 9
A
B
A
B
1
3 0
2 1
2
3 1
3 2
3 3
3 4
4 8
4 9
4 6
4 5
4 4
4 3
4 2
4 1
4 0
3 9
3 8
3 7
3 6
3 5
4 7
2 6
2 7
- -

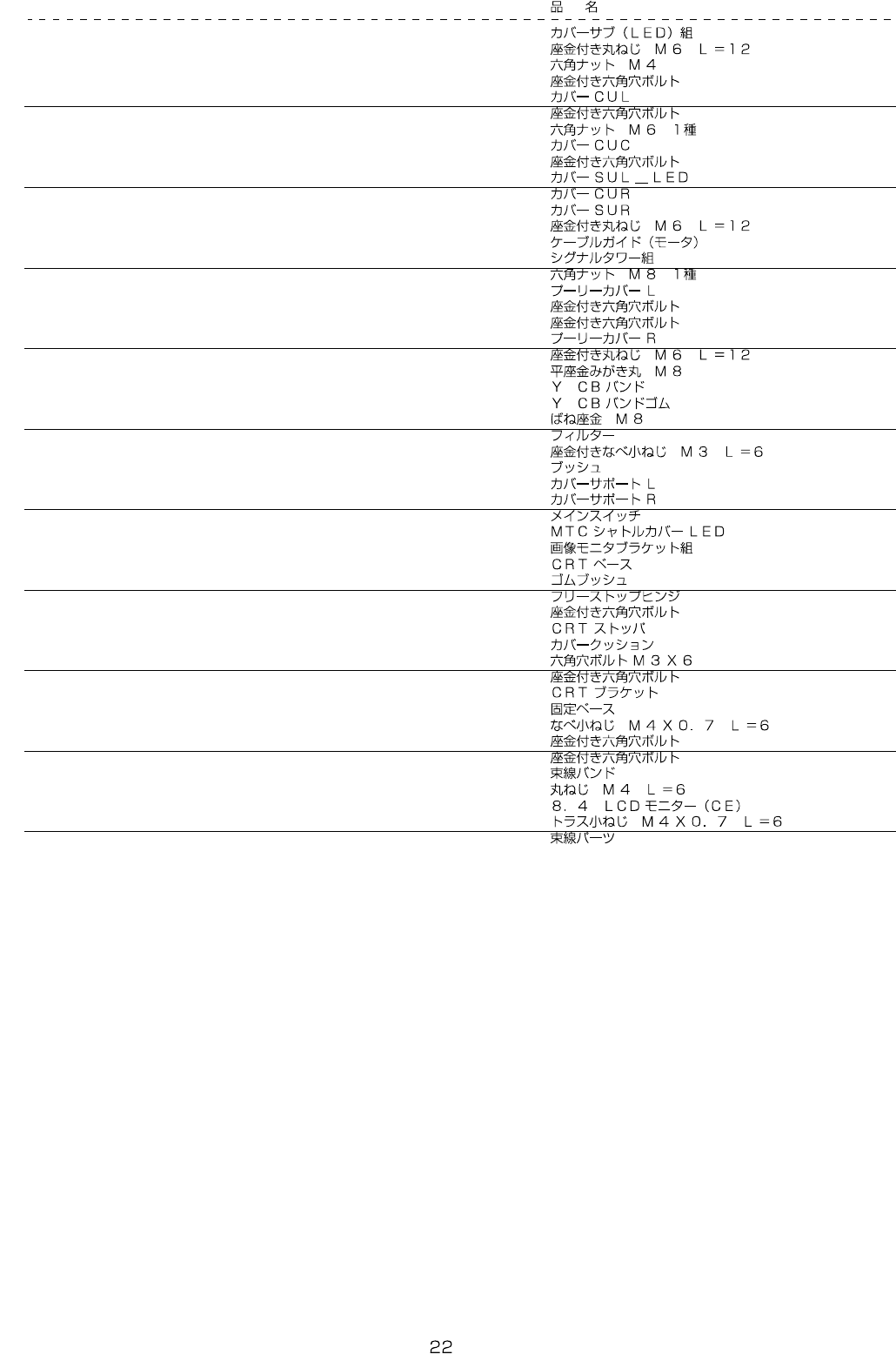

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-35821 COVER_SUB(LED)ASM 1
2 SL-3061232-TN SCREW (6)
3 NM-6040001-SC NUT M4 (1)
4 SL-6041092-TN SCREW (4)
5 400-46568 COVER CUL (1)
6 SL-6061292-TN SCREW (2)
7 NM-6060001-SC NUT M6 (2)
8 400-46570 COVER CUC (1)
9 SL-6041292-TN SCREW (12)
10 401-35478 COVER_SUL_LED (1)
11 400-46569 COVER CUR (1)
12 400-46612 COVER SUR (1)
13 SL-3061232-TN SCREW (5)
14 400-01463 CABLE GUIDE (MOTOR) (1)
15 400-03265 SIGNAL TOWER ASM (1)
16 NM-6080001-SC NUT M8X1.25 (2)
17 400-46571 PULLEY COVER L (1)
18 SL-6061292-TN SCREW (4)
19 SL-6061292-TN SCREW (4)
20 400-46572 PULLEY COVER R (1)
21 SL-3061232-TN SCREW (5)
22 WP-0841601-SC WASHER 8.4X17.4X1.6 (2)
23 400-46629 Y CB BAND (1)
24 400-46630 Y CB BAND RUBBER (1)
25 WS-0820002-KN SPRING WASHER M8 (2)
26 HM-0010100-10 FILTER (3)
27 SL-4030691-SC SCREW M3 L=6 (12)
28 HX-0036700-0A BUSH 0.2
29 400-43525 COVER SUPPORT L 1
30 400-43526 COVER SUPPORT R 1
31 HA-0053800-00 SWITCH 1
32 401-35479 MTC_SHUTTLE_COVER_LED 1
33 400-33517 VISION MONITOR BRACKET ASM 1
34 400-99654 CRT BASE (1)
35 HX-0022100-0A RUBBER BUSHING (1)
36 400-99655 FREE STOP HINGE (1)
37 SL-6040892-TN BOLT (4)
38 400-99657 CRT STOPPER (1)
39 L127E-021-000 COVER CUSHION (1)
40 SM-6030602-TN SCREW M3X6 (1)
41 SL-6040892-TN BOLT (2)
42 400-99656 CRT BR (1)
43 HX-0029400-00 FIXED BASE (1)
44 SM-4040601-SC SCREW M4X0.7 L=6 (1)
45 SL-6040892-TN BOLT (4)
46 SL-6041092-TN SCREW (4)
47 EA-9500B01-00 CABLE BAND (1)
48 SM-3040652-TN SCREW M4 L=6 4
49 401-02599 8.4 LCD MONITOR(CE) 1
50 SM-0040601-SC SCREW M4X0.7 L=6 4
51 HX-0032600-0H CABLE PARTS 2
