- - 14.X - Y COMPONENTS (1) 2 2 3 4 7 2 0 2 0 2 0 2 0 4 9 5 9 3 9 4 1 3 8 4 2 4 4 4 5 4 6 4 3 4 7 5 0 5 5 5 7 5 8 6 1 6 2 2 4 2 5 5 1 2 2 1 5 2 3 5 6 6 2 3 5 1 1 0 1 4 5 2 1 6 1 7 1 8 1 9 2 8 2 7 2 9 3 0 3 1 3 6 3 5 3 …
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-01560 AIR COMBINATION ASSY 1
2 SL-6061692-TN BOLT (2)
3 WP-0841601-SC WASHER 8.4X17.4X1.6 (2)
4 400-00545 AIR PROVIDER (1)
5 PF-0552150-A0 AIR COMBINATION (1)
6 PJ-3041253-01 ELBOW UNION (2)
7 PF-9010060-00 FILTER ELEMENT (1)
8 PF-9010020-00 FILTER ELEMENT A (1)
9 PJ-3090400-03 REDUCER 4-10 2
10 SL-6051092-TN BOLT 2
11 PJ-3081000-01 UNION Y 1
12 BT-0600400-EC TUBE HOSE, BLUE 15.8
13 BT-0800501-EA TUBE HOSE, BLUE 20
14 BT-0400251-EA TUBE HOSE, BLUE 1
15 PJ-3080600-03 Y UNION 6
16 PJ-0252000-03 PLUG 1
17 PJ-3031000-02 STRAIGHT 2
18 SL-6042592-TN SCREW 2
19 SL-6032542-TN SCREW 2
20 400-00550 FV BRACKET 1
21 BT-1200801-EF TUBE 1.3
22 SL-6052092-TN SCREW 2
23 PV-0152120-00 FINGER VALVE 1
- -

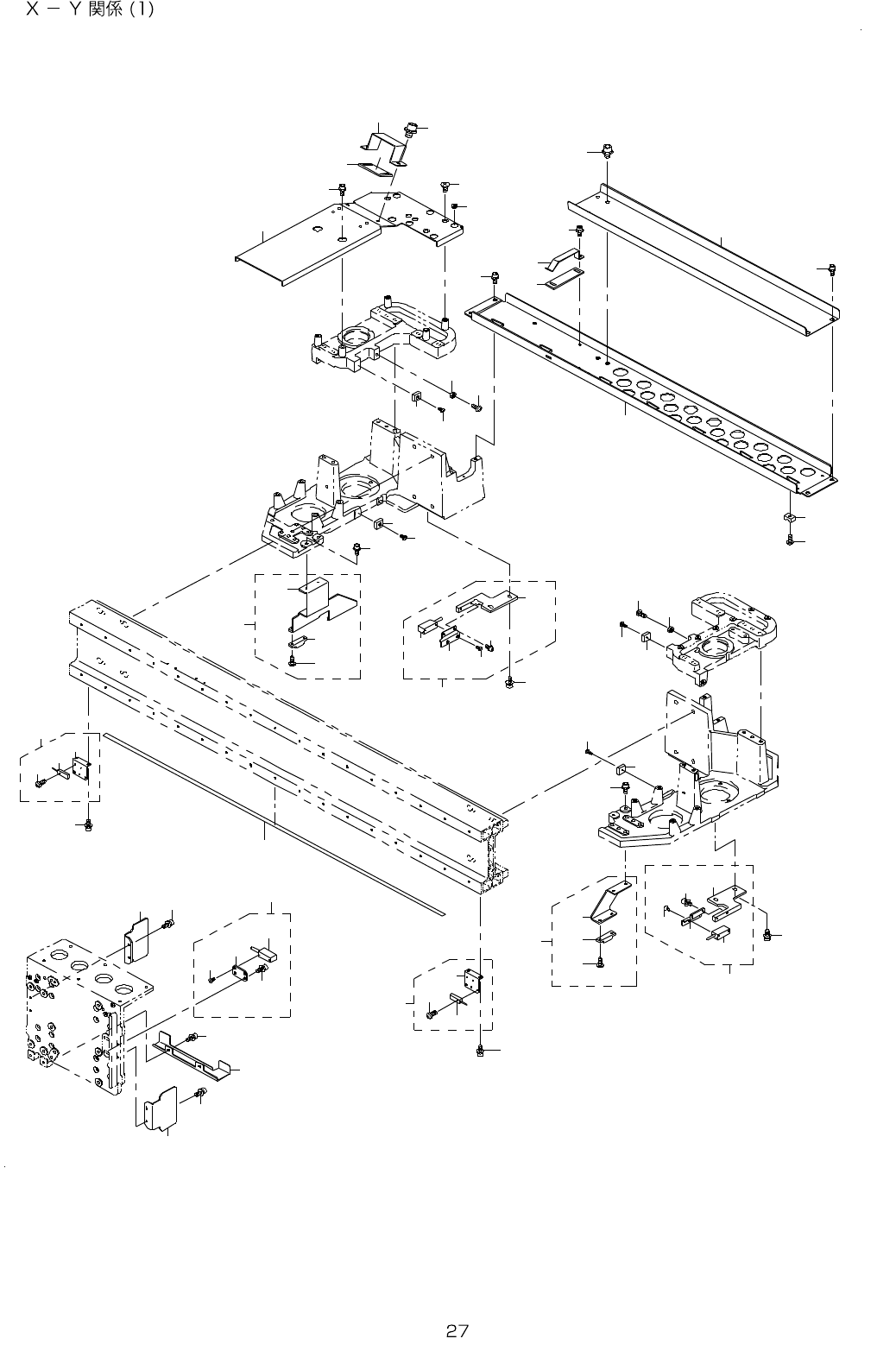

14.X-Y COMPONENTS (1)
2 2
3
4
7
2 0
2 0
2 0
2 0
4 9
5 9
3 9
4 1
3 8
4 2
4 4
4 5
4 6
4 3
4 7
5 0
5 5
5 7
5 8
6 1
6 2
2 4
2 5
5 1
2 2
1 5
2 3
5 6
6
2 3
5 1
1 0
1 4
5
2
1 6
1 7
1 8
1 9
2 8
2 7
2 9
3 0
3 1
3 6
3 5
3 3
3 7
3 2
3 4
4 0
6 4
6 3
1 3
5 2
5 3
5 4
8
1 2
1 2
2 1
1 1
1 1
1
4 8
1
1 2
1 2
9
2 6
6 0
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-46004 X HANDLE 2
2 400-50232 X PLUS LMT SENSOR ASSY 1
3 400-46017 X-LMT BRACKET (1)
4 400-02227 X PLUS LMT SENSOR ASM (1)
5 SM-4860801-SC SCREW M2.6 L=8 (1)
6 SL-6030892-TN SCREW M3 L=8 2
7 400-50234 X MINUS LMT SENSOR ASSY 1
8 400-46017 X-LMT BRACKET (1)
9 400-02228 X MINUS LMT SENSOR ASM (1)
10 SM-4860801-SC SCREW M2.6 L=8 (1)
11 SL-6041092-TN SCREW 4
12 SM-4030601-SC SCREW M3 X 6 4
13 SL-6040892-TN BOLT 1
14 SL-6030892-TN SCREW M3 L=8 2
15 400-50240 X-MSC BRACKET ASSY 1
16 400-46002 X-MSC BRACKET (1)
17 SL-6041092-TN SCREW (2)
18 400-52050 SCREW M3X6 MEC (2)
19 400-44531 MAGNETIC SCALE X SENSOR UNIT (1)
20 400-49671 COVER CUSHIONR 4
21 SL-6041092-TN SCREW 2
22 SM-9062003-SC SCREW M6 L=20 2
23 SL-6061292-TN SCREW 4
24 HX-0029400-00 FIXED BASE 6
25 SM-4040601-SC SCREW M4X0.7 L=6 7
26 400-50241 Y-MSC BRACKET L ASSY 1
27 400-68314 Y-MSC BRACKET L (1)
28 400-46007 Y-MSC BASE L (1)
29 400-44532 MAGNETIC SCALE Y SENOR UNIT (1)
30 SL-6030892-TN SCREW M3 L=8 (2)
31 400-52050 SCREW M3X6 MEC (2)
32 400-50242 Y-MSC BRACKET R ASSY 1
33 400-68315 Y-MSC BRACKET R (1)
34 400-46008 Y-MSC BASE R (1)
35 400-44532 MAGNETIC SCALE Y SENOR UNIT (1)
36 SL-6030892-TN SCREW M3 L=8 (2)
37 400-52050 SCREW M3X6 MEC (2)
38 400-50236 Y-MSW BRACKET L ASSY 1
39 400-46012 Y-MSW BRACKET L (1)
40 E9607-715-B00 MAGNET SWITCH (1)
41 SM-4040801-SC SCREW M4X0.7 L=8 (2)
42 SL-6042092-TN SCREW M4 L=20 2
43 400-50237 Y-MSW BRACKET R ASSY 1
44 400-46013 Y-MSW BRACKET R (1)
45 E9607-715-B00 MAGNET SWITCH (1)
46 SM-4040801-SC SCREW M4X0.7 L=8 (2)
47 SL-6042092-TN SCREW M4 L=20 2
48 400-46003 X-LMT SENSOR DOG 1
49 SL-6051092-TN BOLT 2
50 400-44528 MAGNETIC SCALE X 1
51 NM-6060001-SC NUT M6 2
52 400-00747 CABLE CLAMP YB 1
53 400-66933 FC RUBBER Y 1
54 SL-6061092-TN SCREW 2
55 400-46618 CB SUPPORT 1
56 HX-0022700-0A BUSH 6
57 SM-1051052-TN SCREW M5 L=10 3
58 SL-6051292-TN BOLT 1
59 SL-6051092-TN BOLT 2
60 SL-6061092-TN SCREW 4
61 400-46014 PLASTIC RAIL SUPPORT 1
62 400-46016 P RAIL SUPPORT SHEET 1
63 400-46001 CABLE CLAMP X 1
64 L153E-321-000 FC RUBBER 2
