- - 15.X - Y COMPONENTS (2) 2 5 2 4 6 7 7 9 9 1 1 1 2 2 1 2 0 4 2 4 3 2 8 2 9 3 0 2 3 2 7 8 1 8 0 3 2 3 2 5 0 5 3 5 2 5 2 4 6 4 7 6 1 4 1 3 5 8 8 5 2 4 2 6 7 5 7 9 7 8 4 4 3 1 3 1 8 4 2 4 3 6 1 1 6 1 6 3 1 8 1 7 1 7 1 …
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-46004 X HANDLE 2
2 400-50232 X PLUS LMT SENSOR ASSY 1
3 400-46017 X-LMT BRACKET (1)
4 400-02227 X PLUS LMT SENSOR ASM (1)
5 SM-4860801-SC SCREW M2.6 L=8 (1)
6 SL-6030892-TN SCREW M3 L=8 2
7 400-50234 X MINUS LMT SENSOR ASSY 1
8 400-46017 X-LMT BRACKET (1)
9 400-02228 X MINUS LMT SENSOR ASM (1)
10 SM-4860801-SC SCREW M2.6 L=8 (1)
11 SL-6041092-TN SCREW 4
12 SM-4030601-SC SCREW M3 X 6 4
13 SL-6040892-TN BOLT 1
14 SL-6030892-TN SCREW M3 L=8 2
15 400-50240 X-MSC BRACKET ASSY 1
16 400-46002 X-MSC BRACKET (1)
17 SL-6041092-TN SCREW (2)
18 400-52050 SCREW M3X6 MEC (2)
19 400-44531 MAGNETIC SCALE X SENSOR UNIT (1)
20 400-49671 COVER CUSHIONR 4
21 SL-6041092-TN SCREW 2
22 SM-9062003-SC SCREW M6 L=20 2
23 SL-6061292-TN SCREW 4
24 HX-0029400-00 FIXED BASE 6
25 SM-4040601-SC SCREW M4X0.7 L=6 7
26 400-50241 Y-MSC BRACKET L ASSY 1
27 400-68314 Y-MSC BRACKET L (1)
28 400-46007 Y-MSC BASE L (1)
29 400-44532 MAGNETIC SCALE Y SENOR UNIT (1)
30 SL-6030892-TN SCREW M3 L=8 (2)
31 400-52050 SCREW M3X6 MEC (2)
32 400-50242 Y-MSC BRACKET R ASSY 1
33 400-68315 Y-MSC BRACKET R (1)
34 400-46008 Y-MSC BASE R (1)
35 400-44532 MAGNETIC SCALE Y SENOR UNIT (1)
36 SL-6030892-TN SCREW M3 L=8 (2)
37 400-52050 SCREW M3X6 MEC (2)
38 400-50236 Y-MSW BRACKET L ASSY 1
39 400-46012 Y-MSW BRACKET L (1)
40 E9607-715-B00 MAGNET SWITCH (1)
41 SM-4040801-SC SCREW M4X0.7 L=8 (2)
42 SL-6042092-TN SCREW M4 L=20 2
43 400-50237 Y-MSW BRACKET R ASSY 1
44 400-46013 Y-MSW BRACKET R (1)
45 E9607-715-B00 MAGNET SWITCH (1)
46 SM-4040801-SC SCREW M4X0.7 L=8 (2)
47 SL-6042092-TN SCREW M4 L=20 2
48 400-46003 X-LMT SENSOR DOG 1
49 SL-6051092-TN BOLT 2
50 400-44528 MAGNETIC SCALE X 1
51 NM-6060001-SC NUT M6 2
52 400-00747 CABLE CLAMP YB 1
53 400-66933 FC RUBBER Y 1
54 SL-6061092-TN SCREW 2
55 400-46618 CB SUPPORT 1
56 HX-0022700-0A BUSH 6
57 SM-1051052-TN SCREW M5 L=10 3
58 SL-6051292-TN BOLT 1
59 SL-6051092-TN BOLT 2
60 SL-6061092-TN SCREW 4
61 400-46014 PLASTIC RAIL SUPPORT 1
62 400-46016 P RAIL SUPPORT SHEET 1
63 400-46001 CABLE CLAMP X 1
64 L153E-321-000 FC RUBBER 2
- -

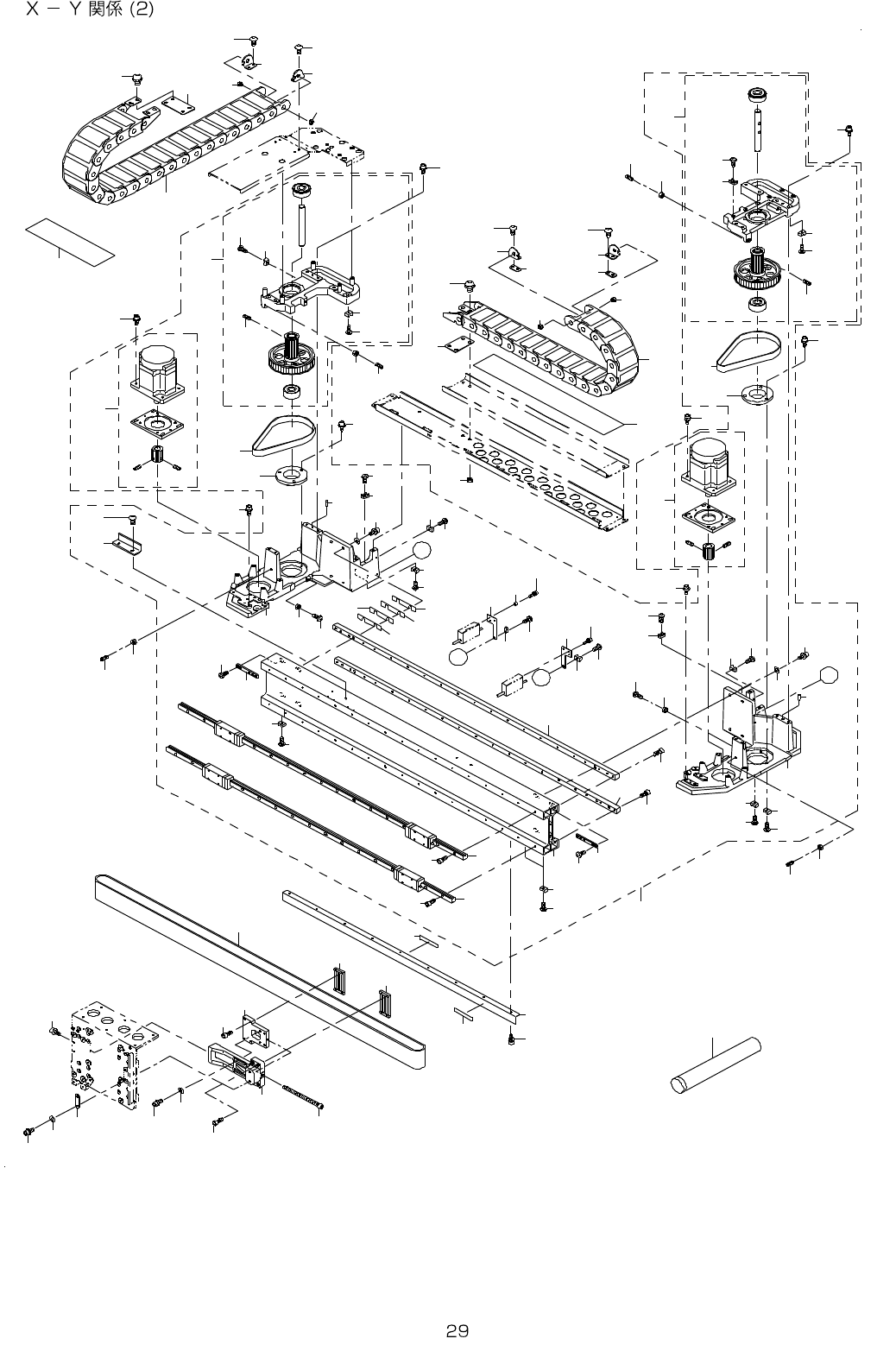

15.X-Y COMPONENTS (2)
2 5
2
4
6
7
7
9
9
1 1
1 2
2 1
2 0
4 2
4 3
2 8
2 9
3 0
2 3
2 7
8 1
8 0
3 2
3 2
5 0
5 3
5 2
5 2
4 6
4 7
6
1 4
1 3
5 8
8
5
2 4
2 6
7 5
7 9
7 8
4 4
3 1
3 1
8
4 2
4 3
6 1
1 6
1 6
3
1 8
1 7
1 7
1 8
1 7
1 8
1 0
1 7
1 9
4 1
1 7
1 8
1 8
1 7
1 7
1 8
1 7
1 8
6 2
6 2
5
1 0
1 2
7 4
2 1
2 0
6 1
1 5
2 2
3 3
3 3
4 5
5 4
6 7
6 7
6 4
5 7
5 9
6 0
5 5
6 3
6 4
5 6
6 5
6 6
6 6
5 5
5 9
5 4
4 8
5 3
5 1
4 9
6 8
6 4
6 4
6 9
1 1
2 5
2 6
7 7
7 6
2 9
3 0
1 7
1 9
7 0
7 0
7 1
7 2
3 4
3 5
7 3
1
1 7
A
A
3 9
3 6
B
B
3 6
3 7
3 8
4 0
4 1
8 2
6 7
6 7
- -

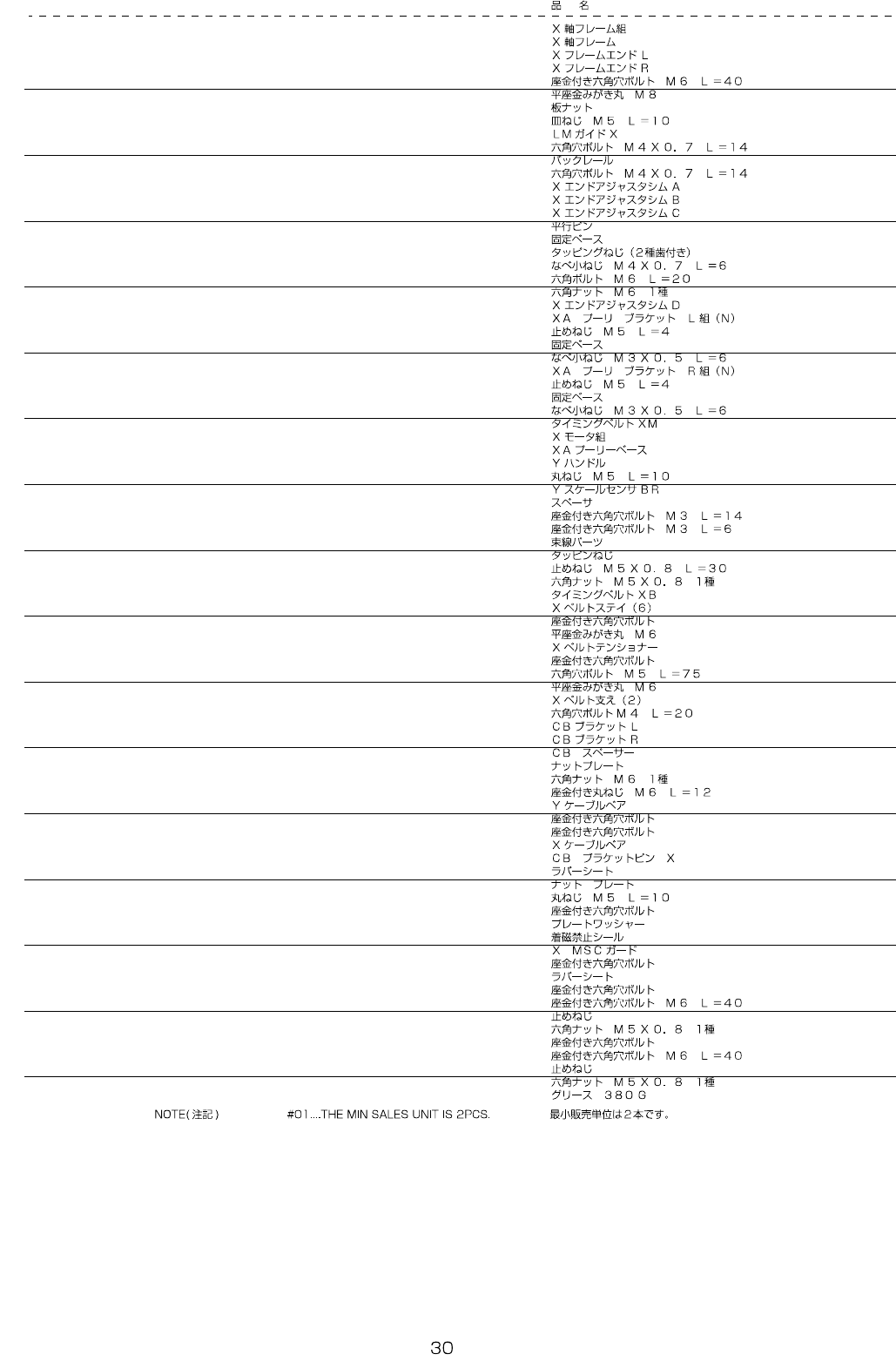

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-50243 X AXIS FRAME ASSY 1
2 400-44582 X AXIS FRAME (1)
3 400-00657 X FRAME END L (1)
4 400-00658 X FRAME END R (1)
5 SL-6064092-TN SCREW (8)
6 WP-0841601-SC WASHER 8.4X17.4X1.6 (8)
7 400-00661 PLATE NUT (4)
8 SM-1051052-TN SCREW M5 L=10 (8)
9
#01
400-45999 LM GUIDE X (2)
10 SM-6041402-TN SCREW M4X0.7 L=14 (34)
11 400-00660 BACK RAIL (2)
12 SM-6041402-TN SCREW M4X0.7 L=14 (38)
13 400-00662 X END ADJUST SHIM A (4)
14 400-00663 X END ADJUST SHIM B (2)
15 400-00664 X END ADJUST SHIM C (2)
16 PH-0600164-C0 PIN (2)
17 HX-0029400-00 FIXED BASE (14)
18 ST-4040651-SN SCREW M4 X 6 (8)
19 SM-4040601-SC SCREW M4X0.7 L=6 (3)
20 SM-9062003-SC SCREW M6 L=20 (2)
21 NM-6060001-SC NUT M6 (2)
22 400-15660 X END ADJUST SHIM D (2)
23 400-55241 XA PULLEY BRACKET L ASSY(N) (1)
24 SM-8050412-TP SCREW M5 L=4 (2)
25 HX-0029400-00 FIXED BASE (6)
26 SM-4030601-SC SCREW M3 X 6 (6)
27 400-55242 XA PULLEY BRACKET R ASSY(N) (1)
28 SM-8050412-TP SCREW M5 L=4 (2)
29 HX-0029400-00 FIXED BASE (9)
30 SM-4030601-SC SCREW M3 X 6 (9)
31 400-00675 TIMING BELT XM (2)
32 400-50244 X MOTOR ASSY (2)
33 400-00682 XA PULLEY BASE (2)
34 400-46550 Y HANDLE (2)
35 SM-3051052-TN SCREW M5 L=10 (4)
36 400-46549 Y SCALE SENSOR BR (2)
37 400-58815 SPACER (2)
38 SL-6031492-TN SCREW M3 L=14 (2)
39 SL-6030692-TN SCREW M3 L=6 (2)
40 HX-0034400-00 HARNESS PARTS (1)
41 ST-4040851-SN TAPPING SCREW M4X8 (2)
42 SM-8053002-TP SCREW M5 L=30 2
43 NM-6050001-SC NUT M5X0.8 TYPE1 2
44 400-00688 TIMING BELT XB 1
45 400-46035 X BELT STAY(6) 1
46 SL-6052592-TN BOLT 2
47 WP-0641601-SC WASHER 2
48 400-42765 X BELT TENSIONER 1
49 SL-6052592-TN BOLT 4
50 SM-6057552-TP SCREW M5 L=75 1
51 WP-0641601-SC WASHER 4
52 400-00691 X BELT STAY (2) 2
53 SM-6042092-TN SCREW M4X16 8
54 400-46005 CB BRACKET L 2
55 400-46006 CB BRACKET R 2
56 L131E-521-000 CB SPACER 1
57 400-46551 NUT PLATE 1
58 NM-6060001-SC NUT M6 4
59 SL-3061232-TN SCREW 8
60 400-46022 Y CABLE BEAR 1
61 SL-6062092-TN SCREW M6 L=20 8
62 SL-6052592-TN BOLT 22
63 400-46023 X CABLE BEAR 1
64 L132E-421-000 CB BRACKET PIN X 4
65 L131E-421-000 RUBBER SHEET 1
66 L153E-721-000 NUT PLATE 2
67 SM-3051052-TN SCREW M5 L=10 8
68 SL-6052092-TN SCREW 2
69 400-46024 PLATE WASHER 1
70 401-05882 KEEP MAGNET AWAY LABEL 2
71 400-54881 X MSC GUARD 1
72 SL-6041092-TN SCREW 9
73 L131E-421-000 RUBBER SHEET 0.25
74 SL-6062092-TN SCREW M6 L=20 3
75 SL-6064092-TN SCREW 6
76 SM-8052502-TP SCREW M5X0.8 L=25 1
77 NM-6050001-SC NUT M5X0.8 TYPE1 1
78 SL-6062092-TN SCREW M6 L=20 6
79 SL-6064092-TN SCREW 6
80 SM-8052502-TP SCREW M5X0.8 L=25 1
81 NM-6050001-SC NUT M5X0.8 TYPE1 1
82 MGR-EAS380G0 GREASE 380G 1
