JX-300LED-Rev02.PDFA - 第43页
- - REF.NO NOT E PART N O D E S C R I P T I O N Qt y 1 4 0 1 -35 6 5 7 LNC HEA D U NIT J X - 3 00LE D 1 2 EA- 9 5 0 0 B01-00 C ABLE BAND (6) 3 EA- 9 5 0 0 B02-00 C ABLE BAND 15 0 (4) 4 E3005-729-000 LIMIT DAM P E R L (…
- -

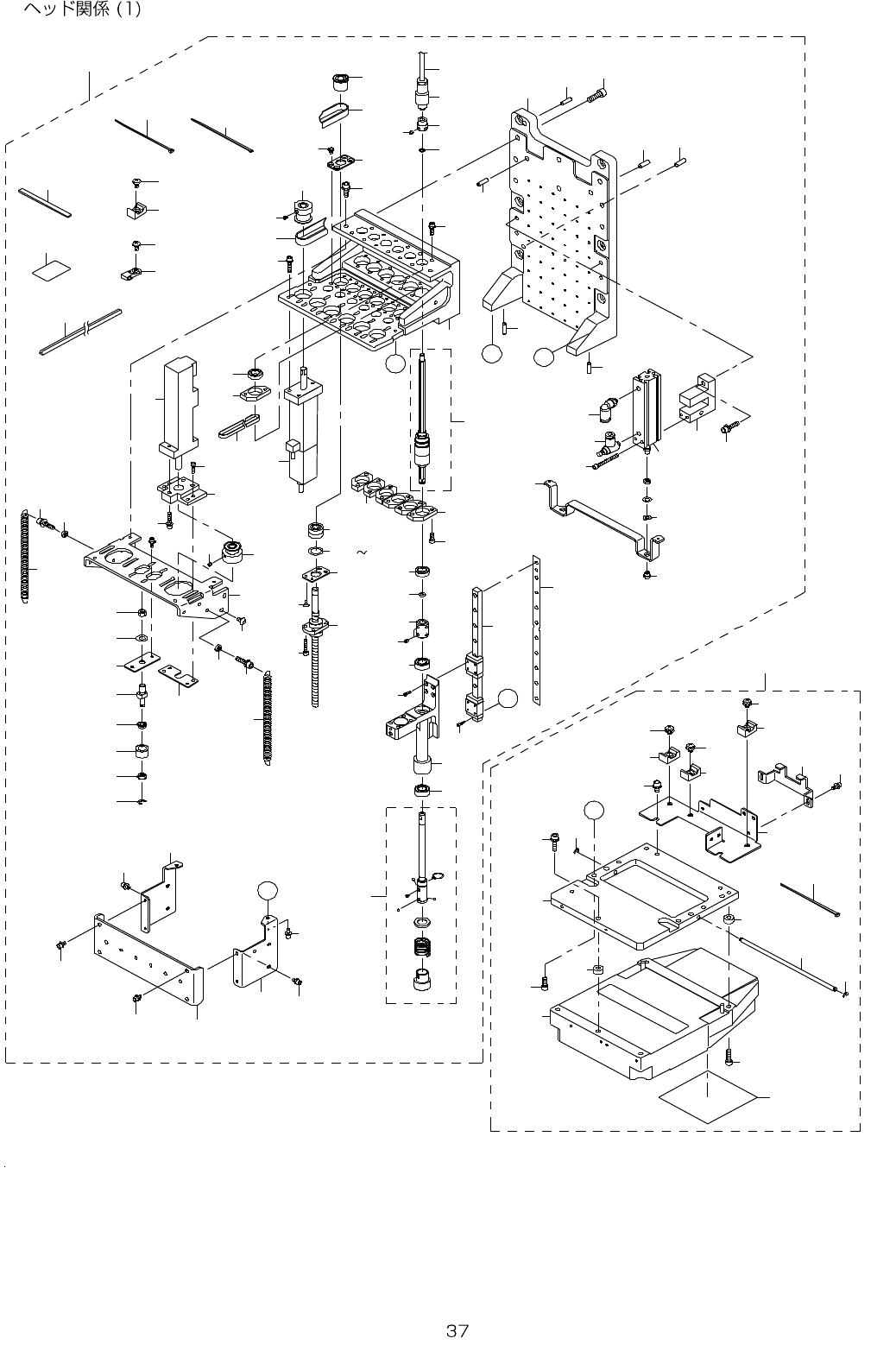

19.HEAD COMPONENTS (1)
7 6 7 9
1 3
A
A
B
B
7
8
8
8
1 5
1 6
1 6
1 7
3 6
2 6
2 6
2 7
2 8
2 9
3 0
3 2
3 3
3 7
3 8
3 8
3 9
4 0
4 1
4 2
4 4
4 5
4 6
4 7
4 8
4 9
5 0
5 1
5 2
5 3
5 5
5 7
5 8
5 9
6 0
6 1
6 3
6 3
6 4
6 4
6 4
7 2
1 7
1 9
1 8
8
8
8
7 4
6 3
7 5
7 5
6 3
2 0
3 4
3 4
5
1 4
1 4
2 1
2 5
6 5
3 5
7 3
9
6 6
6 7
6 8
4 3
5 6
6 2
5 4
7 0
2 3
2 4
2 4
1 0
3 1
1 2
1 1
6 4
6 9
2 2
6 2
9 8
9 5
8 9
8 3
9 3
9 1
9 1
9 3
8 8
8 7
8 6
8 5
8 4
8 4
9 9
9 4
9 3
9 1
9 2
9 0
9 6
1
7 1
4
2
3
C
C
9 7
9 7
6
5 6
8 0
8 1
8 2
- -

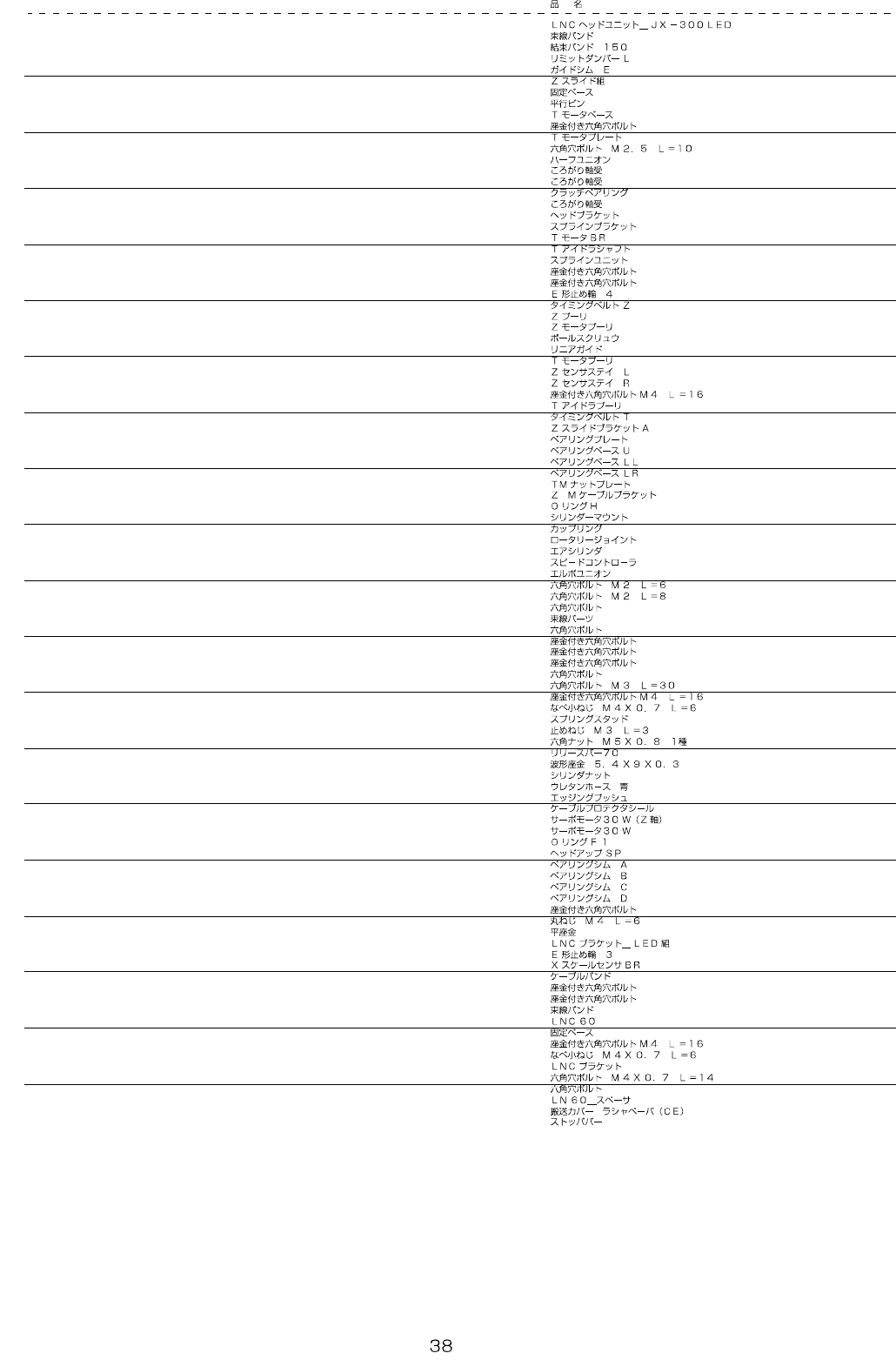

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-35657 LNC HEAD UNIT JX-300LED 1
2 EA-9500B01-00 C ABLE BAND (6)
3 EA-9500B02-00 C ABLE BAND 150 (4)
4 E3005-729-000 LIMIT DAMPER L (2)
5 E3029-729-000 GUIDE SHIM E (6)
6 400-53293 Z SLIDE ASM (6)
7 HX-0029400-00 FIXED BASE (2)
8 PH-0400122-C0 PIN (6)
9 400-77398 T M OTOR BASE (2)
10 SL-6031692-TN SCR EW (6)
11 400-77256 T MOTOR PLATE (2)
12 SM-6851002-TN SCREW (4)
13 PJ-2105041-00 HALF UNION (6)
14 SB-1040011-00 BEARING (4)
15 SB-1060018-00 BEARING (6)
16 SB-1060004-00 CLUTCH BEARING (12)
17 SB-1080016-00 BEARING (12)
18 400-46051 HEAD BRACKET (1)
19 400-46052 SPLINE BRACKET (1)
20 400-77254 T MOTOR BR (1)
21 400-77259 T IDLER SHAFT (2)
22 400-90040 SPLINE UNIT (6)
23 SL-6030892-TN SCR EW (2)
24 SL-6030692-TN BOLT (4)
25 RE-0400000-K0 E-RING 4 (2)
26 400-46522 TIMIN G BELT Z (6)
27 400-01123 Z PULLEY (6)
28 400-01124 Z MOTOR PULLEY (6)
29 400-44583 BALL SCREW (6)
30 400-44585 LINEAR GUIDE (6)
31 400-77257 T MOTOR PULLEY (2)
32 400-77260 Z SENSOR STAY L (1)
33 400-77261 Z SENSOR STAY R (1)
34 SL-6041692-TN SCR EW (2)
35 400-77258 T IDLER PULLEY (2)
36 400-77253 TIMIN G BELT T (4)
37 400-46631 Z SLIDE BRAC KET A (6)
38 400-46056 BEARING PLATE (12)
39 400-46048 BEARING BASE U (6)
40 400-46049 BEARING BASE LL (3)
41 400-46050 BEARING BASE LR (3)
42 400-46531 TM NUT PLATE (2)
43 400-77262 Z M C ABLE BR (1)
44 400-46060 O RING H (6)
45 400-46070 CYLINDER MOUNT (2)
46 400-46515 COUPR ING (6)
47 400-46525 ROTARY JOIN T (6)
48 400-46524 AIR CYLINDER (2)
49 PC-0105080-00 SPEED CONTROLLER (2)
50 PJ-3040405-04 ELBOW UNION (2)
51 SM-6020602-TN SCREW M 2 L=6 (48)
52 SM-6020802-TN SCREW M 2 L=8 (54)
53 SM-6051602-TN BOLT (8)
54 HX-0034400-00 HARNESS PARTS (3)
55 SM-6030802-TN BOLT (12)
56 SL-6030692-TN BOLT (4)
57 SL-6031292-TN BOLT (12)
58 SL-6031692-TN SCR EW (18)
59 SM-6031602-TN SCREW M 3 L=16 (24)
60 SM-6033002-TN SCREW M 3 L=30 (4)
61 SL-6041692-TN SCR EW (4)
62 SM-4040601-SC SCREW M4X0.7 L=6 (3)
63 400-56921 SPRING STUD (2)
64 SM-8030312-TP SCREW M 3 L=3 (60)
65 NM-6050001-SC NUT M5 (2)
66 400-46526 RELEASE BAR 70 (1)
67 WZ-0541510-KP WAVED WASHER 5.4X9.0X0.3 (2)
68 400-54879 CYLINDER NUT (2)
69 BT-0400251-EA TUBE HOSE, BLUE (1.14)
70 HX-0009600-0A BUSH (0.11)
71 400-01306 CABLE PROTECTOR SHEET (0.14)
72 400-44534 SERVO MOTOR 30W(Z AXIS) (6)
73 400-44534 SERVO MOTOR 30W (2)
74 400-46058 O RING F1 (6)
75 400-58386 HEAD UP SP (2)
76 E3071-729-000 BEARING SHIM A (6)
77 E3072-729-000 BEARING SHIM B (6)
78 E3073-729-000 BEARING SHIM C (6)
79 E3074-729-000 BEARING SHIM D (6)
80 SL-6041092-TN SCR EW (2)
81 SM-3040652-TN SCREW M 4 L=6 (2)
82 WP-0641600-SC WASHEW 6.4X12.5X1.6 (2)
83 401-35658 LNC BRACKET_LED ASM 1
84 RE-0300000-K0 E-RING 3 (2)
85 400-46547 X SCALE SENSOR BR (1)
86 401-39584 CABLE_BAND (1)
87 SL-6030692-TN BOLT (2)
88 SL-6040892-TN BOLT (2)
89 EA-9500B01-00 CABLE BAND (3)
90 400-45547 LNC 60 (1)
91 HX-0029400-00 FIXED BASE (3)
92 SL-6041692-TN SCR EW (1)
93 SM-4040601-SC SCREW M4X0.7 L=6 (3)
94 400-46069 LNC BRACKET (1)
95 SM-6041402-TN SCREW M 4X0.7 L=14 (2)
96 SM-6041002-TN BOLT (4)
97 401-35489 LNC60_SPACER (3)
98 E1143-721-000 WOOLEN CLOTH PAPER (1)
99 400-46527 STOPPER BAR (1)
- -

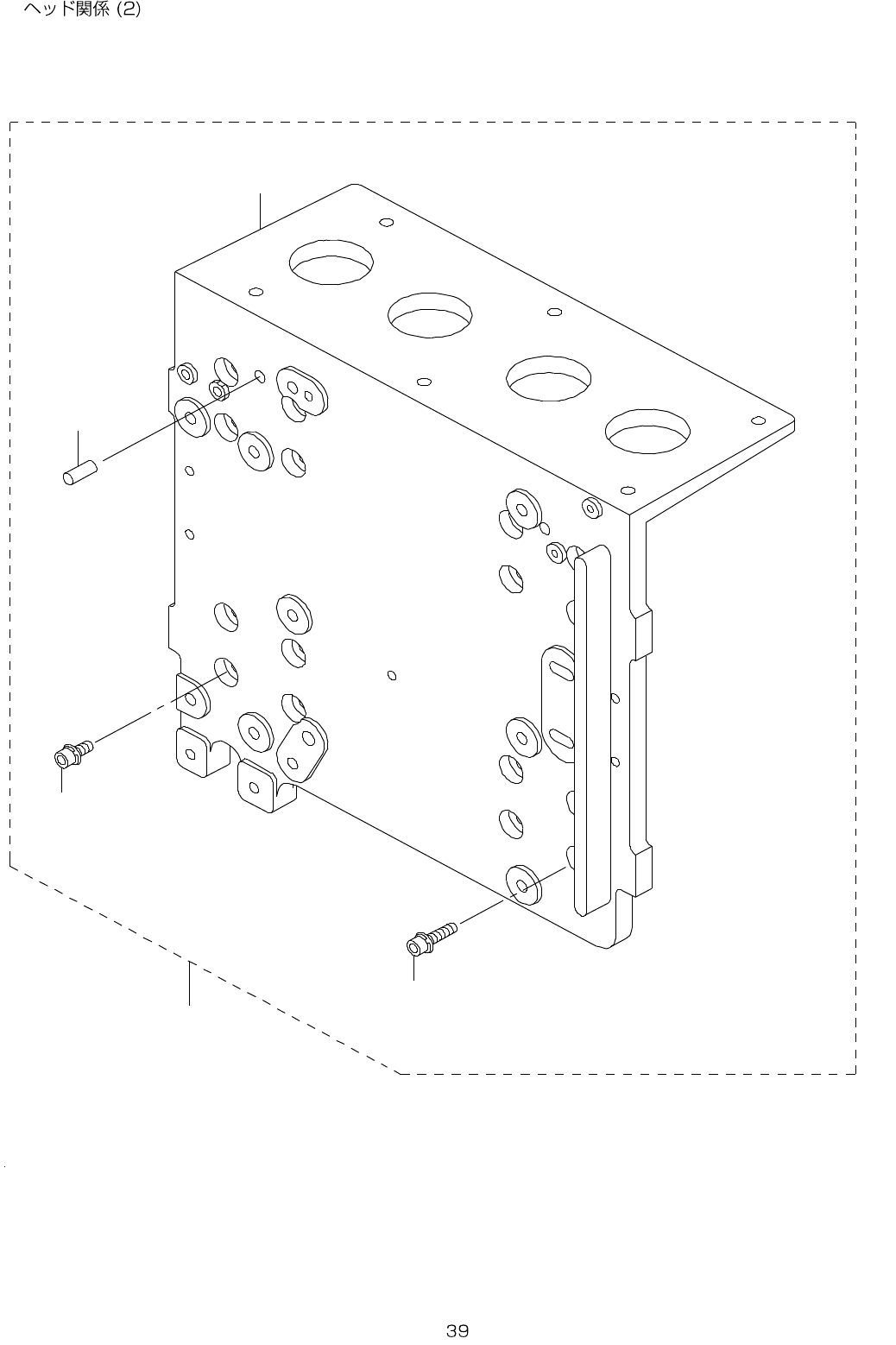

20.HEAD COMPONENTS (2)
3
4
5
2
1
