JX-300LED-Rev02.PDFA - 第60页
- - 28.P WB CO N VE Y OR COMPONENTS (6) 9 3 4 6 7 8 1 6 1 7 1 3 1 7 1 1 1 3 1 4 1 0 1 1 0 2 1 4 1 1 5 A A 2 4 2 4 1 9 2 0 2 1 2 2 2 3 1 5 1 5 1 8 2 5 2 5 1 8 1 6 1 2 1 2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-01003 SCREW SHAFT ASM(L) 1
2 E2146-721-000 TIMING BELT (1)
3 SB-1080002-00 SIDE BEARING (4)
4 400-15578 SCREW SHAFT(L) (2)
5 SM-8040602-TP SCREW M4X0.7 L=6 (4)
6 WP-0330516-SC WASHER 3.3X8X0.5 (4)
7 SM-6030602-TN SCREW M3X6 (4)
8 E2141-721-000 STOPPER COLLAR (2)
9 SM-8040402-TP SCREW M4X0.7 L=4 (4)
10 E2156-721-000 PULLEY A (2)
11 WP-0320500-SF WASHER 3.2X7X0.5 (8)
12 SL-6041692-TN SCREW (8)
13 400-54803 DRIVE SHAFT ASM L(6) 1
14 E2141-721-000 STOPPER COLLAR (3)
15 400-01005 DRIVE BELT C(L) (1)
16 WP-0320500-SF WASHER 3.2X7X0.5 (12)
17 WP-0330516-SC WASHER 3.3X8X0.5 (6)
18 SM-6030602-TN SCREW M3X6 (6)
19 E2152-721-000 DRIVE SHAFT C (3)
20 400-46033 DRIVE BELT S(6) (2)
21 400-00849 DRIVE PULLEY F ASM (3)
22 SL-6031642-TN SCREW (3)
23 400-00850 DRIVE PULLEY F (1)
24 SM-8040602-TP SCREW M4X0.7 L=6 (2)
25 400-00851 MOTOR PULLEY B (1)
26 SB-1080002-00 SIDE BEARING (6)
27 SM-8040402-TP SCREW M4X0.7 L=4 (6)
- -
28.PWB CONVEYOR COMPONENTS (6)
9
3
4
6
7
8
1 6
1 7
1 3
1 7
1 1
1 3
1 4
1 0
1
1 0
2
1 4
1 1
5
A
A
2 4
2 4
1 9
2 0
2 1
2 2
2 3
1 5
1 5
1 8
2 5
2 5
1 8
1 6
1 2
1 2
- -

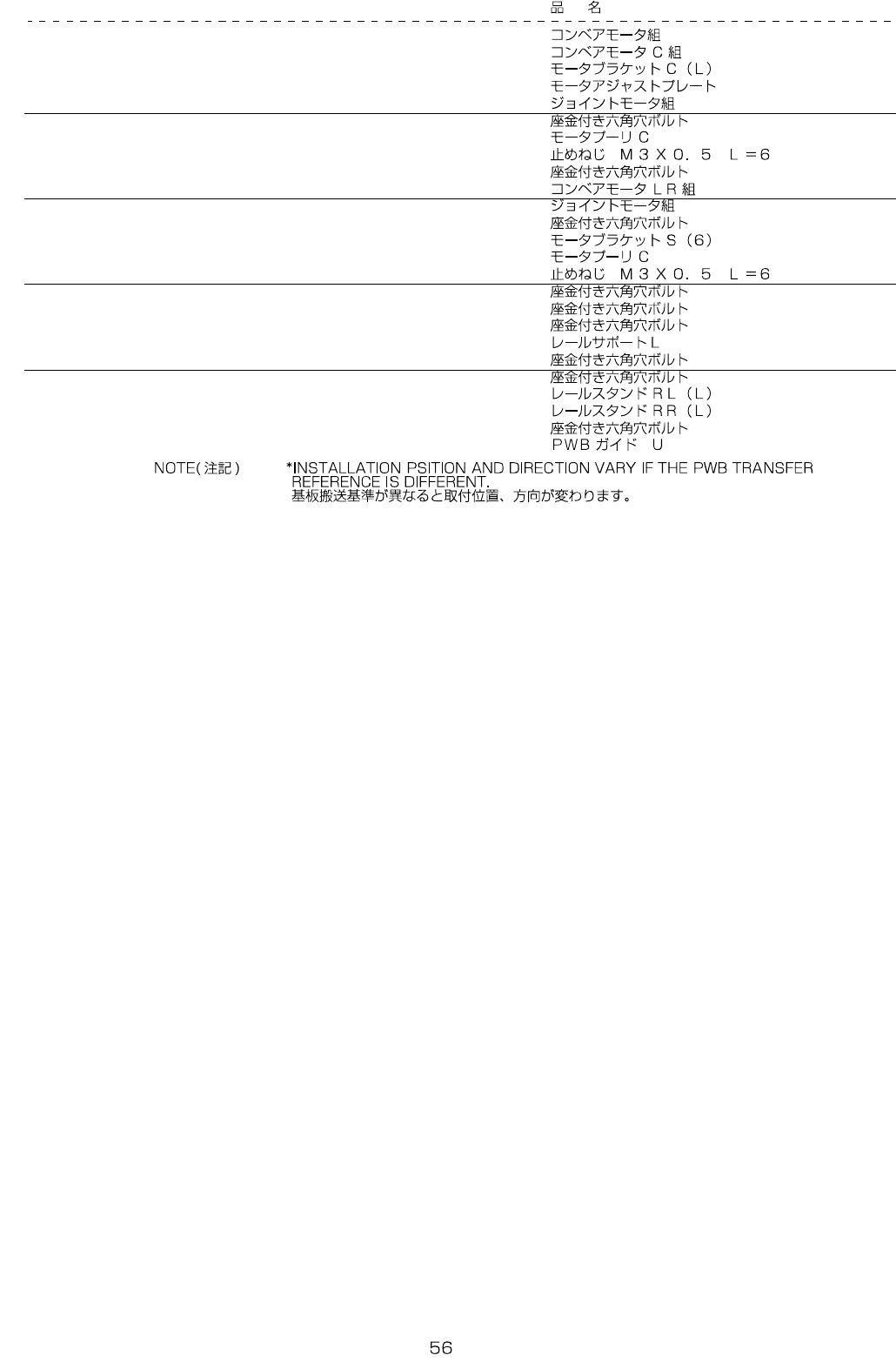

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-37168 CONVEYOR_MOTOR_ASM 1
2 401-37169 CONVEYOR_MOTOR_C_ASM (1)
3 400-01009 MOTOR BRAKET C(L) (1)
4 400-00869 MOTOR ADJUST PLATE (1)
5 400-48075 JOINT MOTOR ASM (1)
6 SL-6041642-TN SCREW (4)
7 400-00870 MOTOR PULLEY C (1)
8 SM-8030602-TP SCREW M3X0.5 L=6 (3)
9 SL-6051292-TN BOLT (2)
10 401-37170 CONVEYOR_MOTOR_LR_ASM (2)
11 400-48075 JOINT MOTOR ASM (1)
12 SL-6041242-TN BOLT (4)
13 400-46034 MOTOR BRACKET S(6) (1)
14 400-00870 MOTOR PULLEY C (1)
15 SM-8030602-TP SCREW M3X0.5 L=6 (2)
16 SL-6051492-TN BOLT (2)
17 SL-6051092-TN BOLT (8)
18 SL-6031092-TN SCREW 8
19 401-13944 RAIL_SUPPORT_L 1
20 SL-6051092-TN BOLT 2
21 SL-6041092-TN SCREW 2
22 400-01065 RAIL STAND RL(L) 1
23 400-01066 RAIL STAND RR(L) 1
24 SL-6052092-TN SCREW 4
25 400-00861 PWB GUIDE U 4
