JX-300LED-Rev02.PDFA - 第61页
- - RE F .NO N OTE PART NO D E S C R I P T I O N Qty 1 4 01-37168 CONV E Y O R _MOTOR_ASM 1 2 4 01-37169 CONV E Y O R _MOTOR_C_ASM (1) 3 4 00-01009 MOTOR BR A K ET C(L) (1) 4 4 00-00869 MOTOR AD JU S T PL A TE (1) 5 4 …
- -
28.PWB CONVEYOR COMPONENTS (6)
9
3
4
6
7
8
1 6
1 7
1 3
1 7
1 1
1 3
1 4
1 0
1
1 0
2
1 4
1 1
5
A
A
2 4
2 4
1 9
2 0
2 1
2 2
2 3
1 5
1 5
1 8
2 5
2 5
1 8
1 6
1 2
1 2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-37168 CONVEYOR_MOTOR_ASM 1
2 401-37169 CONVEYOR_MOTOR_C_ASM (1)
3 400-01009 MOTOR BRAKET C(L) (1)
4 400-00869 MOTOR ADJUST PLATE (1)
5 400-48075 JOINT MOTOR ASM (1)
6 SL-6041642-TN SCREW (4)
7 400-00870 MOTOR PULLEY C (1)
8 SM-8030602-TP SCREW M3X0.5 L=6 (3)
9 SL-6051292-TN BOLT (2)
10 401-37170 CONVEYOR_MOTOR_LR_ASM (2)
11 400-48075 JOINT MOTOR ASM (1)
12 SL-6041242-TN BOLT (4)
13 400-46034 MOTOR BRACKET S(6) (1)
14 400-00870 MOTOR PULLEY C (1)
15 SM-8030602-TP SCREW M3X0.5 L=6 (2)
16 SL-6051492-TN BOLT (2)
17 SL-6051092-TN BOLT (8)
18 SL-6031092-TN SCREW 8
19 401-13944 RAIL_SUPPORT_L 1
20 SL-6051092-TN BOLT 2
21 SL-6041092-TN SCREW 2
22 400-01065 RAIL STAND RL(L) 1
23 400-01066 RAIL STAND RR(L) 1
24 SL-6052092-TN SCREW 4
25 400-00861 PWB GUIDE U 4
- -

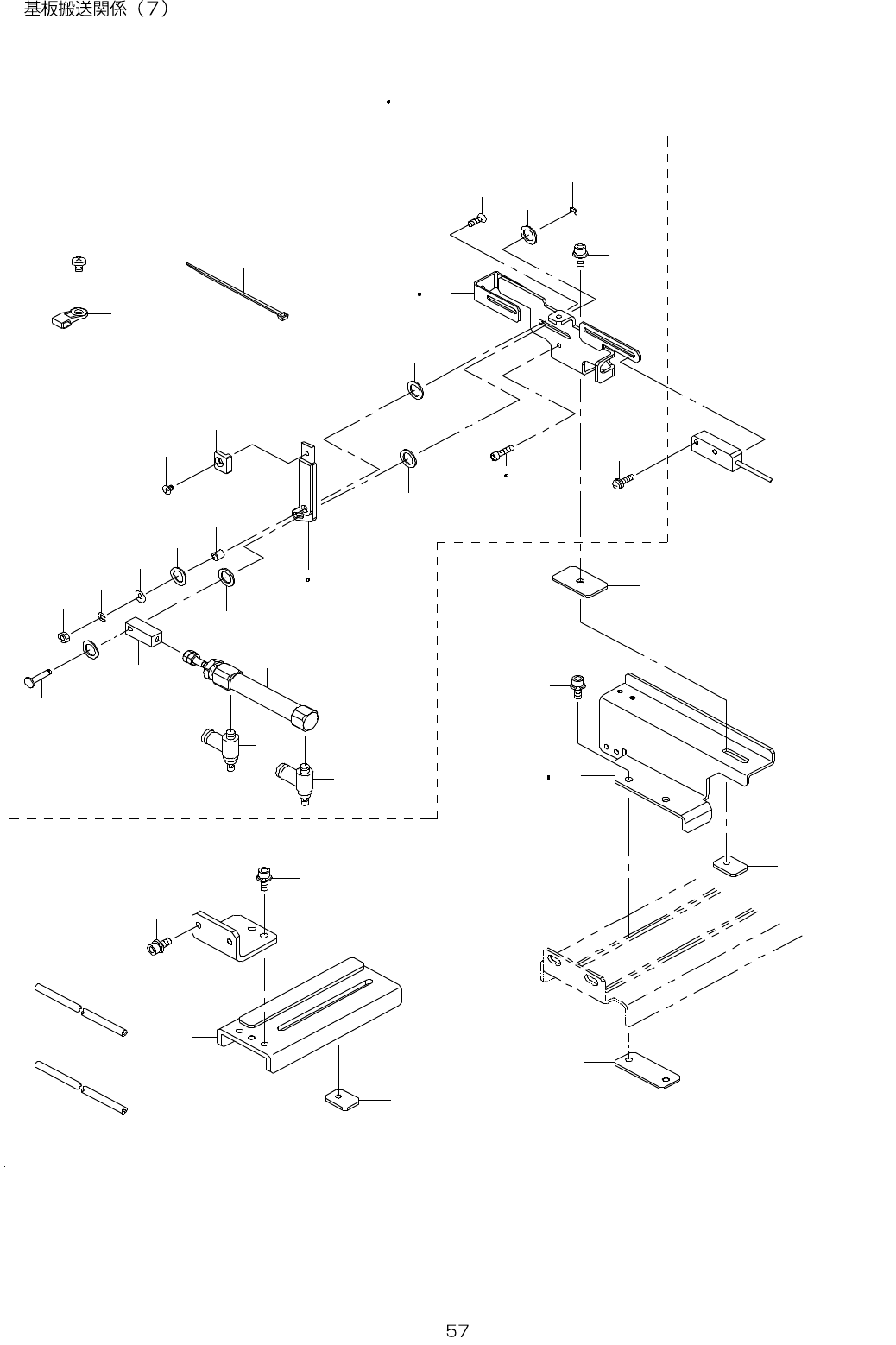

29.PWB CONVEYOR COMPONENTS (7)
9
8
7
3
5
1 5
1 6
1 1
1 8
2 2
3 7
1 7
2 1 2 3
2 4
1 3 2 0
6
1 4
1 9
1 8
1 8
1 8
5
1 2 2 5
4
3 1
3 0
2 9 3 6
3 8
2 8
1 2
3 3
3 5
3 4
3 5
3 2
1 0
1 0
2 6
2 7
4 0
3 9
