- - 33.AUX I LIARY M E M O R Y & UPS, TOUCH PANEL CO MPO N E NTS 1 3 2 4 5 8 9 6 1 0 1 1 7
- -

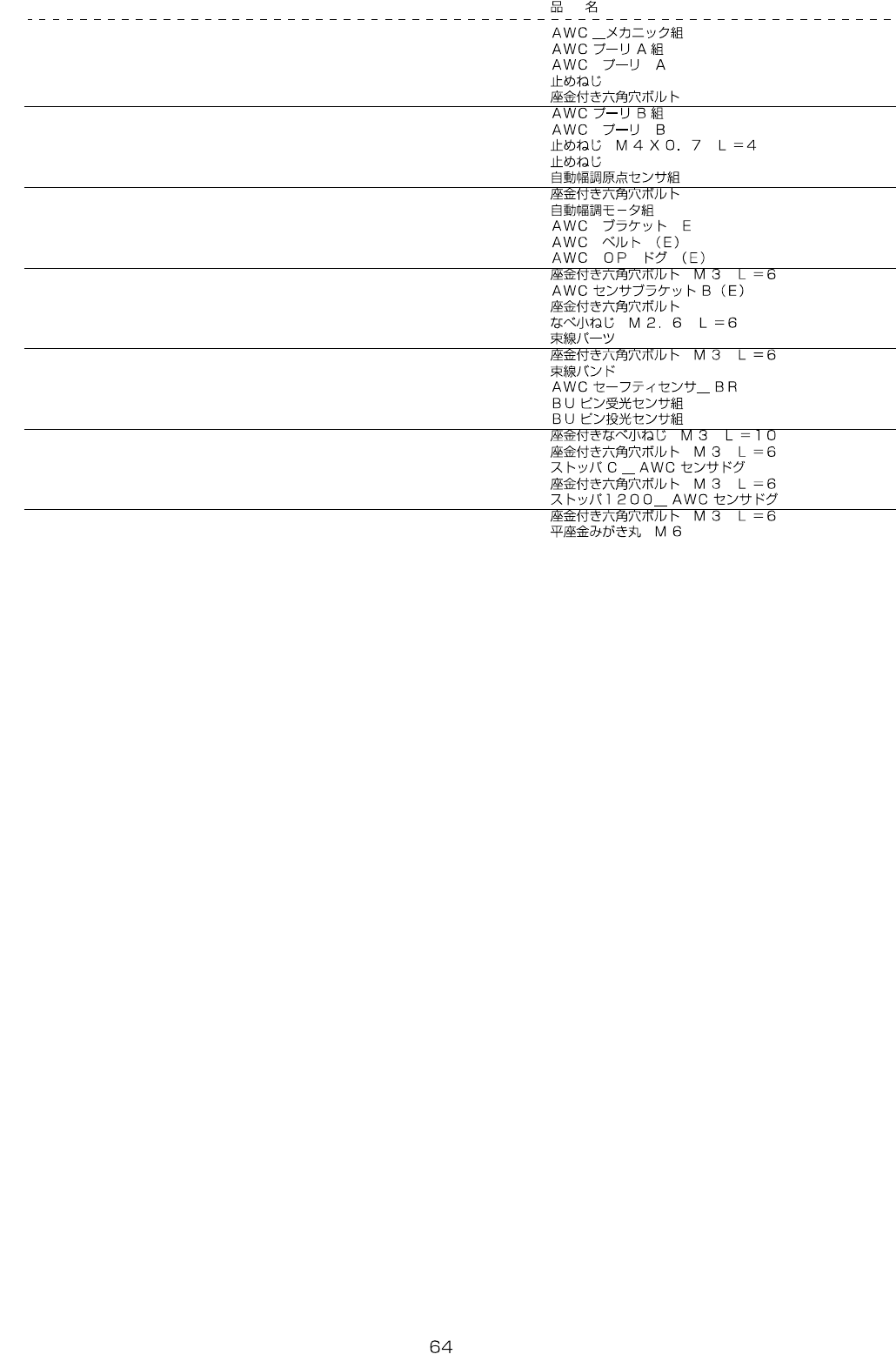

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-36132 AWC_MECHANIC_ASM 1
2 400-00768 AWC PULLEY A ASM. (1)
3 E2153-725-000 AWC PULLEY A (1)
4 SM-8040602-TP SCREW M4X0.7 L=6 (2)
5 SL-6051492-TN BOLT (2)
6 400-00769 AWC PULLEY B ASM. (1)
7 E2154-725-000 AWC PULLEY B (1)
8 SM-8040402-TP SCREW M4X0.7 L=4 (2)
9 SM-8040602-TP SCREW M4X0.7 L=6 (2)
10 400-02120 AWC ORG SENS ASM (1)
11 SL-6031092-TN SCREW (2)
12 E9434-729-0A0 WIDTH ADJUST MOTOR ASM. (1)
13 E2163-725-000 AWC BRACKET E (1)
14 E2160-725-000 AWC BELT (E) (1)
15 E2161-725-000 AWC OP DOG (E) (1)
16 SL-6030692-TN SCREW M3 L=6 (2)
17 E4805-729-000 AWC SENSOR BRACKET B (E) (1)
18 SL-6041092-TN SCREW (4)
19 SM-4860601-SC SCREW M2.6 L=6 (1)
20 HX-0034400-00 HARNESS PARTS (1)
21 SL-6030692-TN SCREW M3 L=6 (1)
22 EA-9500B01-00 CABLE BAND (2)
23 401-35492 AWC_SAFETY_SENSOR_BR (2)
24 401-36124 BU PIN RECEIVE SENS ASM (1)
25 401-36126 BU PIN EMISSION SENS ASM (1)
26 SL-4031091-SC SCREW M3 L=10 (4)
27 SL-6030692-TN SCREW M3 L=6 (4)
28 401-35493 STOPPER_C_AWC_SENS_DOG (1)
29 SL-6030692-TN SCREW M3 L=6 (2)
30 401-35494 STOPPER_1200_AWC_SENS_DOG (1)
31 SL-6030692-TN SCREW M3 L=6 (1)
32 WP-0641601-SC WASHER (1)
- -

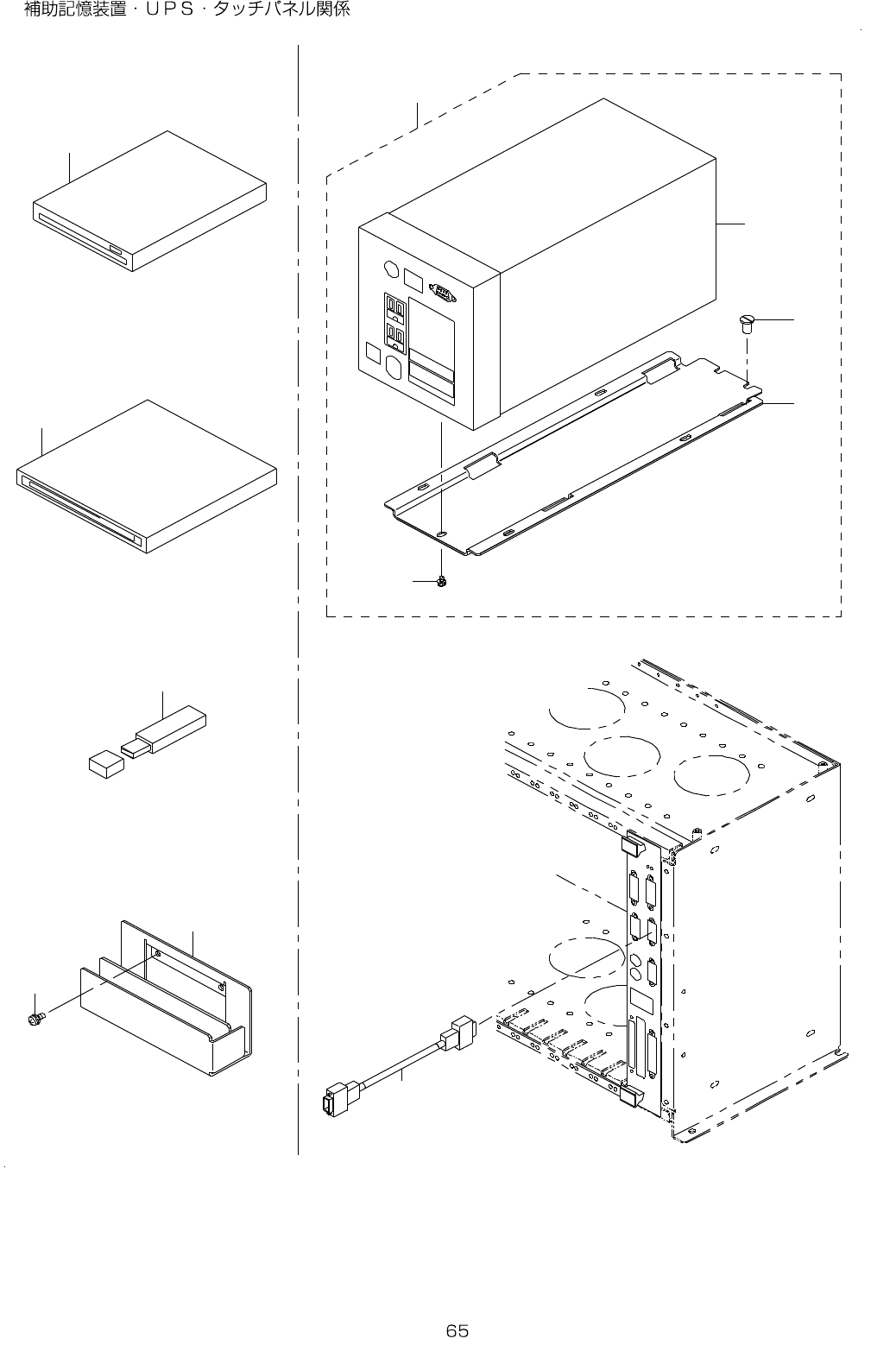

33.AUXILIARY MEMORY & UPS, TOUCH PANEL COMPONENTS
1
3
2
4
5
8
9
6
1 0
1 1
7
- -

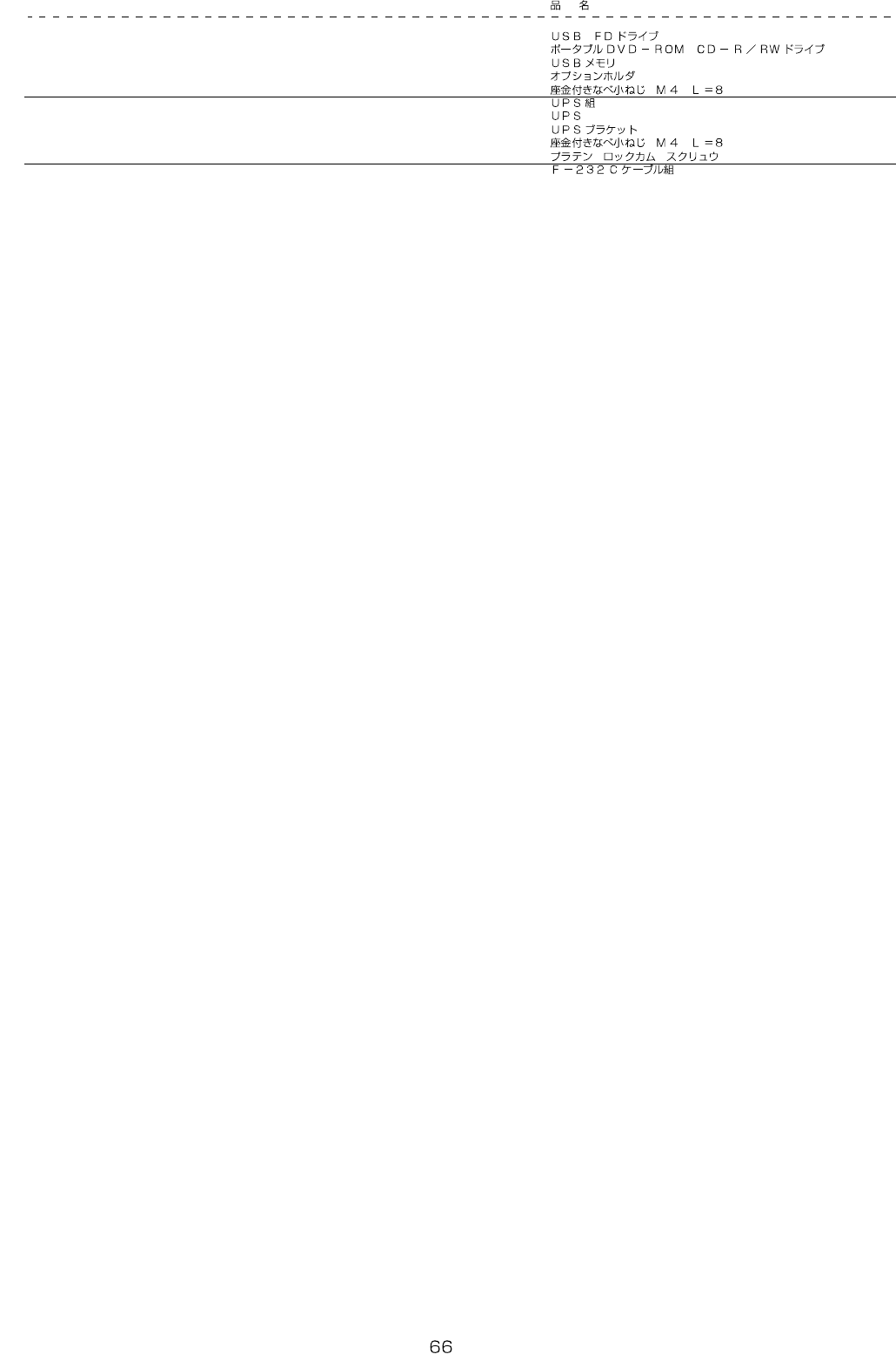

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-91222 USB FD DRIVE 1
2 400-44524 PORTABLE DVD-ROM CD-R/RW DRIVE 1
3 400-52558 USB MEMORY 1
4 400-46633 OPTION HOLDER 1
5 SL-4040891-S C SCREW M4 L=8 2
6 401-35946 UPS_ASM 1
7 400-95745 UPS (1)
8 400-00479 UPS BRACKET (1)
9 SL-4040891-S C SCREW M4 L=8 (1)
10 E1038-871-000 P LATEN LOCK CAM SCREW (2)
11 400-27815 F-232C CABLE ASM 1
