- - 35.BAD MARK READER COMPONEN T S 5 6 7 2 1 3 4 8
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 EA-9500B01-00 CABLE BAND 7
2 HX-0029400-00 FIXED BASE 6
3 400-01306 CABLE PROTECTOR SHEET 0.25
4 SL-6040692-TN BOLT 5
5 400-46055 HMS BRACKET 1
6 400-46508 HMS AMP BR 1
7 400-02185 HIGHT SENSOR CABLE ASM 2
8 400-01722 HMS BASE AMP 1
9 SL-6030892-TN SCREW M3 L=8 2
10 SL-6032042-TN SCREW 2
11 400-55289 HMS CABLE BR 1
12 SM-4040601-SC SCREW M4X0.7 L=6 6
- -

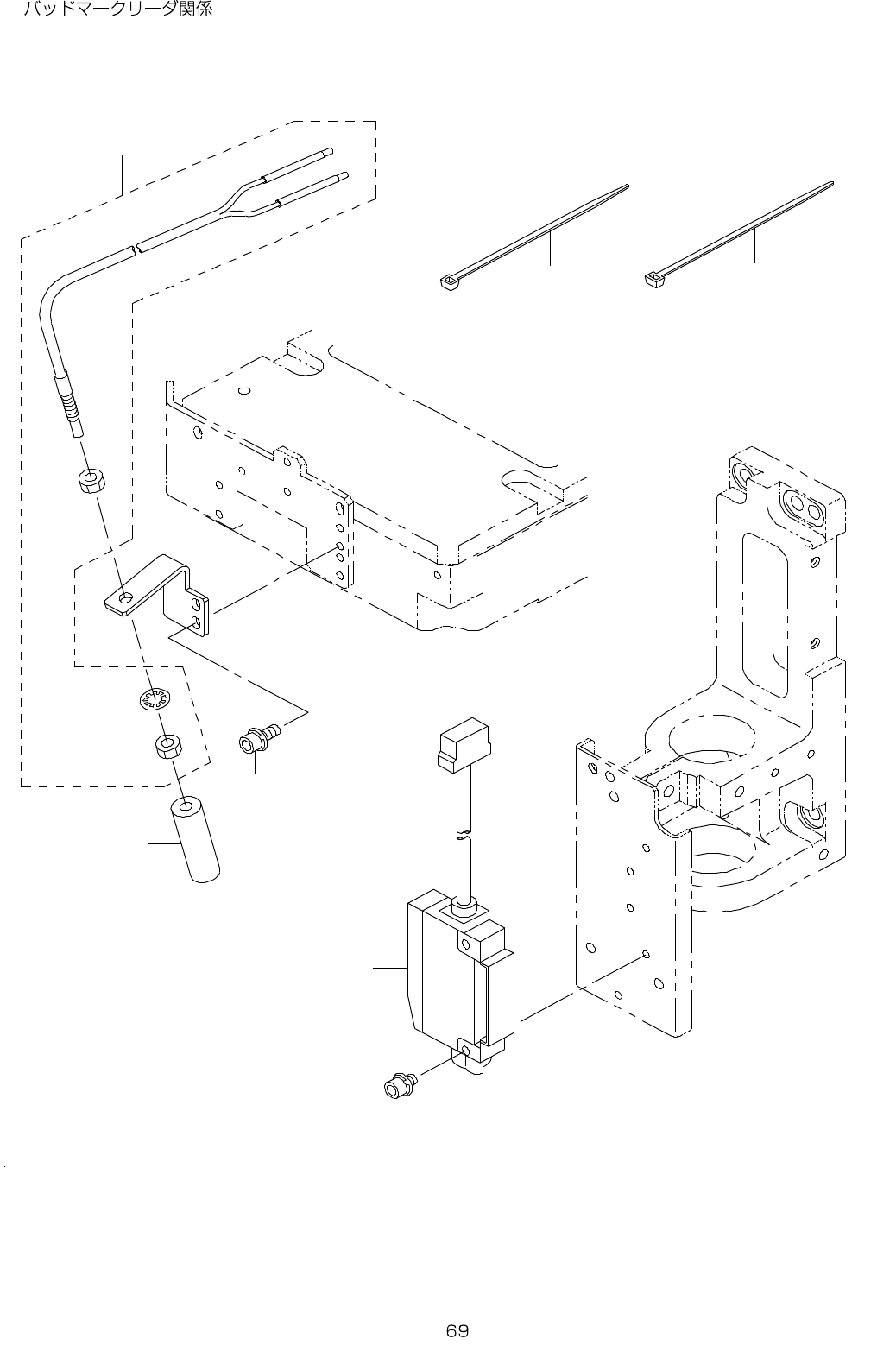

35.BAD MARK READER COMPONENTS
5
6
7
2
1
3
4
8
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-46057 BM HOLDER 1
2 SL-6030592-TN SCREW M3 L=5 2
3 400-02267 BAD MARK SENSOR ASM 1
4 SM-6030602-TN SCREW M3X6 2
5 HD-0013100-40 SENSOR 1
6 E9638-729-000 FIBER LENS 1
7 EA-9500B01-00 CABLE BAND 4
8 EA-9500B02-00 CABLE BAND 150 8
